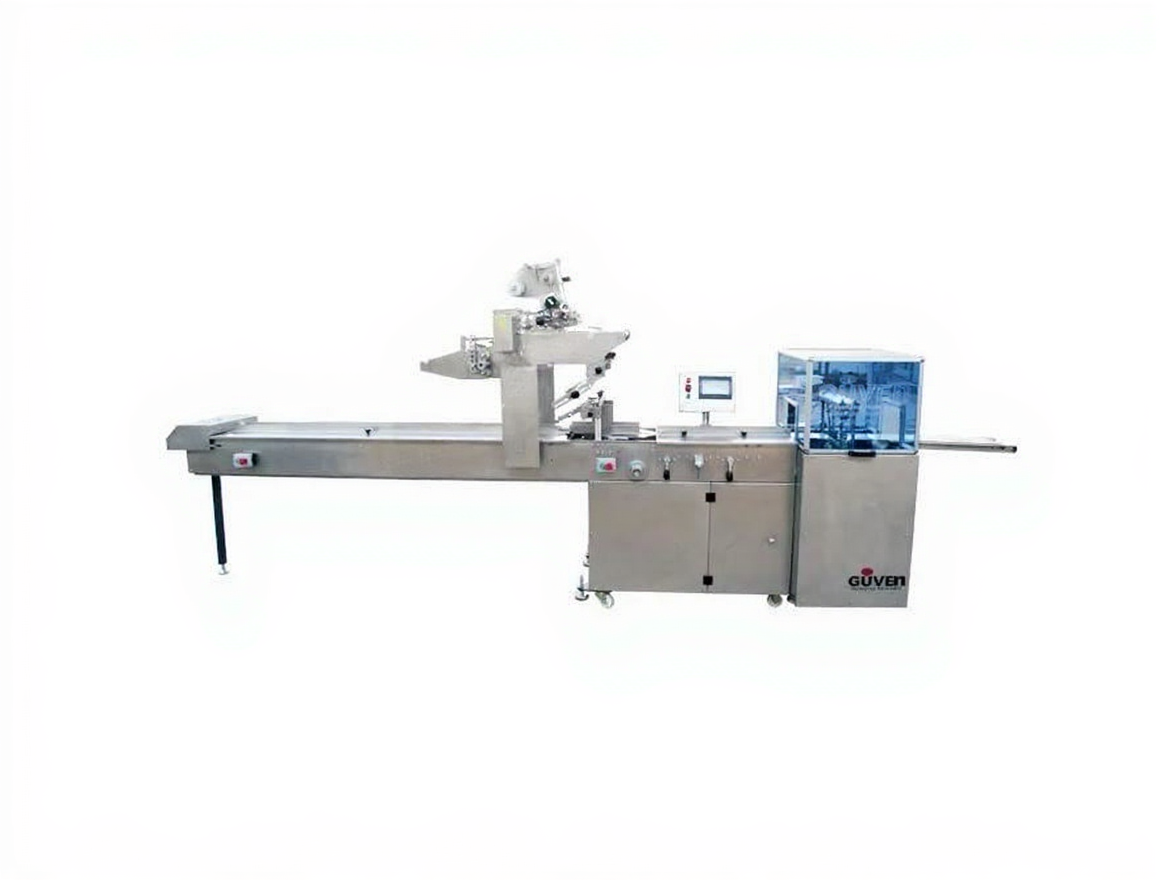

90 pack/min Servo Motor Horizontal Walking Jaw Packaging Machine
| Brand | Güven |
|---|---|
| Model Type |
GM 103FS |
Horizontal Jaw Motion Packaging Machine with 90 packs/min Servo Motor
GM 103FS 4-axis Servo Motor, Slider Jaw, Flat Printing Jaw, No Product No Package System, No Gap No Cut System, photoelectric, 7′ 65536 color touch screen packaging machine. It is suitable for transparent, continuously printed and photocell printed packaging use.
With the No Product No Package System, if there is no product on the product conveyor, the packaging pulling system and rotating cutting jaw system stop to prevent packaging waste, and when there is a product on the conveyor, it operates automatically.
With the No Gap No Cut System, to prevent the product from entering the package in the wrong position and getting stuck under the rotating cutting jaw, the rotating cutting jaw stops and resumes operation automatically after the product in the wrong position has passed.
The Flat Printing Jaw System makes the stitches higher quality and more durable. Therefore, flat sealing is used in applications where leakage of the package would be a problem. Applications where there should be no leakage and the smallest possibility of air escape such as MAP (Gas Flushing System), Wet Wipes.
Thanks to the user-friendly touch screen of GM 103FS, all settings can be made via the touch screen. In addition, all alarm situations are visually and textually displayed thanks to the regional alarm system. Packaging Speed can reach up to 90 packs/min. It is a suitable solution for packaging products such as Wet Wipes, Wet Towels, MAP Packaging, Cold Sandwich.
Advanced technology and compact design.
Slider Jaw System.
Possibility of using different product types and different coil.
Visual monitoring of the machine via touch screen with regional alarm and control system.
Easy to use with 7′ 65536 color touch screen.
Servo Motor System
CONSTRUCTION
The body is made of 4mm sheet metal and electrostatically painted.
The surfaces in contact with the product and the machine are Stainless Steel Cr-Ni.
The machine can be easily moved with durable adjustable wheels.
The machine can be fixed after placement with durable adjustable feet.
PACKAGING MATERIALS TO BE USED
– Single-faced hot or cold-applied lacquered cellophane, PVC, polypropylene OPP.BOPP, paper, and aluminum laminations.
GENERAL FEATURES
90 Packs/min
Lockable cover system
4-axis Servo Motor Controlled
Photoelectric System
Slider Jaw System
7′ 65536 color Touch Screen
No Product No Package System
No Gap No Cut System
Possibility of easily changing packaging size
220 VAC / 50Hz 1 Phase + N, 4 KW
24 VDC Control Voltage for Safety
Belt Product conveying system
Stepless Package length,
Stepless Machine Speed,
Stepless Jaw Speed
Product Feeding Conveyor
Adjustable Wrapping Box
Easily replaceable pusher soldier system
3 sets of lower stitching system
Cutting Jaw overload safety
PID controlled 2-zone heating control system
OPTIONAL
Date printing machine
Gas-flushing unit
PRODUCTS THAT CAN BE PACKAGED
– It can package products such as Wet Wipes packaging machine, wet towel packaging machine, cold sandwich packaging machine, MAP packaging machine, and various products that fit within the packaging dimensions.
