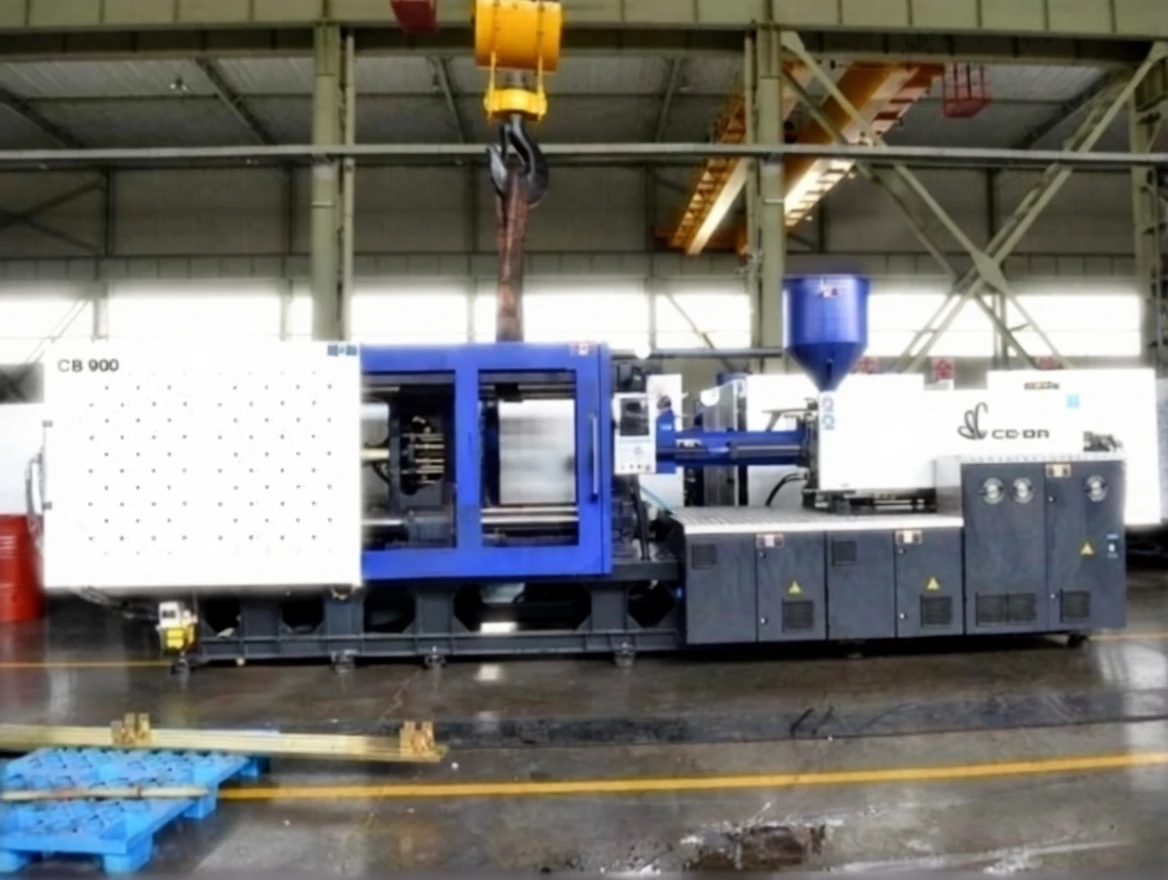

900 Ton Servo Plastic Injection Molding Machine
| Brand | Ce-Ba/Haitai |
|---|---|
| Model Type |
CB 900 |
900 Ton Servo Plastic Injection Molding Machine
Ce-Ba/Haitai CB Series CB 900
Servo Plastic Injection Machines
The energy-saving injection molding machine is equipped with a high-performance servo motor control system. This study aims to design servo motor-driven injection machines. With this study, the technological gains, features, speed, precision, energy efficiency, and quality of the next-generation plastic injection machine designed using servo motors have been compared to traditional A/C motor machines.
The energy-saving injection molding machine is equipped with a high-performance servo motor control system. This study aims to design servo motor-driven injection machines.
With this study, the technological gains, features, speed, precision, energy efficiency, and quality of the next-generation plastic injection machine designed using servo motors have been compared to traditional A/C motor machines.
Ce-Ba/Haitai CB 900 Technical Specifications
|
MODEL CODE |
CB 900 |
|||||
|
INJECTION UNIT |
INJECTION UNIT |
Unit |
|
|||
|
Screw Type |
Screw Type |
|
A |
B |
C |
D |
|
Screw diameter |
Screw diameter |
mm |
90 |
100 |
110 |
120 |
|
Screw L/D ratio |
Screw L/D ratio |
L/D |
24 |
22 |
20 |
18 |
|
Shot volume(therretical) |
Shot volume(therretical) |
cm3 |
3499 |
4320 |
5227 |
6220 |
|
Injection weight(ps) |
Injection weight(ps) |
g |
3184 |
3930 |
4757 |
5660 |
|
Injection rate |
Injection rate |
g/s |
583 |
720 |
871 |
1036 |
|
Injection pressure |
Injection pressure |
MPa |
237 |
192 |
159 |
133 |
|
Screw speed |
Screw speed |
rpm |
100 |
|||
|
CLAMPING UNIT |
CLAMPING UNIT |
|
|
|||
|
Clamping force |
Clamping force |
KN |
9000 |
|||
|
Open stroke |
Open stroke |
mm |
1100 |
|||
|
Space between tie bars(W×H) |
Space between tie bars(W×H) |
mm |
1080X1080 |
|||
|
Max.Mould height |
Max.Mould height |
mm |
1100 |
|||
|
Min.Mould height |
Min.Mould height |
mm |
480 |
|||
|
Ejector stroke |
Ejector stroke |
mm |
300 |
|||
|
Ejector force |
Ejector force |
KN |
245 |
|||
|
OTHERS |
OTHERS |
|
|
|||
|
[ URL HIDDEN ] pressure |
[ URL HIDDEN ] pressure |
MPa |
17.5 |
|||
|
Pump motor power |
Pump motor power |
KW |
50.2+50.2 |
|||
|
Heating power |
Heating power |
KW |
65.6 |
|||
|
Machine dimension(L×W×H) |
Machine dimension(L×W×H) |
m |
12.00×2.62×3.01 |
|||
|
Oiltank cubage |
Oiltank cubage |
L |
1565 |
|||
|
Machine weight |
Machine weight |
t |
47.3 |
|||
Used Main Parts
.jpg)
Function List
.jpg)
