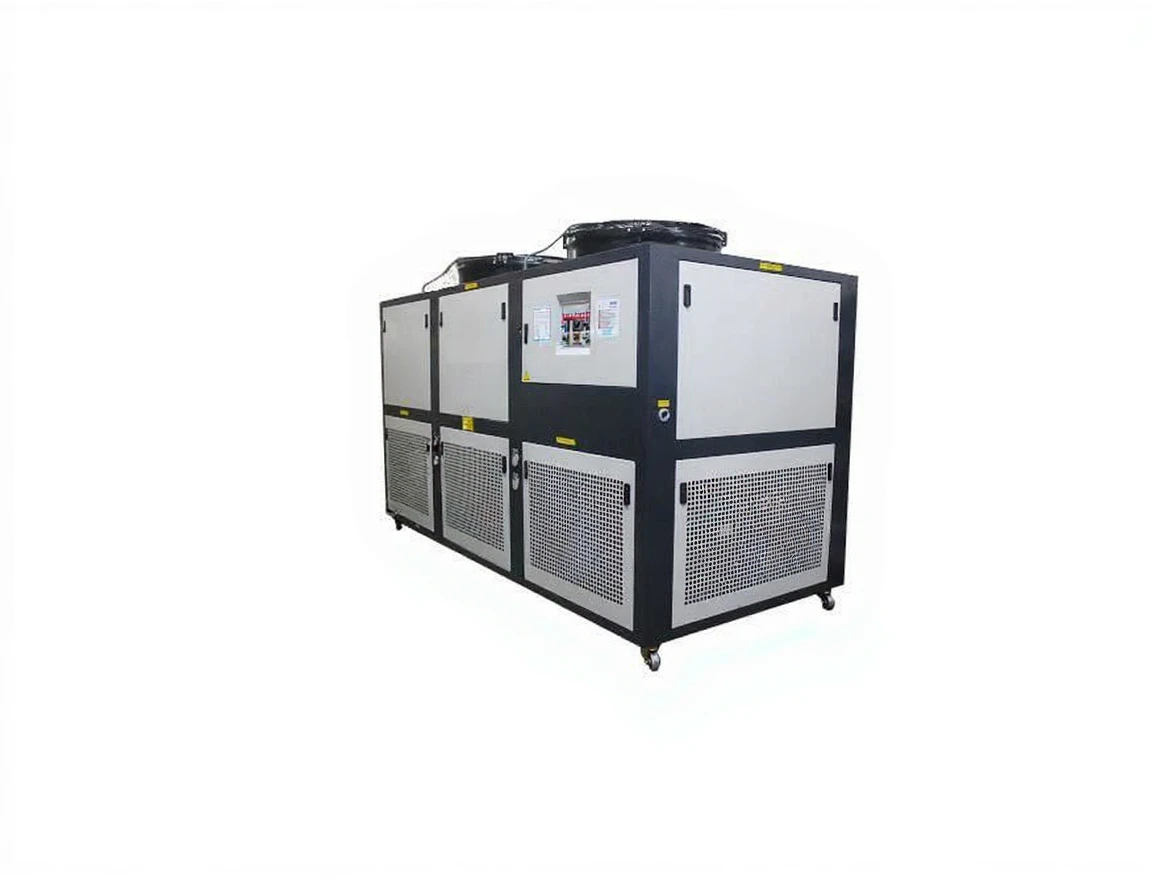

90,000 Kcal/Hour Scroll Cooling Chiller

CAPACITY                        90,000 KCAL/H

CONTROL SYSTEM                                 Microprocessor

CONDENSER TYPE                                    AIR COOLED

COMPRESSOR                                            SEMI HERMETIC – DORIN / ITALY

FAN                                                              GERMAN ROSANBERG

FAN FLOW                                                2 x 24,000M³/H

NUMBER OF FANS                                                2 UNITS

SET VALUE                                               + 5 ⁰C / + 30 ⁰C (Water temperature can be set within these ranges. It can operate down to -5 ⁰C water temperature by using antifreeze below + 5 ⁰C.)

AMBIENT TEMPERATURE                                  +32 ⁰C

(This is the ambient temperature value taken into account for the design. It can operate without problems up to +50 ⁰C ambient temperature.)

TANK VOLUME                                            350  LT

PUMP                                                      2 UNITS

1. PUMP FLOW 24 M³/H / 4 BAR

2. PUMP FLOW 22.5 M³/H / 4 BAR

WATER INLET                                                   2 ‘’

WATER OUTLET                                                    2 ‘’
