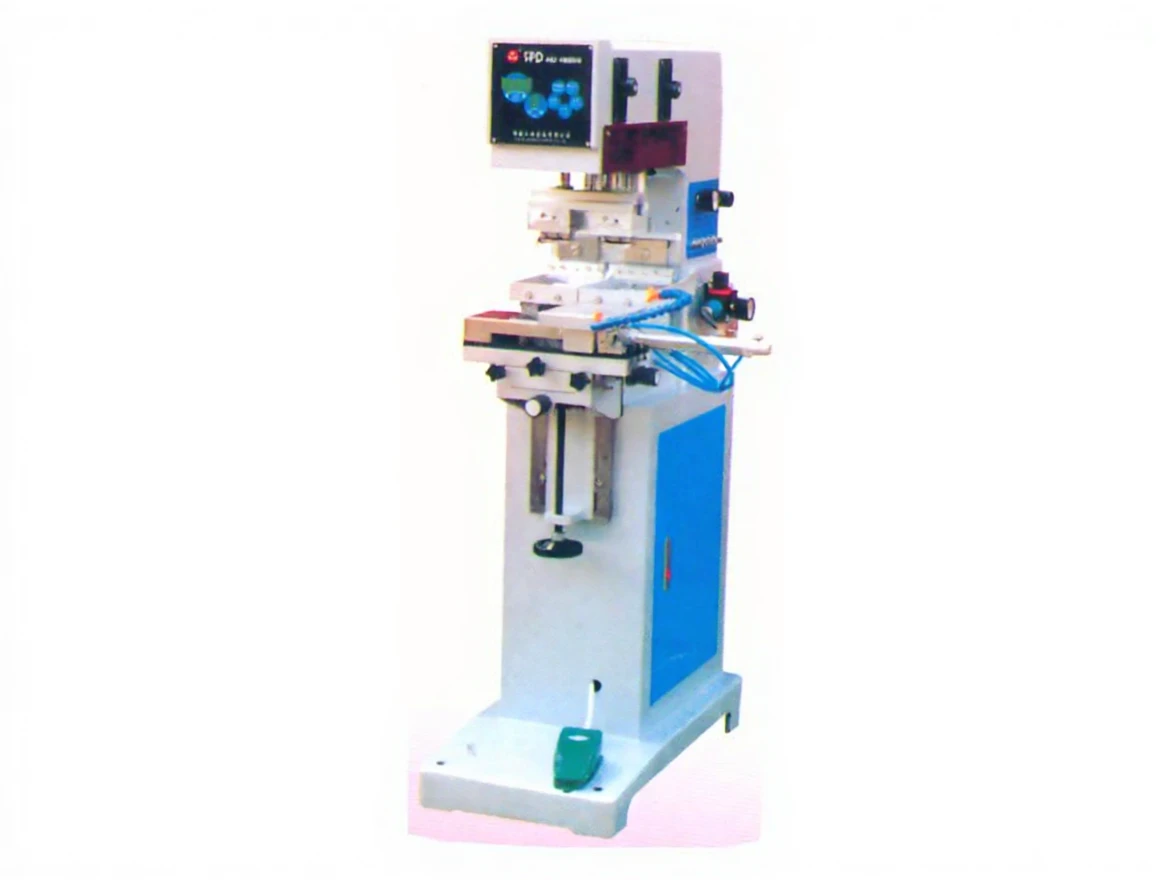

90mm Çift Renk Kapalı Hazne Tampon Baskı Makinası

Two Color Closed Chamber Shuttle Pad Printing Machine

It works with a closed chamber cliché system. Silicone printing force can be separately adjusted on the cliché and the material. The magnetic cliché table allows the use of thin clichés with thicknesses of 0.3, 0.5, and 1 mm. 10 mm thick cliché application is also possible with this system. The adjustment table that can be moved in X, Y, Z axes is suitable for your precise adjustments. It does not require separate legs or table with its monoblock body. The shuttle system moves the material from right to left under the printing heads. Right and/or left chambers can be used separately as a single color.
European quality pneumatic components
High-quality aluminum parts
Easy to use, touchscreen panel
Adjustable silicone speed
Printing counter
SPD 2045DE
Cliché size: 100 x 250 mm (for each chamber)
Doctor blade: 90 mm Ø
Printing area: 80 mm Ø ( for each chamber )
Printing speed: 1200 cycles/hour
Printing force: 0.3-0.7 Mpa
Air Consumption: 0.04 m³/min.
Dimensions:
  Width: 350 mm
  Length: 650 mm
  Height: 1,300 mm
  Weight: 105 kg
Standard Equipment of the Machine
Paint container and knife x 2
Silicone x 2
Silicone adjustment part
Cliché holder magnetic bottom part x 2
