90X4mm 3 Axis Mandrel Pipe Bending Machine Controlled by CNC

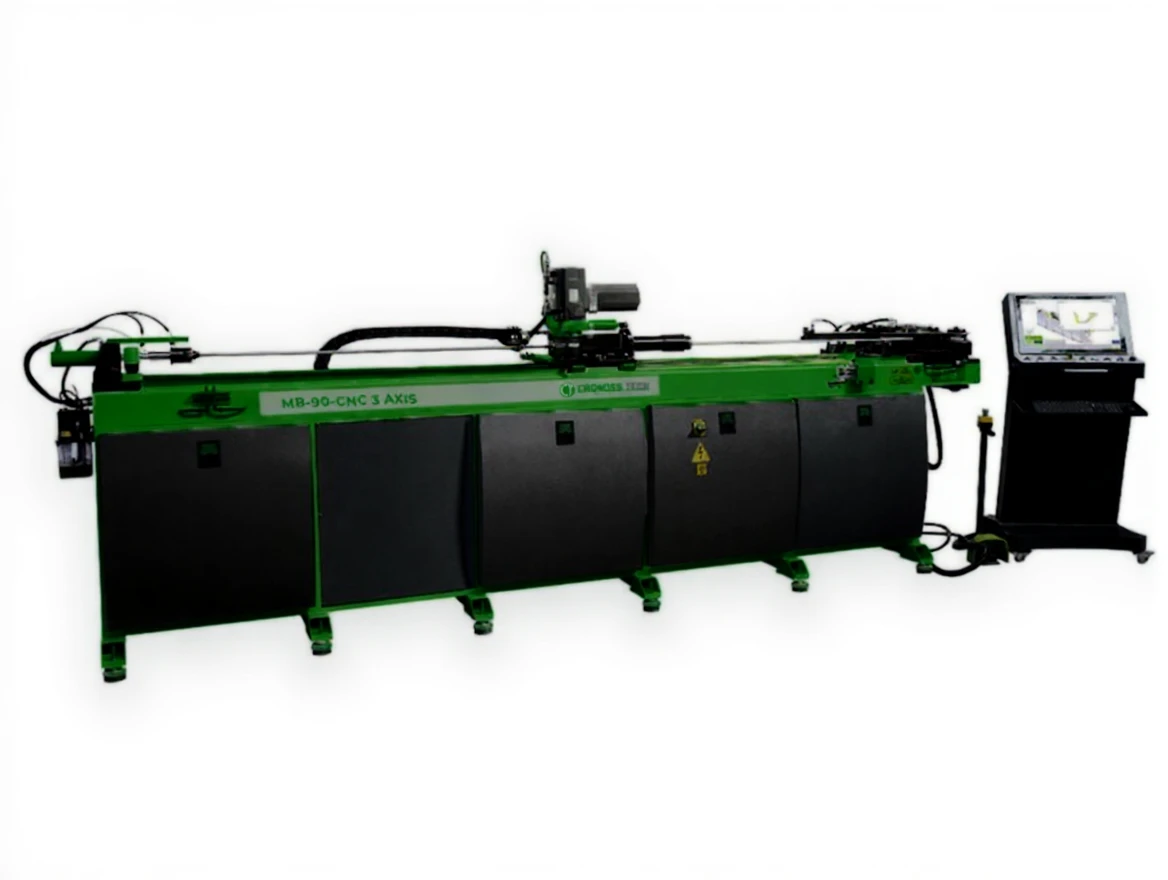

MB 90 CNC / 3 Axis Mandrel Tube Bending Machine

General Description

MB 90 CNC is a CNC controlled 3 axis tube bending machine capable of mandrel and mandrel-free bending. With servo-controlled axis structure, hydraulic clamping systems, and CNC control unit supported by 3D simulation, it provides high precision, repeatability, and production efficiency.

Designed for serial production and special project requirements for large diameter tube bending applications in industries such as automotive, furniture, heating-cooling, metal construction, tube, and profile processing.

⚙️ Standard Features

• 1 set of bending mold according to customer's requirements

• Servo motorized feed axis

• Servo motorized rotation axis

• Servo motorized bending axis ( MB 38 CNC / 3 Axis )

• Reducer-driven bending system ([ PHONE HIDDEN ])

• Mobile 21" color screen CNC control unit

• 3D simulation bending

• Automatic email sending of detailed work reports

• Daily / weekly / monthly total production quantity tracking

• Total material length to be used calculation

• Estimation of bending time calculation

• Automatic conversion of X-Y-Z data to Y-B-C axes

• Remote assistance and service connection

• Portable foot pedal with emergency stop

• Manual and automatic bending modes

• Mandrel and mandrel-free bending capability

• Safety plate with switch behind the bending head

• Automatic mandrel lubrication system

• Hydraulic clamping system

• Hydraulic mandrel

• Hydraulic support

• Hydraulic linear slider system

• Hydraulic pen

• Hydraulic oil cooler

• Safety lock on the electrical panel and key lock on the panel

• Electrical panel cooler

• Protection system against overload

🔩 Optional Features

• Spare bending mold set according to desired dimensions

• Servo bending ([ PHONE HIDDEN ])

• Safety mat (750 × 1000 mm)

• Safety mat (1000 × 1500 mm)

• Hydraulic oil heater

• Extra mandrel length (per meter)

• Spoon attachment and articulated mandrel

• Automatic mandrel lubrication system ([ PHONE HIDDEN ])

📊 Technical Specifications (Ø90 × 4 mm)

🏭 Production Note (OEM)

This machine is produced within the scope of OEM production in Turkey, and supply, configuration, and commercial management are carried out by CRONOSSTECH.
