950 Mm Double-Sided Laminating Machine
| Brand | Şevmak |
|---|---|
| Model Type |
LM-12 |

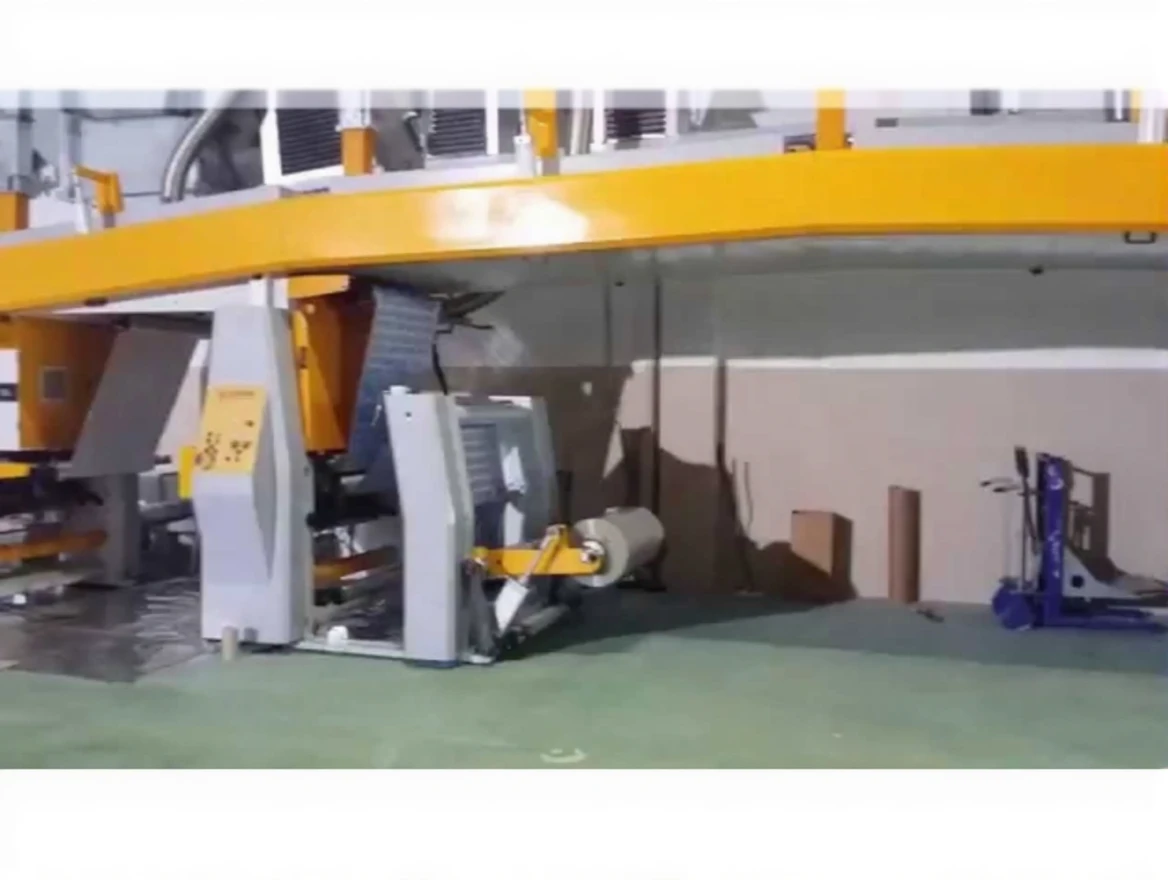

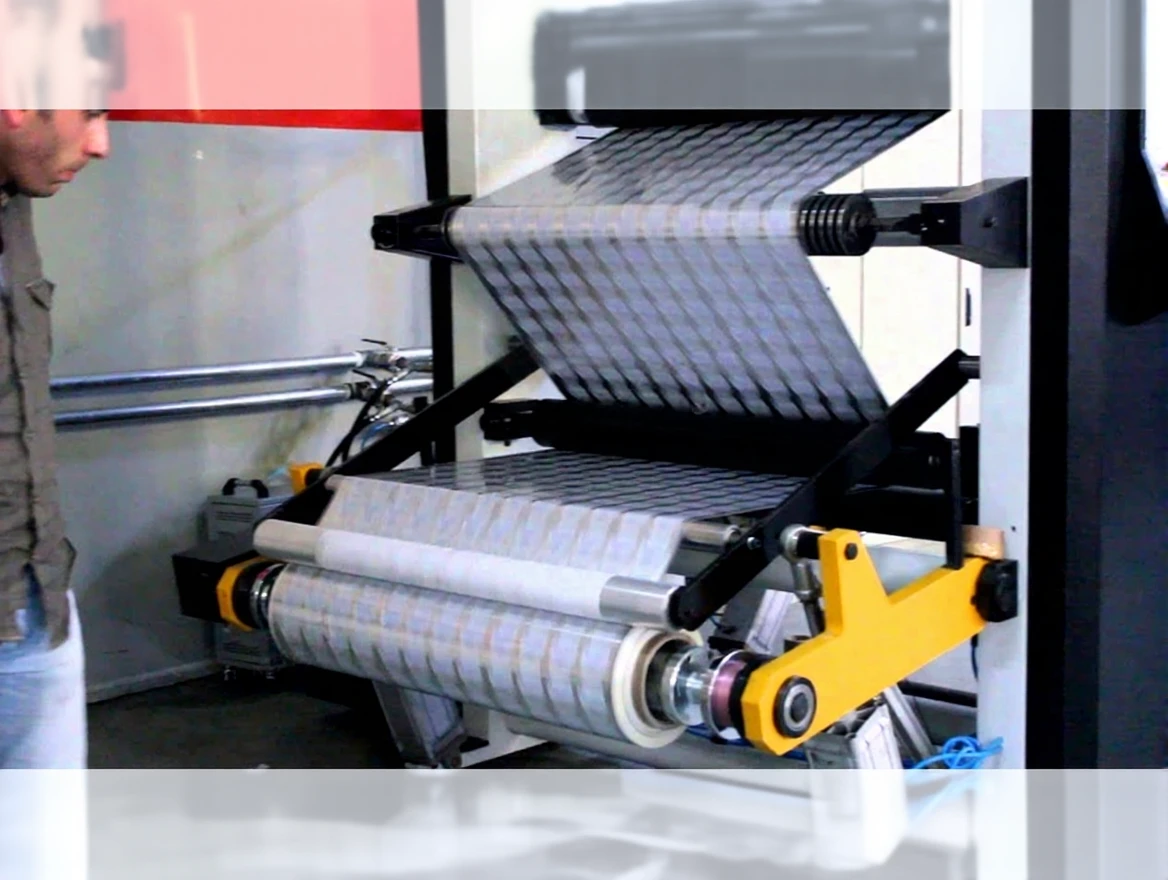

950 mm Double-Sided Laminating Machine – Wide Format and High-Speed Laminating Solution
The double-sided laminating machine with a width of 950 mm and a length of 12 meters is specially designed for wide format laminating processes. This machine offers high speed, superior quality, and durability in industrial laminating processes, providing precise and efficient lamination on various materials.
Key Features
-
Drying Tunnels and Heat Control: 4-door, pneumatically operated drying tunnels; with resistance or hot oil coil options, ensuring optimal drying of the material.
-
Synchronized Idle Rollers: Chrome-plated, ground idle rollers with a diameter of 100 mm located inside the tunnel, work in synchronization with the machine via a timing belt, guiding the material smoothly during lamination.
-
Advanced PLC Controlled System: Speed, revolutions, meter readings, and temperature values can be easily adjusted. Automatic temperature indicators continuously monitor the temperature of critical areas.
-
High Capacity Motors: 15 kW main motor and 10 kW winding motor, reaching a maximum speed of 200 m/min, increasing production efficiency.
-
Flexible and Adjustable Design: While the specifications remain fixed, the winding shafts are equipped with a sliding system; thus, materials of different sizes and features can be processed easily.
-
Fully Equipped Delivery: Two paint tanks and an ink pump are delivered with the machine. Additionally, conditioners and air installations are ready and assembled.
Technical Specifications
-
Working Width: 950 mm
-
Machine Length: 12 meters
-
Maximum Speed: 200 m/min
-
Motors: 15 kW main motor, 10 kW winding motor
Reliable and Efficient Solution in Industrial Laminating
The 950 mm Double-Sided Laminating Machine is ideal for packaging, graphics, and various industrial applications. With its high-speed production capacity and precise lamination capabilities, it enhances operational efficiency and elevates production quality to the highest level.
