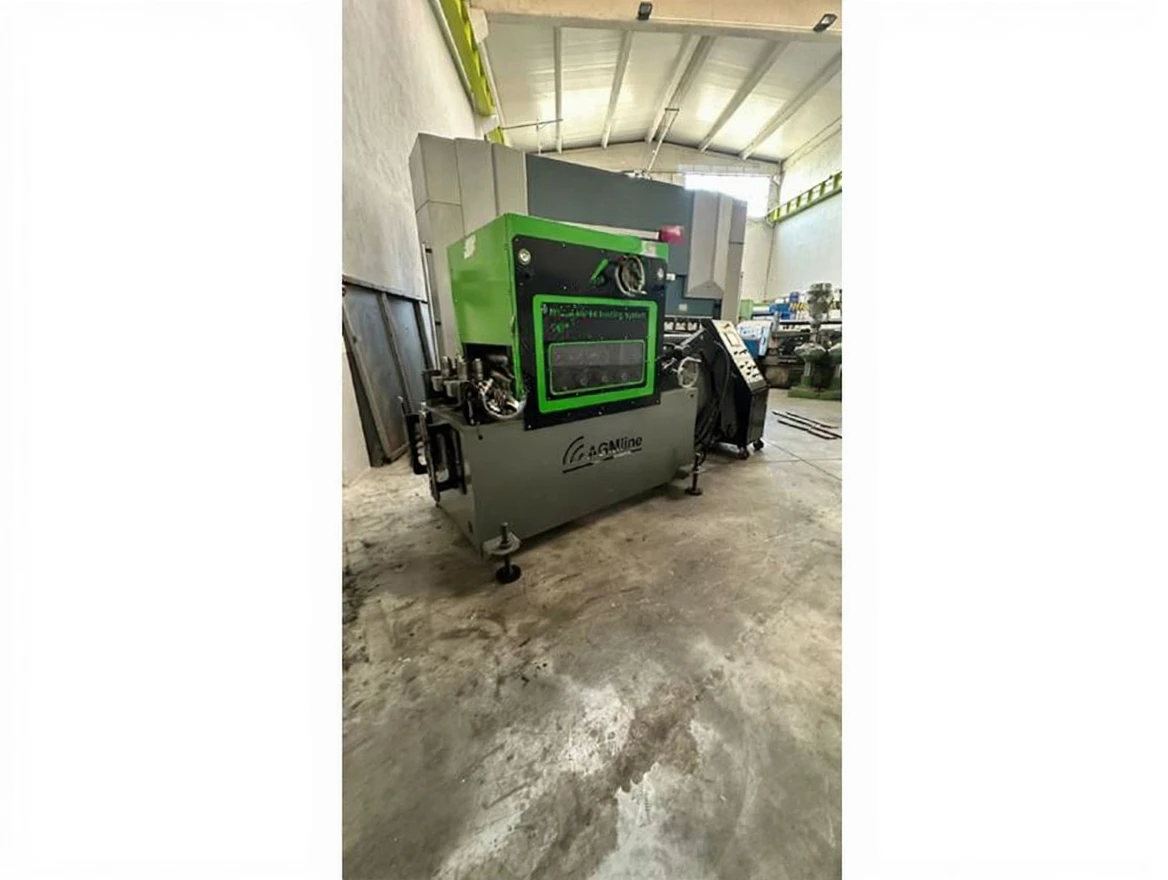

Agmline Brand Roll Sheet Opener and Driver 300 mm Sheet Width 1 – 6 mm

AGMLINE BRAND 300 MM SHEET METAL WIDTH 1-6 MM COIL
SHEET METAL THICKNESS DRIVE
LOADING CAR CAPACITY
CAPACITY 6000 KG (1 ROLL)
MAXIMUM COIL WIDTH 300 MM
MAXIMUM COIL OUTSIDE DIAMETER 1600 MM
MINIMUM COIL OUTSIDE DIAMETER 900 MM
V-TYPE
LIFT HEIGHT 350 MM – HYDRAULIC PISTON

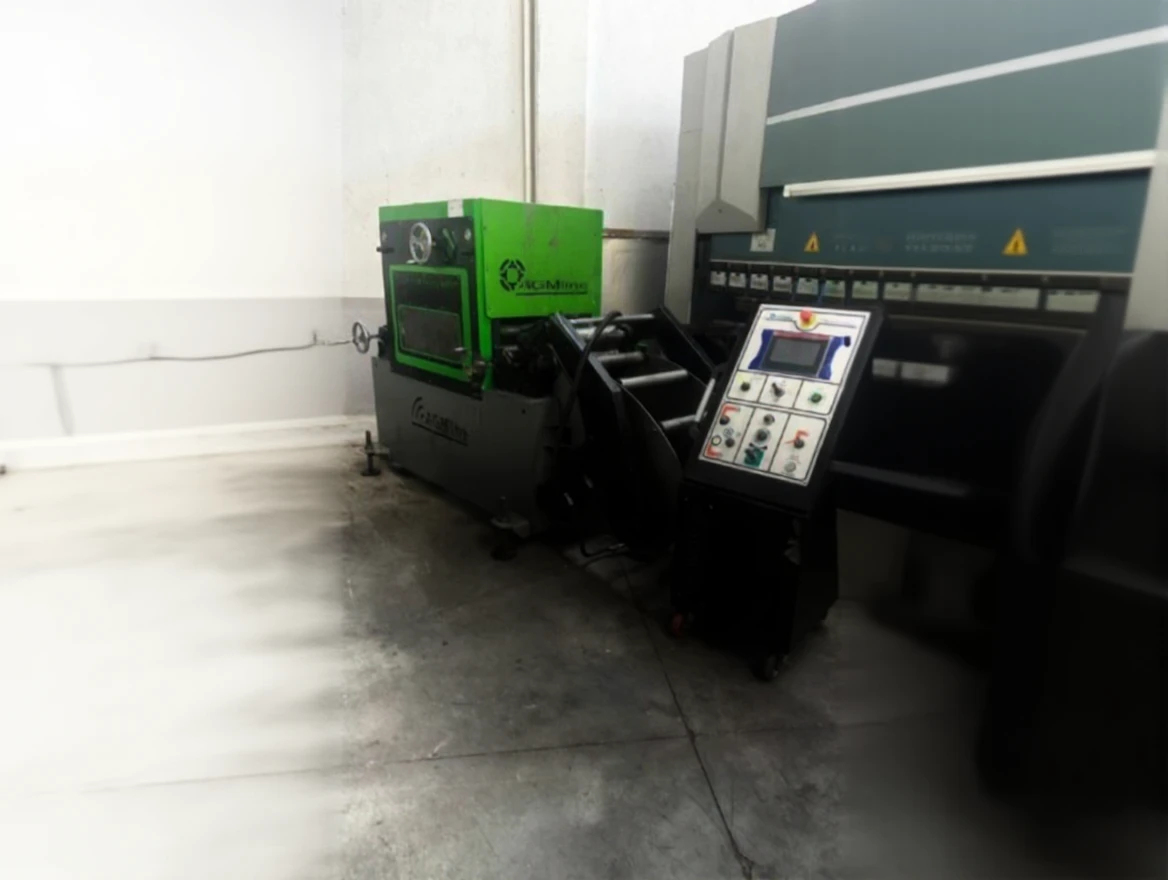

CONTROL PANEL INTRODUCTION OPERATOR PANEL
MOTORIZED OPERATION

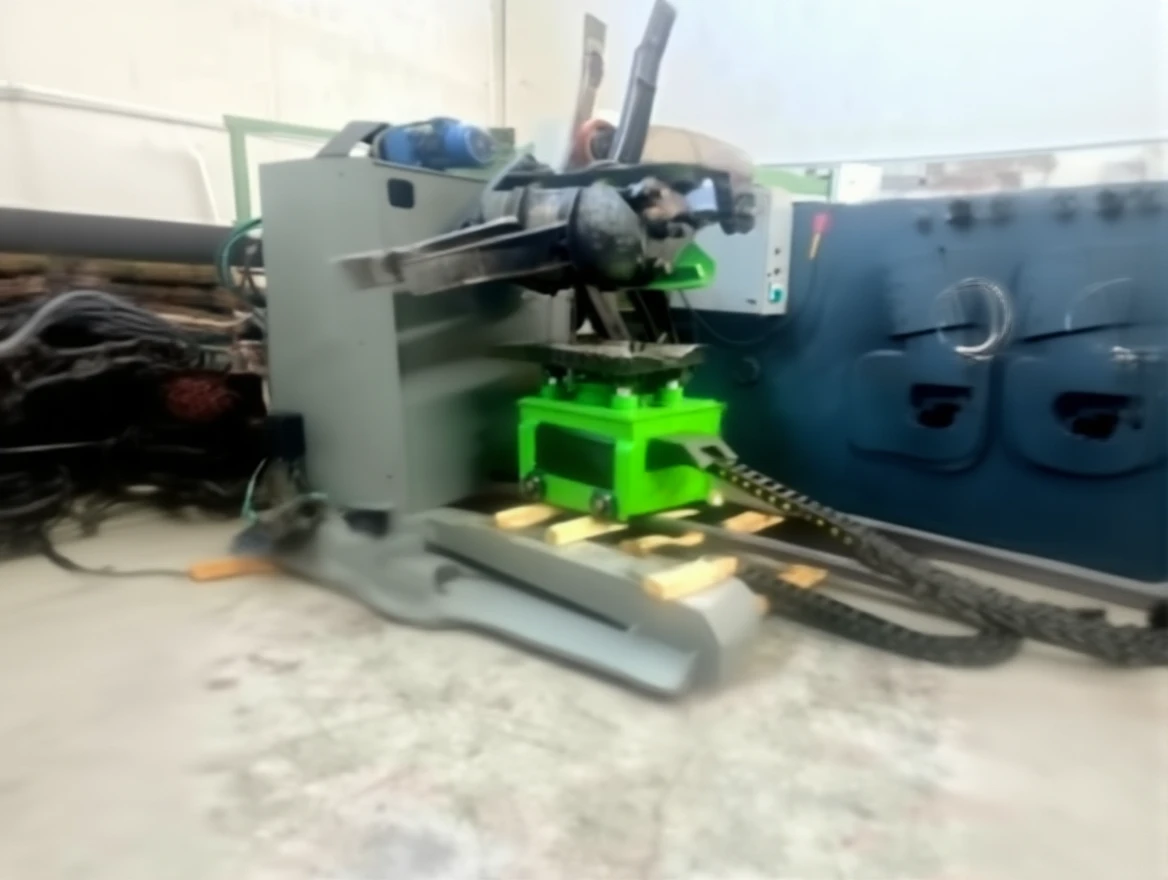

CONICAL MANDREL HYDRAULIC COIL UNCOIL
ROLL INNER DIAMETER WORKING MM 480 / 560 MM
MANDREL DIAMETER WORKING MM 490 / 550 MM
CHANNEL-TYPE CONICAL ROLLER INNER DIAMETER CLAMPING
SHEET METAL TENSIONER AC MOTOR WITH SPEED CONTROL
HYDRAULIC POWER FROM MAIN POWER UNIT
FEED DRIVER AC MOTOR AND GEAR REDUCER
