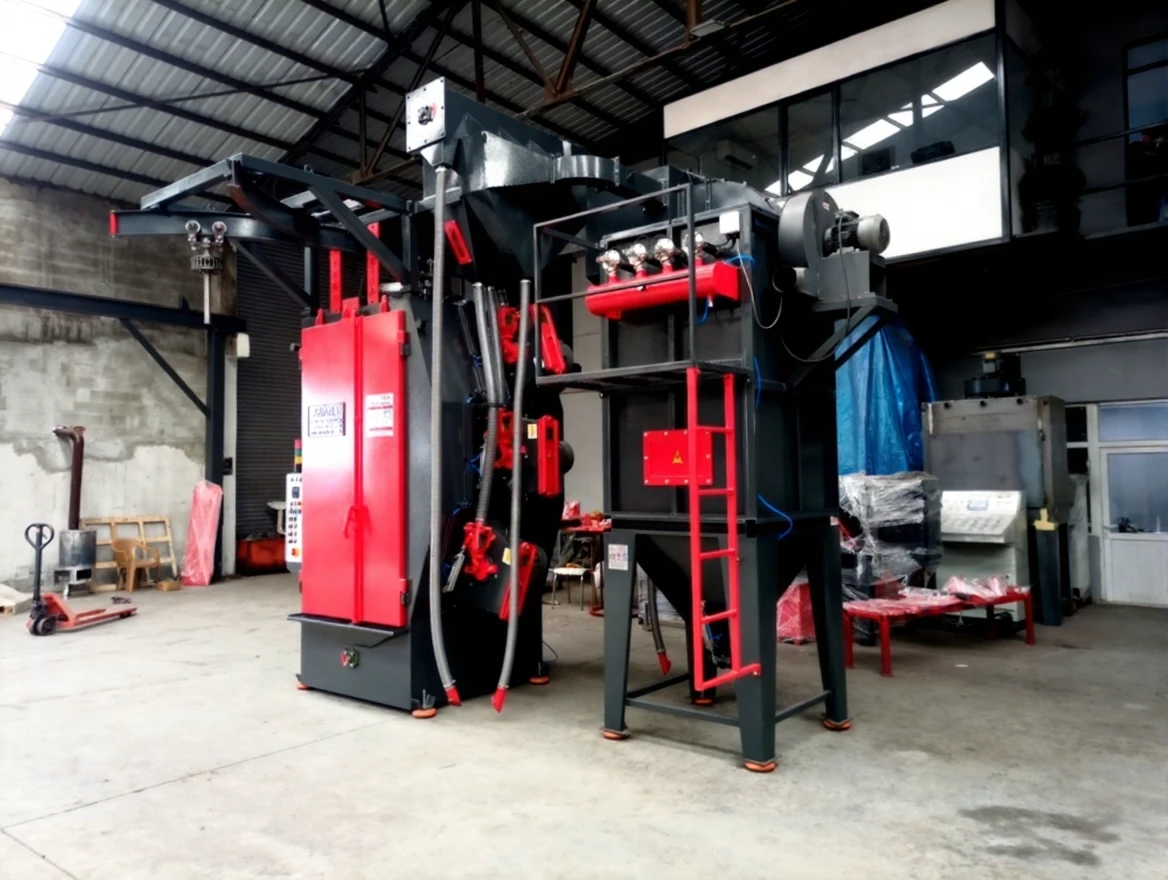

AKM 1000 3TRB Hanging Sandblasting Machine

Features

Descriptions

1. Machine Dimensions

• Height: 4800 mm
• Basket Door: 1000 mm – (The hanging basket that can enter the cabin or the product door.)
• Machine Placement Dimensions: 5000 x 3500 x 4200 mm (Width / Depth / Height)

2. Turbine System

• 3 Set Turbine (Manufactured by Abana Sandblasting Machines Ind. Ind. Trade. Ltd. Co.)
• Motor: 7.5 kW – 3000 rpm
• Motor Connection: Coupled
• Mirror Diameter: 380 mm
• Palette Number: 6 Pieces
• Protective casting parts: Ni-Hard Casting

3. Machine Interior Part

• Hotspot areas will be coated with Hardox 500 material.
• Areas not directly exposed to bombardment will be covered with 10 mm reinforced rubber material.
• Hardox: Wear-resistant steel armor.
• Connections inside the cabin are made with our special production of hard, closed nuts.

4. Elevator System

• Motor: 2.2 kW
• 3-Layer Reinforced Rubber Belt
• Carrier buckets with a thickness of 2.5 mm are used.
• Special connection bolts are used.
• Adjustment is made with double-sided tensioning straps.

5. Separator System

• A system that separates dust and waste particles from consumables.
• Perforated sheet drum diameter: 200 mm
• Screw Diameter: 150 mm

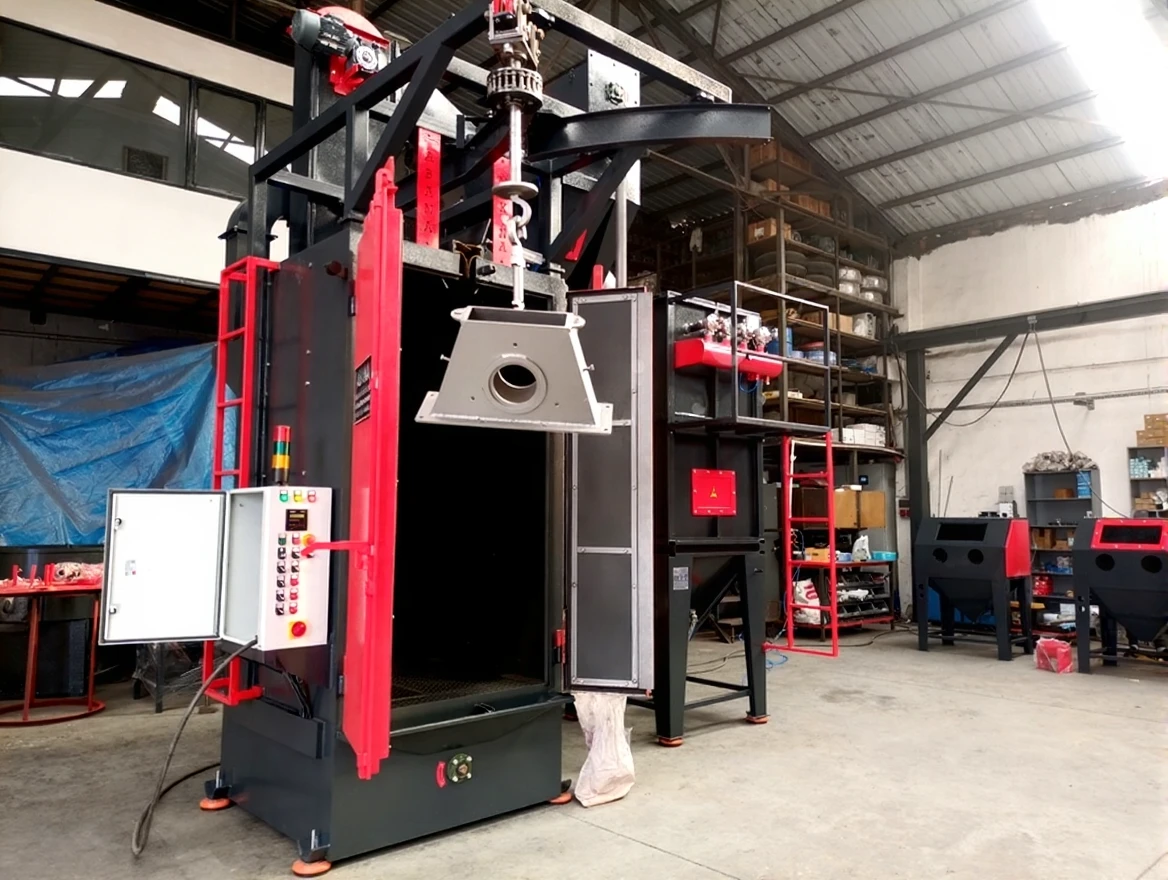

6. Hanging System

• Double Hanging
• Electric Saryo Connected
• Capacity: 1000 Kg
• Hanger Rotating Motor: 0.55 kW – 1500 rpm

7. Filter System

• 16-cage filter – jet pulse system
• Fan Motor: 4 kW
• Blast Valve Diameter: 1.5 inches
• Number of Blast Valves: 4 pieces
• Blast Valve Timing: Adjustable from PLC Screen.

8. Ventilation Ducts

• 150 x 150 mm square air ducts
• Air ducts are 1.5 mm thick.

9. Cyclone System

• Prevents consumables from escaping to the filter.

10. Machine Paint

• Gray (Ral Code: 7021) – Red (Ral Code: 3020)

11. Panel

• There is a PLC screen.

12. Loading Unloading

• Manual

13. Door System

• Manually opened, closed.

14. Motor Reducer Group

• Volt, Gamak, or ELK Motor is preferred.
• Yılmaz Brand reducers are preferred as reducer.

15. Grills and the Transport System Below

• Screw Diameter: 150 mm
• Screw protector: Protective reinforced with Hardox material
• Grill: Heat Treated 15 mm Steel
