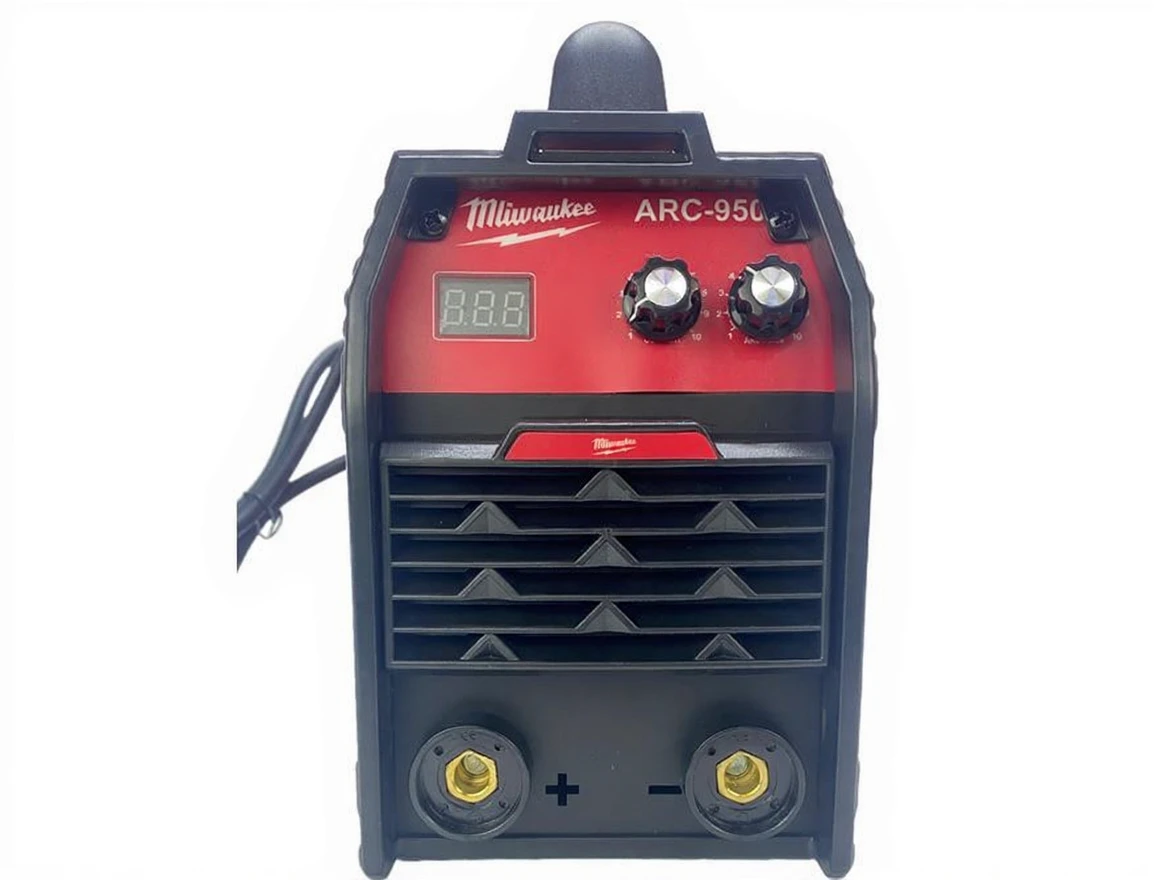

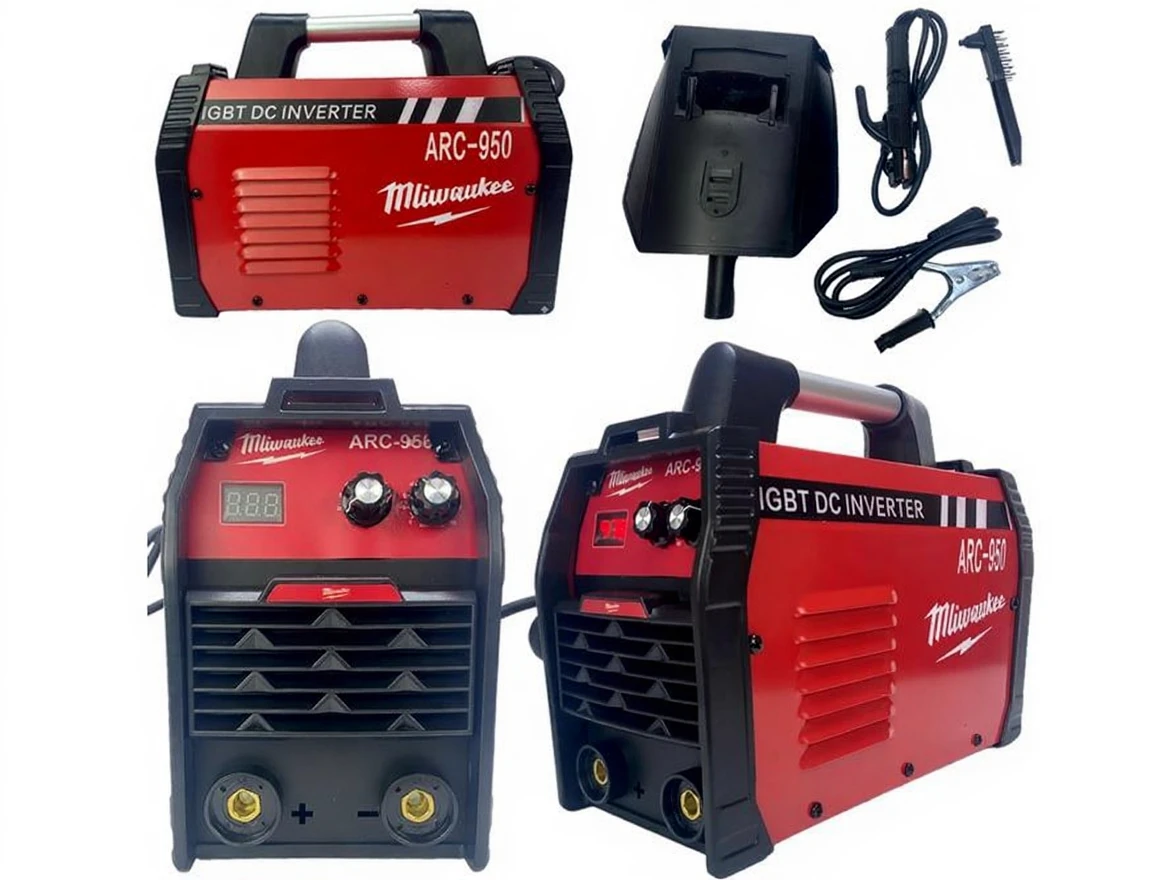

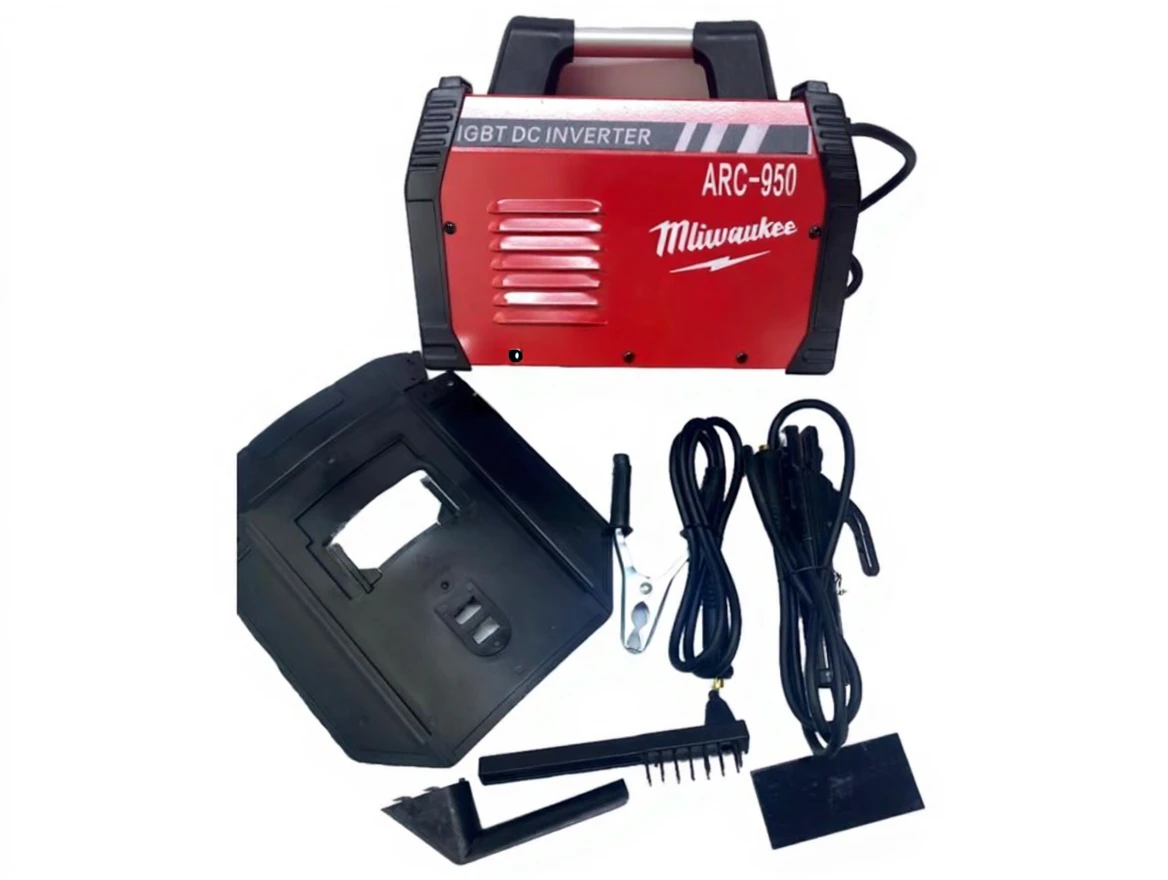

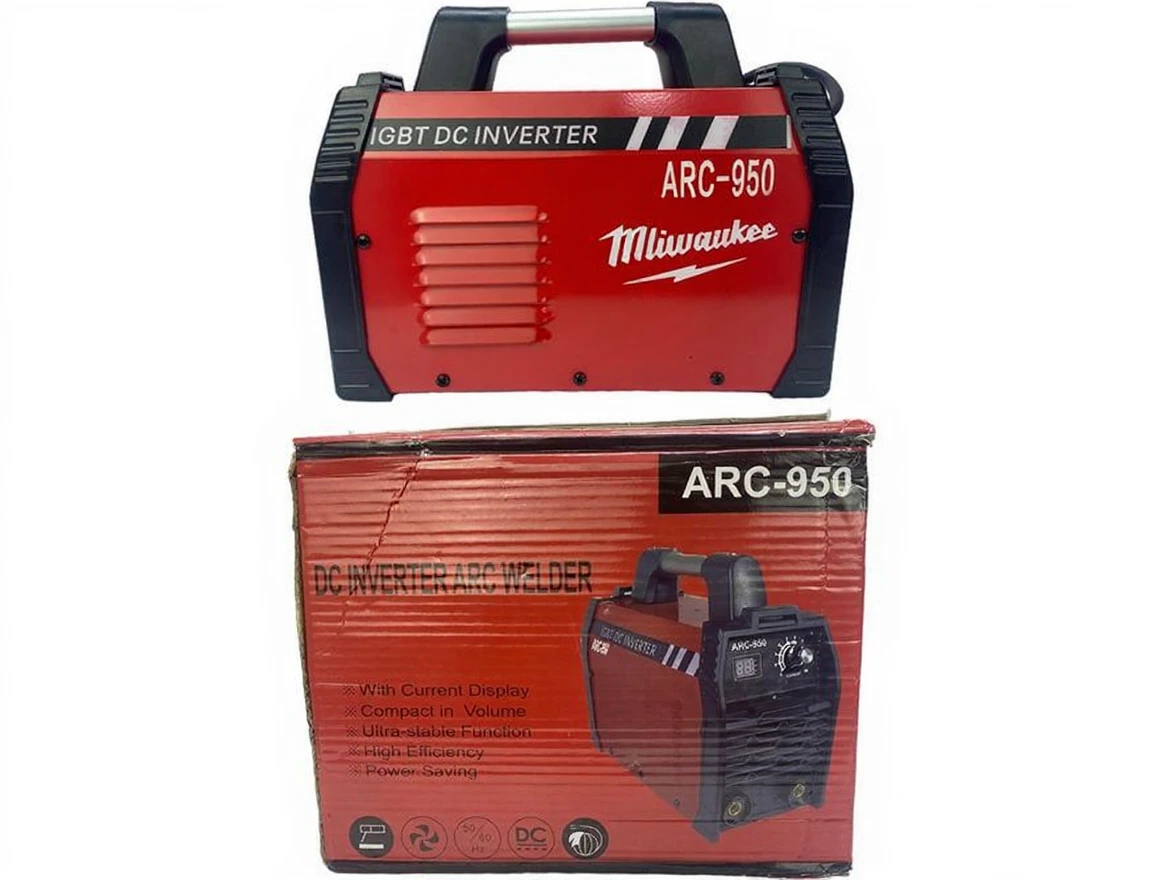

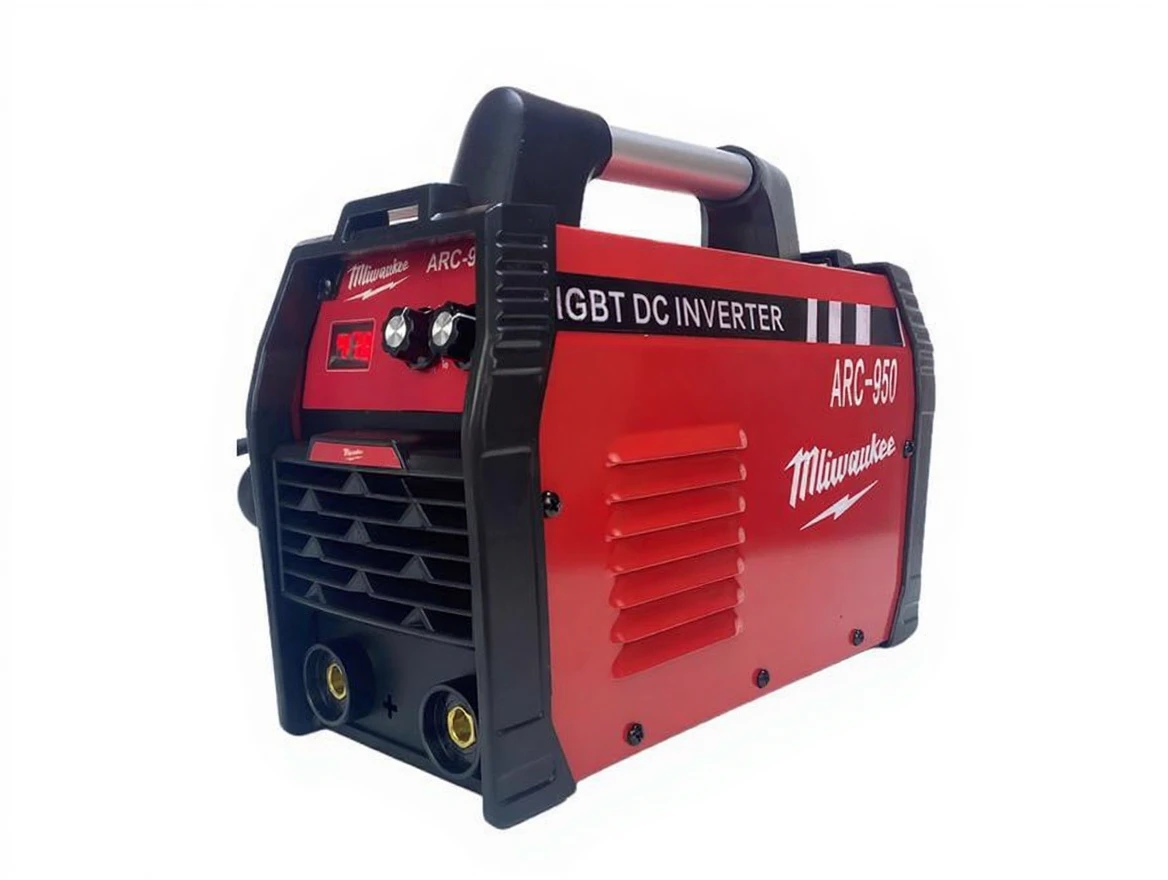

ARC 950 Dc Digital Inverter Welding Machine

ARC 950 DC Digital Inverter Welding Machine

The digital welding machine arc950 is a digitally controlled, upgradable, inverter digital display, and backup resistor can be upgraded by reconnecting the capacitor based on usage. Arc 950 is an upgradable pro welding machine with inverter technology designed for welding works to continuously ignite 2.50, 3.25 diameter rod electrodes with a covering of rutile and cellulose character.

ARC FORCE

Temporarily increases the current during welding. This temporary increase in welding current facilitates the transition between the electrode and the molten weld pool.

A shorter arc length results in a higher arc force, preventing sticking. The arc force value can be adjusted via the digital front panel. The machine is cooled by an x-Torq fan and is thermally protected against overheating. It is compliant with IP21s standards.

The machine is equipped with special design plastic ventilation grills to prevent water ingress while providing maximum air circulation.

The power supply voltage is 1 phase 220 v (ac), open circuit voltage u070 v (dc), maximum output current 220, recommended line fuse type 40, compatible electrode types rutile / cellulose, electrode diameter [ PHONE HIDDEN ], operating mode %35 at 220 a %60 at 110 a, cooling serial fan, protection class IP21s.

Technical Specifications
