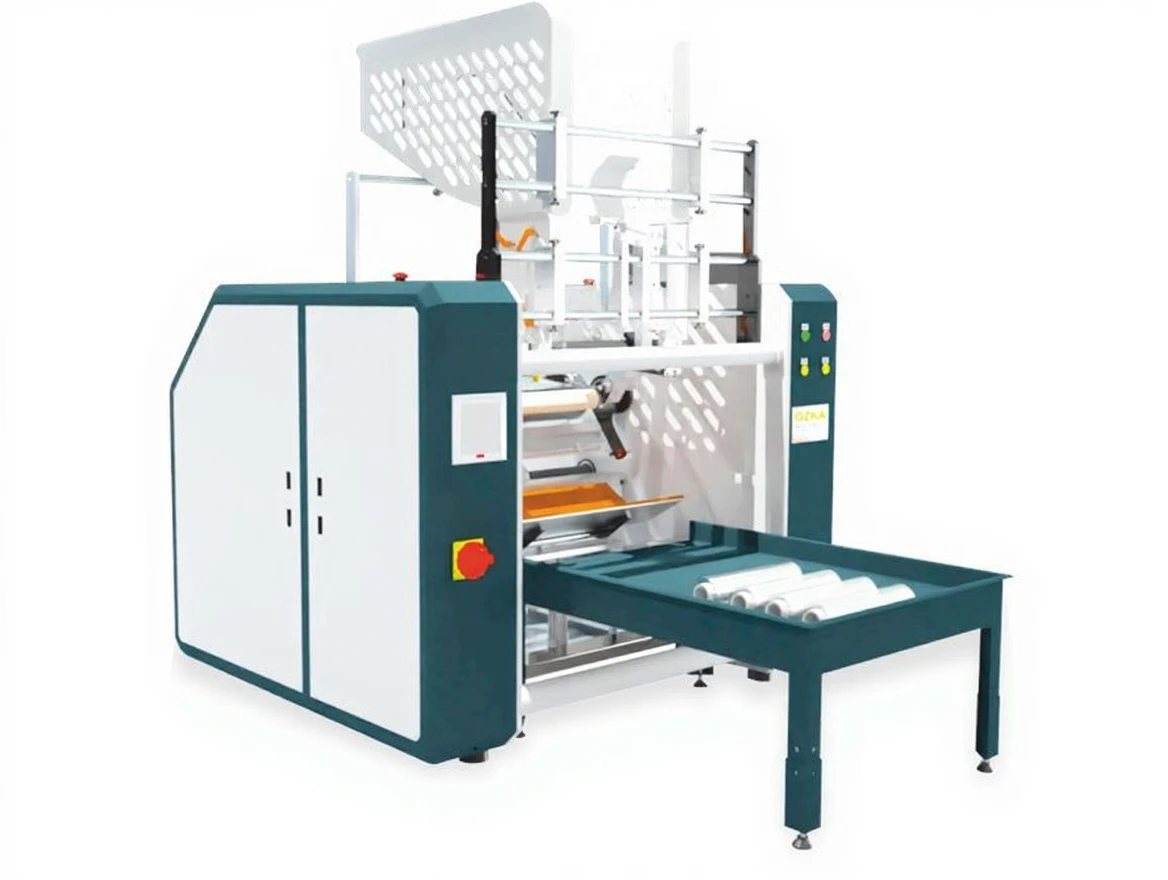

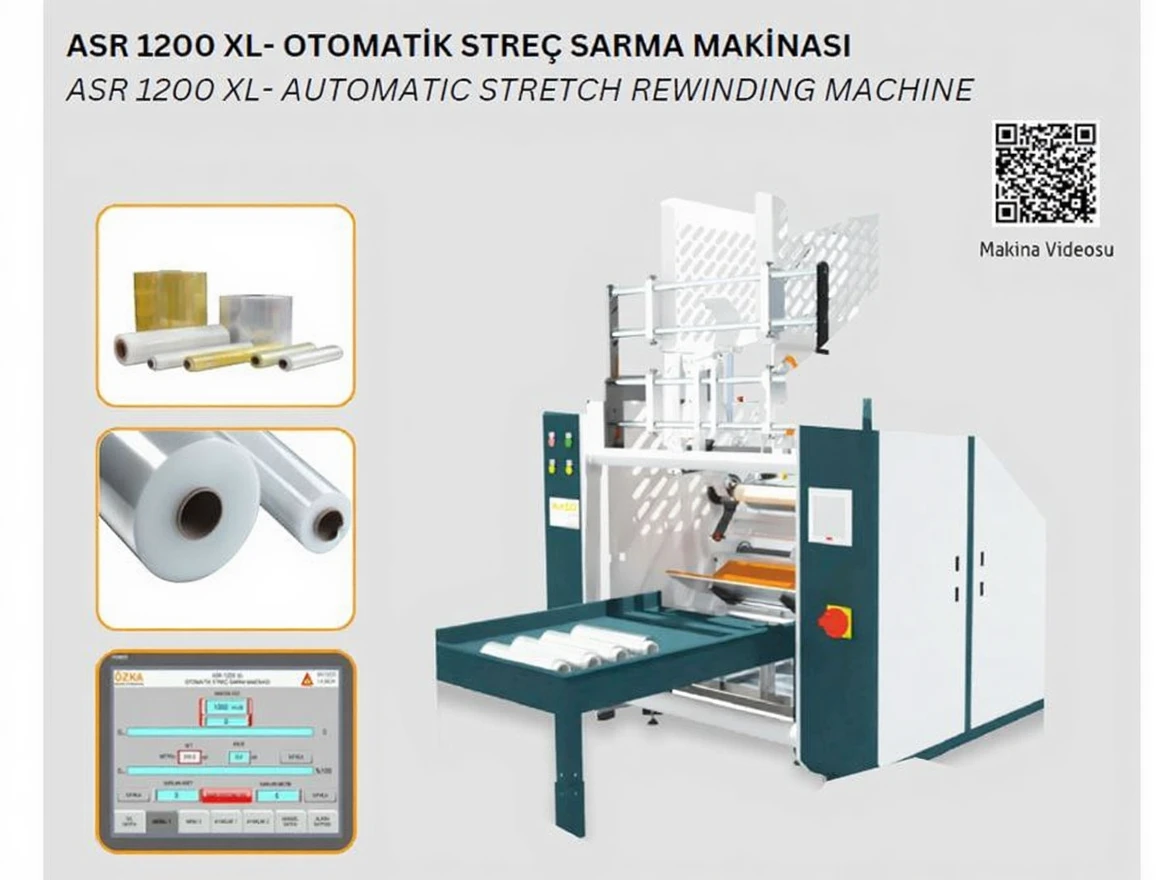

ASR1200 XL Automatic Stretch Winding Machine

ASR1200 XL Automatic Stretch Winding Machine

It is used to transfer pallet stretch film from 17-23 micron thick jumbo coils to 50-1500 meters long coils.

• Machine Speed: 1000 m/min.
• Winding Time: 90sec
• Roller Width: 600mm
• Main Engine: 5.5 Kw
• Bobbin Diameters: Ø 50 – Ø 76 mm
• Winding Diameter (Max): 300mm
• Jumbo Coil Weight: 75 Kg

ASR1200XL automatic machine detailed features

• Fully automatic winding and bobbin changing
• Quantity and quantity reporting
• film over sensor
• Bobbin end sensor
• Omron branded PLC Unit

General feature information for our ASR1200XL machine

• OMRON branded 7″ touch screen
• Omron brand motor driver
• Mindman brand pneumatic system
• Cutting with hot wire (Adjustable Wire Temperature)
• 50 bobbin storage (Ø 76)
• Machine Weight: 1100 Kg
• Machine Dimensions: 1650x1650x1800mm
