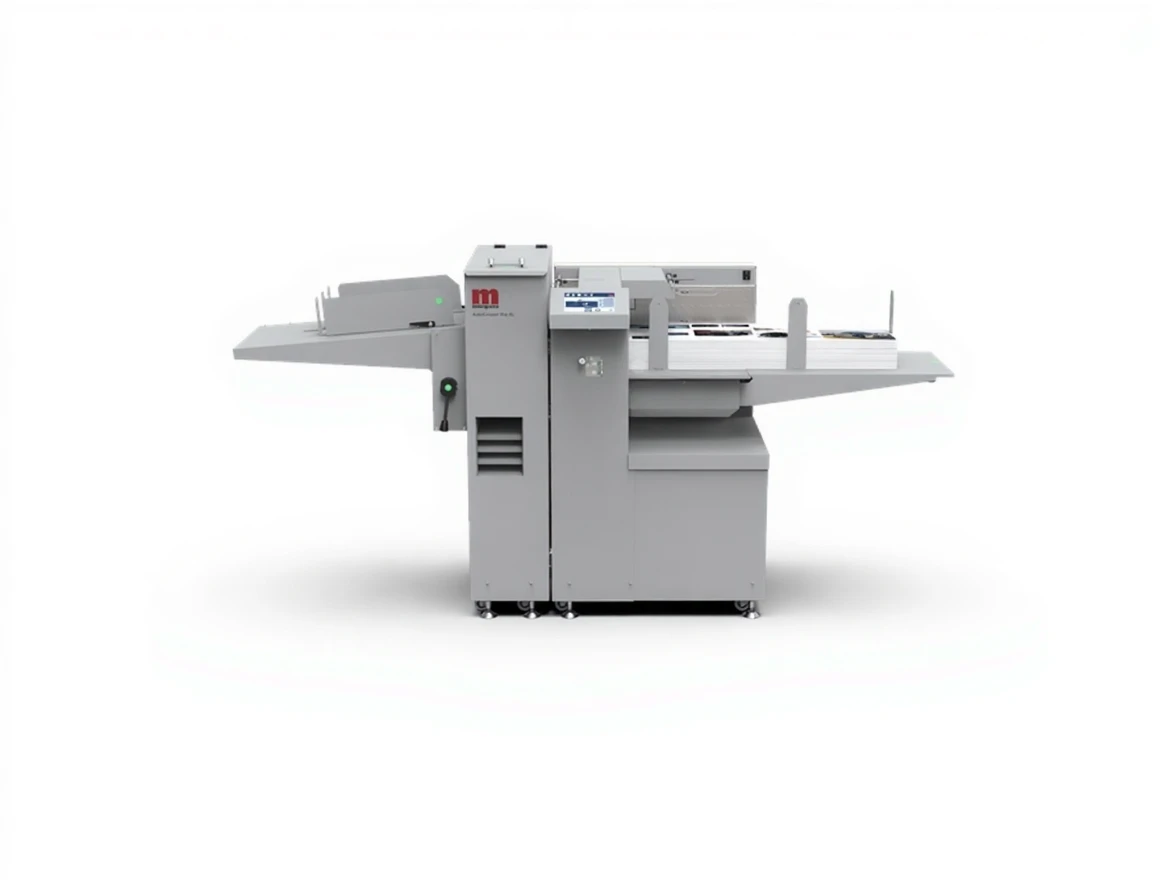

Autocreaser Pro Xl Piling & Perforating Machine
| Brand | Morgana |
|---|---|
| Model Type |
AUTOCREASER PRO XL |
Description
The Autocreaser Pro XL is the 6th generation machine that solves the jumping problem in digital printing, which Morgana started producing 20 years ago. In this model, the thickness of the materials loaded onto the 20 cm liftable feeding table is automatically measured, and the feeding settings are also automatically adjusted and fed into the machine. Two upper and lower impact piling, horizontal perforation, and vertical perforation can be done simultaneously. The ultrasonic double paper sensor and the standard paper feeding table that feeds paper up to 1,300 mm in length are included.
Category: PILING & PERFORATING MACHINES
Brand: MORGANA (UK)
| Max. loading capacity: | 200 mm (100 mm for page lengths over 700 mm) |
| Max. paper size: | 385 mm x 700 mm (385 mm x 1300 mm with extension table) |
| Min. paper size: | 93 mm x 210 mm |
| Max. paper thickness: | 400 g / m2 |
| Min. paper thickness: | 80 g / m2 |
| Maximum pages per hour: | 8,500 pcs / hour |
| Max. piling number per sheet: | 30 |
| Minimum distance between two pile: | 0.1 mm |
| Stacker capacity: | 120 mm |
| Max. paper size for stacker: | Up to 385 mm x 900 mm |
| Machine dimensions, with table extension: | L:2540 mm W: 730 mm H: 1074 mm |
