Automatic 14-17 Button Nailing Machine

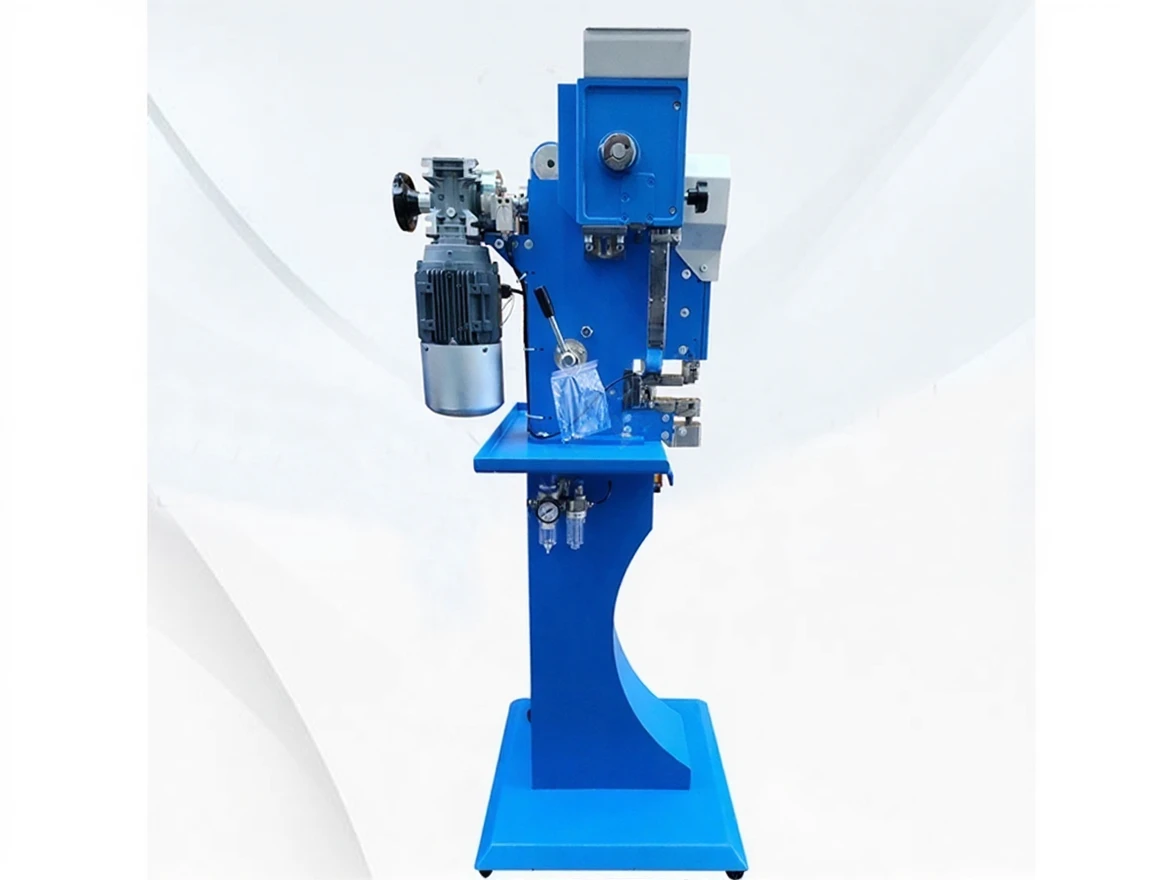

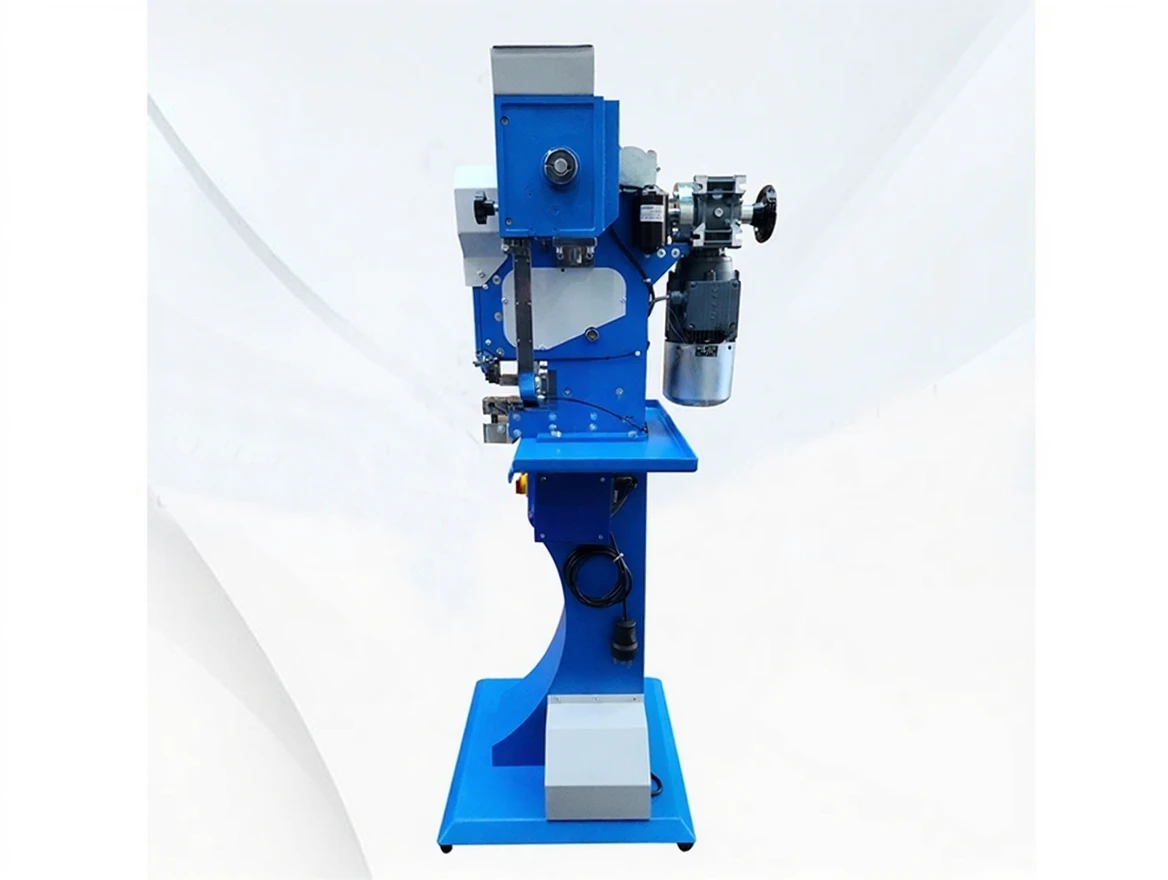

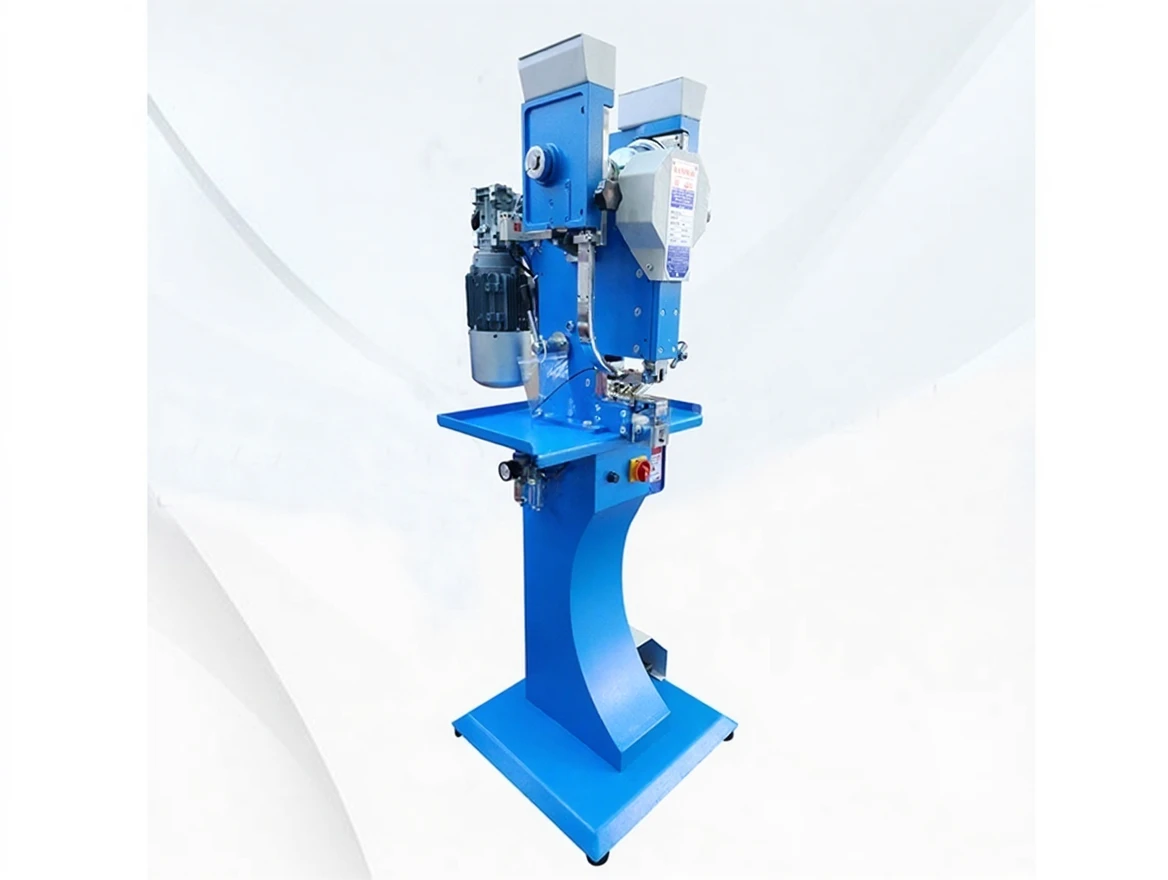

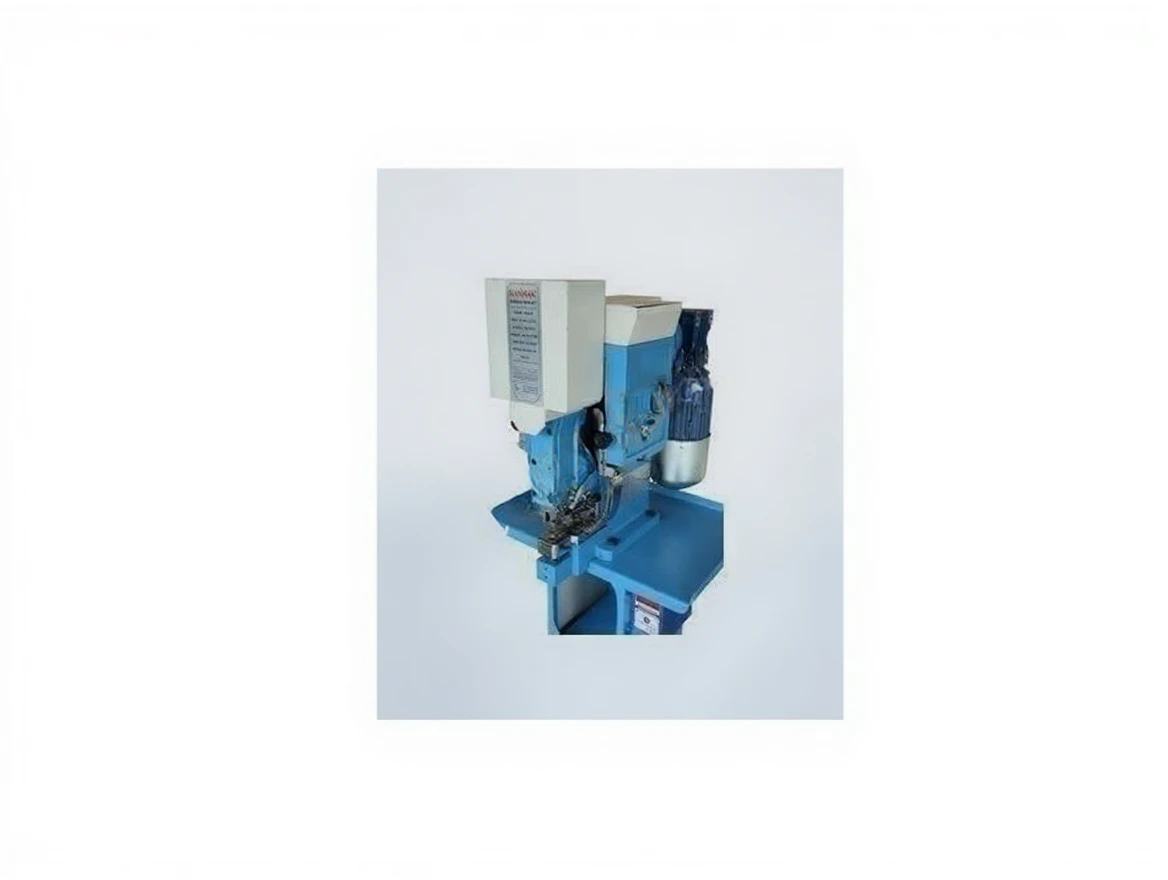

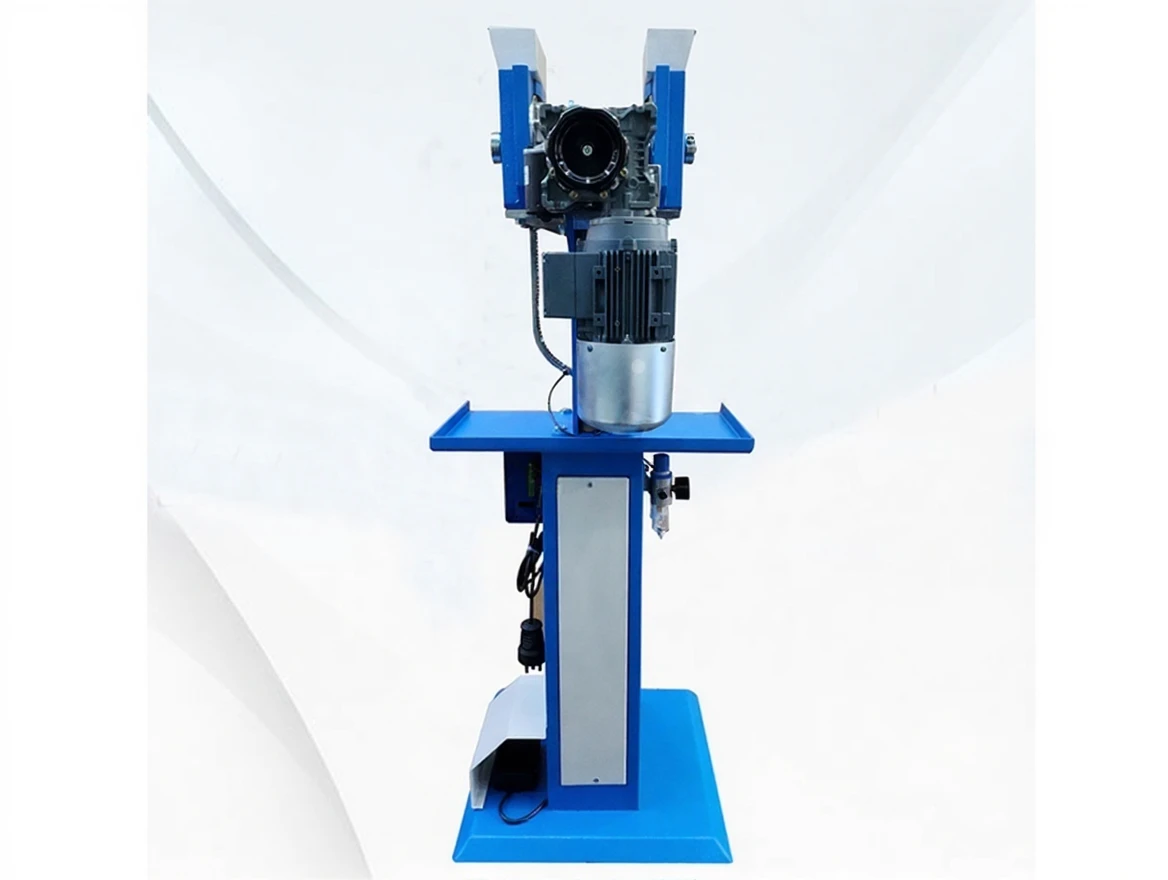

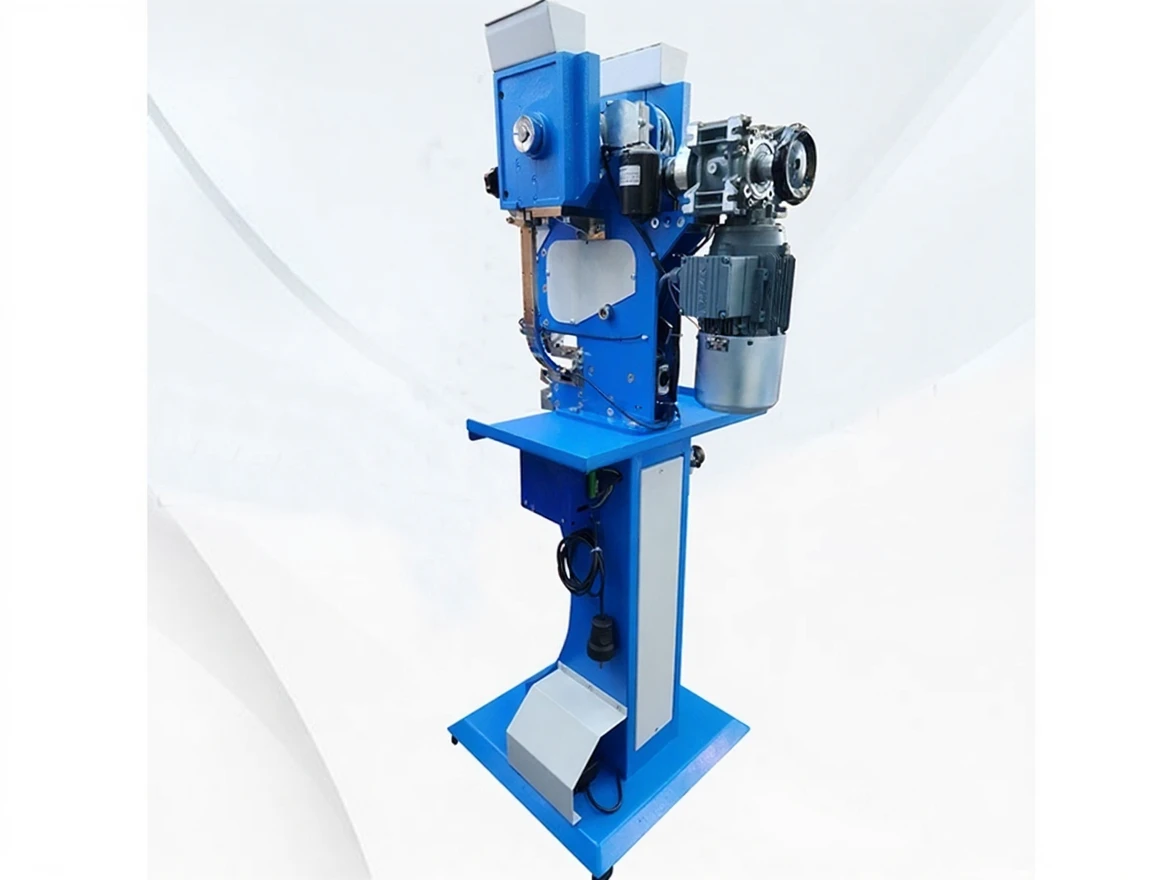

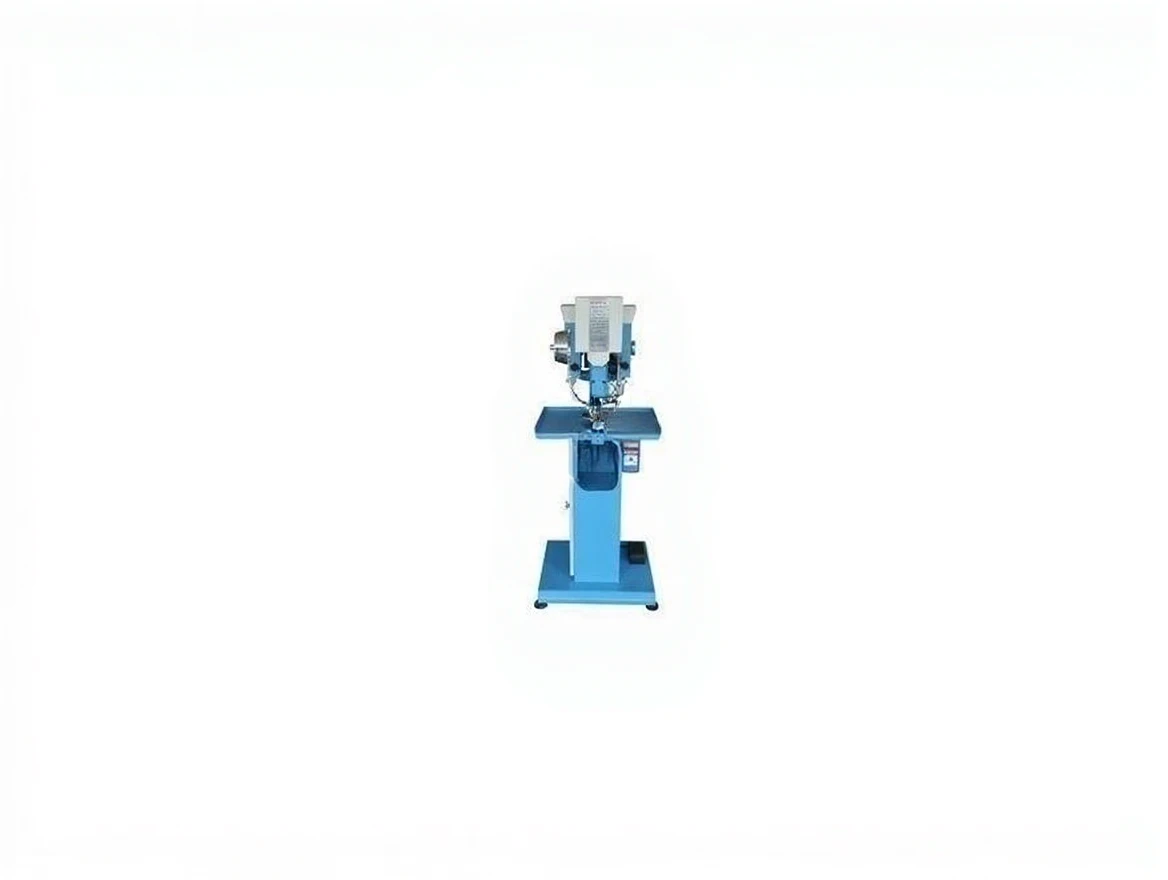

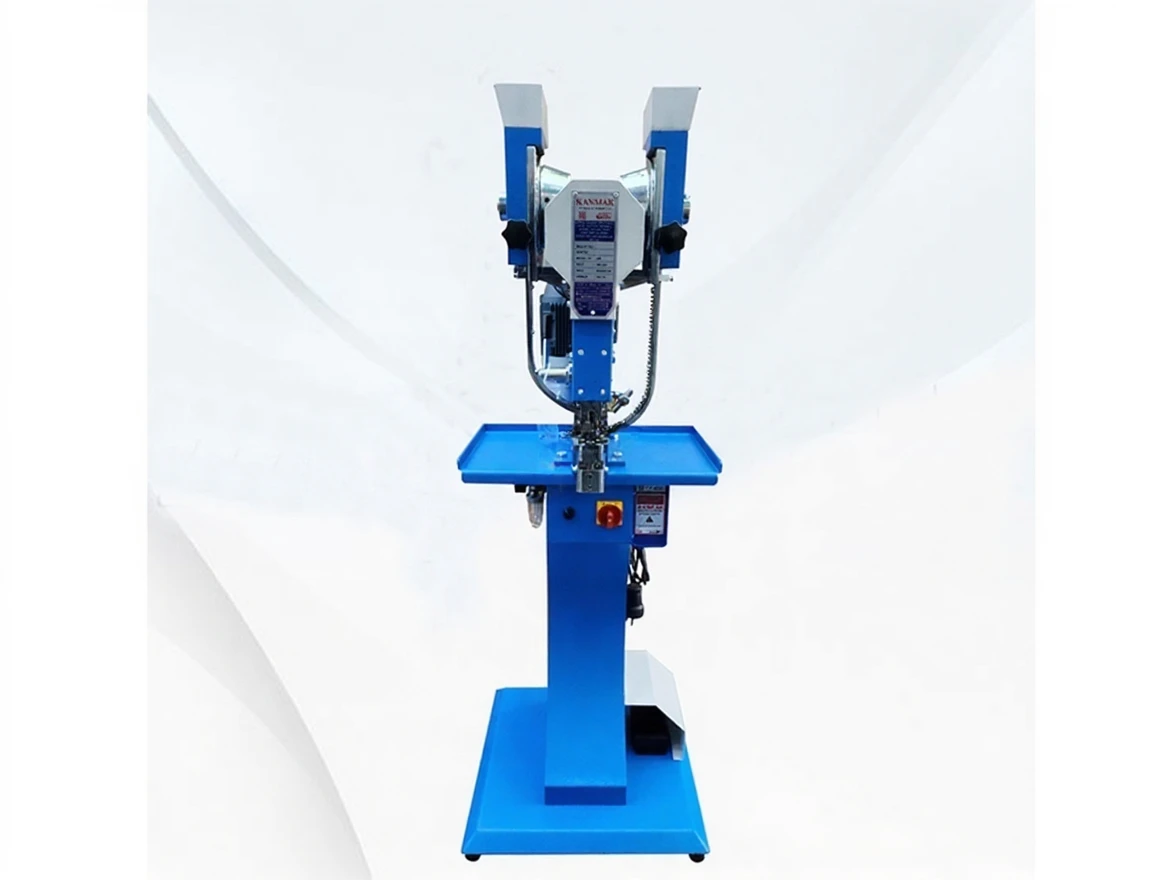

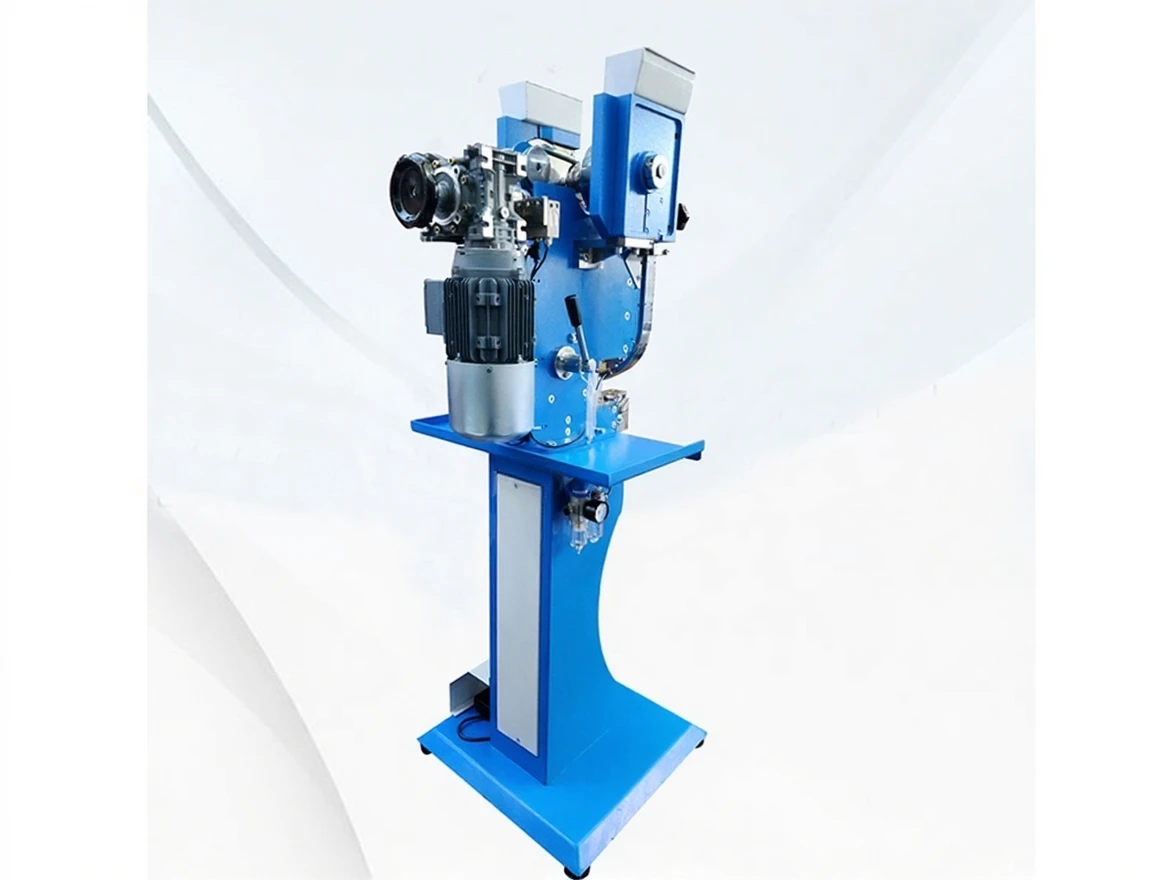

Automatic 14-17 Button Fastening Machine Kanmak KM 5000

KM 5000  Automatic 14-17 Button Fastening Machine
14-17 mm standard action, fixed, perforated, it is possible to press all large and small buttons.

The material warehouses, which consist of 2 chambers, are filled with nails and buttons, fed automatically through channels, and the nailing process is carried out.

One spare mold for large or small button is available on it.

During product replacement, spare channels and molds can be replaced and driven in approximately one or two minutes.

It is designed with highly technical and technological equipment, and it produces approximately 30,000 buttons in 8 hours with an average waste of 1%.

It has features that can be used in many ways, regardless of material.

Optionally, fork nail spare molds can be applied on the same machine.

During printing on various fabrics, it automatically makes the most ideal printing settings according to the type and thickness of the fabric.

Kanmak KM 5000GENERAL FEATURES

• Full automatic
• Electronically equipped
• 380 three-phase 24 volt output
• 220 single phase (optional)
• Electronic hand protection (optional)
• Mechanical hand protection (optional)
• Electronic meter Standard
• 0.37 kW engine 1400 rpm
• 1/7% bond reducer 200 rapid strokes per minute
• Magnetic brake
• Indicator lights
• 1.5 kW current draw power
• Laser
• 1,000 kg pressing power
• Automatic lubrication and cleaning with air system
• Steel bed and molds
• Fabric thickness printing adjustment automatic
• 24-hour working capacity
• Hard chrome plating on metal surfaces
• Powder oven paint against moisture and impact
• Dimensions: 52 x 54 x 132 cm
• Weight: 80 Kg.
