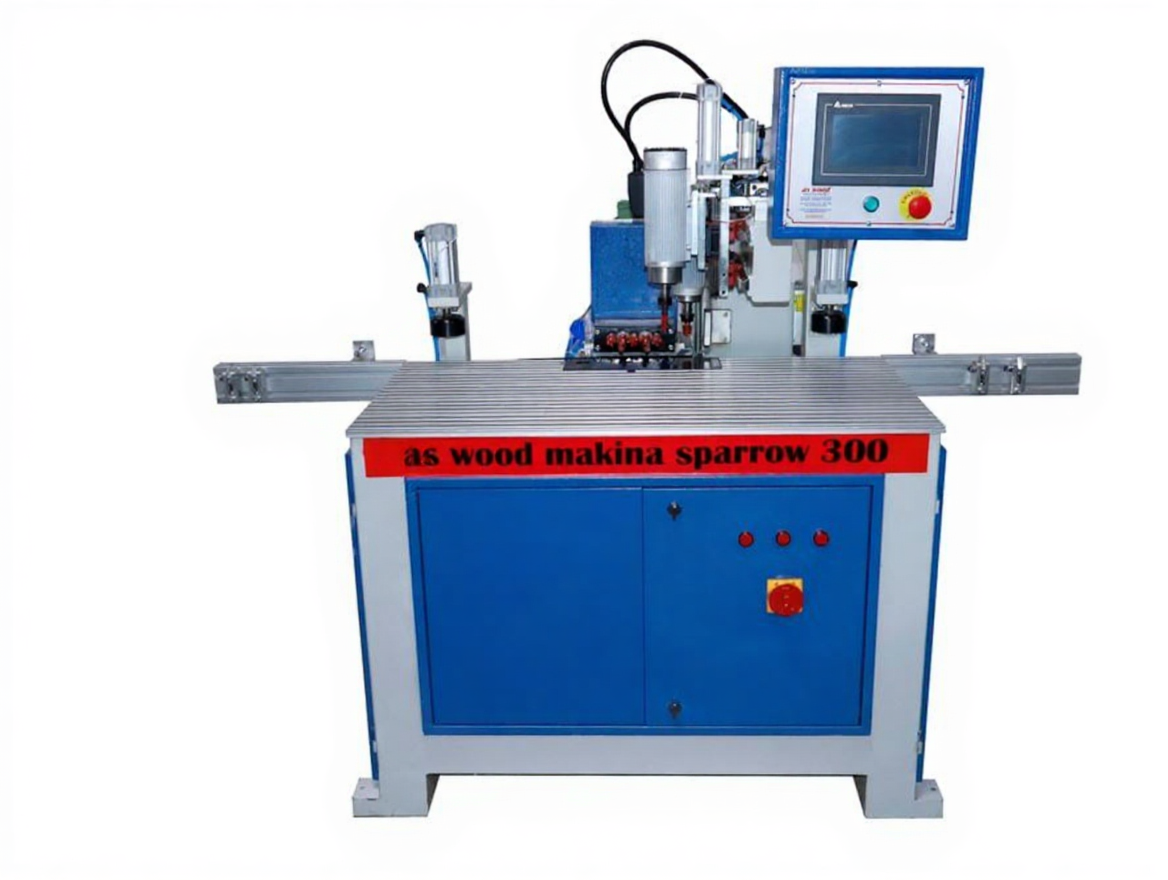

Automatic Door Handle, Lock Slot Machine and Lock Key Opening Machine
| Model Type |
Sparrow 300 |
|---|
Description
Lock hole length max.: 300mm
Mirror hole length max.: 300mm
Case mirror hole length max.: 300mm
Lock hole motor: 2.2 kW 12000rpm
Mirror hole motor: 0.9 kW 12000rpm
Arm hole motor: 2.2 kW 12000rpm
Case mirror hole motor: 0.9 kW 12000rpm
X-Y axis servo motor: 0.4 kW
Total motor power: 7 kW
Voltage: 380V
Air pressure: min. 6-8 bar
Machine Length: 2200 mm
Machine Width: 1100 mm
Machine Height: 1500mm
Weight: 450kg
Mirror hole length max.: 300mm
Case mirror hole length max.: 300mm
Lock hole motor: 2.2 kW 12000rpm
Mirror hole motor: 0.9 kW 12000rpm
Arm hole motor: 2.2 kW 12000rpm
Case mirror hole motor: 0.9 kW 12000rpm
X-Y axis servo motor: 0.4 kW
Total motor power: 7 kW
Voltage: 380V
Air pressure: min. 6-8 bar
Machine Length: 2200 mm
Machine Width: 1100 mm
Machine Height: 1500mm
Weight: 450kg
