As Wood Canary

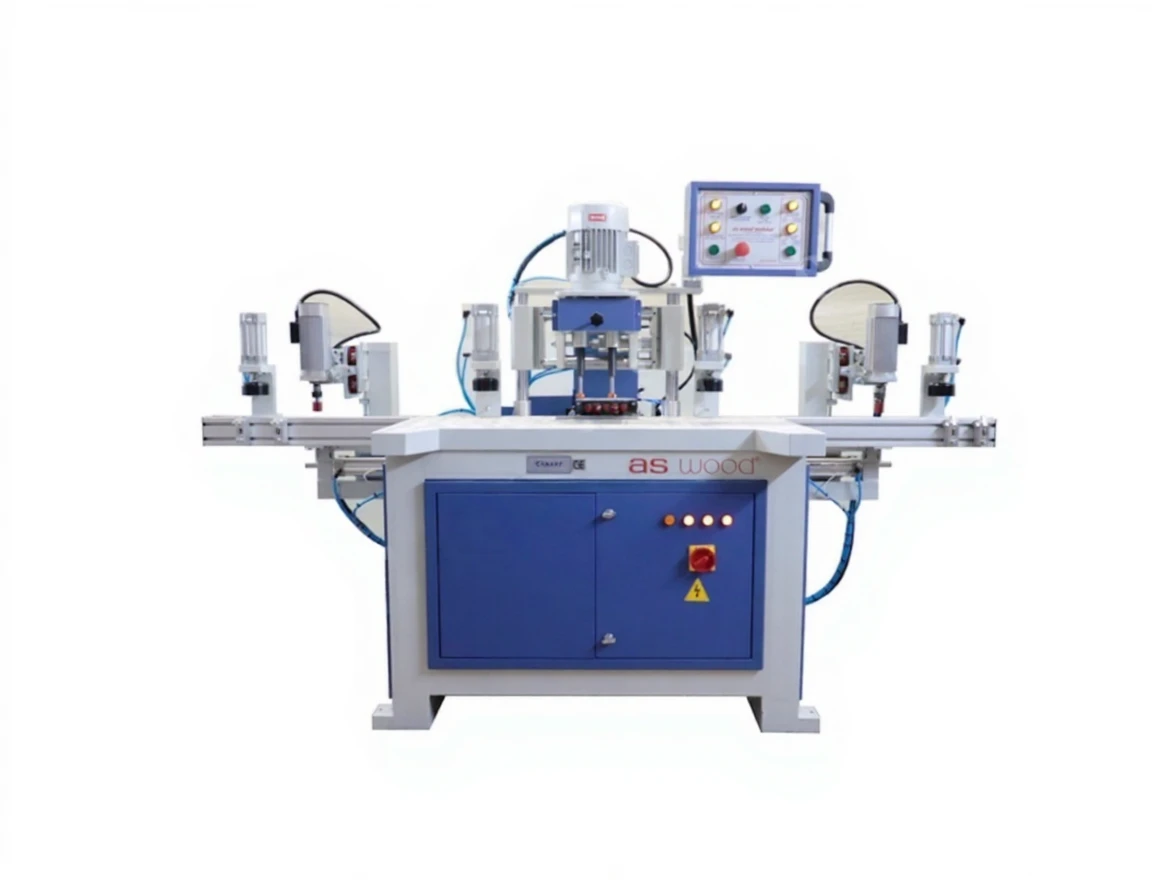

Automatic Door Lock Place, Handle Place and Hinge Place Opening Machine

FEATURES

Handle Lock Axis Distance	:	60 – 110 mm
Opened Lock Place Length	:	220 mm
Opened Mirror Place Length	:	280 mm
Handle Lock Place Drilling Motor Power	:	1.5 Kw / 50 Hz
Handle Lock Place Drilling Motor Speed	:	3750 r.p.m
Lock Place Drilling Motor Power	:	2.2 Kw / 50 Hz
Lock Place Drilling Motor Speed	:	8,500 r.p.m
Hinge Place Opening Motor Power	:	0.9 Kw / 200 Hz
Hinge Place Opening Motor Speed	:	12000 r.p.m
Total Motor Power	:	6 Kw
Air Inlet Pressure	:	6 – 8 bar
Length	:	2300 mm
Width	:	1100 mm
Height	:	1550 mm
Weight	:	600 kg
