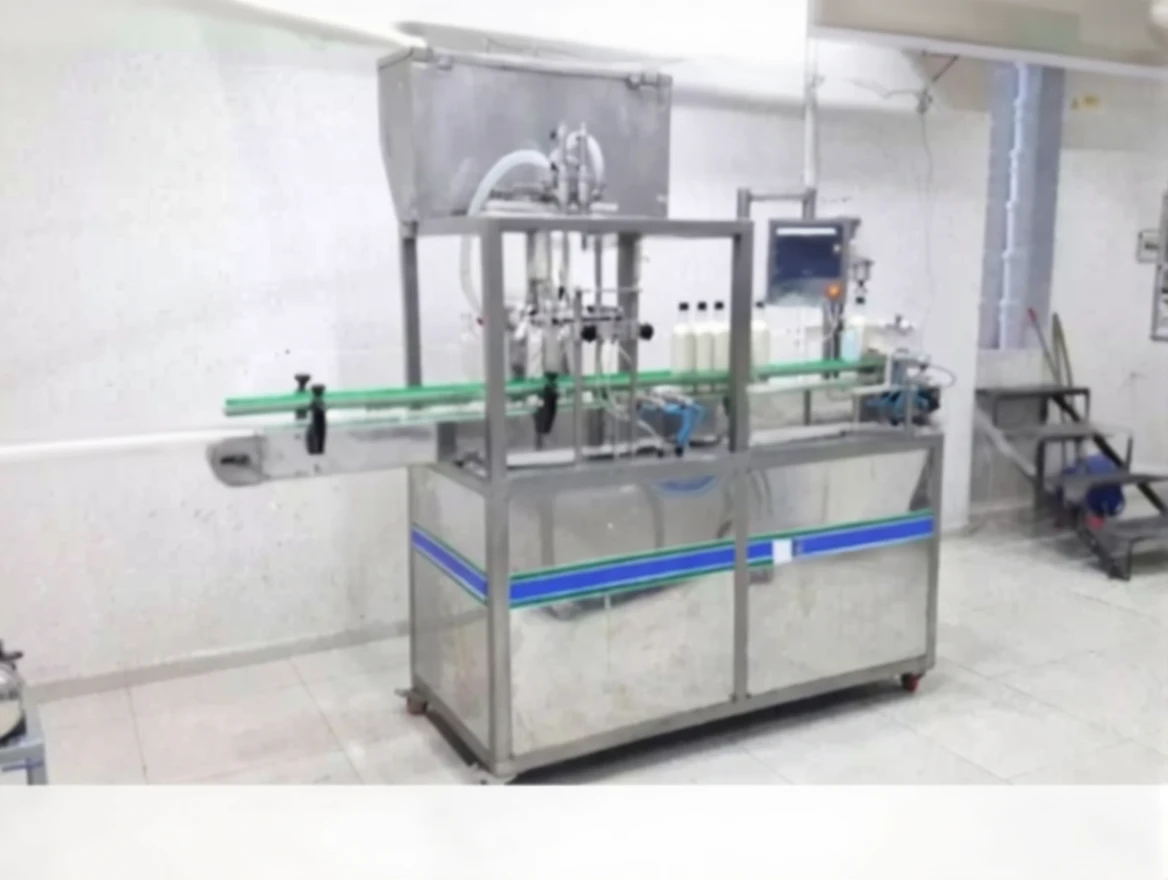

Automatic Liquid Filling Machine

Automatic Liquid Filling Machine

Areas of Use
Model P series is used for filling many liquid products in the food industry such as olive oil, sunflower oil, soy, corn oil, turnip juice, and lemon juice. In industrial environments, it plays an active role in the filling of products such as paint, thinner, varnish, various mineral oils, chemical liquids, and liquid soap.

Technical Specifications
Model P Series PET bottle filling machines are equipped with a range of superior technical features:

Special plastic material suitable for food is used on the pallet conveyor, ensuring that the filling process is hygienic and safe.
The conveyor chassis is made of 304 Cr. material known for its durability and corrosion resistance.
The conveyor is driven by a 1.5 HP reducer motor, providing a smooth and continuous filling process.
The railings are also made of 304 Cr. material and can be adjusted in width, allowing for easy handling of bottles of various sizes.
During filling, the material properties do not change, thus preserving the quality of the product.
There is one cap closing unit that operates with pneumatic impact, ensuring a fast and secure closing process.
The reserve tank has a volume of 100 liters and is made of 1.5 mm. 304 Cr. material, providing sufficient capacity for filling large quantities of product.

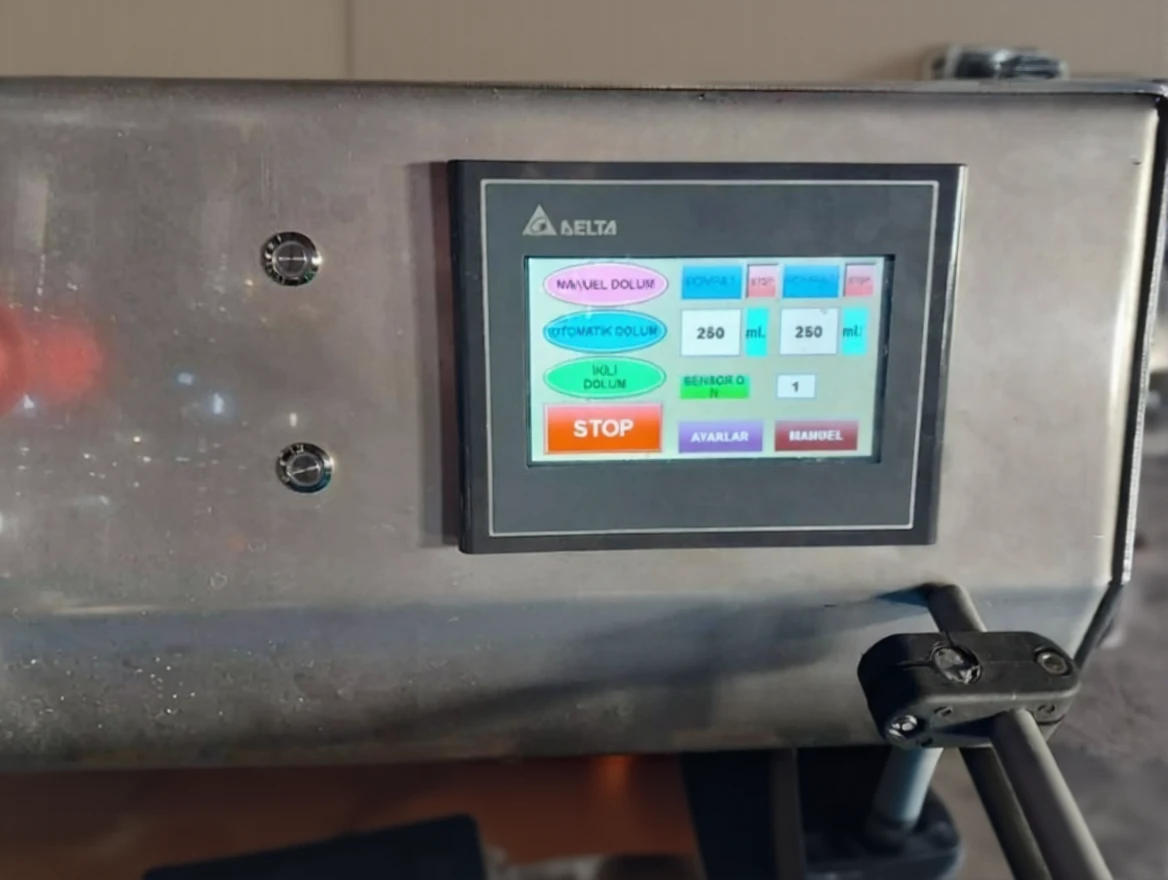

PLC and other electronic, electrical materials are placed inside a panel, simplifying ease of use and maintenance processes.
The operational air pressure of the machine is 6-8 atmospheres, creating a wide range of usage areas.
In conclusion, Model P Series PET bottle filling machines are effective and efficient solutions used for filling a wide variety of products in both the food industry and industrial environments. Their superior technical features and ease of use make them ideal for a wide range of applications.
