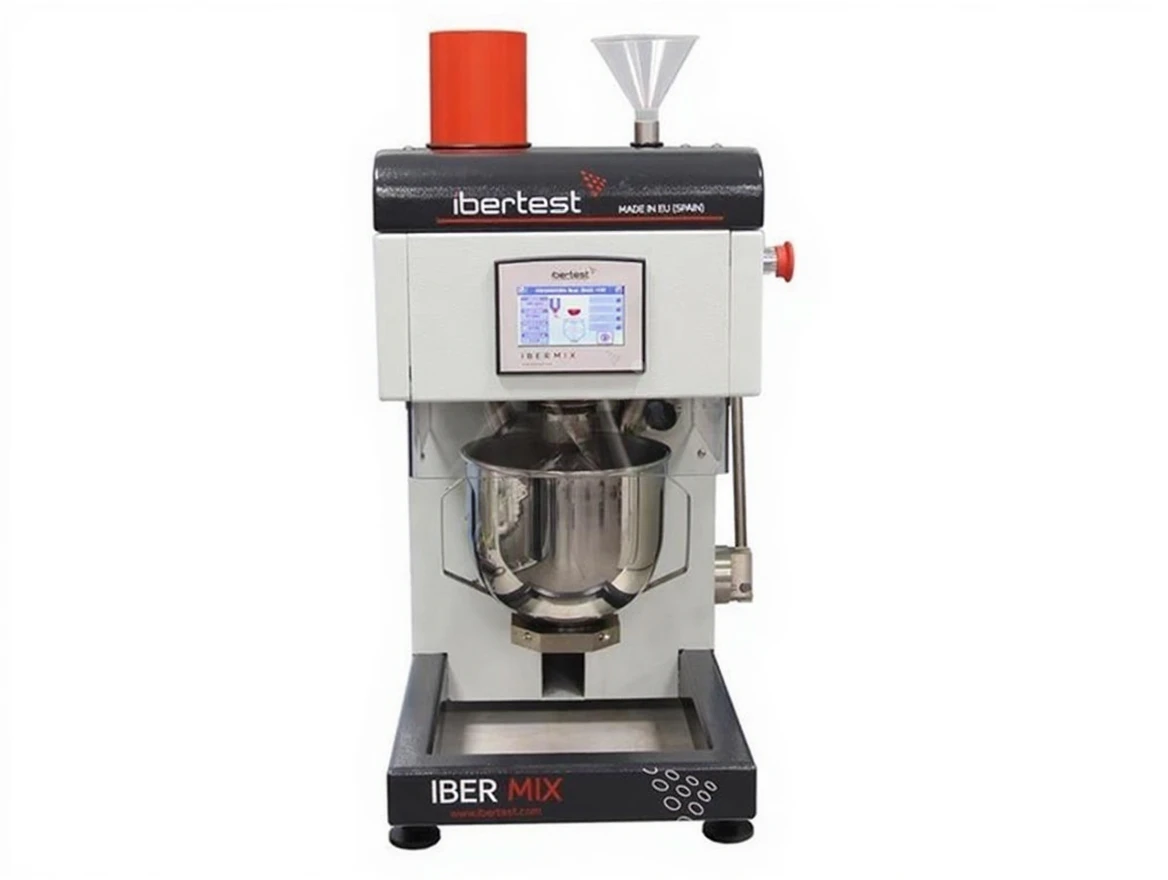

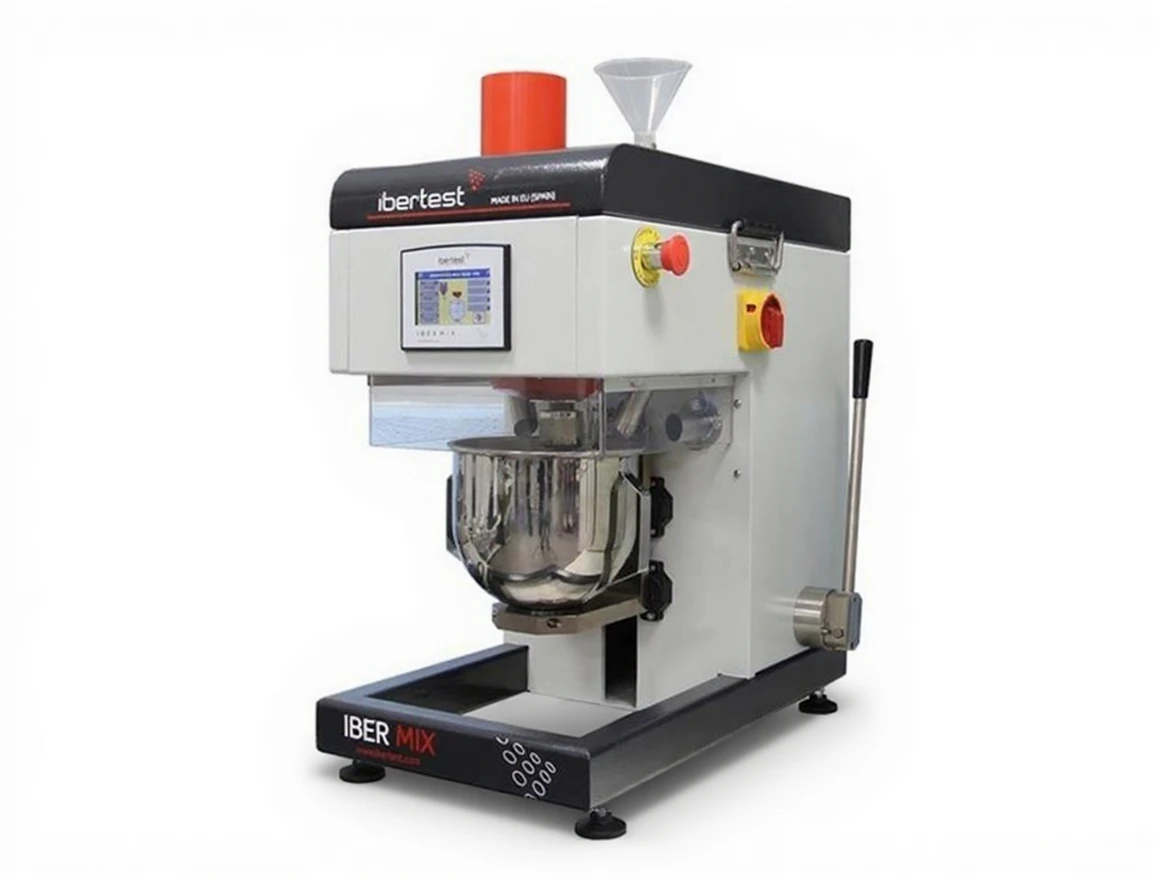

Automatic Pallet Mechanical Planet Mortar Mixer

Programmable new Planet mixer for automatic execution of mixing cycles according to standards for strength tests of cements, mortars, and similar materials or for free configuration for research studies.

The Planet mortar mixer covers the most demanding international standard for cement testing for preparing cement and mortar samples, including aggregates, lime, additives, etc. and specifically: EN 196-1, EN 459-2, EN 1744, EN 1015-11, EN 13454-2, ASTM C 109, ASTM C305, BS 3892-1, BS 4551-1.

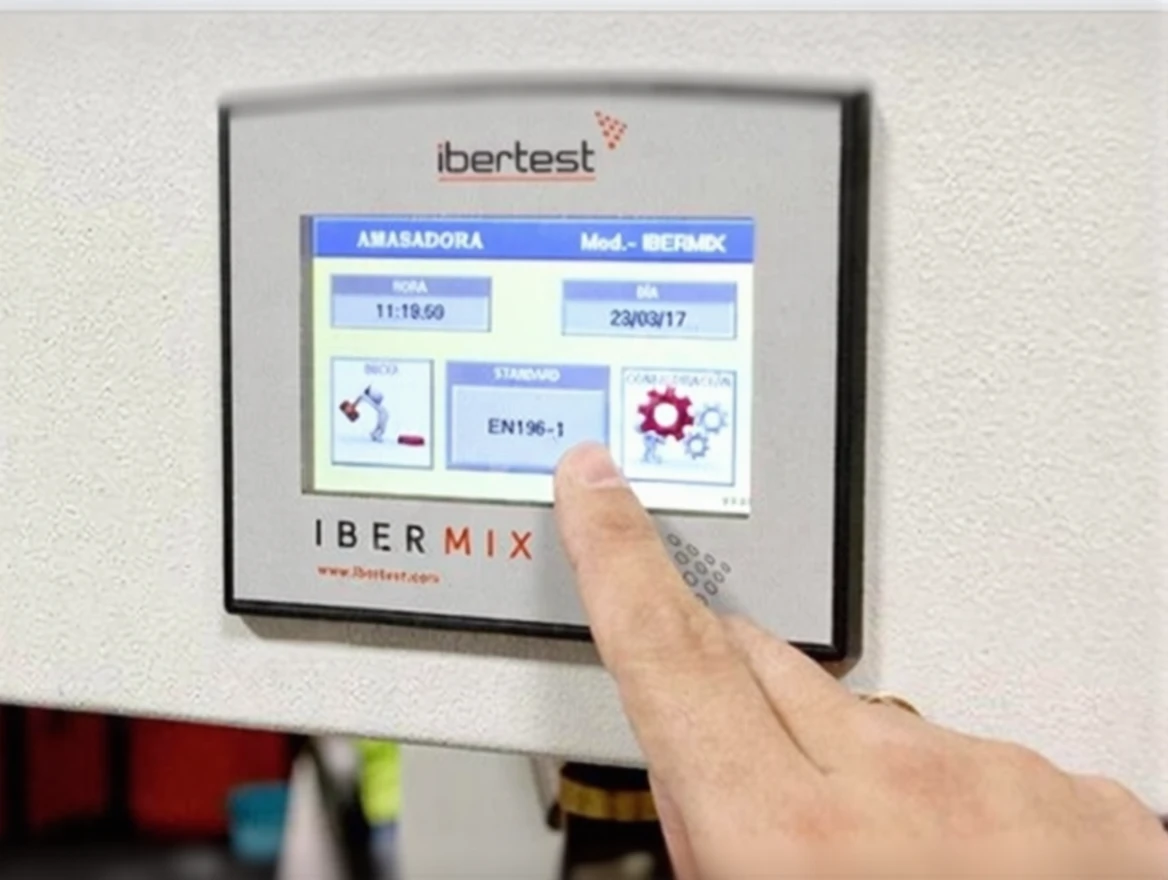

-Intuitive, safe, durable, and easy-to-use 4.3” touch screen and IP66 protected electronic control module.
-Precise digital communication between the control module and frequency variator.
-Versatility thanks to the ability to adjust fully customized mixing cycles.
-Variable speed from the control module screen to accommodate any standard or customer requirement.
-Optimized design to save space in the laboratory.

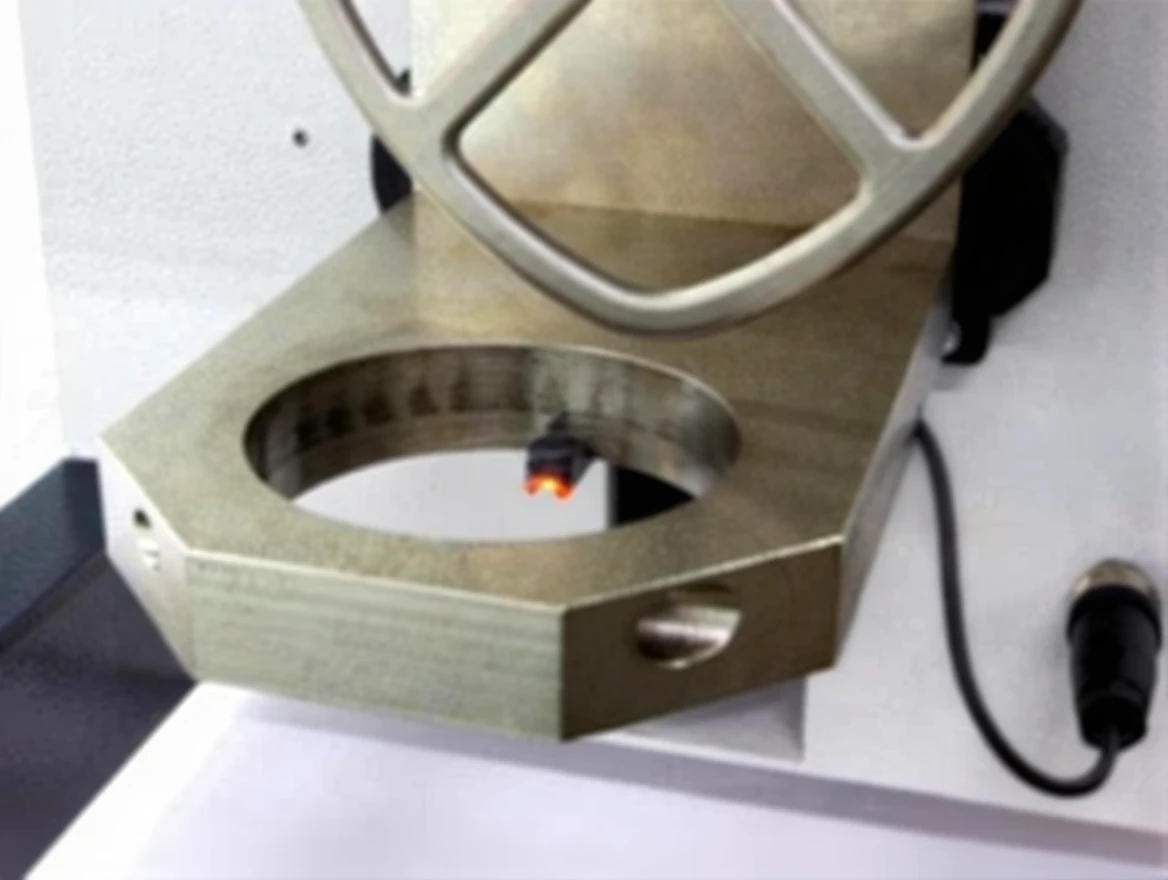

-Innovative support and guidance system for the robust and precise positioning of the bowl.

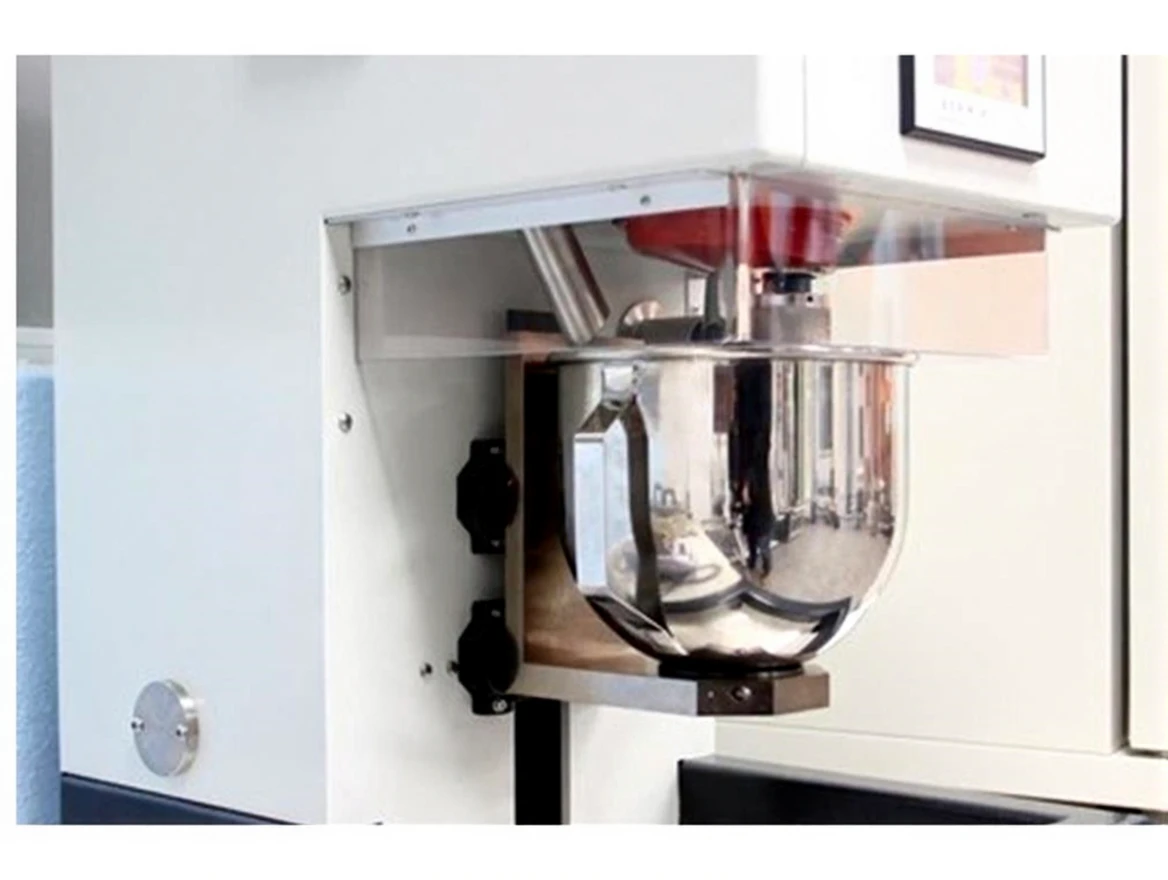

-Planetary mixing motion, the paddle rotates on its axis and is driven in opposite directions around the axis of the bowl.
-Automatic sand feeder.
-Optional automatic or manual water dosing system for mortar viscosity research tests.
-Detection of the correct position of the bowl with proximity and position sensors to ensure operator safety.
-Nozzle for dust extraction system allowing connection of an external vacuum.
-Liquid or solid additive dispenser.
-Protective screen.
-Emergency stop in accordance with EC marking directives.
