Automatic Poultry House Climate Control System

GÜRClimate Master

Fully Automatic Climate Control Systems

A system that must be used in closed-system and poultry houses with a capacity of over 60,000. It provides homogeneous ventilation, cooling, and humidity control in poultry houses. While controlling the heat inside the house, it also meets the minimum and maximum air requirements of the animals.

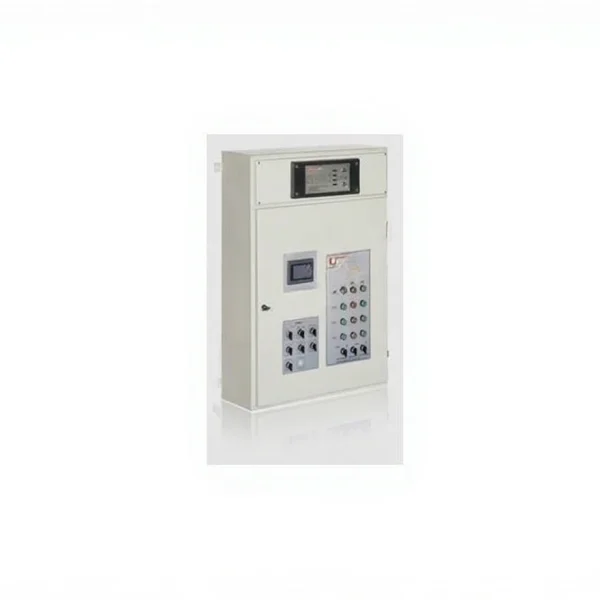

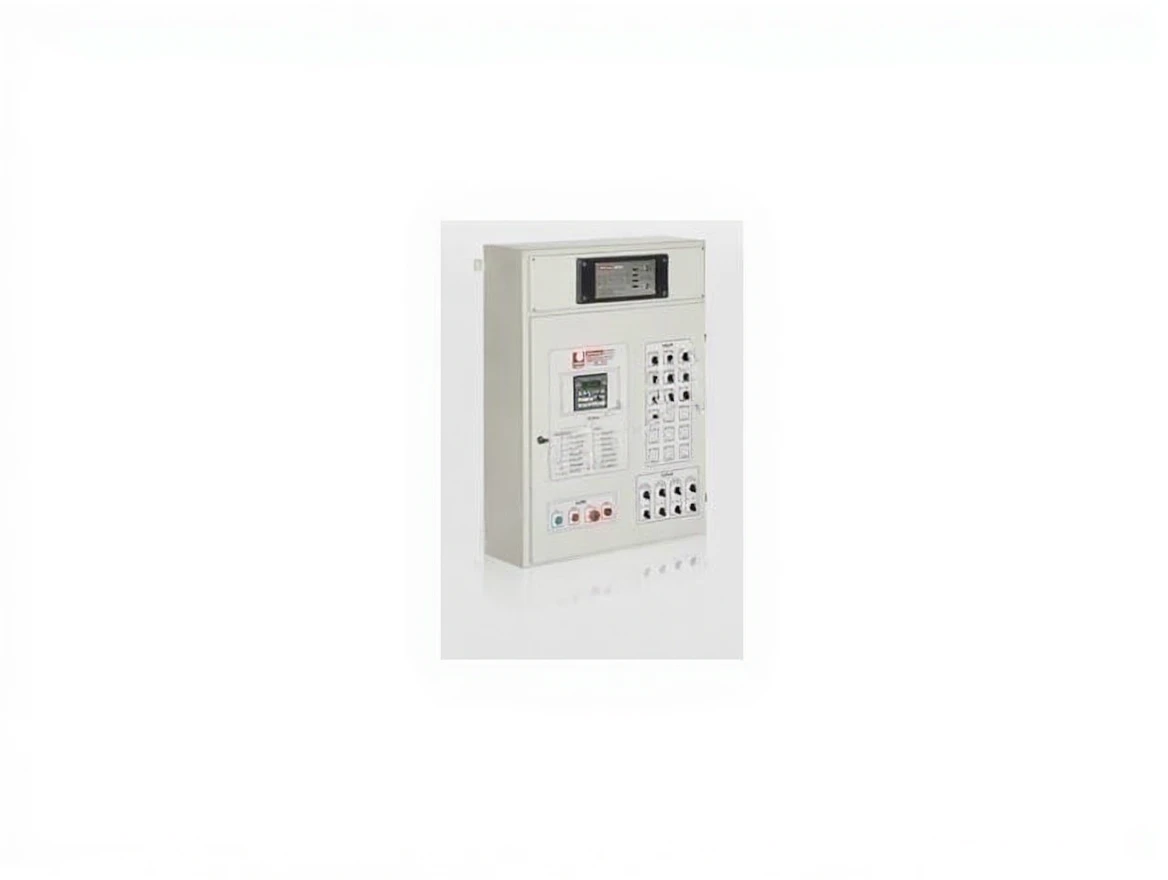

The biggest feature of the fully automatic ventilation system is that all air movements inside the house are controlled by the PLC (Computer System). The PLC system shows the temperatures of the front right, back right, front left, back left, and middle of the house separately. The system consists of fans, pads, pumps, water tank, and an automation panel that controls them, according to the climate conditions in the area where the house is located. The number of fans and pads required is determined based on the number of poultry in the building. Fans and pads are positioned according to the condition of the building. In the system, there is a flap damper inside the building to adjust the air intake. The temperature inside the house is transferred to the automation panel through temperature sensors placed in different zones inside the house. According to the incoming data, the automation panel commands the fans to expel the dirty air outside the house, and commands the flaps and dampers to let in the necessary amount of clean air. In the fully automatic system, the opening angle of the flaps and dampers is determined by the automation panel. Depending on the season, only ventilation or ventilation – cooling is done. Cooling is provided using pads. Clean air taken from outside the house passes through the inside of the pads. Water is transferred inside the pads through the pipes on top of them. As the air passes through the pads, it absorbs moisture from the water and enters inside in a cooled state. Cold air is directed towards the roof through flaps and dampers. As cold air is heavy, it moves towards the lower floors of the cage. Thus, clean and cool air is transferred to all parts of the house. This is called the spray system. An alert-based audible and light alarm system is available in case of any problems that may occur in the ventilation system.

Features

• Provides and controls the humidity level inside the poultry house.
• Controls the gradual operation and stopping of fans placed according to the capacity of the house.
  (maximum – minimum ventilation)
• Controls the activation and deactivation of cooling pads placed according to the capacity of the house.
• Determines the opening and closing rates of the flaps and dampers (upper and lower cover) in front of the cooling pads inside the poultry house.
• If there is a system malfunction, power outage, or reaching the maximum and minimum temperature values inside the house, it activates the alarm, and the malfunction that caused the alarm is read on the PLC screen and resolved as soon as possible.
• The system can also be used manually.
• Energy saving is achieved.
• The fully automatic ventilation system eliminates human errors and sets desired values for ventilation and cooling inside the poultry house 24 hours a day.

Ventilation Fans

• Design with easy belt change option
• Low energy consumption
• Low noise level
• Galvanized steel fan blades
• Holes for draining water after cleaning

Fan Technical Specifications

• Air Capacity
  38,400 m3 / h @ 0 pa
  36,700 m3 / h @ 10 pa
• Speed: 447 rpm
• Motor Power: 1.5 HP
• Dimensions: Width: 1,400 mm
  Length: 1,400 mm
  Depth: 420 mm
• Voltage: 220 V – 380 V
