Automatic Towel and Toilet Paper Machine
| Brand | Yusufoğlu Makina |
|---|---|
| Model Type |
YSF/SM |

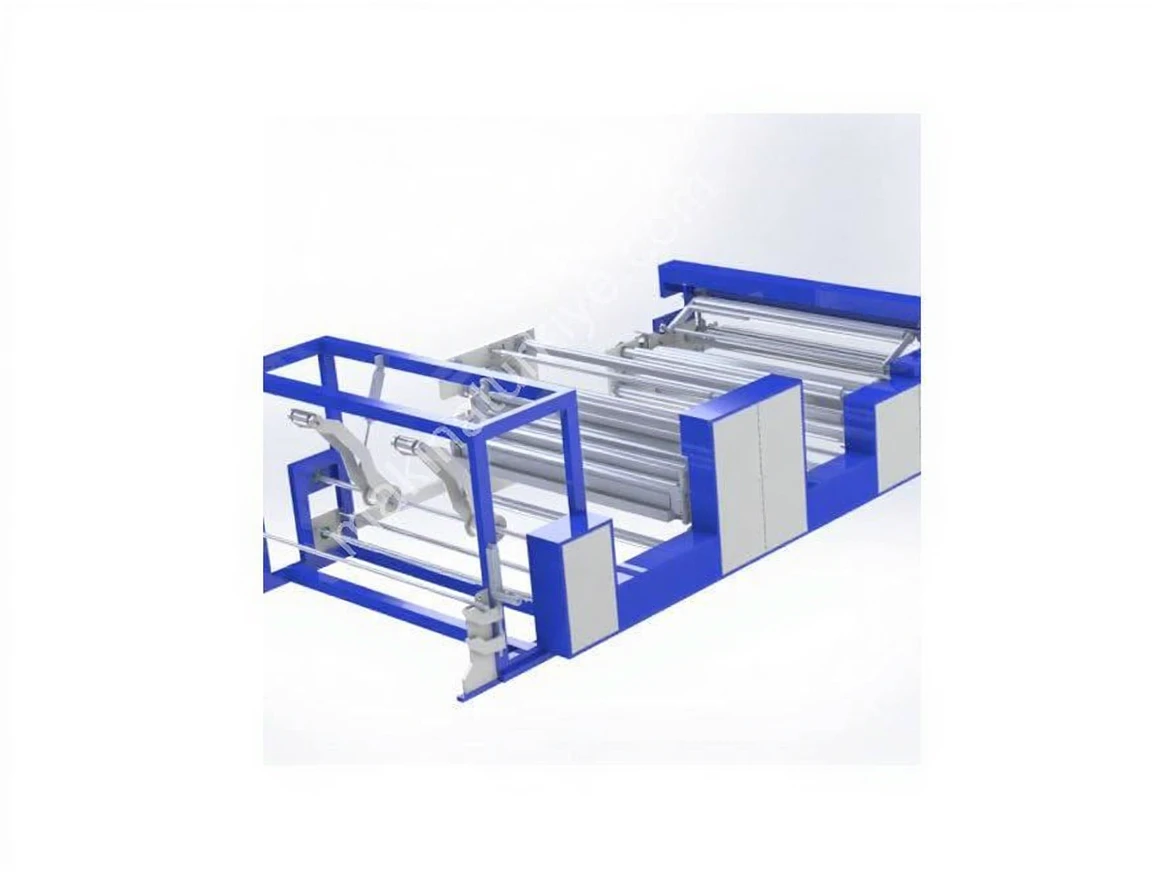

Yusufoğlu Machine YSF/SM Towel and Toilet Paper Machine
Yusufoğlu Machine Toilet Paper Machine produces towel rolls by passing the paper in roll form through lamination, embossing, perforation, and winding processes. Then, it is cut into desired sizes with a saw or log saw machine.
The machine can be produced without lamination, with a single lamination unit, or with a double lamination unit. The non-laminated model only produces toilet paper, while the laminated models can produce both toilet paper and paper towels.
The automation system detects possible malfunctions and informs the operator. Thanks to the automatic stop feature against paper breaks, uninterrupted production is ensured. Sizing can be easily performed with a saw or log saw machine.
Yusufoğlu Machine YSF/SM Technical Specifications
|
Feature |
Description |
|---|---|
|
Control Panel |
Touch Screen 7 inches |
|
Program Control |
PLC (+ SERVO system is optional) |
|
* Embossing |
1 set for non-laminated machine, 2 for single laminated machine, and 4 sets for double laminated |
|
Bottom Embossing |
Rubber |
|
Max. Capacity of the Machine (m/min) |
150 |
|
* Finished Product Diameter (mm) |
90-220 (Other desired sizes must be specified) |
|
Finished Product Diameter Control |
Pneumatic-Electronic (Servo control is optional) |
|
Finished Product Sheet Count |
Pneumatic-Electronic (Servo control is optional) |
|
Raw Paper Roll Outer Diameter |
1500 mm |
|
Perforation Size |
Automatically adjustable |
|
Perforation |
With 2 or 4 piece spiral / helical perforation knife |
|
Machine Control System |
PLC |
|
Outer Diameter of the Reel to be Used (mm) |
25-50 |
|
Main Motor Power |
5.5 kW (Can be increased up to 11 kW depending on the machine model) |
|
Reel Unwinding Stand |
1 / 4 (The number of stands must be specified) |
|
Edge Control |
Controlled by PLC |
|
Lamination Unit |
For point to point embossing pattern, the number of units must be specified during ordering |
