Automatic Truck Loading System
| Brand | ErichHahn |
|---|---|
| Model Type |
ATL |
ErichHahn ATL Automatic Truck Loading System
The ErichHahn ATL Vehicle Automatic Loading Station is designed to load viscous and solidifying petroleum products into tanker trucks. Two tanker trucks can be loaded simultaneously. The two-point station has a loading capacity of 80 tankers or 2000 tons of material per day.
Advantages of ErichHahn ATL
-
The ability to simultaneously fill several different types and grades of bituminous material
-
Automation and remote control capability
-
Minimization of the human factor in the bituminous material loading process
-
High-performance equipment
Intended Use

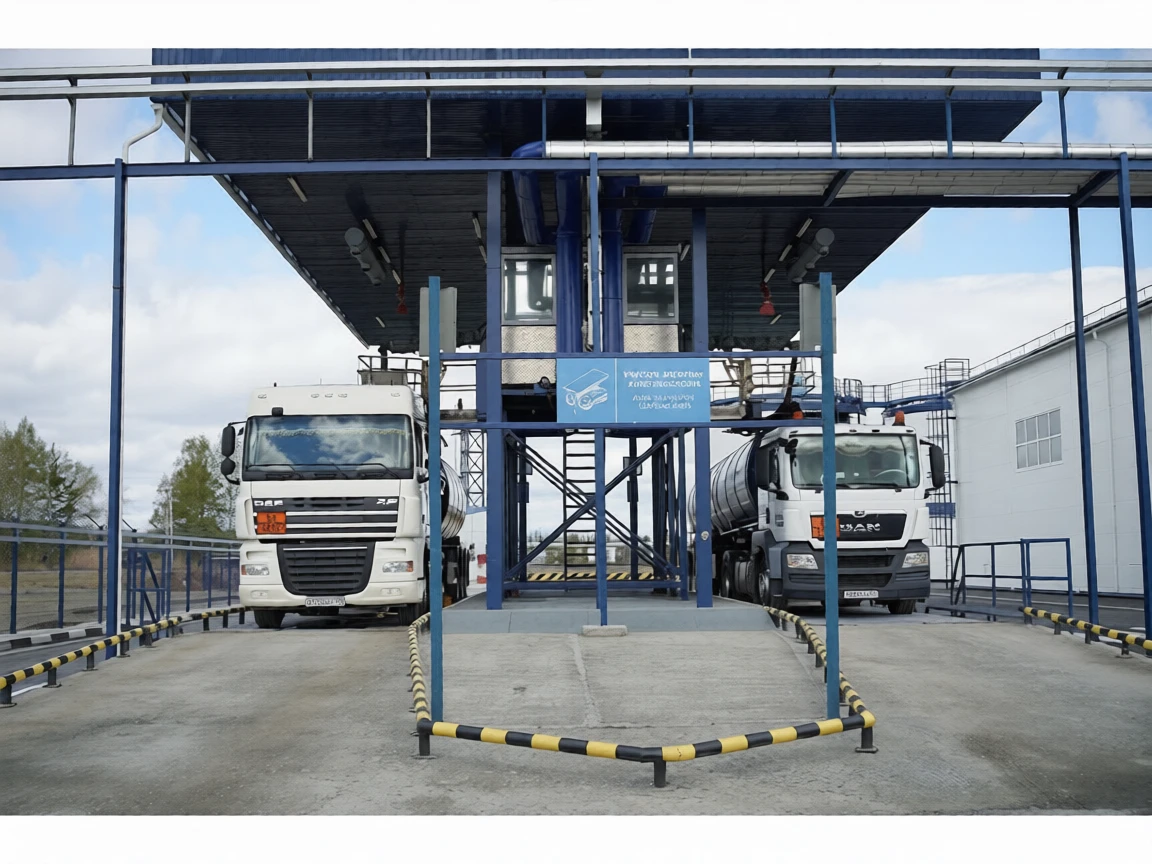

Designed for loading one or two tanker trucks simultaneously.
Features
• Number of points: 1 or 2
• Installed power: 7.07 kW
Equipment

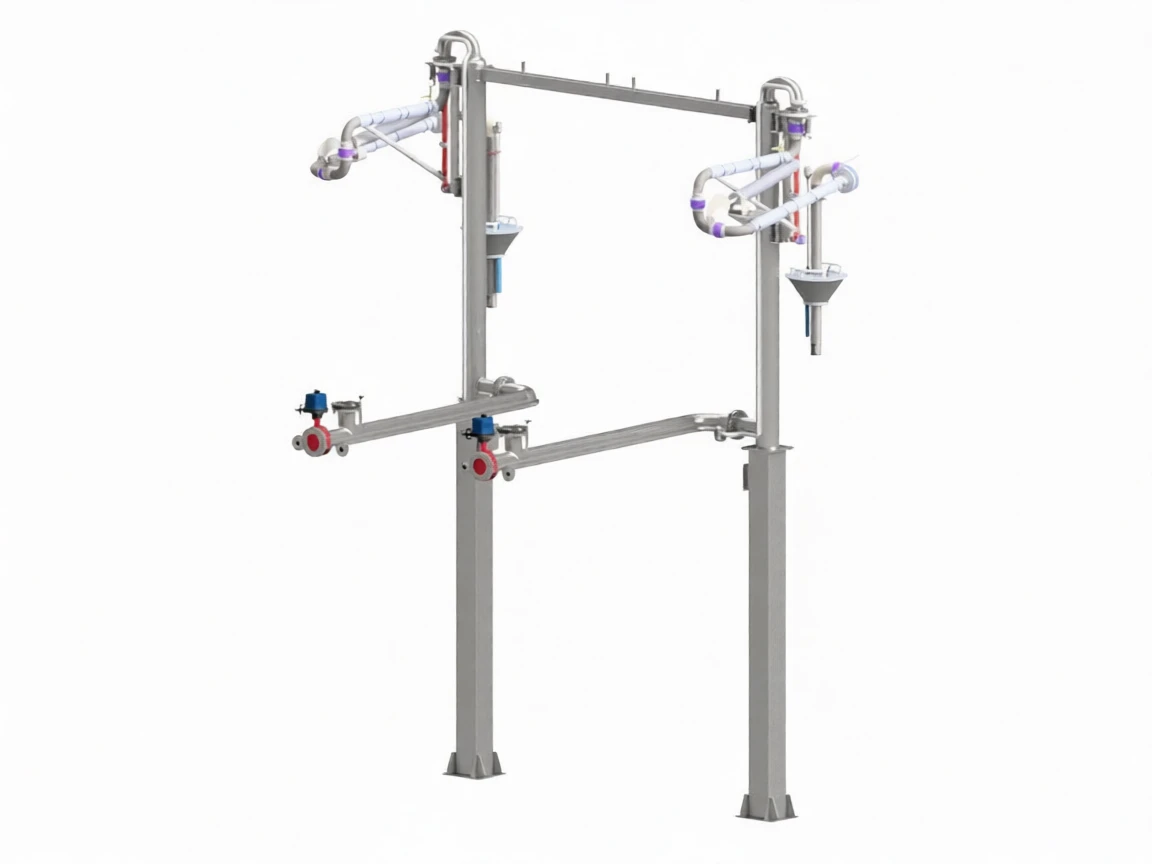

• Product loading system
• Stair system
• Control cabin
• LED warning lights
• Umbrella
• Barrier
Installation
• Roof
• Control and Fire Safety System
• Control Cabin
• LED Warning Lights
• Product Loading System
• Stair System
• Weighing
ErichHahn ATL Technical Specifications
|
Operating pressure, MPa |
0.6 |
|
Processing capacity of one station, m³/h |
30-130 |
|
Steam exhaust |
Provided for |
|
Insulation |
Provided for |
|
Canopy |
Provided for (cladding, corrugated sheet) |
|
Vehicle weighing system |
Provided for |
|
Weight capacity, tons |
60 |
|
Platform size, m |
18 |
|
Foldable safety bridge |
Provided for |
|
Barrier |
Provided for |
|
Automation system |
Provided for |
|
Overall dimensions |
|
|
Length, L, mm |
20000 |
|
Width, W, mm |
12000 |
|
Height, H, mm |
7900 |
|
Weight, kg |
22000 |
|
Service life, min. years |
10 |
|
Country of origin |
Turkey |
