Automatic Truck Unloading Unit

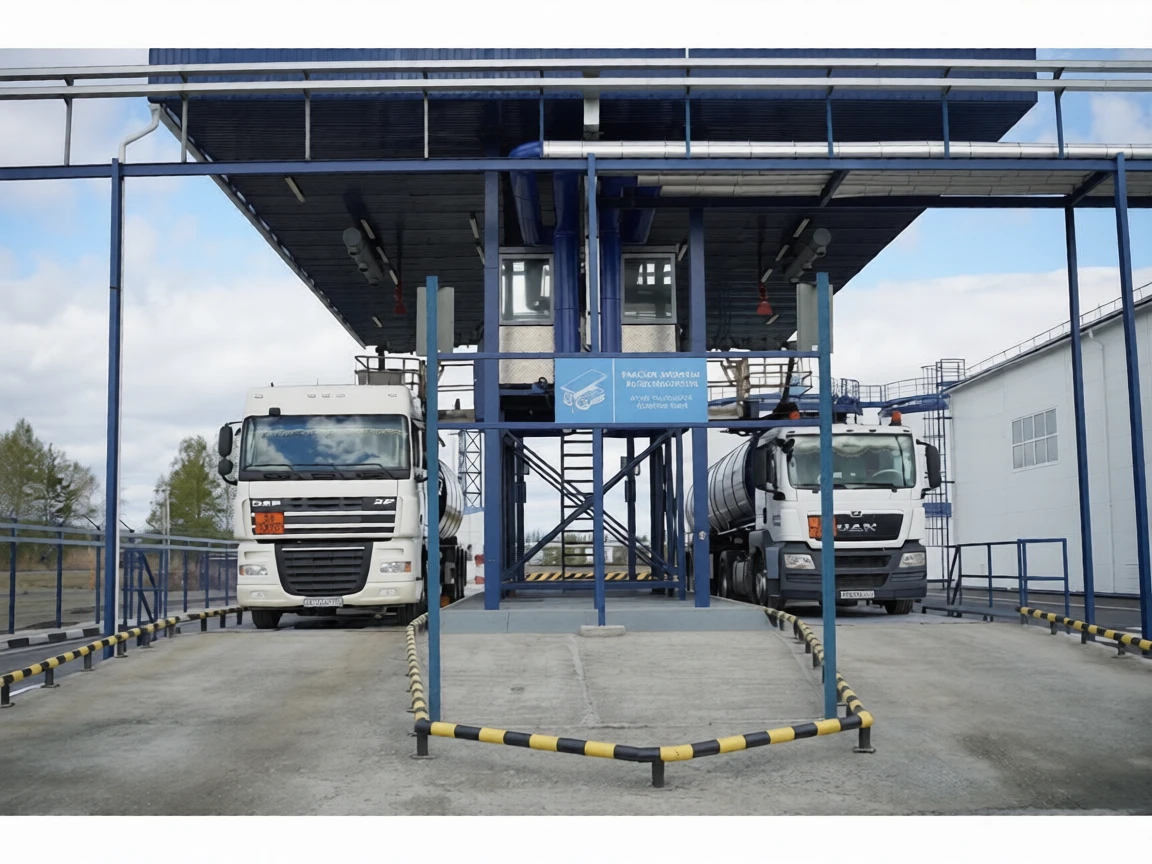

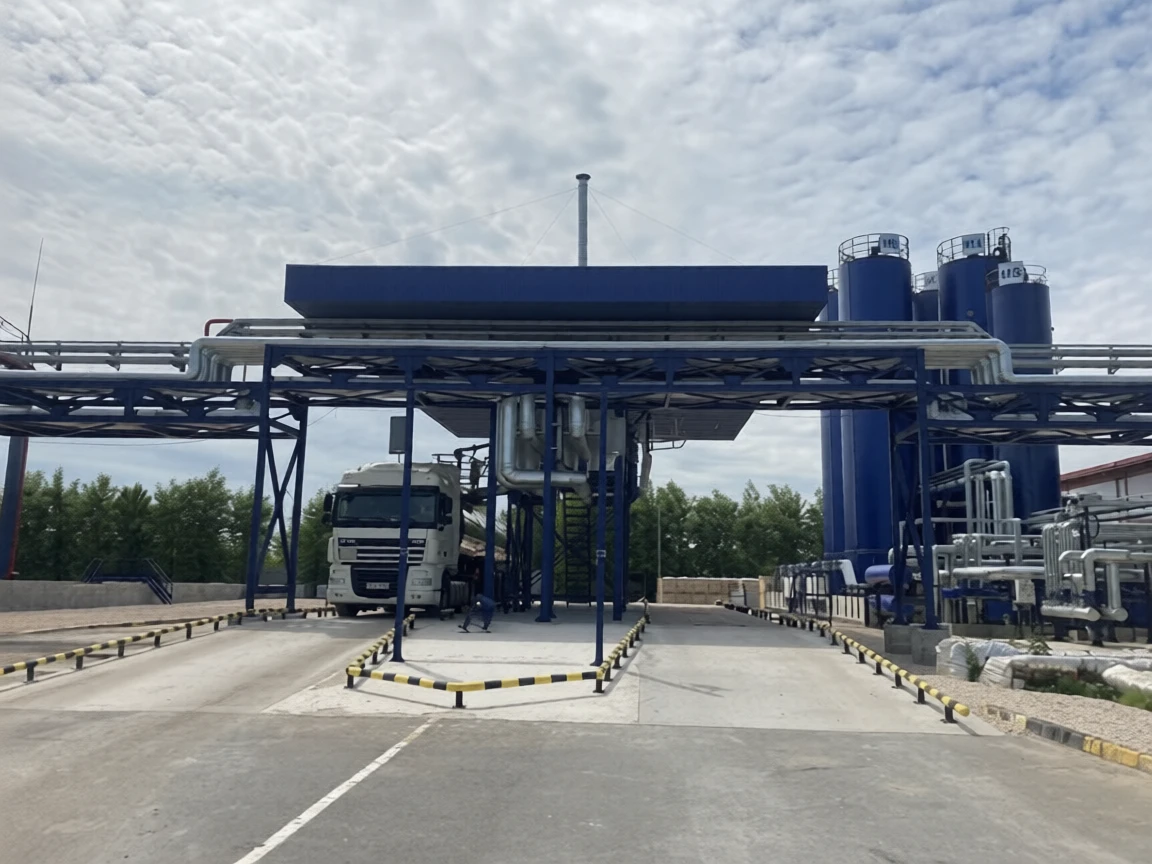

The ErichHahn ATU automatic truck unloading unit is designed for the simultaneous unloading of viscous and solidifying liquids from two or more tanker trucks and transporting the product to the consumer or storage area.

ErichHahn ATU Advantages

• Capacity range 110-360 m3/h
• Number of connection points 2, 4, 6
• Installed power 44-125 kW

Purpose of Use

The ErichHahn ATU automatic truck unloading unit is designed to facilitate the simultaneous unloading of viscous and solidifying liquids from two or more tankers and the conveyance of the product to the consumer or storage area.

Features

• Capacity range 110-360 m3/h
• Number of connection points 2, 4, 6
• Installed power 44-125 kW

Equipment

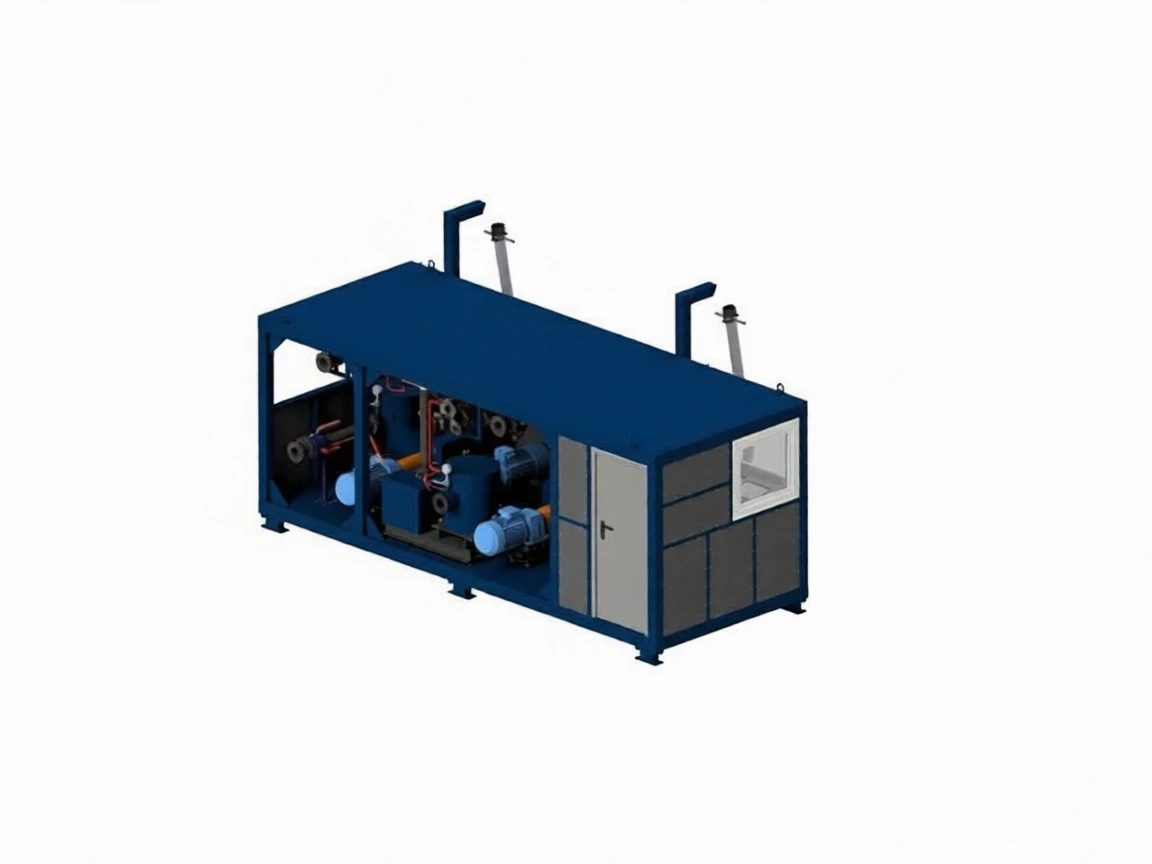

• Body (container-based)
• Pump equipment
• Viscous liquid filter
• Control valves
•  Control panel
• Hoses
• Thermal insulation

Installation

• Tank discharge time 7-24 hours
• Heating system external heat exchanger unit / immersion heat exchanger / steam / viscous liquid circulation
• Heat transfer power 350 kW
• Pump unit
• Viscous liquid filter
• External heat exchanger
• Exchanger unit
• Bottom discharge device
• Pipeline system
• Oil pipeline system for heating
• Automation system
• Thermal insulation

ErichHahn ATU Technical Specifications

Operating Environment	Viscous and solidifying liquids
External Environmental Conditions	Medium
Ambient Temperature, °C	-40…+40
Discharge Capacity, m³/hour	110
Operating Temperature, max, °C	180
Hot Oil Temperature, max, °C	200
Operating Pressure, MPa	0.6
Number of Pump Units	3
Power Consumption, kW	57
Electric Voltage, V	380
Frequency, Hz	50
Protection Class	IP 54
Number of Hoses	2
Connection Hose Diameter, DN, mm	100
Connection Type	Camlock (quick hose connection)
Heating Method	Indirect hot oil
Control Cabin	Provided
Overall Dimensions (W x D x H), mm	6000x2500x2600
Weight, kg	7000
Service Life, min. years	10
Country of Origin	Turkey
