Automatic Vacuum Lifting System with 600 Kg Capacity
| Brand | Single Lift |
|---|---|
| Model Type |
SL-PVL-600VT |

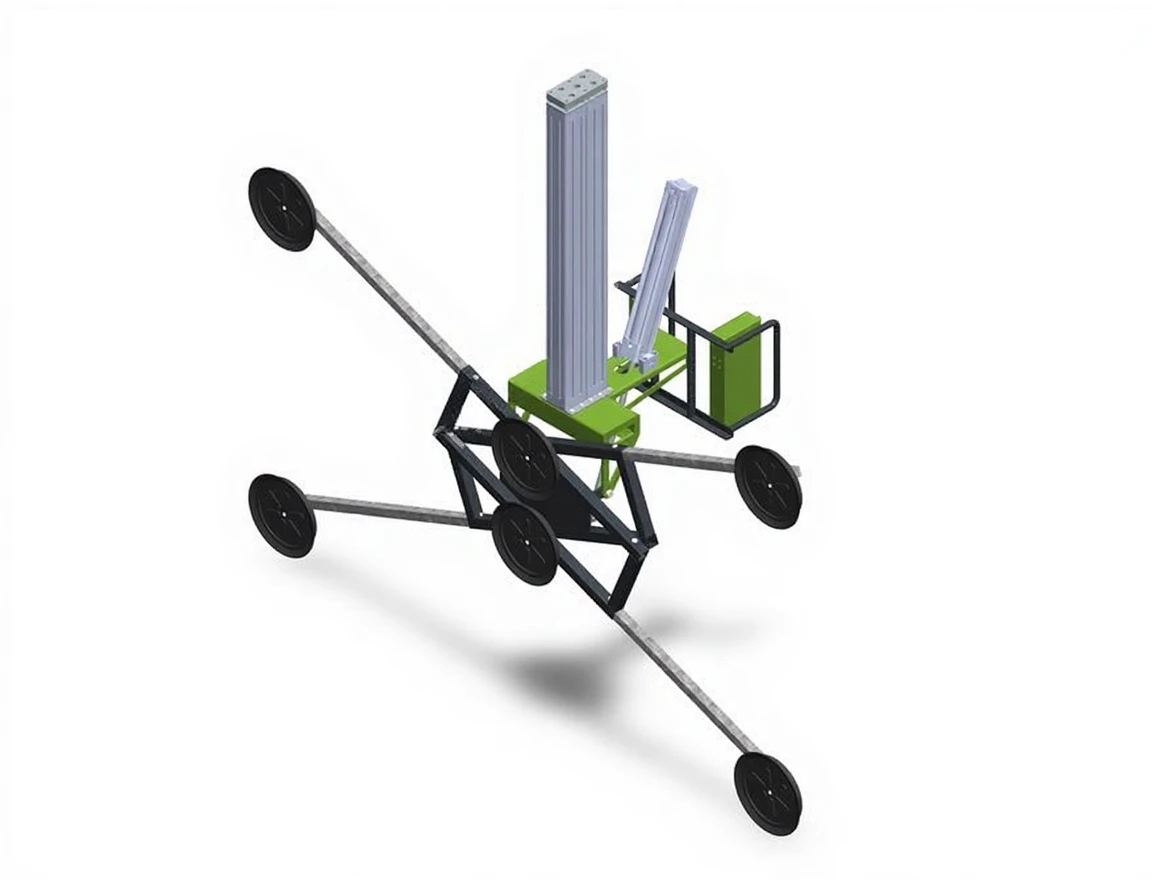

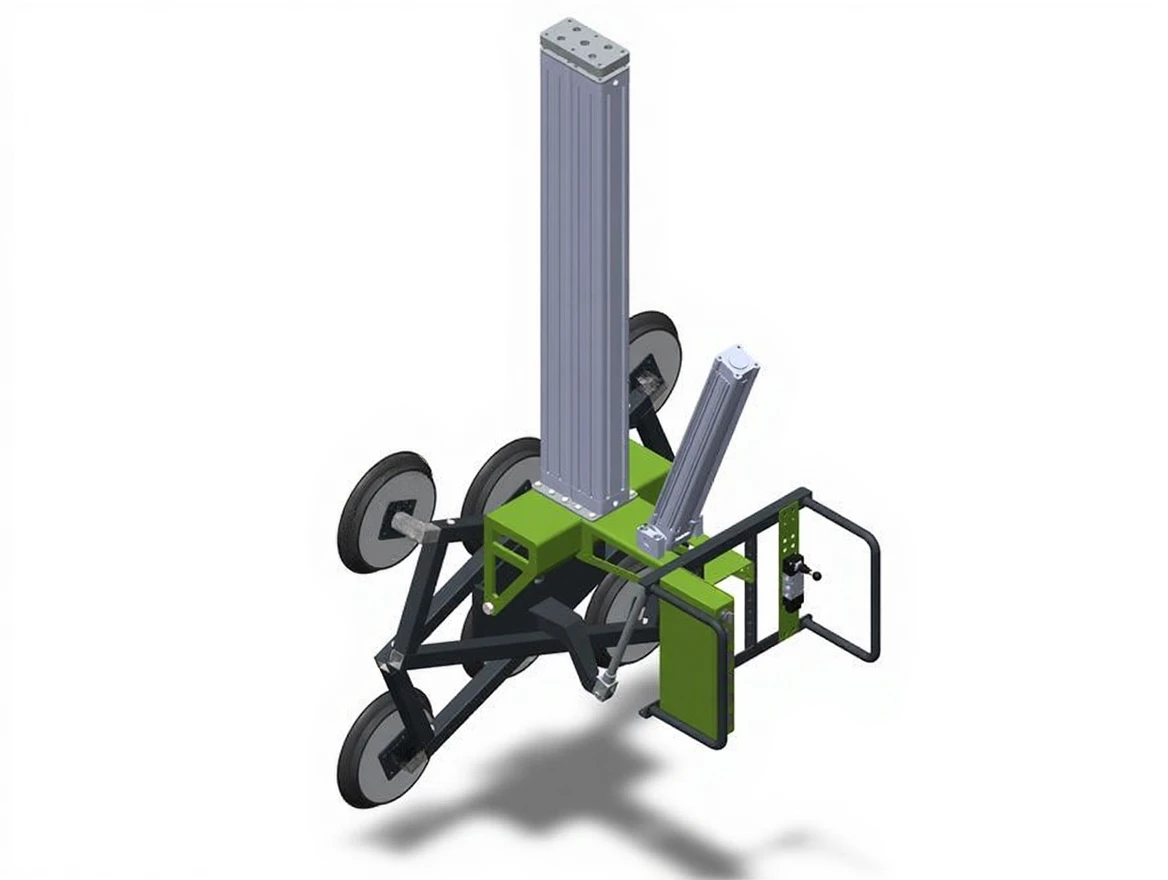

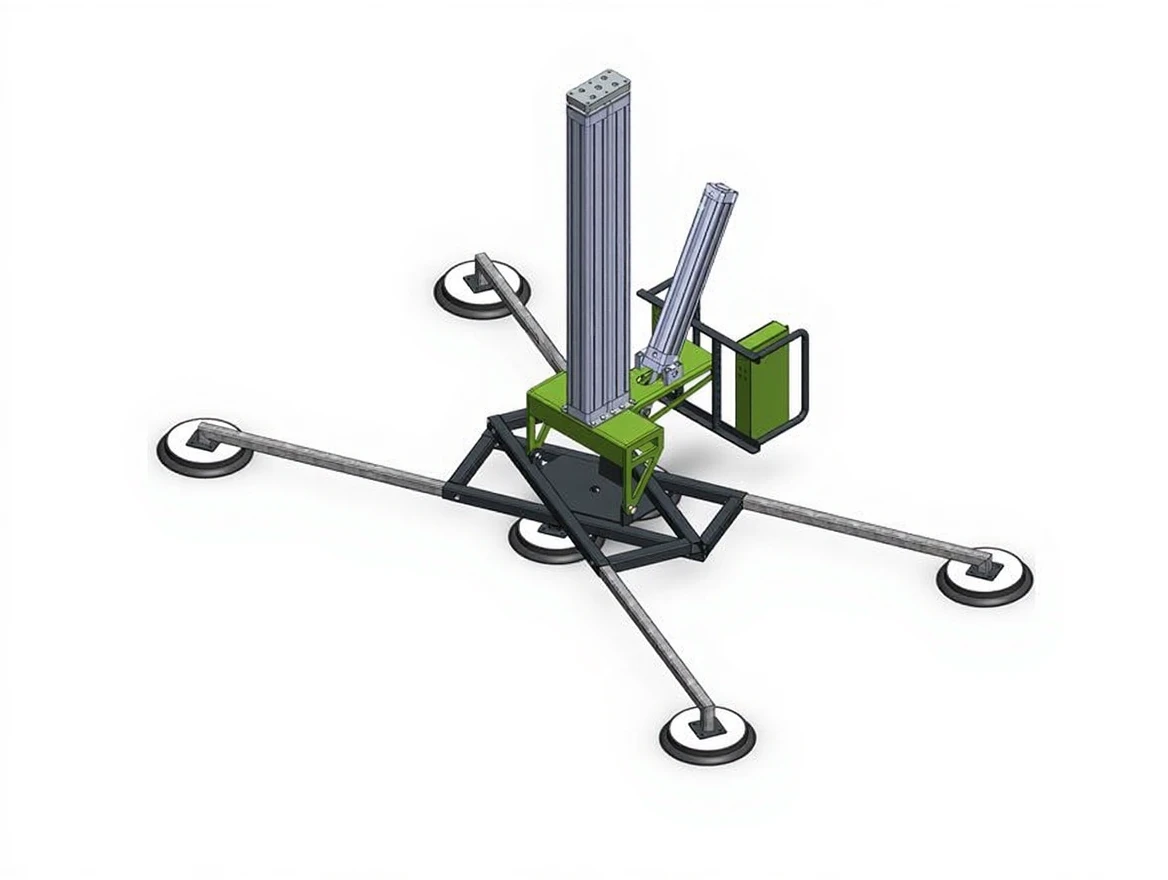

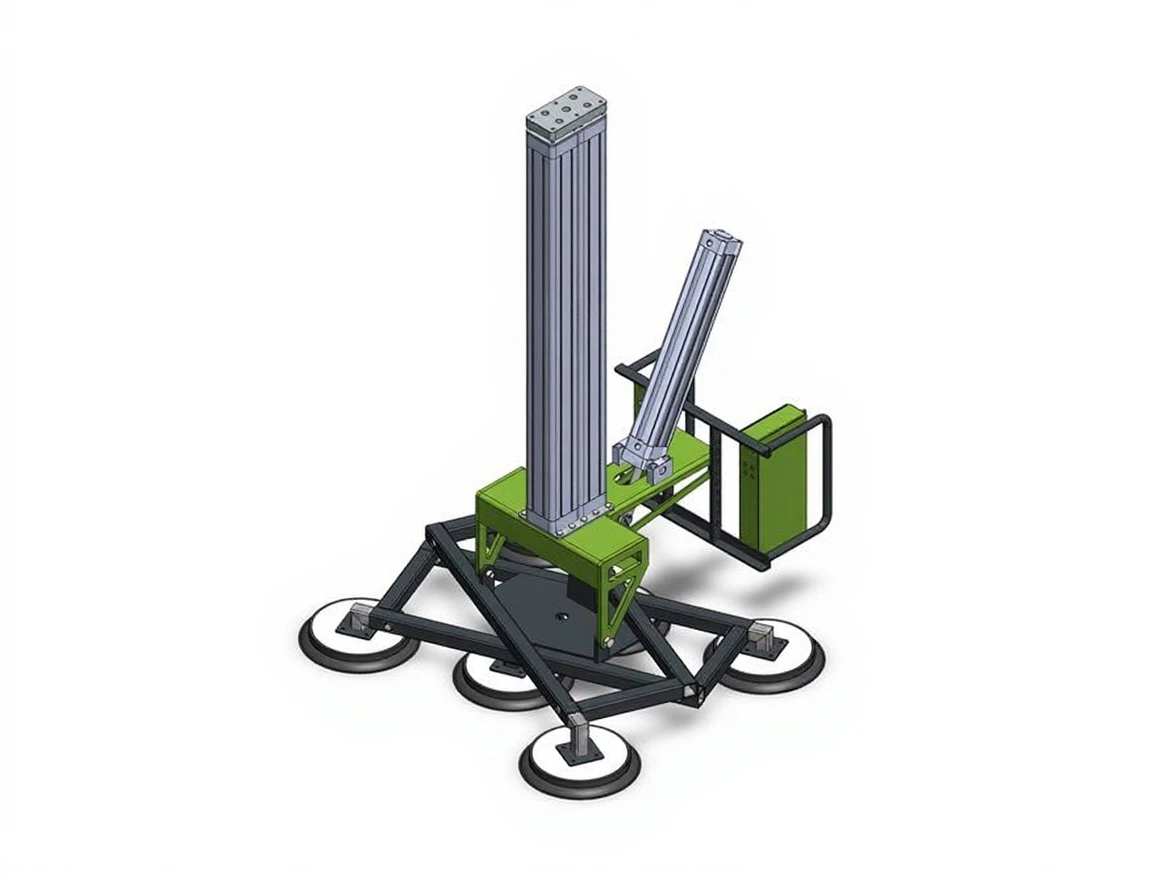

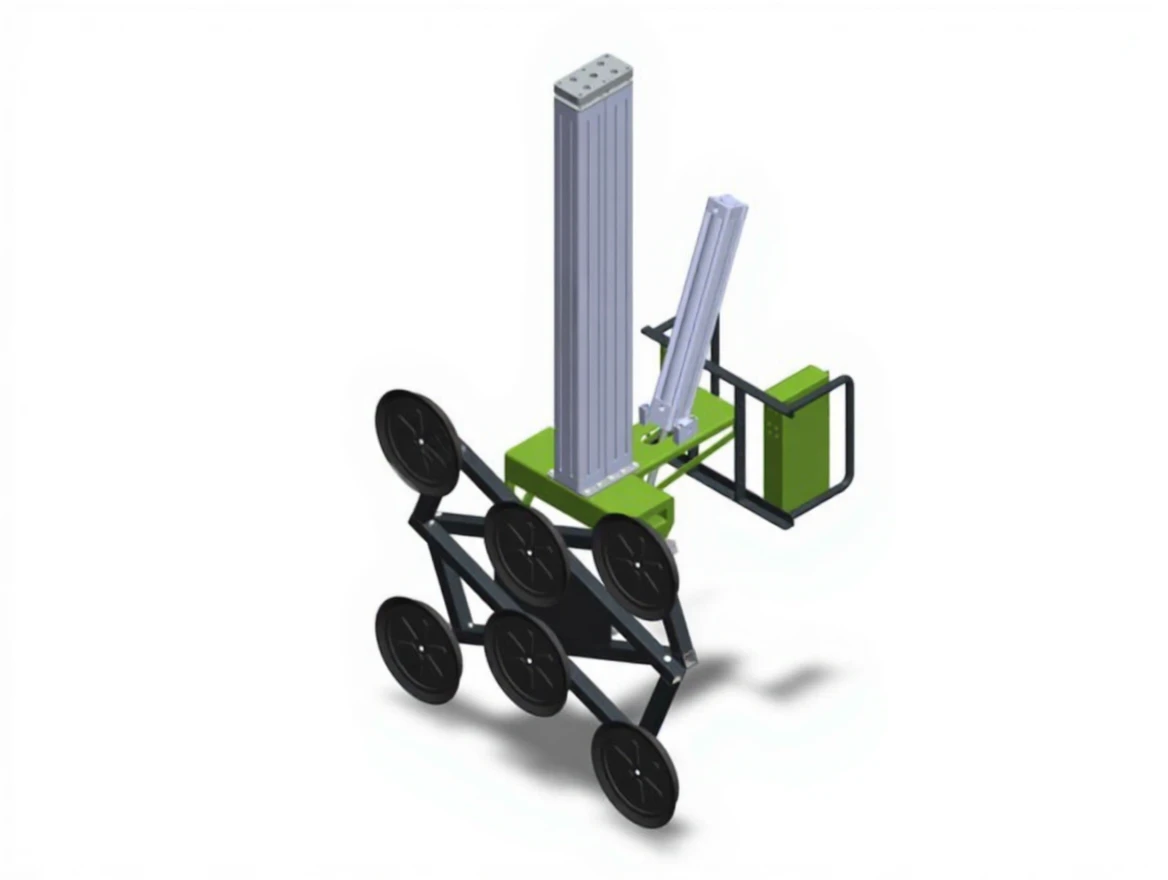

SL-PVL-600VT – Automatic Vacuum Transport System with 600 Kg Capacity
Especially developed for the vertical transportation and positioning of sensitive surface materials such as glass, marble, ceramic, and sandwich panels, this vacuum lifter is compact and has a high carrying capacity.
This model, which has a 600 kg carrying capacity, operates with a compressed air (pneumatic) system and provides powerful performance without an electricity dependency. With 2+4 vacuum pads of 290 mm in diameter on it, it ensures strong and stable grip on materials.
Thanks to the 0°-90° automatic tilting feature, positioning material accurately becomes easier in production lines or assembly areas. Additionally, an optional 1000 mm automatic lifting distance can be integrated into the system.
Technical Specifications
| Feature | Value |
|---|---|
| Box Dimensions (L x W x H) | 1100 x 1090 x 1050 mm |
| Box Weight | 38 ± 2 kg |
| Number of Pads | 2 + 4 |
| Machine Weight | 82 ± 3 kg |
| Operating System | Compressed air (Pneumatic) |
| Pad Diameter | 290 mm |
| Maximum Carrying Capacity | 600 kg |
| Automatic Tilt Angle | 0° / 90° |
| Automatic Lifting Distance | 1000 mm (optional) |
-
Positioning in glass and panel production lines
-
Transporting marble and ceramic slabs
-
Vertical transportation and positioning in facade applications
-
Pneumatic use in environments without electricity requirements
-
Pre-assembly tilting of flat surface materials
