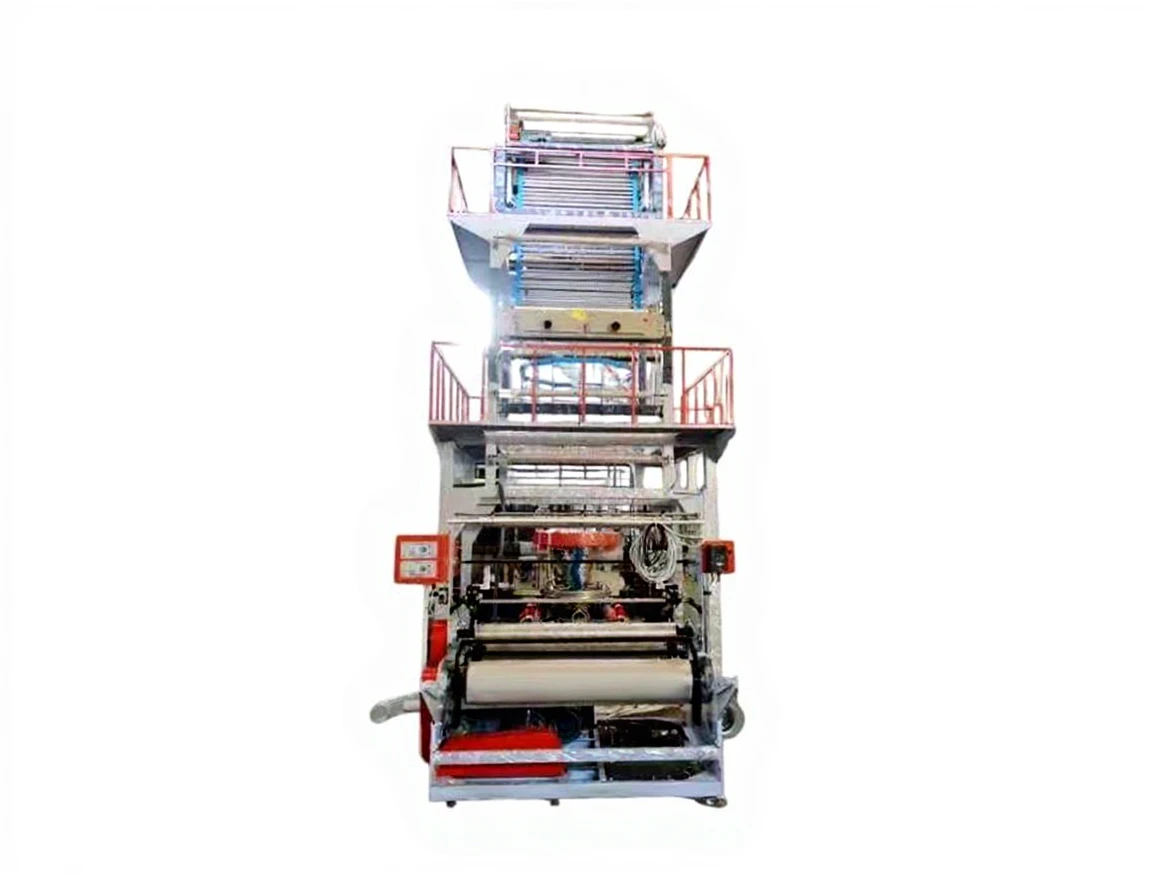

Bag Blowing Machine

Technical Parameter

• Model:SM BDP-1000

• Main Part (Main Engine):18.5 kW inverter controlled

• Gearbox:173/173, high strength hard tooth surface

• Screw and Rod:55×1.55×1301

• Screw Material:38CrMoAl, aluminum nitrogen treatment

• Film:100 HDPE / 250 LDPE

• Mold Material:45

• Air Ring:800, 2 sets

• Blower:5.5kW

• Air Compressor:External

• Cool Fan:2 pieces

• Heating:Stainless steel

• Capacity:100kg/hour

• Film Width:600 – 1000mm

• Single Sided Film Thickness:0.01 – 0.1mm

• Rotary Mold:fixed mold

• Net Change:Manual

Traction Frame

• Width of Traction Roller:1200mm

• Diameter of Traction Cylinder:165mm

• Traction Motor:1.5 kW worm gear motor, inverter controlled

Other Features

• Letter “A” Board:Wood

• Pressing Method:Cylinder controlled

• Relief Bellow:Yes

• Bubble Setting:Squirrel cage

• Traction Type:Still

Rewinder

• Rewinder roller length:1200mm

• Diameter of rewind roller:250mm

• Rewinder type:double rewind

• Torque motor:10 N·m

• Torque meter:20A

• Rewind roller:2 large rubber rollers

• Height:5.5m

Electrical Box and Hardware

• Inverter:KEWO

• Engine:NANHE

• Low voltage electrical equipment:Chinese

• Temperature controller:Aiset

• Ammeter:made in China

• Voltmeter:made in China

General Electrical Information

• Total Power:50 kW

• Income:380 V, 50 Hz, 3 phase
