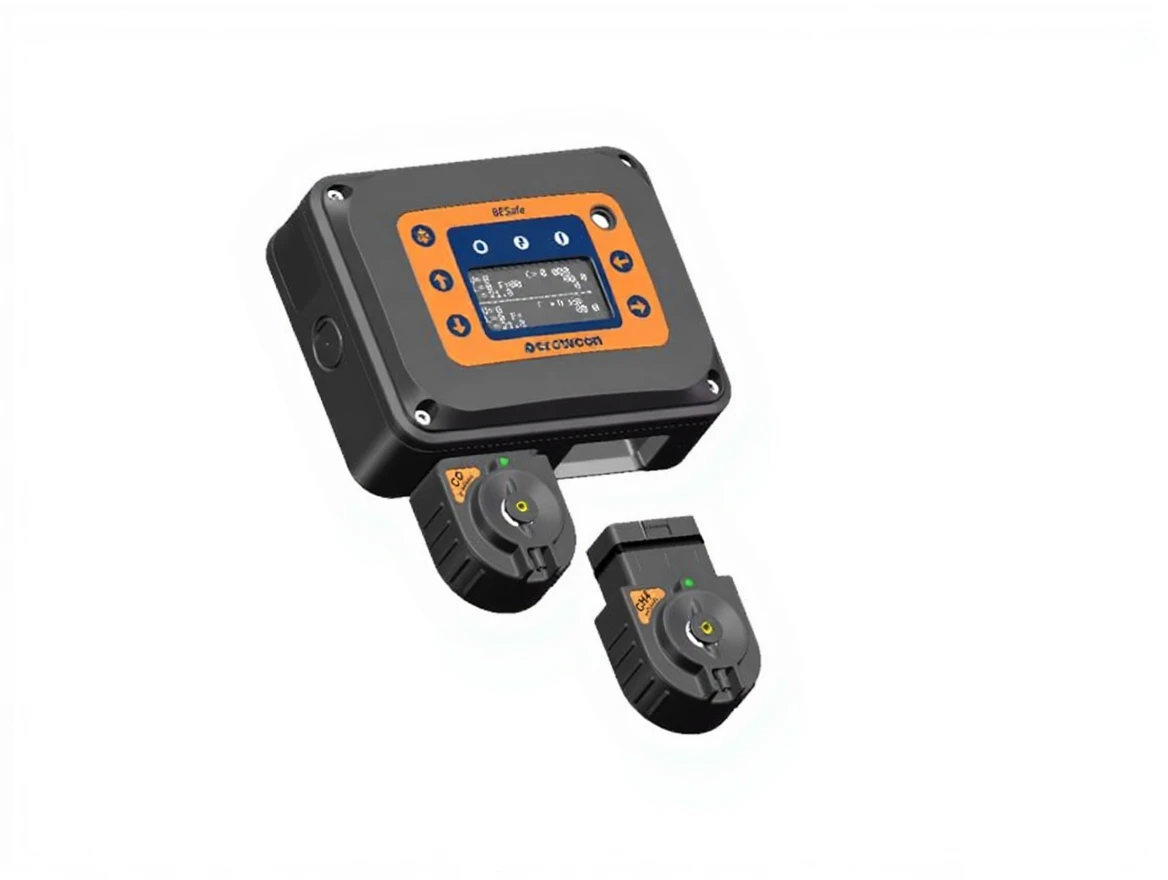

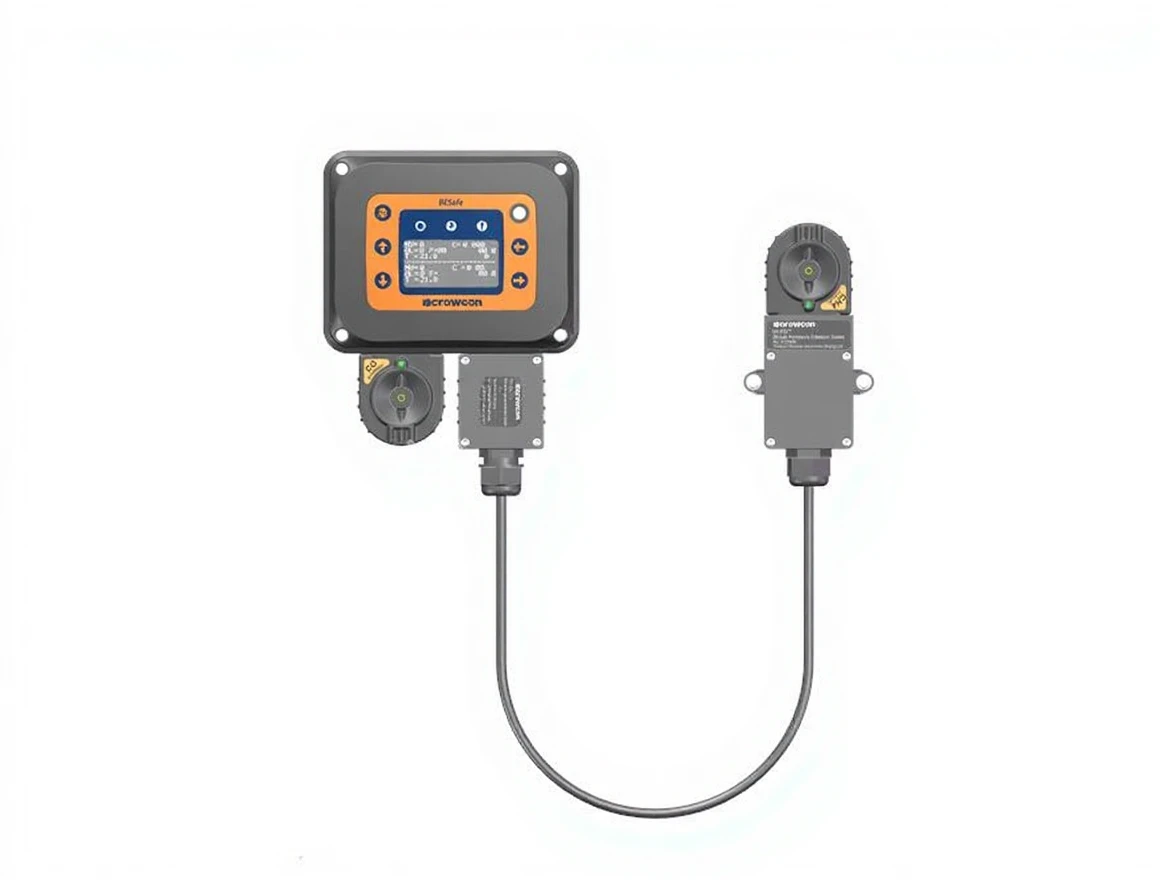

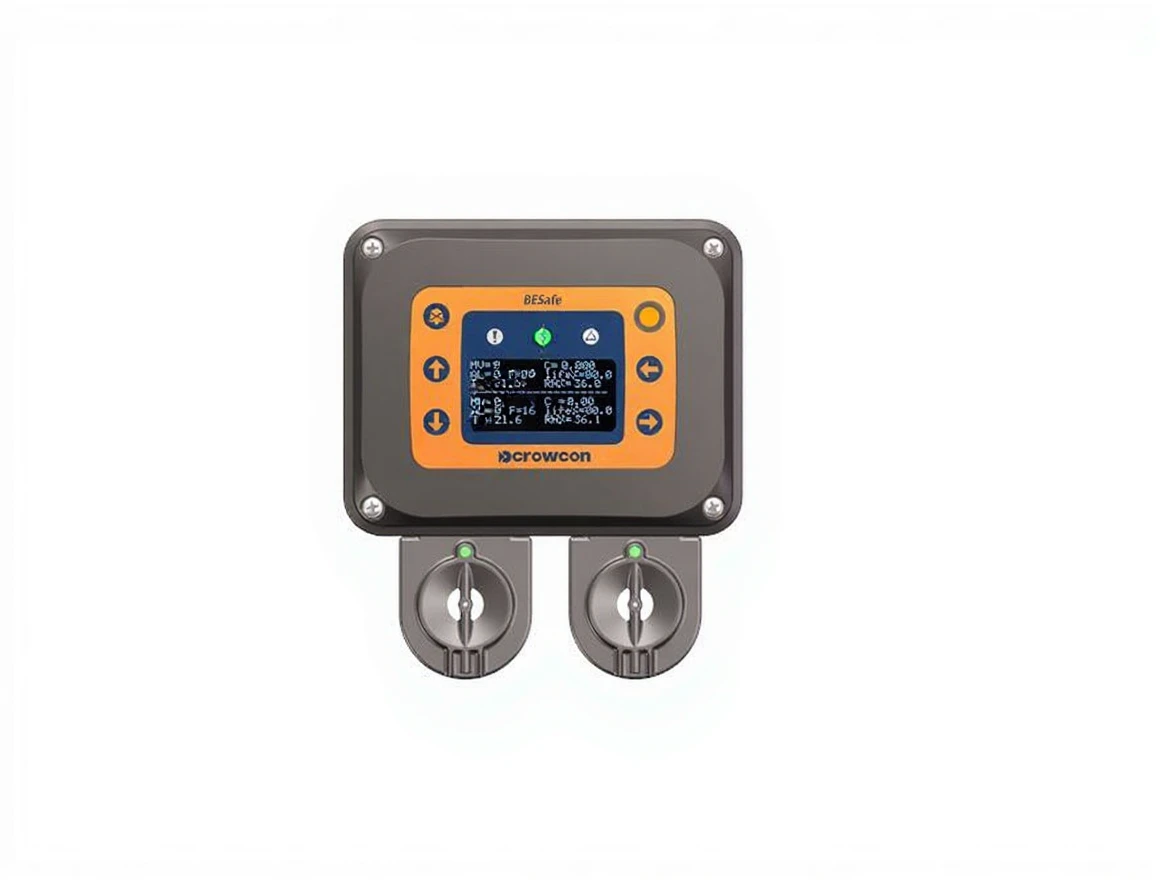

Battery-Powered Dual Channel Gas Detector
| Brand | Crowcon |
|---|---|
| Model Type |
BESafe |
Crowcon BESafe Gas Detector General Features
BESafe is a dual-channel gas detector designed for battery energy storage systems, equipped with smart sensors and state-of-the-art technology.
It offers fast response, remote maintenance, and flexible installation options to protect compact and high-risk areas.
Crowcon BESafe Technical Specifications
|
Size |
175 x 150 x 55 mm |
|
Weight |
Base: 550 g |
|
Housing Material |
Polycarbonate |
|
Ingress Protection |
IP65 |
|
Cable Entry |
M20 |
|
Power |
10 to 30 V DC, 24 V DC Nominal |
|
Display |
128×64 OLED |
|
Electrical Output |
2 x 4-20mA |
|
Relay Output |
SPDT Relay (1A at 24 VDC) |
|
Audible Output |
Audible alarm: 85dB @ 3m |
|
Operating Temperature |
CE: -20 to +60°C UL: -20 to +50°C |
|
Operating Humidity |
0% to 99% RH (non-condensing) |
|
Data Logging |
3000 data records |
|
Certifications |
EN 61010-1 |
Crowcon BESafe Gases and Burners Used
|
Gas |
Sensor Type |
Range |
Temperature Range |
|
Hydrogen (H 2 ) |
Catalytic |
0-25% LEL |
-20 to +60°C |
|
Methane (CH 4 ) |
Catalytic |
0-100% LEL |
-20 to +60°C |
|
Carbon Monoxide (CO) |
Electrochemical |
0-1000 PPM |
-20 to +50°C |
