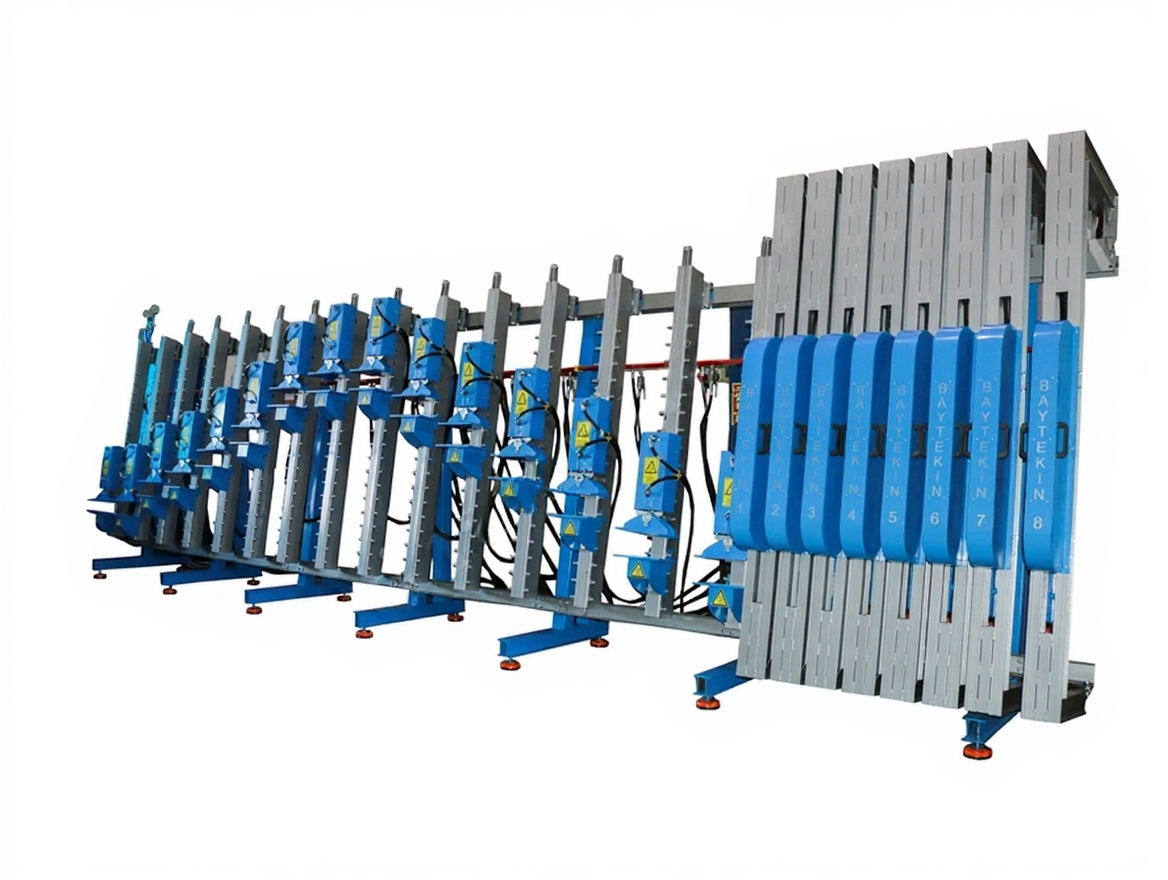

BL8-20 Laminated Wood Press

TECHNICAL SPECIFICATIONS

Model

BL8-20

Machine Full Length

9.5 Mt

Working Length

8 Mt

Working Width

15 cm – 20 cm

Working Height

125 cm

Number of Upper Pressure Pistons

16

Upper Pressure Piston Movement Up Down (10cm Interval) ↑ ↓

1 Mt

Upper Pressure Piston Column Movement Left Right ← →

Movable

Lower Pressure Table Movement Up Down (10cm Interval) ↑ ↓

1 Mt

Number of Front Presses

8

Front Press Movement Left Right ← →

9.5 Mt Movable

Control Panel

Remote Controlled

Specific pressure

8.3 – 16.6 kg cm2

Shipping Dimensions 9.5 Mt x 2.7Mt x 1.5Mt
