Büyük Çift Şaftlı Kırma Makinası

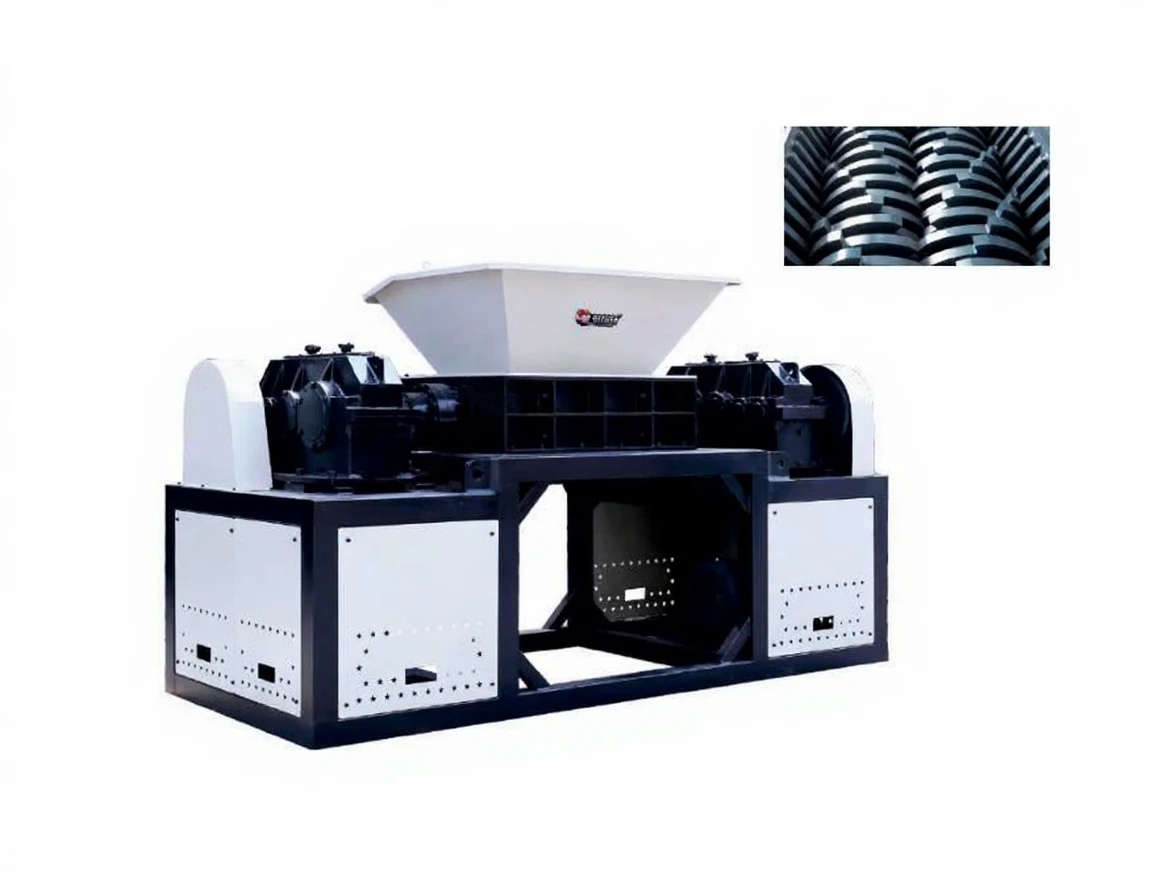

Almet Machinery Large Double Shaft Shredder

When the controlled reduction of large volumes of industrial waste is required, the Large Double Shaft Shredder is one of the most preferred equipment by businesses. With two powerful parallel shafts working in tandem, it quickly reduces large and sturdy materials into smaller sizes, significantly reducing waste volume. This makes storing, transporting, and managing materials much easier.

The machine is designed to operate at a low speed but with high torque. This design not only facilitates the shredding of tough materials but also offers less dust formation and quieter operation. Its sturdy body is suitable for long-term use, providing reliable performance in busy production environments.

The rubber shock absorbers at the transmission body connections of the shredder help minimize vibration, aiding in the machine’s more stable operation. The PLC-based electrical control panel makes the operation process safer, more controlled, and easily customizable according to needs.

Highlighted Features
• Powerful shredding performance with low speed – high torque principle
• System that generates less dust and operates quietly
• Rubber shock absorbers reducing vibration at body connections
• PLC-featured computer-controlled electrical panel

The Large Double Shaft Shredder is an ideal solution providing efficiency, durability, and operational ease for businesses requiring high capacity. It is safely used in various sectors from recycling facilities to production areas.

Technical Specifications:

• Model – Motor Power – Capacity (kg/h) – Blade Size – Number of Blades – Speed – Bin Dimensions

• 500 model: 7.5 kW | 300-800 kg/h | Φ200×20 | 24 blades | 15-30 r/min | 500×370 mm

• 600 model: 15 kW x 2 | 500-1000 kg/h | Φ250×30 | 20 blades | 10-20 r/min | 600×500 mm

• 800 model: 22 kW x 2 | 600-1500 kg/h | Φ300×30 | 26 blades | 10-20 r/min | 800×600 mm

• 1000 model: 37 kW x 2 | 1000-2000 kg/h | Φ350×50 | 20 blades | 8-15 r/min | 1000×700 mm

• 1200 model: 45 kW x 2 | 2000-4000 kg/h | Φ400×50 | 24 blades | 8-15 r/min | 1200×800 mm

• 1600 model: 75 kW x 2 | 4000-8000 kg/h | Φ500×70 | 22 blades | 8-15 r/min | 1600×1100 mm
