Cable Bend Connection And Pulling Force Testing Device

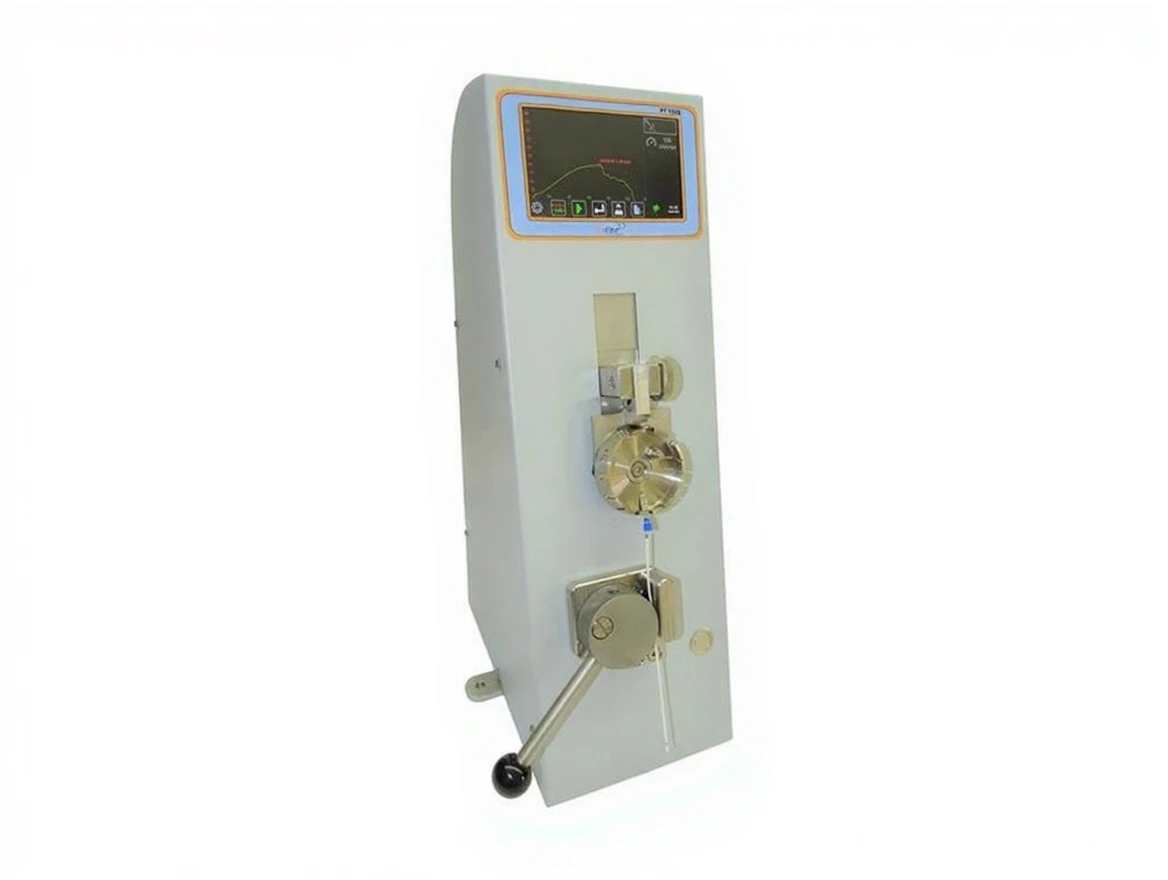

The Pulltester PT 1500 is a motorized measuring device for pulling forces up to 1500 N. The precisely controlled motor allows for continuous pulling across the entire force range, enabling very accurate and repeatable measurements. Different test modes can be easily set via the touchscreen. Both force and distance are measured exactly. The PT 1500 pulling test device meets all kinds of requirements and is perfectly suitable for quality control of bend connections.



Performance Features

– Measurement range from 15N to 1500N

– Measurement accuracy at 15 – 150N: +/- 1.5N and at 150 – 1500N: +/- 3.75N

– 5 test functions for destructive and non-destructive test procedures

– Electronic controlled pulling speed freely selectable between 25 to 350 mm/min

– 5″ TFT color touchscreen to display measured values numerically or graphically

– Changeable password protection with 2 security levels: up to 100 users with 3 user levels or freely selectable authorizations

– Real-time transfer of measurements to PC with PT-Viewer 3 software, available separately

– Storage of measurements on an external USB storage medium for later processing on PC

– Output of measurement results for quick documentation

– Force table for various cable cross-sections

– Wide range of interfaces for maximum flexibility: USB, mini-USB, RS232, Ethernet, and I/O.
