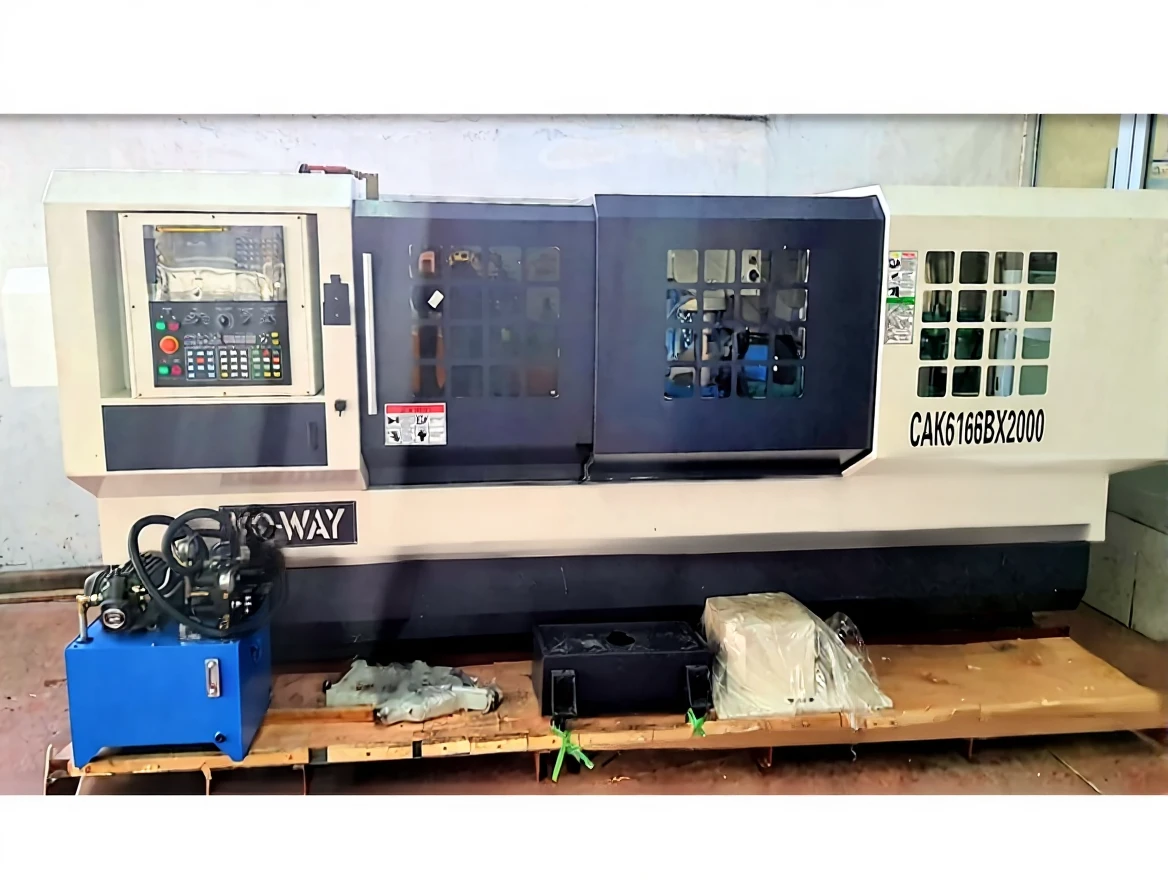

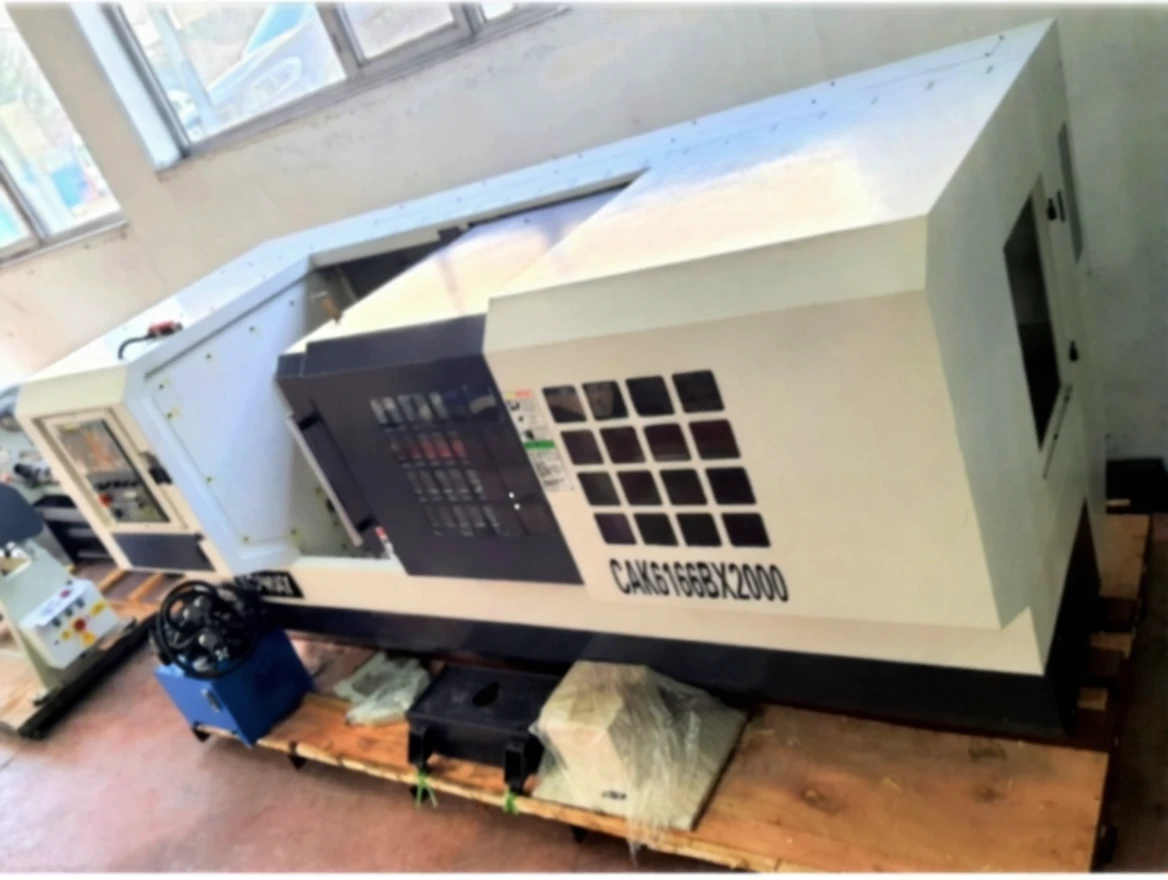

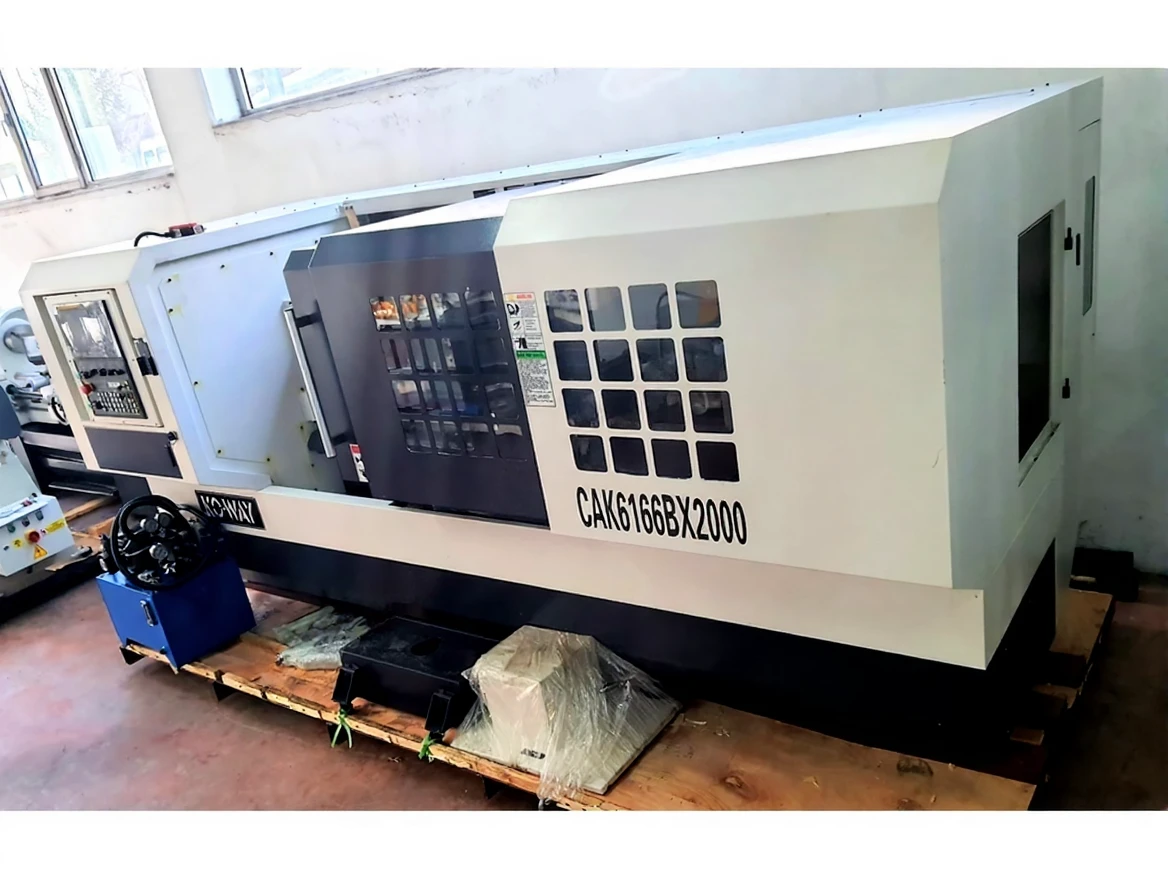

CAK 6166B Ø 660X2000 Cnc Flat Bed Lathe Machine
| Brand | Ko-Way |
|---|---|
| Model Type |
CAK 6166B Ø 660X2000 |
Description

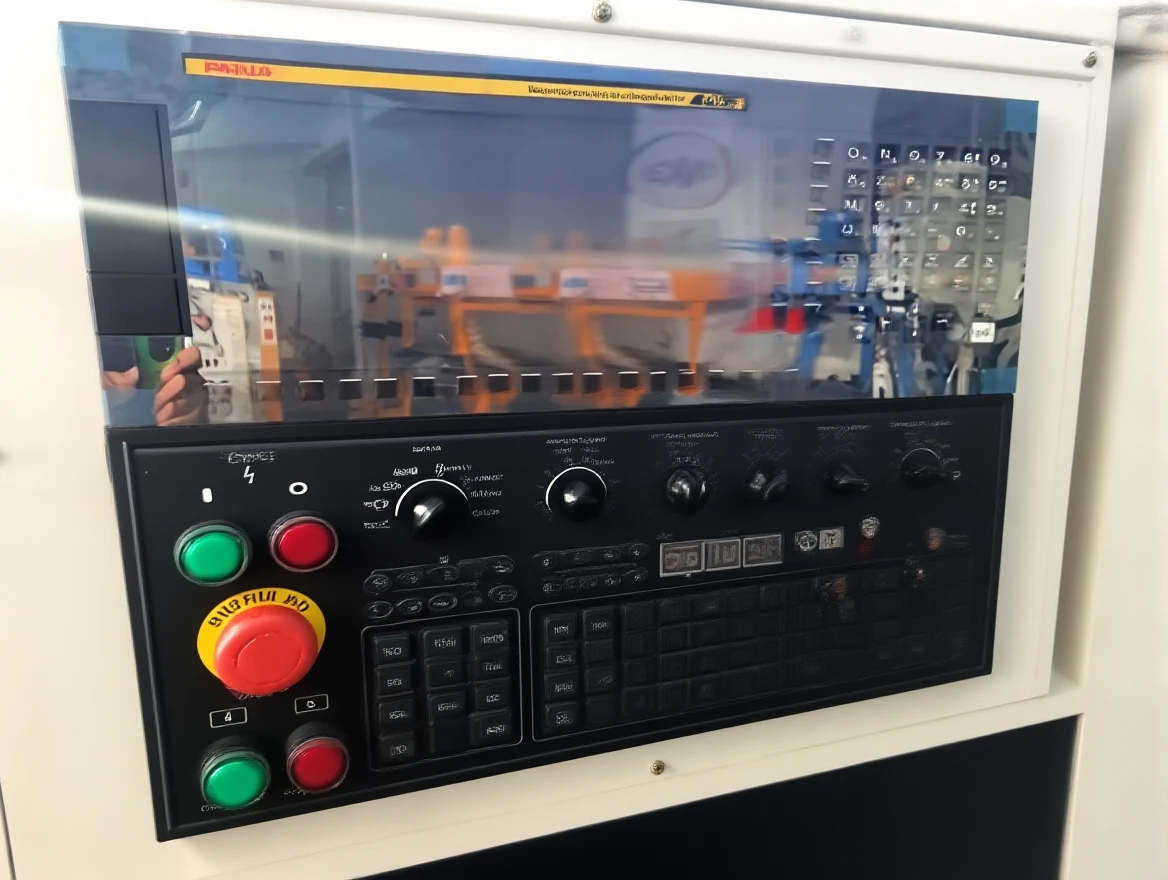

| Control Unit | : FANUC OI MATE TD |
| Bed Swing Diameter | : 660 mm |
| Max. Turning Diameter | : 660 / 510 mm |
| Max. Carriage Swing | : 330 mm |
| Max. Distance Between Centers | : [ PHONE HIDDEN ] mm |
| Centers Distance | : 2000 mm |
| Max. Bar Capacity | : 80 mm (62 mm on hydraulic square) |
| Spindle Speed | : 1d/min |
| Spindle Nose | : Type D NO: 8 |
| Chuck Diameter | : 250 mm |
| Rapid Traverse Rate | : 5/6 m/min |
| Turret Type | : Vertical 6-position turret |
| Tool Size | : 25 x 25 mm |
| Main Spindle Motor | : 7.5 / 11 kW |
| Center Sleeve Diameter | : 75 mm |
| Center Travel | : 150 mm |
| Center Taper | : MT5 |
| Total Weight | : 3000 kg |
| STANDARD ACCESSORIES | : Enclosed Splash Guard |
| : Coolant System | |
| : Spindle Cooling Unit | |
| : MPG Handwheel |
