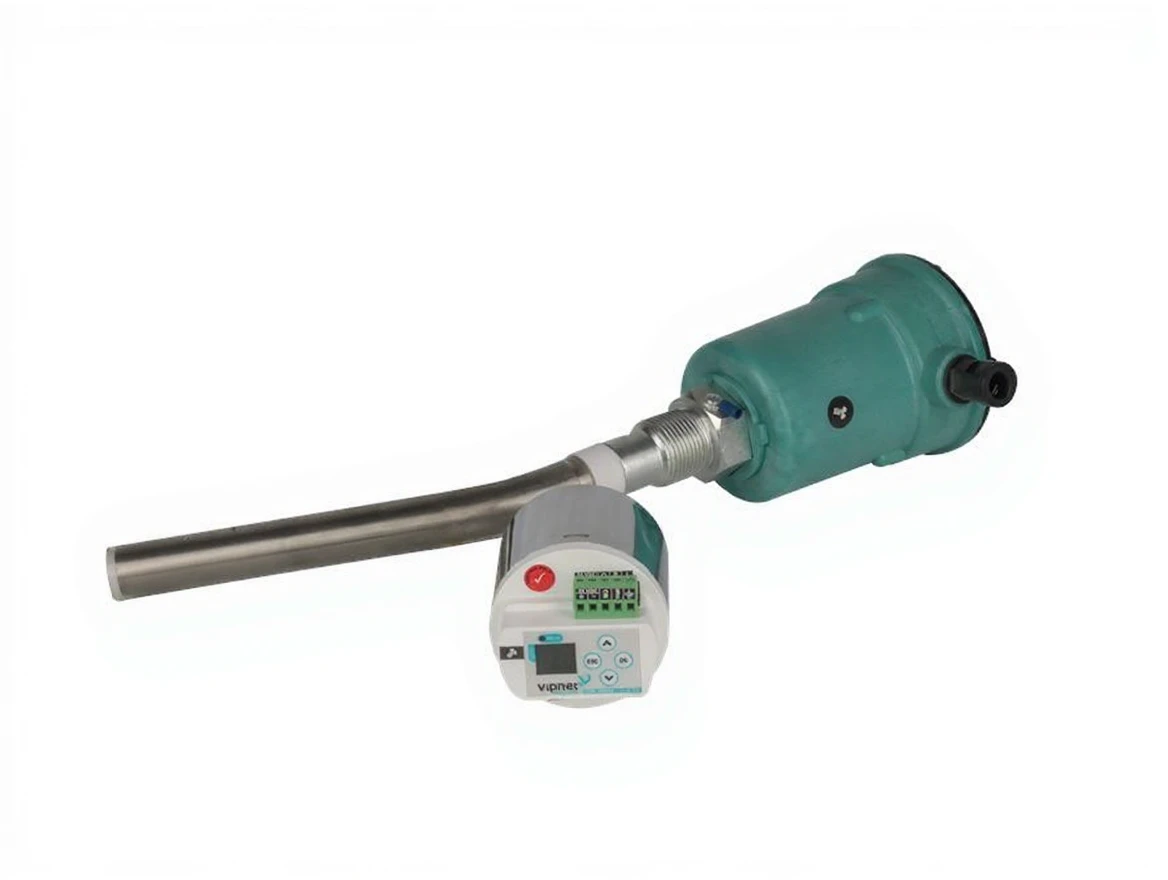

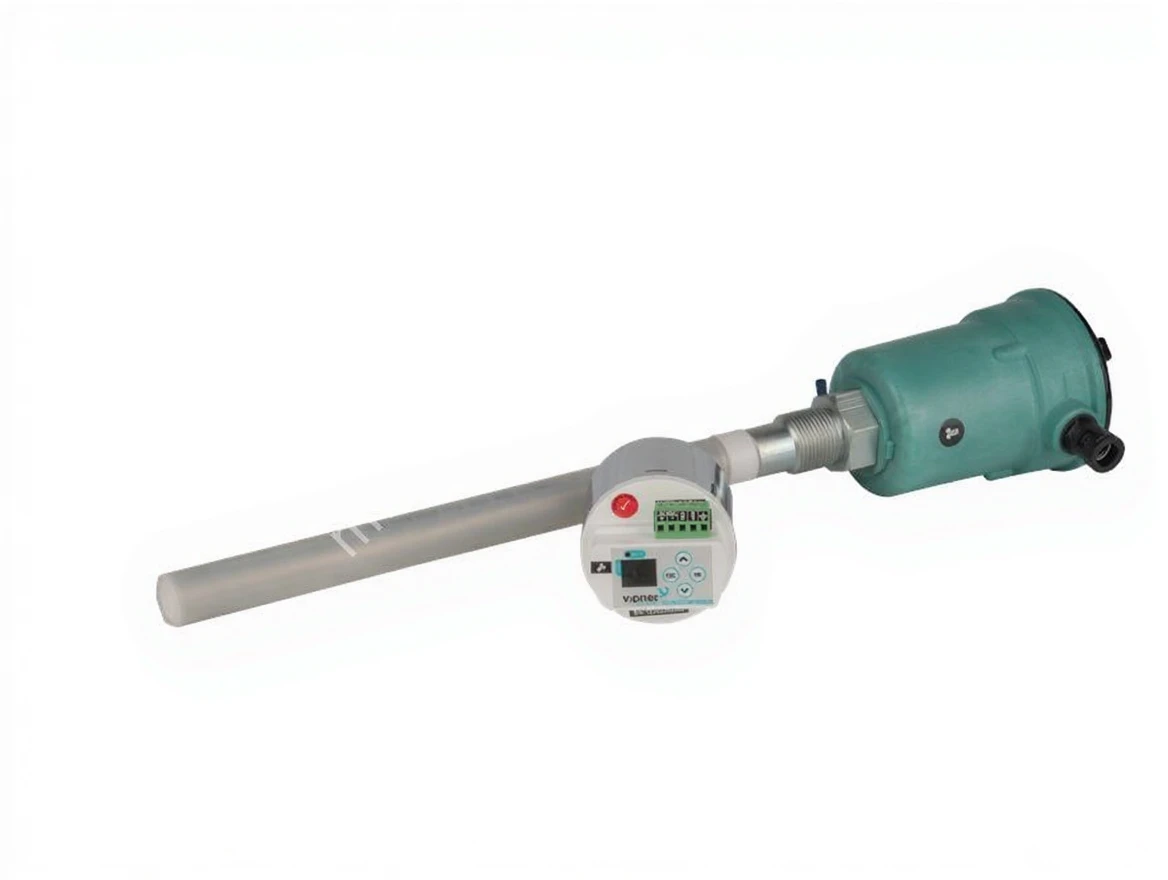

Capacitive Digital Sensor
| Brand | Vipnet Elektronik |
|---|---|
| Model Type |
VP-CS-D01 |
Description
• Capacitive sensor measures the level of objects between the ground with its probe. Objects entering between the two plates change the capacity, and the level of the object is determined by this change. The level of the object is measured as a percentage by calibrating the calibration in the lowest and highest states of the object (substance). For this, the measured capacity must be within the measurement limits.
• For linearity, the increase in volume between the two plates also needs to be linear.
• For accurate measurement, the grounding of the second plate formed by the housing (silo, box, etc.) and also connecting the sensor to the ground are necessary. This ensures that the location of the second plate, which is normally not precisely located, remains as stable and steady as possible. If this housing is metal, it is much more resistant to external influences and slippage.
• In any case, it is crucial for the ground to be good.
• Capacitive sensors are used in the construction industry and the food industry for level control purposes in solid products; silos, tanks, boilers, bunkers, and similar reserve areas.
• For linearity, the increase in volume between the two plates also needs to be linear.
• For accurate measurement, the grounding of the second plate formed by the housing (silo, box, etc.) and also connecting the sensor to the ground are necessary. This ensures that the location of the second plate, which is normally not precisely located, remains as stable and steady as possible. If this housing is metal, it is much more resistant to external influences and slippage.
• In any case, it is crucial for the ground to be good.
• Capacitive sensors are used in the construction industry and the food industry for level control purposes in solid products; silos, tanks, boilers, bunkers, and similar reserve areas.
• Additionally, there is a model that provides analog output (4-20mA / 0-20mA).
Technical Specifications
Product Code VP-CS-D01
Operating Voltage 24V DC
Operating Power 2 W
Display Type 2 Digit Digital Display
Digital Output 1+1 NO-5A / 220V AC Relay (1 Relay Optional)

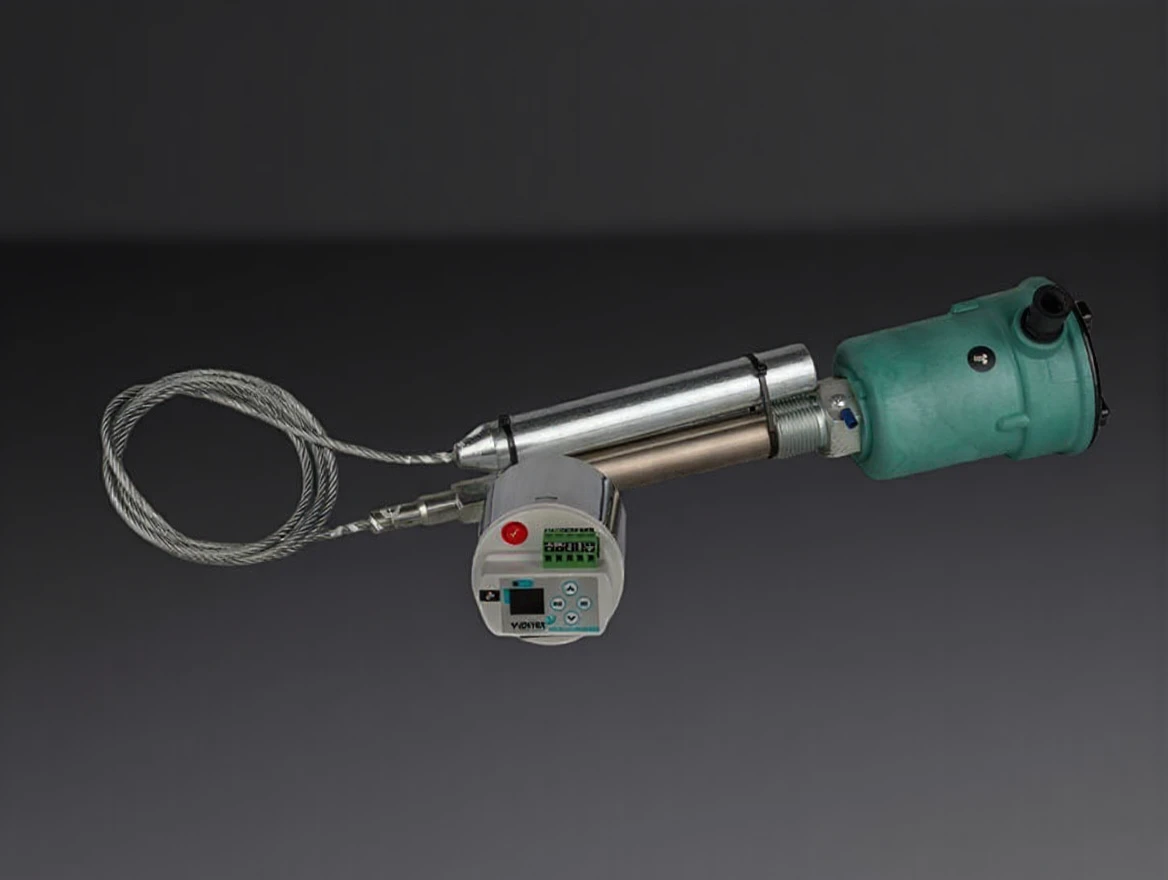

Probe Length 30 cm / 22 cm Inclined / 150 cm Rope
Operating Temperature -10 °C / 60 °C
Protection Class IP54
