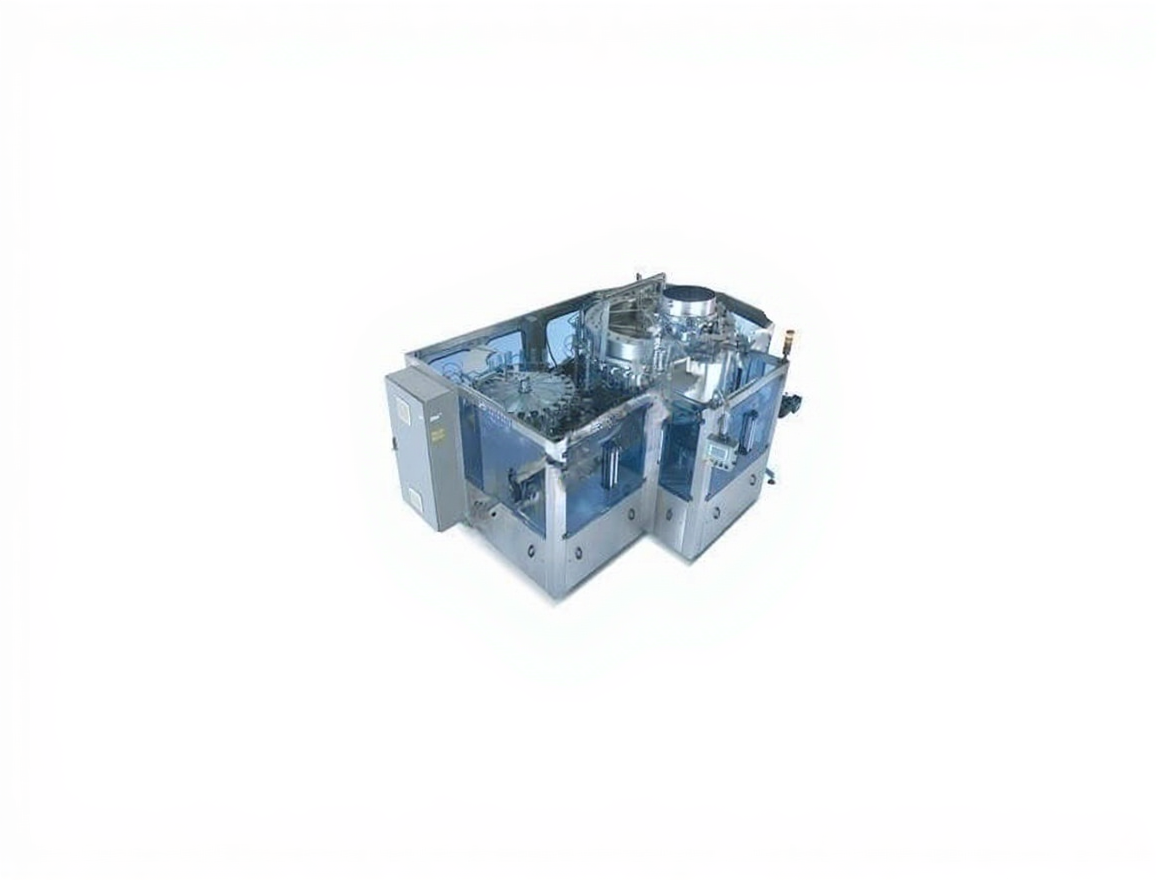

Carbonated (Cola, Soda, Mineral Water, etc.) Liquid Filling Machine

Carbonated Liquid Filling Machine

ARDOLET ERCİYES 12-16-4

RINSING UNIT: Bottles to be filled are cleaned in the rinsing section before the filling part.

As a cleaning product, water, hot water, sterile air, nitrogen, etc. products are sprayed into the bottle.

The rotating rinsing section operates synchronously with the filling part on the monoblock body.

Mobile and fixed spray nozzles are made according to customer request

FILLING UNIT: Bottles are sent from the rinsing section to the filling unit.

Transfer process is carried out by moving from the base of glass bottles and the neck part of PET bottles.

Our ERCİYES-NP models are neck transfer type.

Depending on the product to be filled, the operation of filling valves is provided.

Filling valves are the heart of the filling machine and are manufactured by ARDOLET.

Maximum hygiene and safety measures are taken.

The filling tank is made of AISI 304 material, and the inner parts are machined on the lathe and polished.
