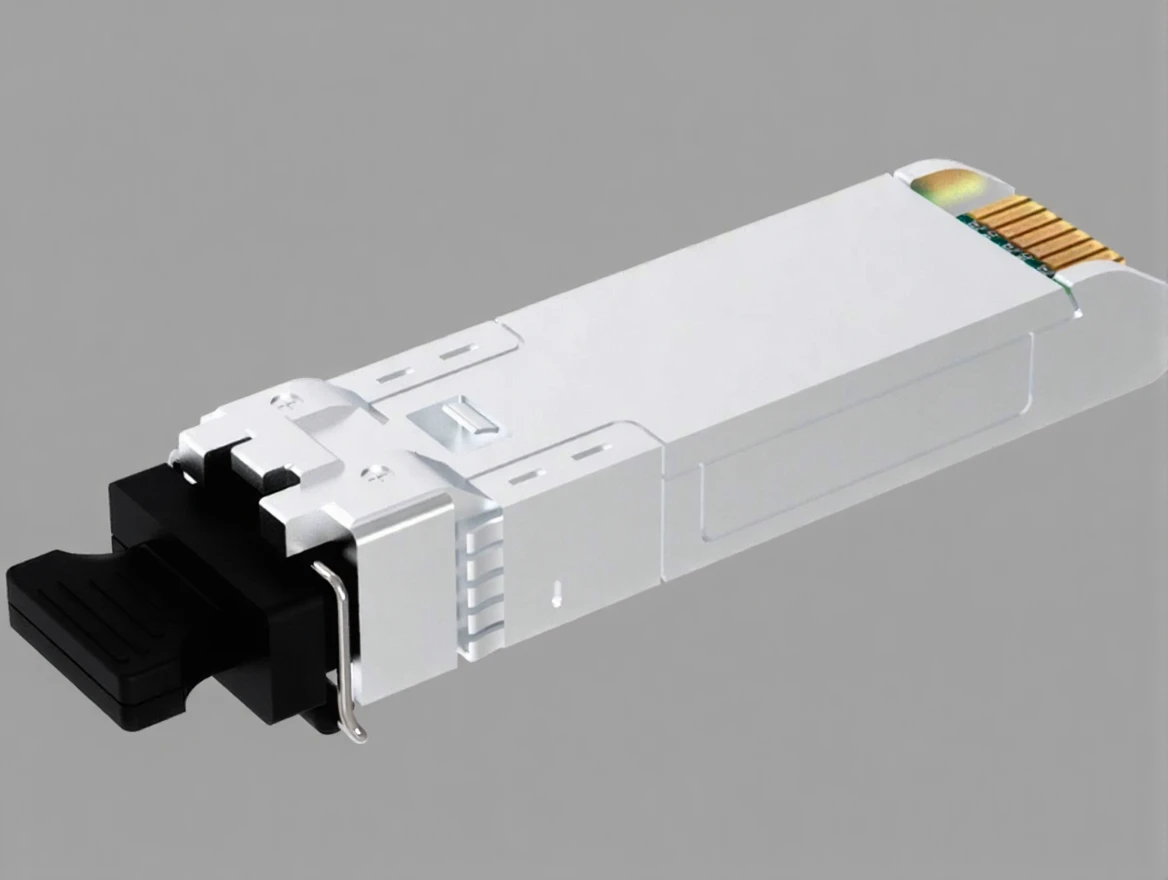

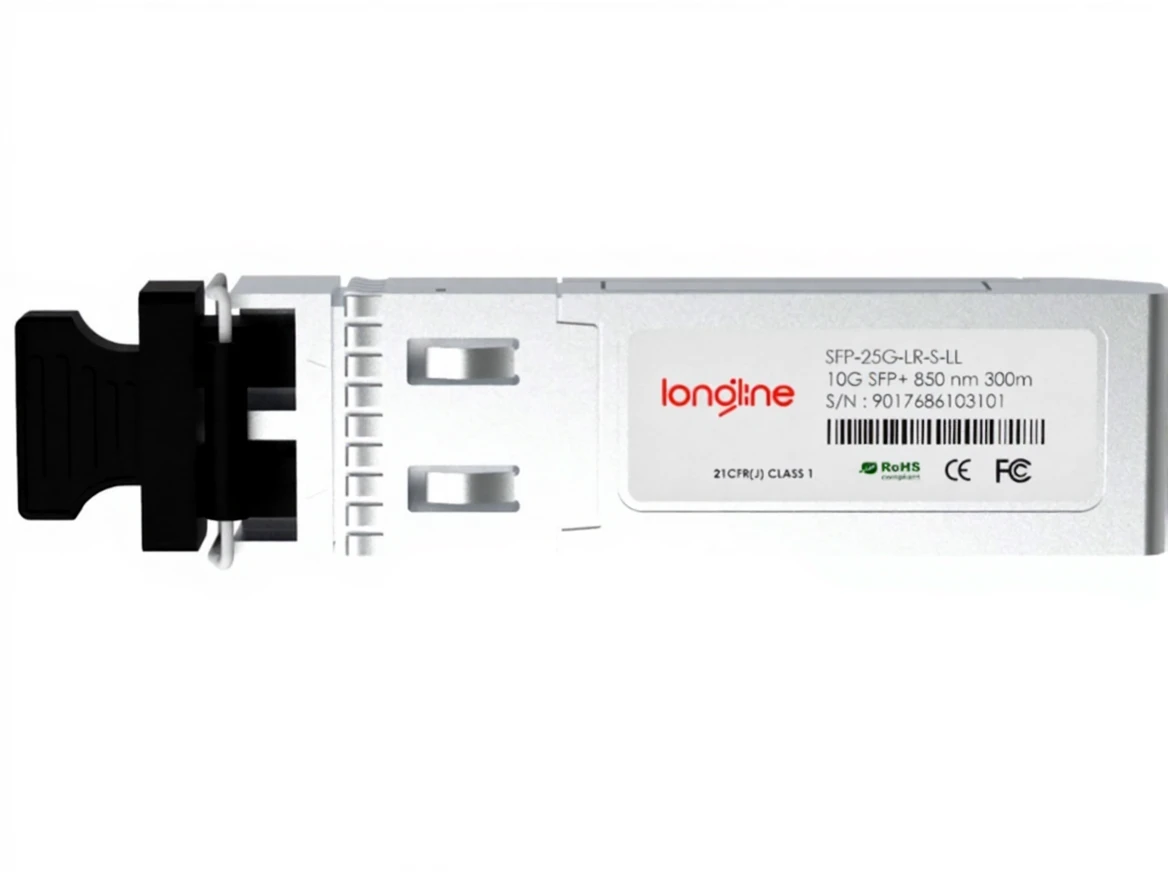

Cisco Sfp-25G-Lr-S Compatible 25Gbase-Lr Sfp28 1310Nm 10Km Dom Duplex Lc Smf Optical Transceiver

Cisco SFP-25G-LR Compatible 25GBASE-LR SFP28 DOM Optical Transceiver Module (for Data Center and 5G Wireless Pre-Connection) (SMF, 1310nm, 10km, LC, Industrial, DOM)

Cisco SFP-25G-LR-I Compatible SFP28 transceiver provides 25GBase-LR transmission up to 10 km on single-mode fiber (SMF) using 1310nm wavelength via LC duplex connector. With low power consumption and high speed advantages, this 25G transceiver is ideal for 25G Ethernet, data centers, and 5G wireless networks. Each SFP28 transceiver module has been individually tested on the intended switch and is fully compliant with SFP28 MSA, CPRI, and eCPRI standards.

Technical Specifications

• Cisco Compatibility: SFP-25G-LR-LL

• Manufacturer Name: Longline

• Form Factor: SFP28

• Maximum Data Rate: 25.78 Gbps

• Wavelength: 1310 nm

• Maximum Cable Distance: 10 km

• Connector: Duplex LC

• Medium: SMF

• Transmitter Type: DFB 1310 nm

• Receiver Type: PIN

• TX Power: -4 ~ 2 dBm

• Receiver Sensitivity: < -12 dBm

• Power Budget: 8 dB

• Receiver Overload: 2 dBm

• Power Consumption: ≤1.2W

• Extinction Ratio: 2.7 dB

• DDM/DOM: Supported

• Industrial Operating Temperature Range: -40 ~ 85°C (-40 ~ 185°F)

• CDR: TX & RX Internal CDR

• FEC Function: Not Supported

• Supported Protocols: SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR

• Warranty: 5 Years

• Core Size: G.652

• Packaging Technology: BOX Packaging
