CNC TENON CHANNEL OPENING AND DRILLING MACHINE

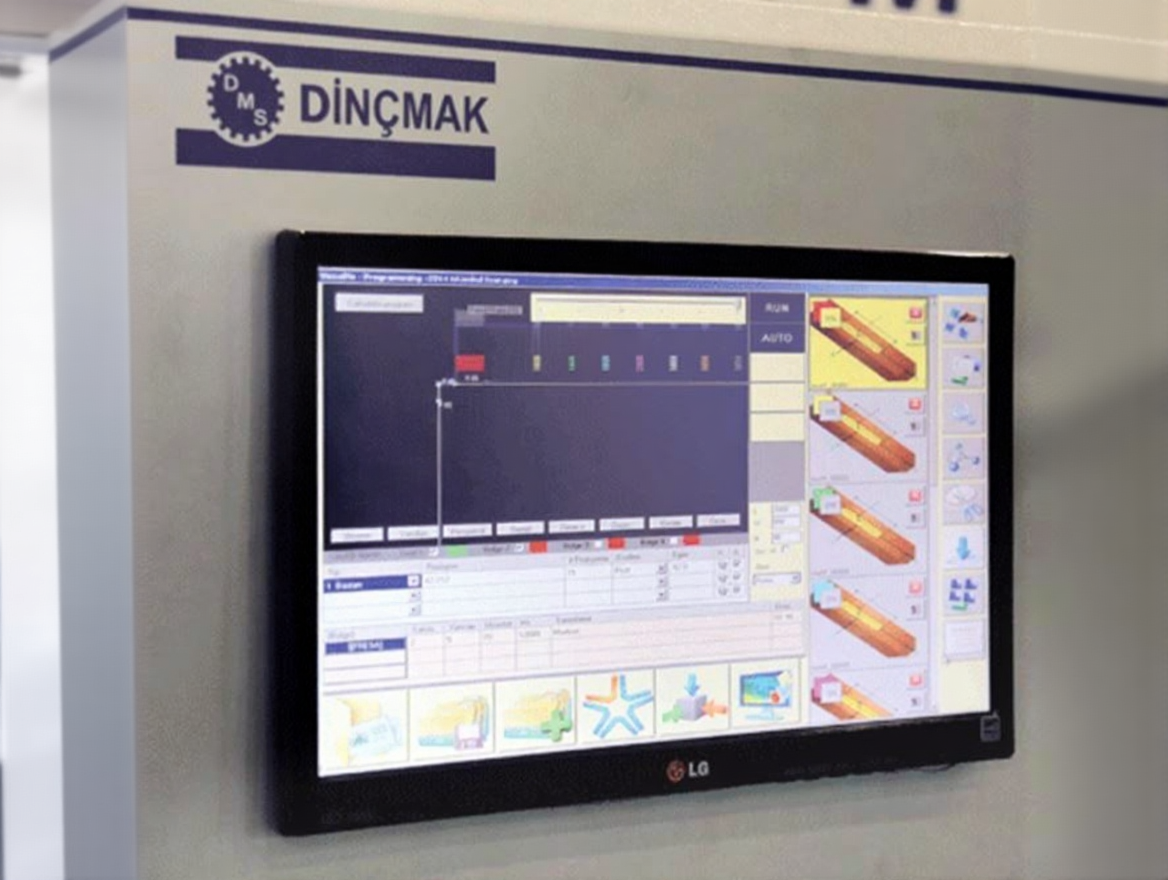

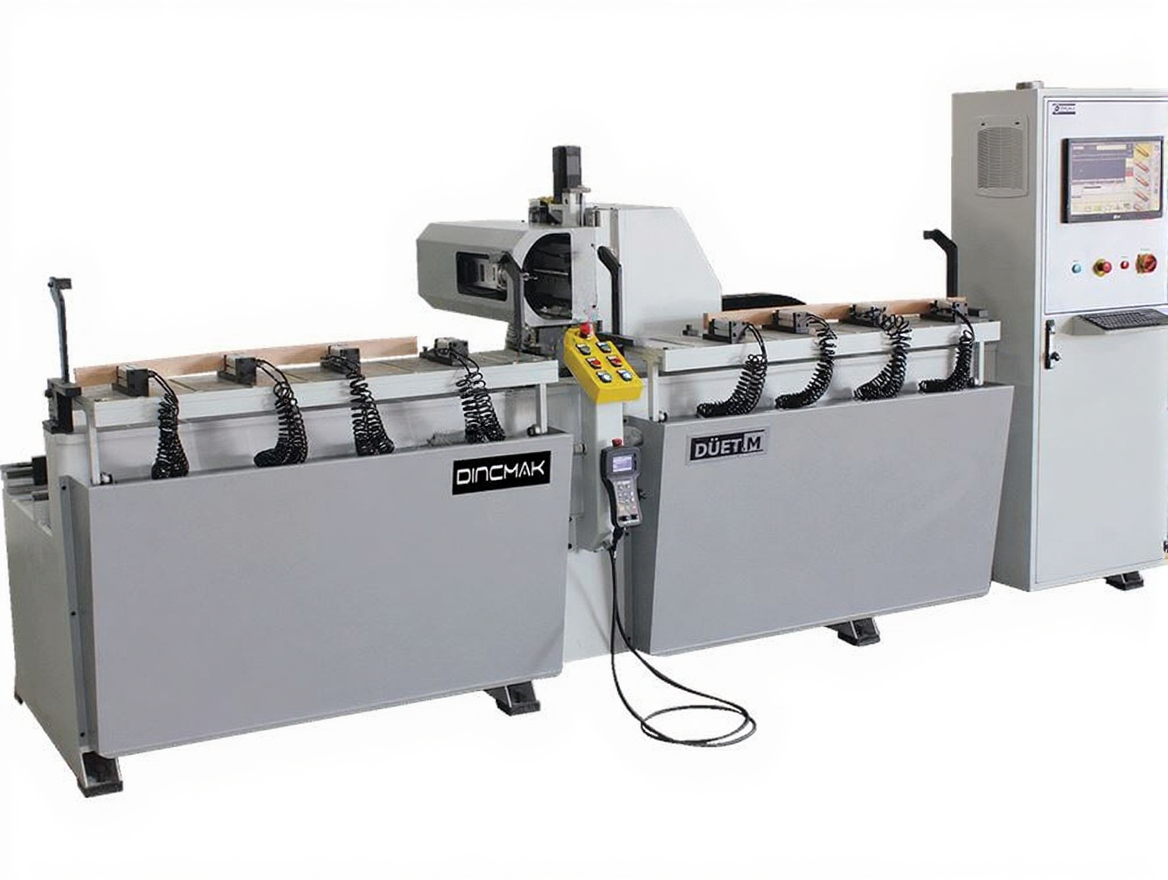

The DUET.M is a specialized CNC machine designed to drill all the holes found in chair legs. The machine operates with a blade moving along three axes, completing tenon and hole operations quickly and efficiently. Its dual processing table design allows one table to be in use while the other is being loaded, thus eliminating downtime and increasing production speed. Additionally, the machine can be programmed directly using the custom MAKRO software, eliminating the need for CAM software.

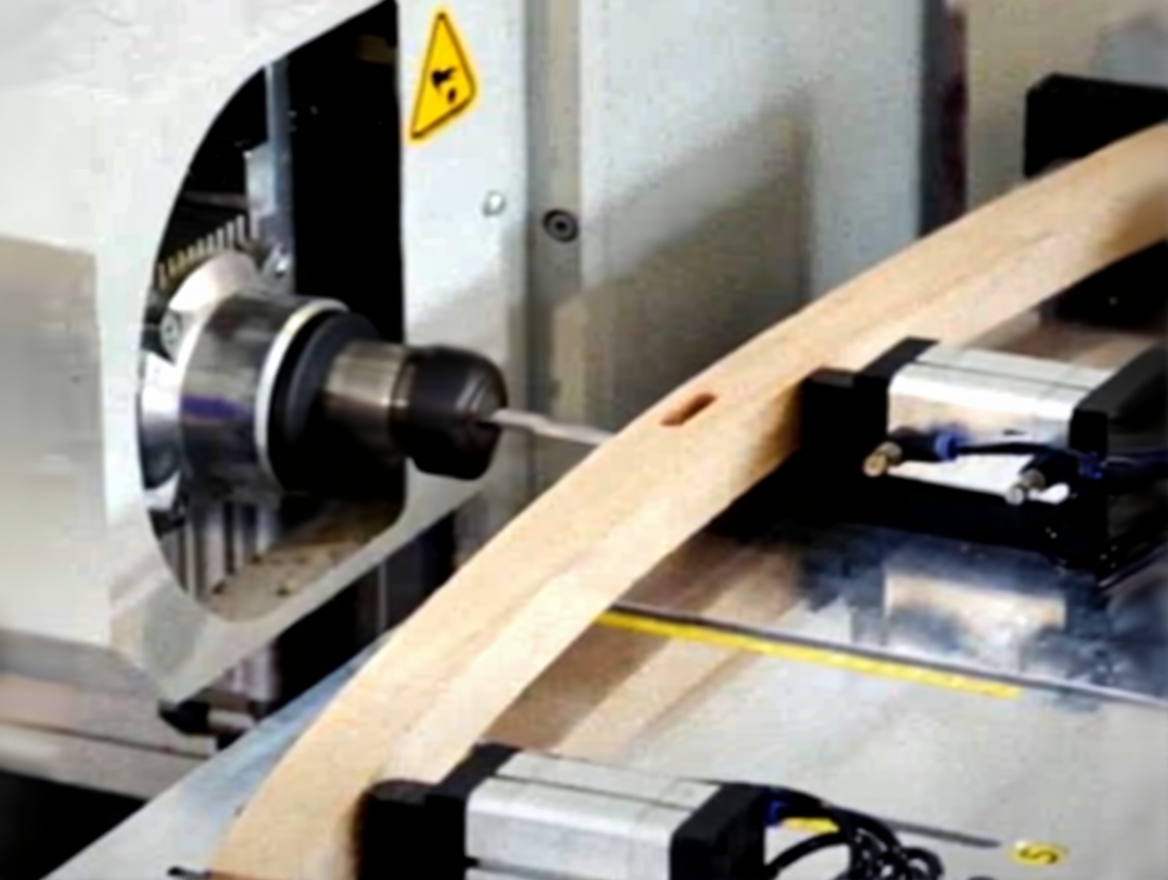

The tenon unit uses an electrospindle to complete all tenon and hole operations on a single workpiece. The work tables can rotate 90°, enabling processing on both surfaces of the workpiece. An additional electrospindle can be added as an option, further enhancing the speed and efficiency of the operations. The Functional Handwheel can be programmed by the operator to control specific commands, making it a versatile tool for quick adjustments during operation.
