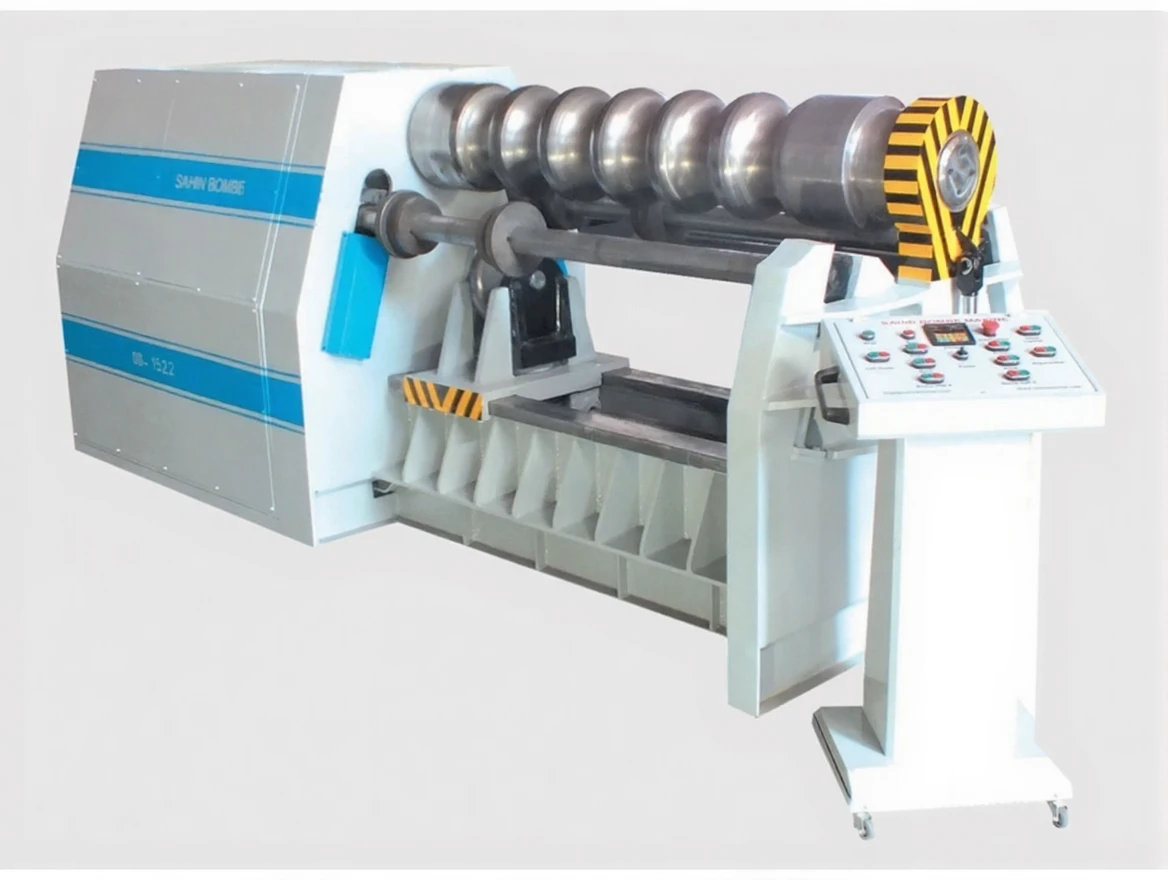

Cold Cylindrical Corrugated Külhan Machine
| Brand | SBFM |
|---|---|
| Model Type |
OD Serisi |
Description
Biko Export OD Series
Cold Cylindrical Corrugated Külhan Machine
*Sheet bending capacity is given for steel with a yield strength of 24 kg/mm2.
*Dimensions are approximate values. SBFM can change the dimensions without notice.
It is used to give shape by rotating and applying pressure between rollers to strengthen the parts that are bent cylindrically.
Biko Export OD Series Technical Specifications:
| Model | Production Type | Corrugation Type | Bending Length | Bending Thickness | Step |
Min. Bending Diameter |
Upper Ball Diameter |
Lower Ball Diameter |
Motor Power | Machine Dimensions (W-D-H) |
Weight |
| mm | mm | mm | ø mm | ø mm | ø mm | Kw | mm | kg | |||
| OD 2020 | Cold | Fox | 2050 | 20 | 151 | 600 | 400 | 400 | 19 | 4000x2000x1700 | 6500 |
| OD 2020 | Cold | Fox | 2050 | 20 | 201 | 600 | 400 | 400 | 19 | 4000x2000x1700 | 6500 |
| ODS 2020 | Hot | Fox | 2050 | 20 | 151 | 600 | 400 | 400 | 19 | 4000x2000x2500 | 7000 |
| ODS 2020 | Hot | Fox | 2050 | 20 | 201 | 600 | 400 | 400 | 19 | 4000x2000x2500 | 7000 |
