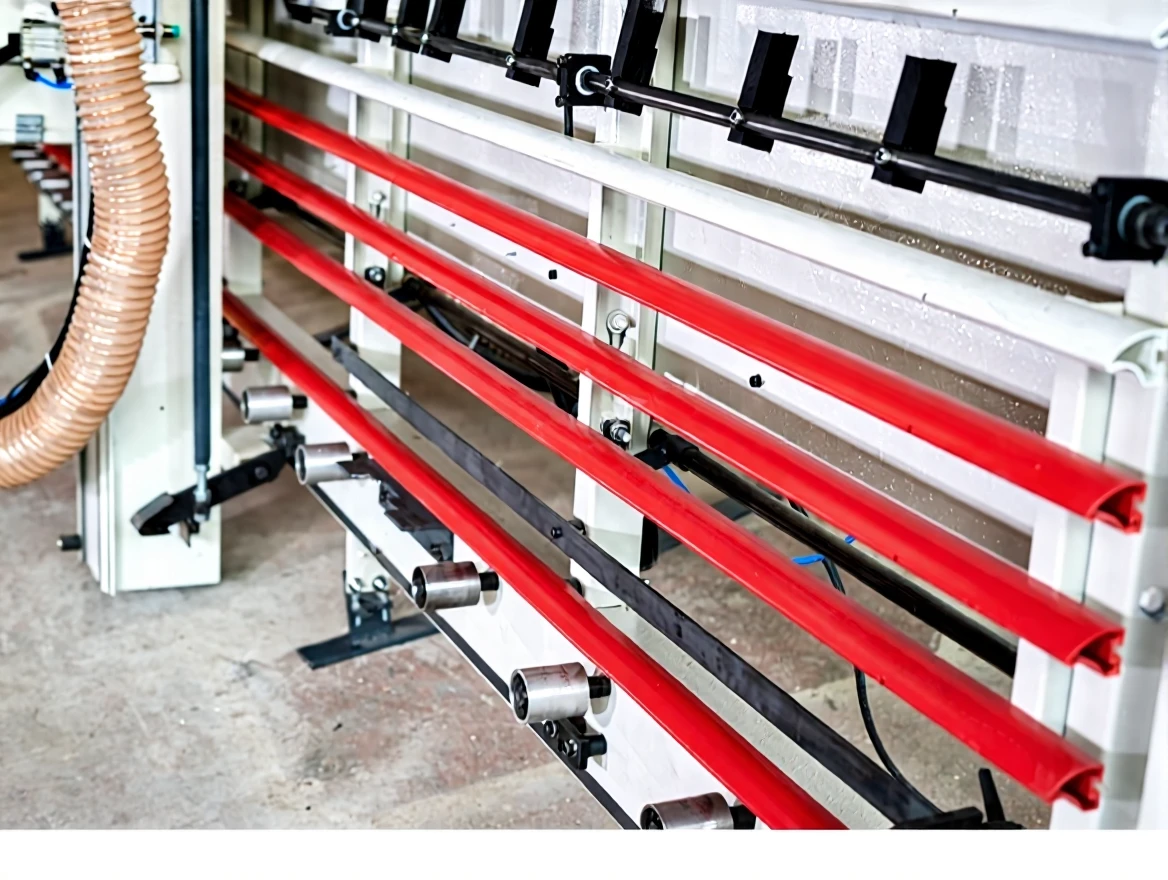

Composite Panel Cutting and Channel Opening Machine

 PRODUCT DESCRIPTION

ALUMINUM COMPOSITE PANEL SIZING AND CHANNEL OPENING MACHINE

MODEL TYPE AND FEATURES

20-40 CPM-Semi Automatic

Motor Power

3 kw-4hp optional: 4 kw

Electrical Connection

380V/50hz optional: 220V/60 hz

Motor Speed

3000 rpm

Cutting Blade Speed

5800 rpm

Channel Joint Blade Speed

5800 rpm

Cutting Thickness

0-20 mm

Vertical Cutting Capacity

2000 mm*4000 mm

Horizontal Cutting Capacity

1850 mm*4000 mm

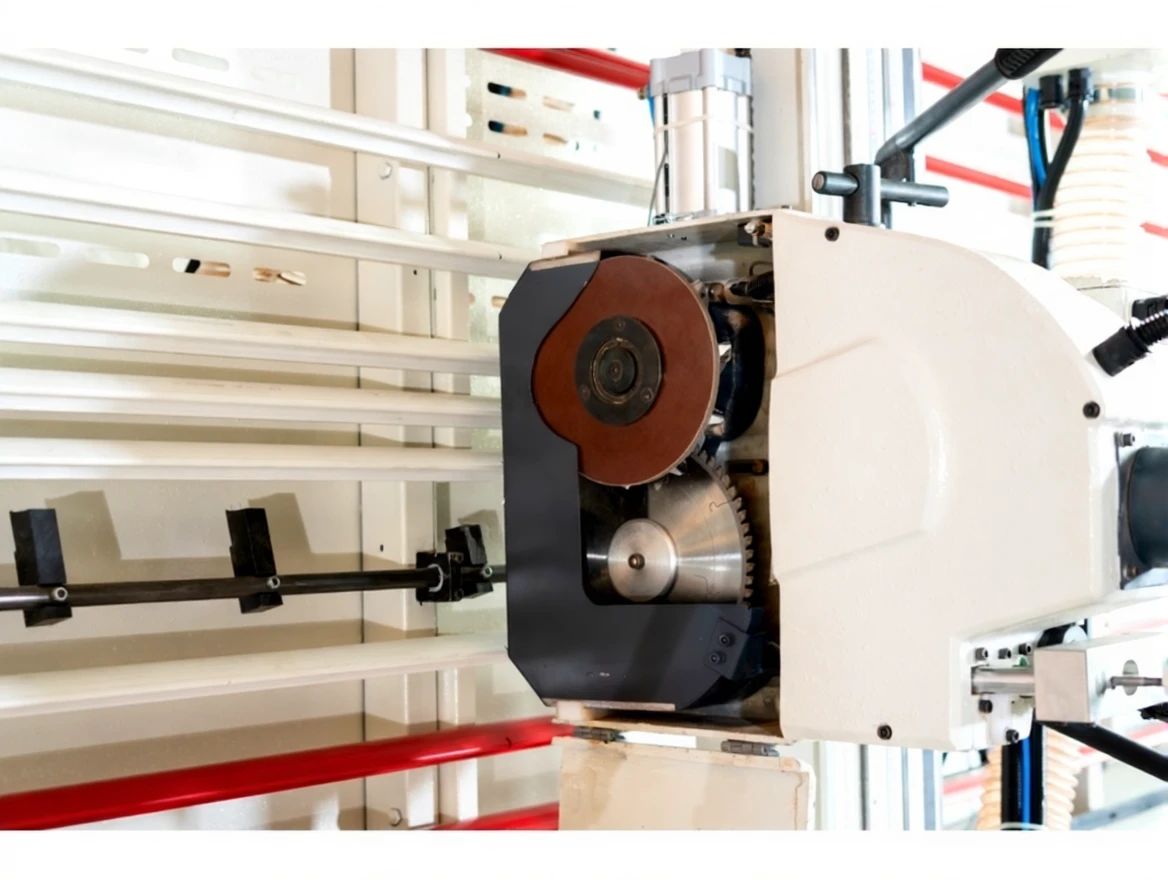

Cutting Blade Dimensions

Ø230x30x3.2 mm

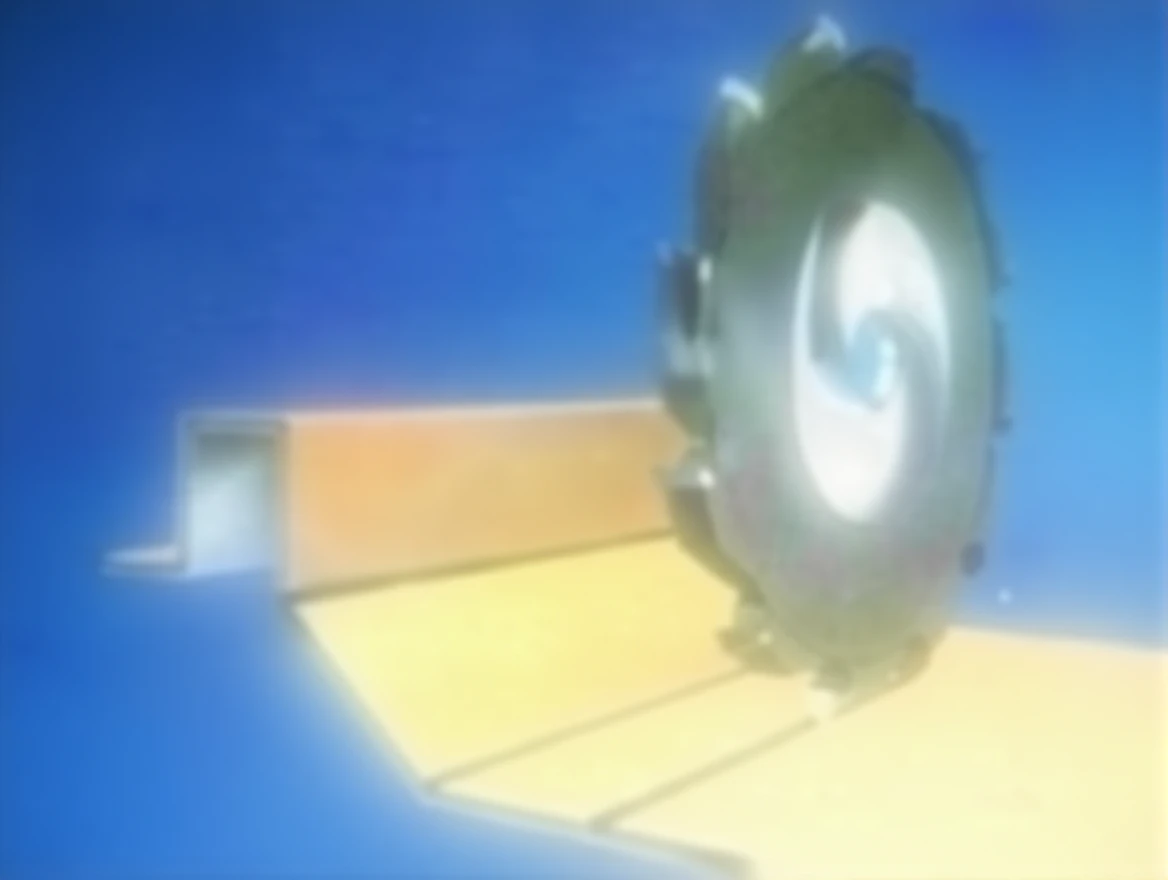

Channel Blade Dimensions

Ø200x30x2.0 mm-Z10 Replaceable

Working Dimensions ( L x W x H )

5000 mm x 2850 mm x 1600 mm

Loading Dimensions ( L x W x H )

5000 mm x 2500 mm x 1250 mm

Machine Weight

850 kg

Lower Carriers

Metal wheel

Internal Dust Extraction System

available

Movable Front Panel

automatic

Vertical and horizontal position

automatic

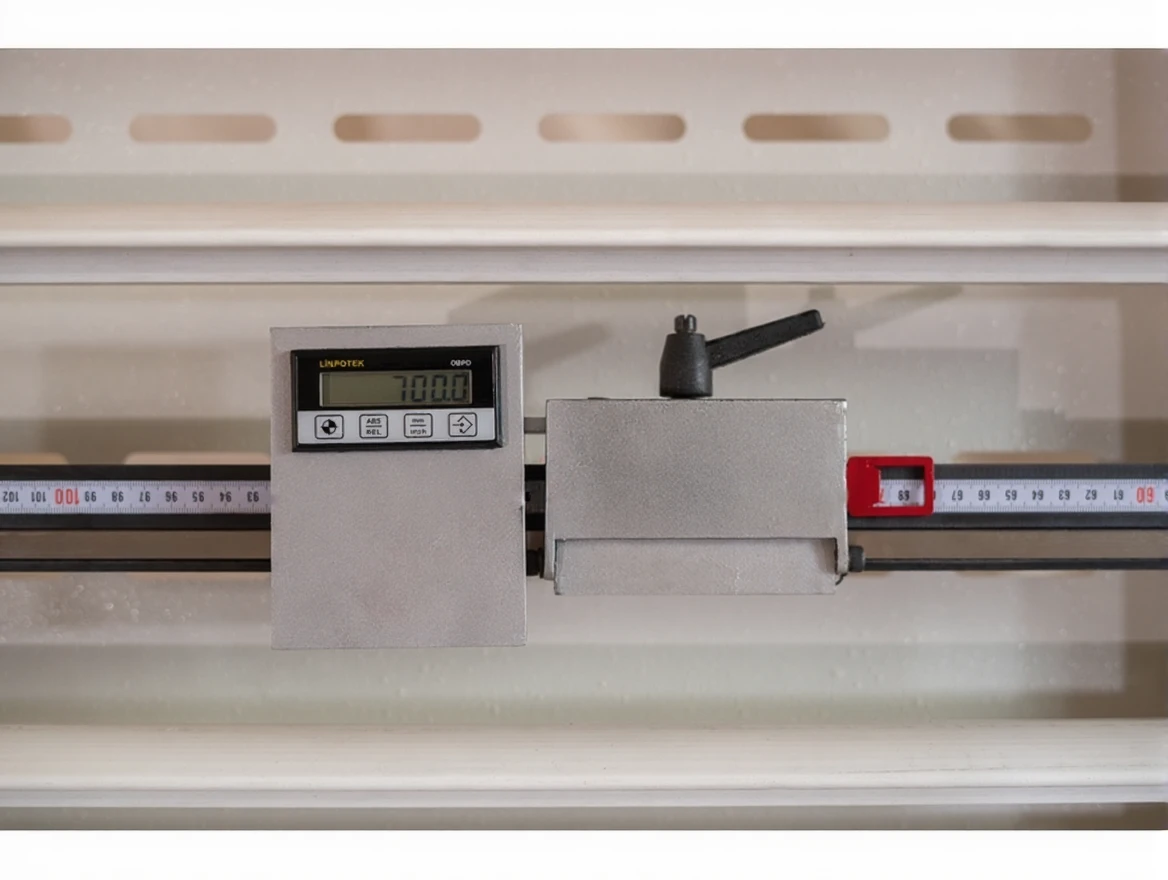

Meter system

Digital meter display panel

Vertical cutting and horizontal cutting

Semi automatic

Positioning

Semi automatic

Locking system

Semi automatic

Cutting start point

Automatic

Drive system

danfoss

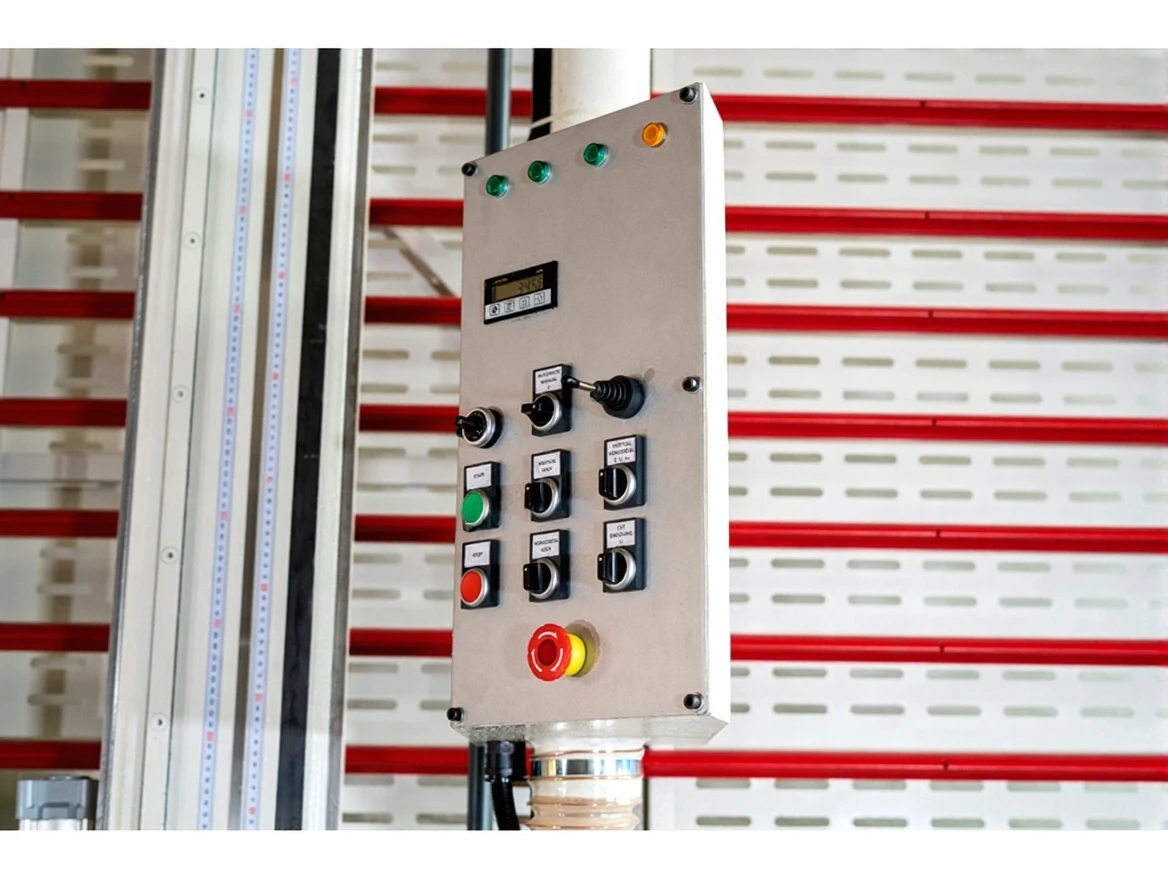

Control system

Delta

Motors

ELK

Reducers

Yılmaz reducer

Electrical switchgear materials

schneider
