Concrete Rock Block Deformation Hydraulic Testing Device

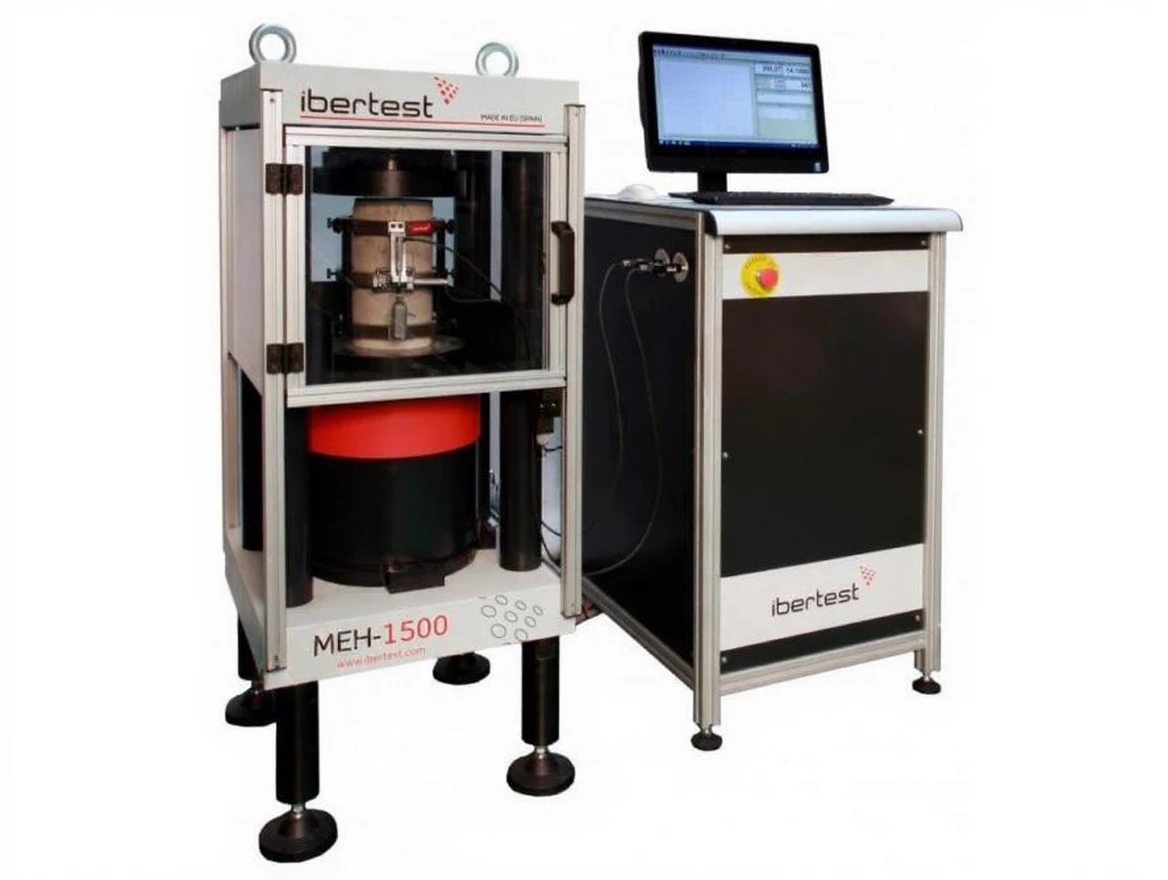

Ibertest MEH Series Concrete Rock Block Deformation Hydraulic Testing Device

Hydraulic machine testing materials, 2000, 3000 or 5000 kN versions.
For testing materials such as concrete, rock, block, brick, paving, etc. using standard samples. With the MEH series machines and suitable accessories, you can perform the following tests.

Compression strength test according to EN 12390, EN 772-1, ASTM C39, ASTM C133, ISO 4012 (replaced by ISO 1920-4) etc.

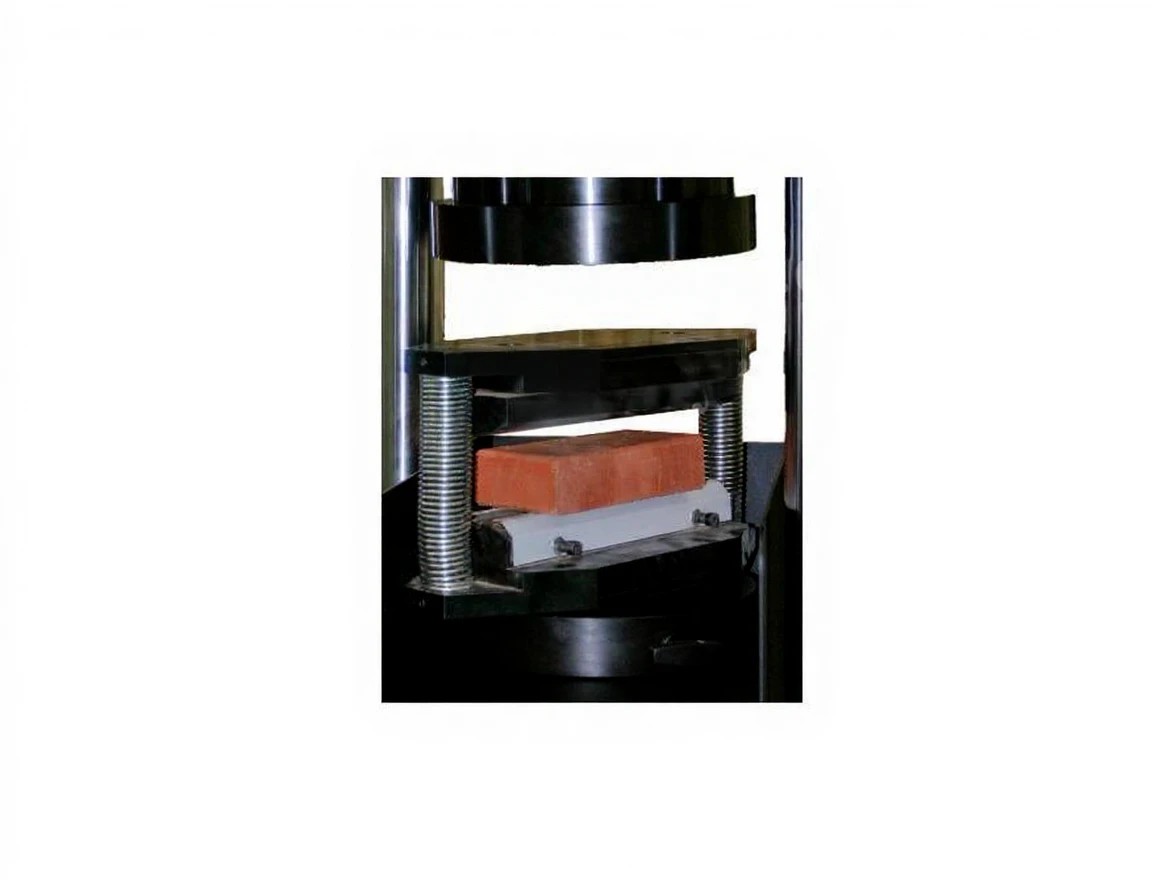

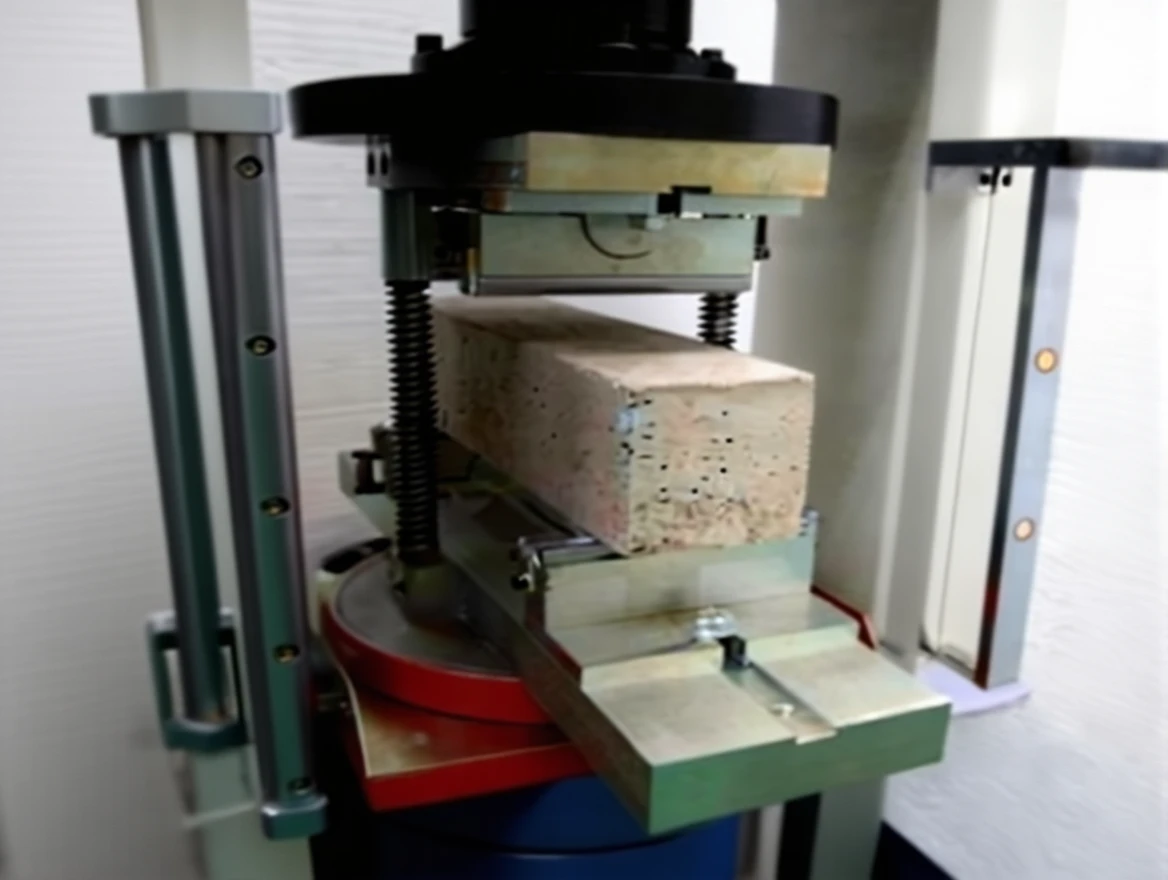

-Bending strength test EN 12390-5, ASTM C78, ASTM C293, ISO 4013 (replaced by ISO 1920-4) etc.

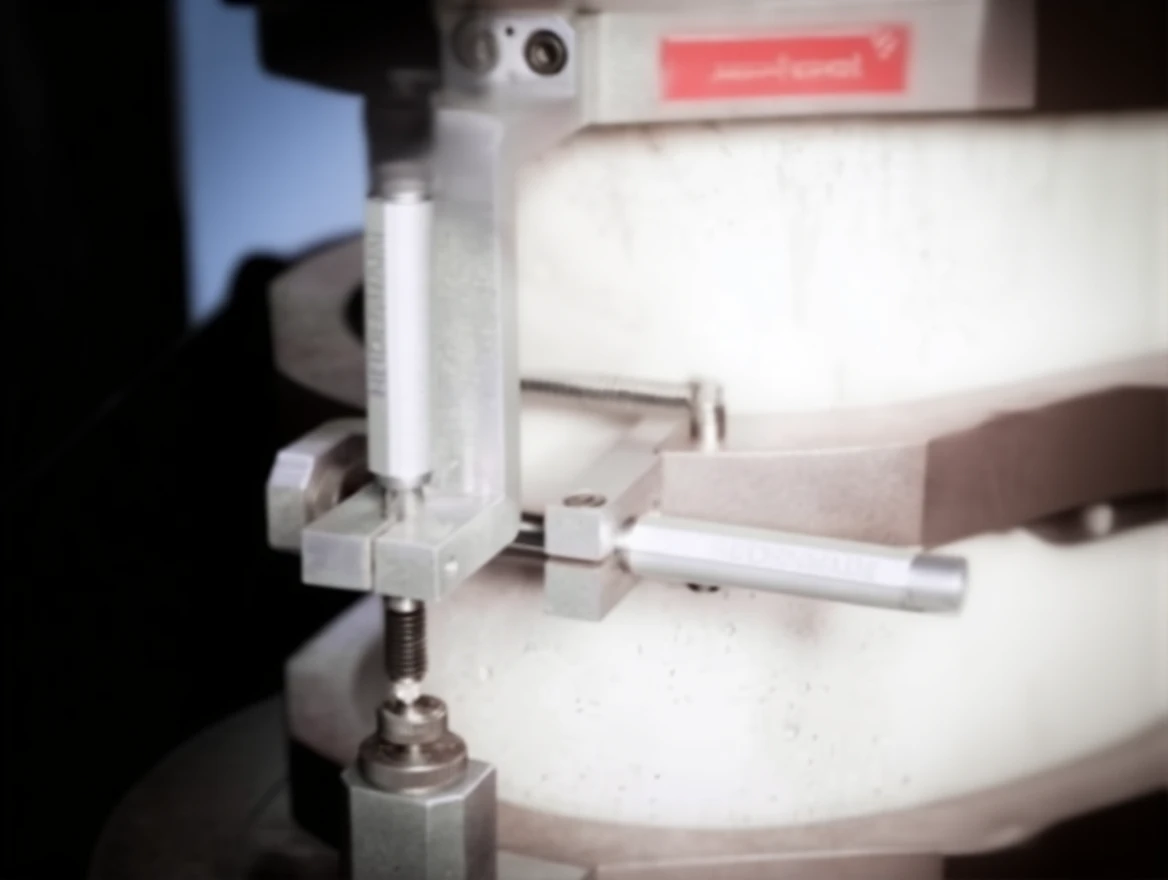

-Deformation test (static elasticity) Young’s modulus and Poisson’s ratio etc.
-Indirect tensile test (Brazilian test) EN 12390-6, EN 1338, ASTM C496, ISO 4108 (replaced by ISO 1920-4)
