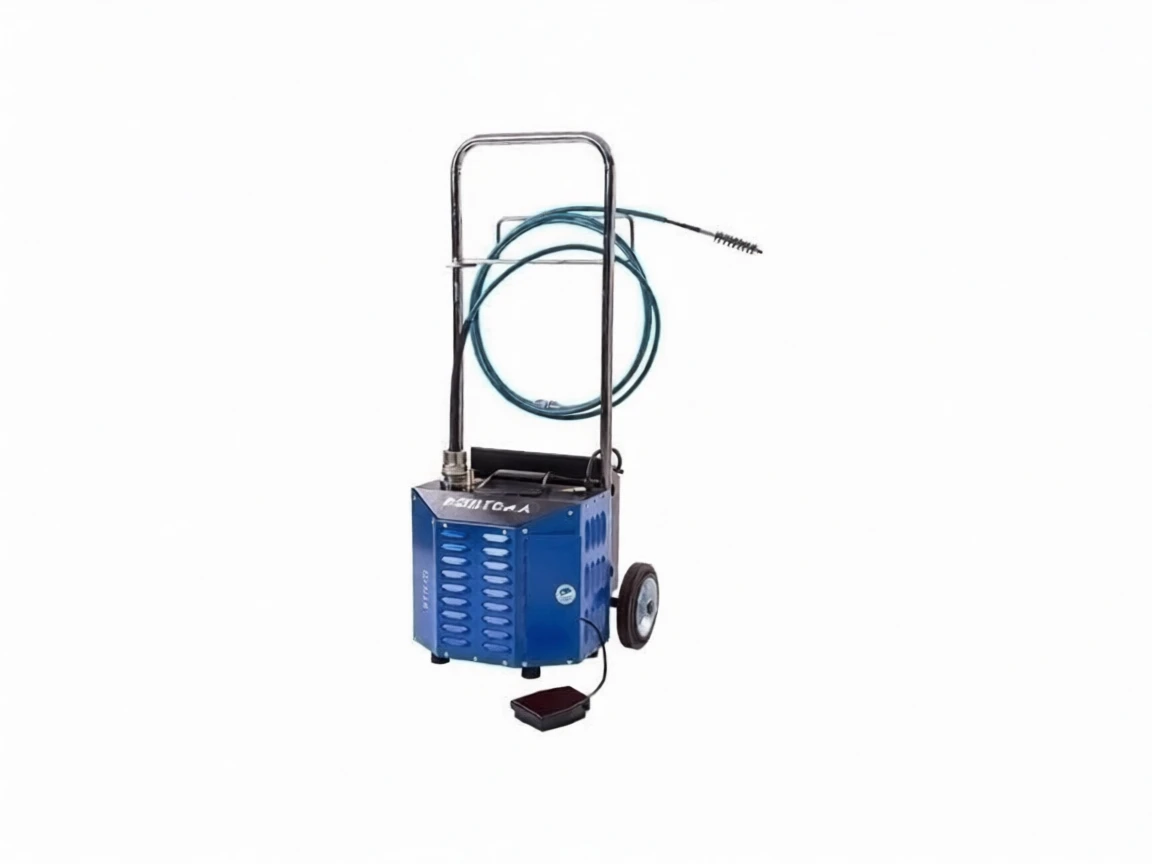

Condenser Chiller Heat Exchanger Pipe Cleaning Machine BTM-15S

Pipe Cleaning Machine 1500 RPM 1.1 Kw

Bortema BTM-15S

BTM-15S pipe cleaning machine facilitates your maintenance with high performance in cleaning condenser, chiller and heat exchanger pipes.

Accessories are specially selected according to the pipe lengths and pipe inner diameters of your cooling systems. Any desired cleaning apparatus, scraping knives and brushes can be attached to the wet shaft of the BTM-15S pipe cleaning machine. Cleaning apparatus removes and removes deposits safely and effectively without causing any damage to the pipes. The residues cleaned by the action of water are thrown out, providing high performance cleaning and energy saving.

BTM-15S pipe cleaning machine can be used safely on all pipe diameters between 6mm and 25.4mm. The rotation speed of the shaft connected to the machine is provided by the air switch foot pedal. Rotational power and water spraying into the pipe are automatically activated when the foot pedal is pressed, and are disabled when the pedal is released. The rotational power is activated when the pedal is pressed and deactivated when the pedal is released. The machine is designed for horizontal and vertical operation so that it can work easily in difficult areas.

The flexible shafts connected to the machine have a steel spiral and water jacket structure. It can be used on all straight and U pipes such as copper (straight and grooved), iron, titanium, stainless steel, etc., with appropriate cleaning apparatus attached to the flexible shaft.

TECHNICAL SPECIFICATIONS

• Flexible Shaft Speed: 1450 rpm• Flexible Shaft Speed: 1450 rpm• Motor Power: 1.1kW • 0.75kW – 1500, 850 rpm (optional)• 0.37 kW – 1500, 850 rpm (optional)• Input Power: 13 A, 230V, 50-60Hz• Dimensions: 1120mm (H) x 430mm (W) x 410mm (D) • Weight: 34.5kg

HARDWARE

• Epoxy coated steel case • Changeable cleaning apparatus • Carrying trolley (Optional) • Tool bag mounted on the carrying trolley • Water Spray (Jacketed) • Ability to operate with foot pedal • Bidirectional foot pedal (Optional)
