Copper Bar Cutting Drilling Bending Machine

Teknofinsteel CU 120/10

Copper Busbar Cutting Boring Bending Machine

Teknofinsteel Machinery manufactures CNC and manual options for electrical panel production. COPPER BUSBAR BENDING BORING CUTTING MACHINE, metal processing, sheet cutting machine, industrial machine,

1. TEKNOFINSTEEL COPPER BUSBAR CUTTING-BORING-BENDING MACHINES

1. Copper Busbar Cutting Boring Bending Machine
2. Digital Copper Busbar Cutting Boring Bending Machine
3. CNC Copper Busbar Cutting Boring Machine
4. CNC Copper Busbar Bending Machine

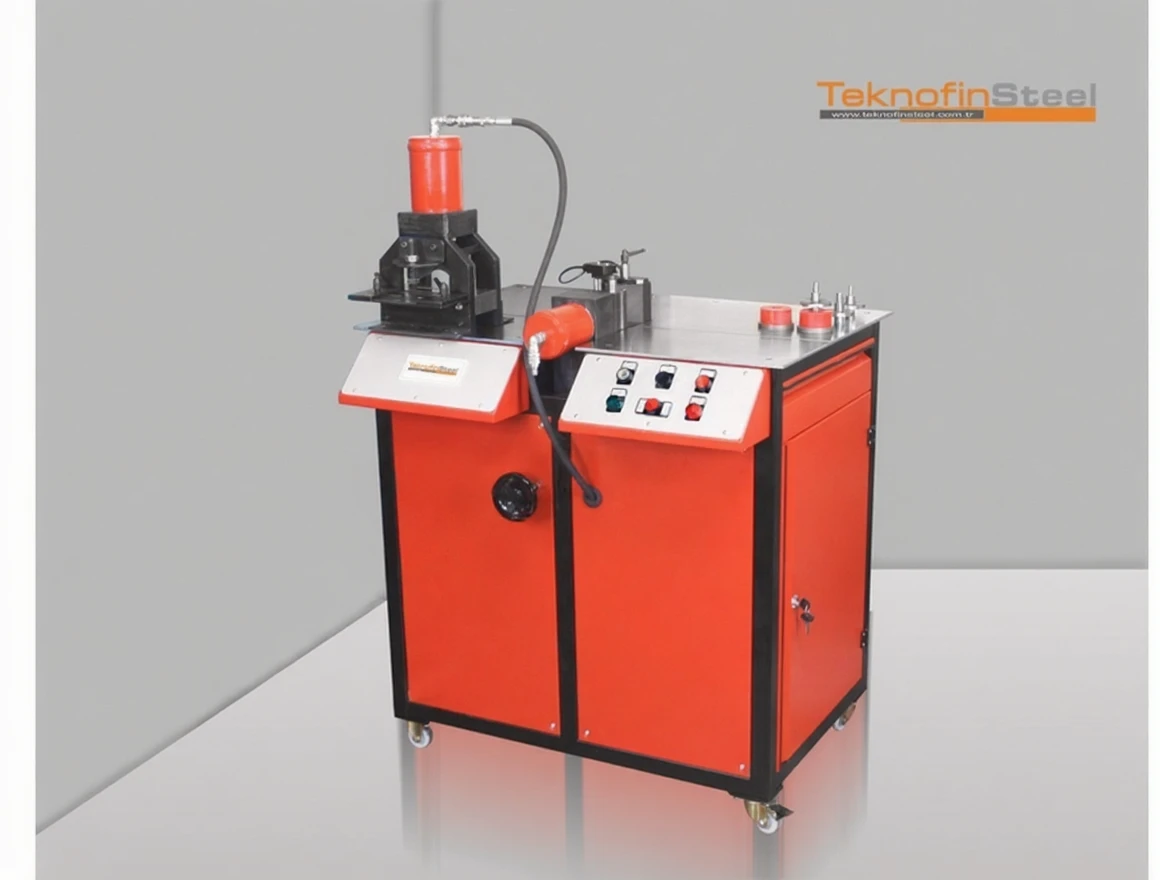

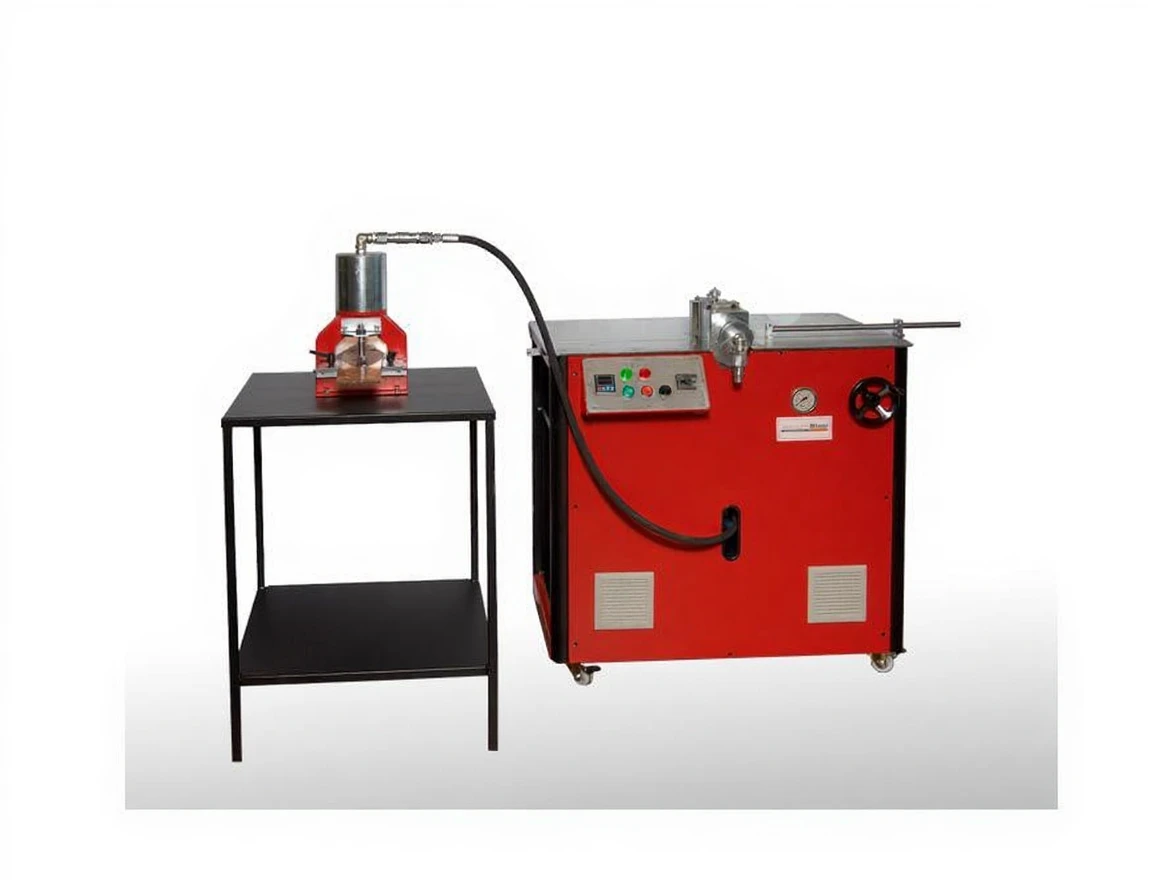

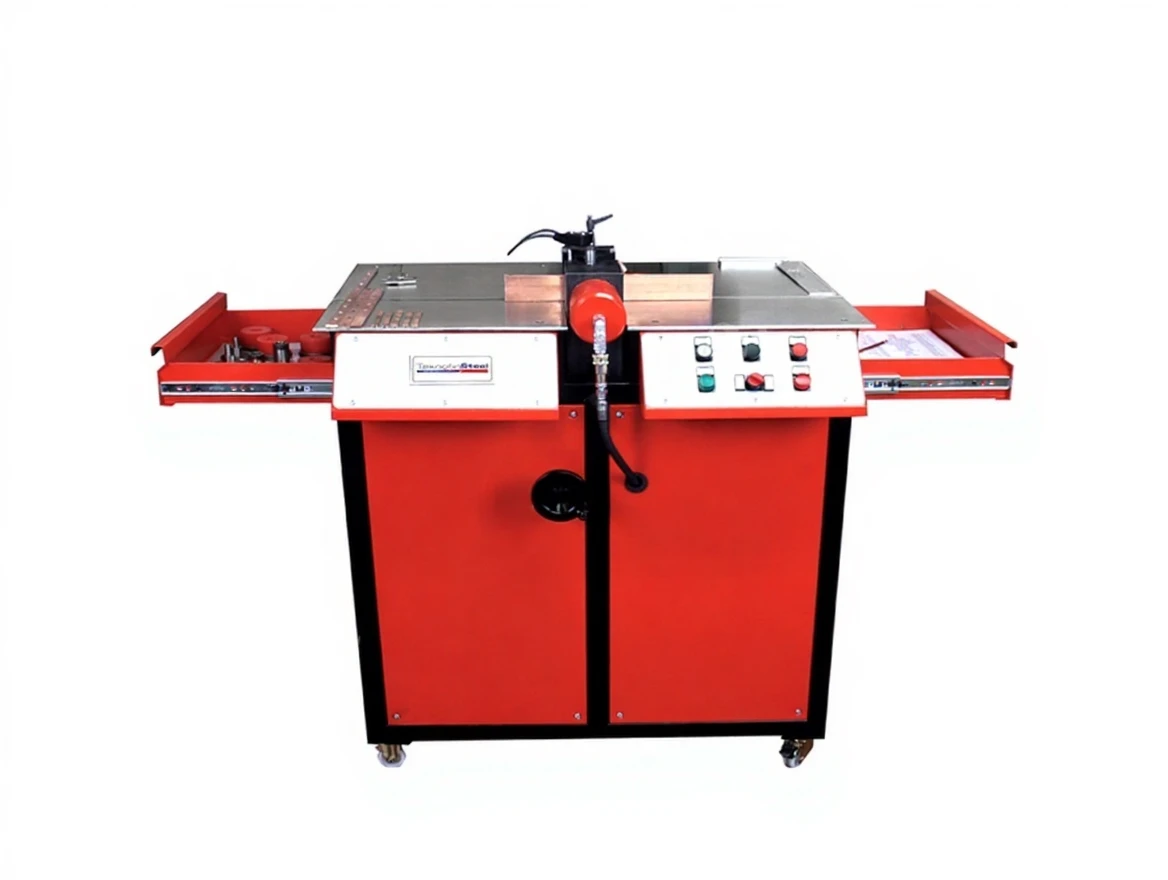

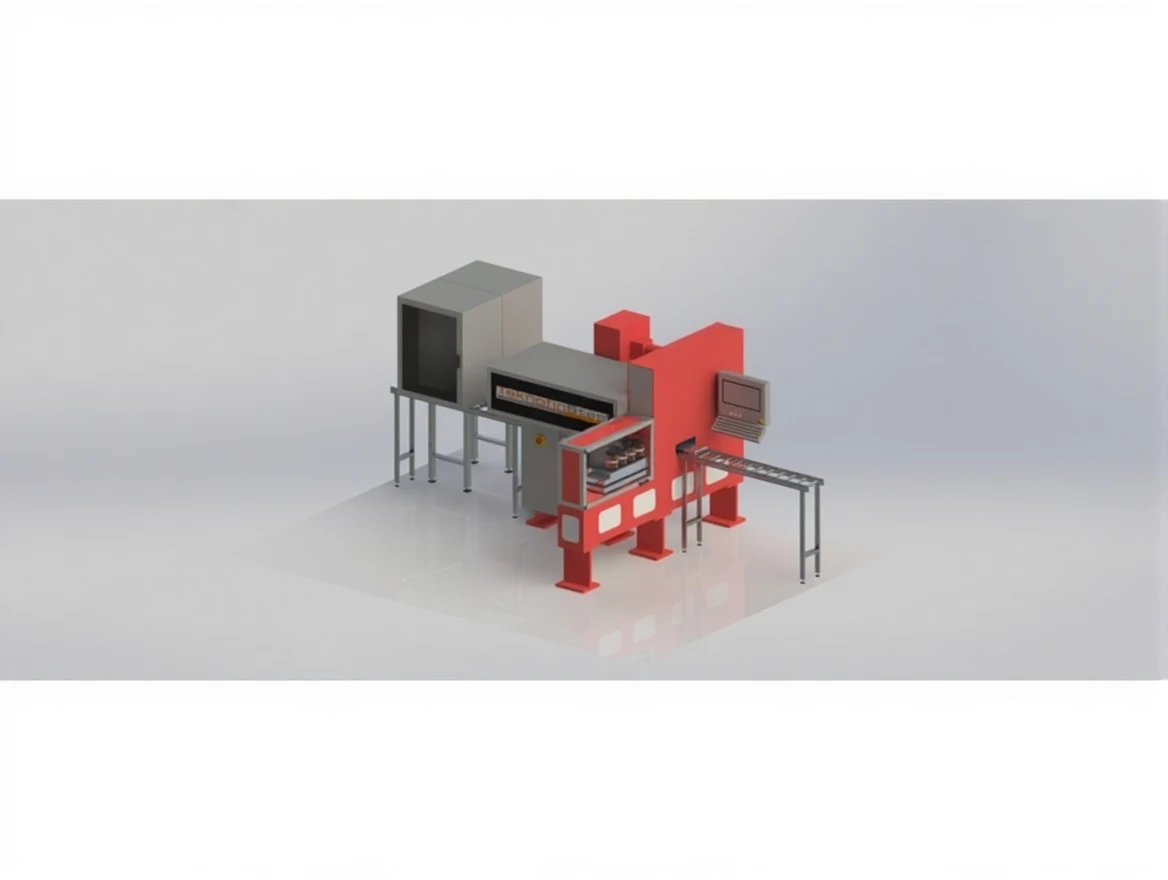

1. Copper Busbar Cutting Boring Bending Machine

Teknofinsteel professional busbar bending, boring, and cutting machine is designed to process copper and aluminum.

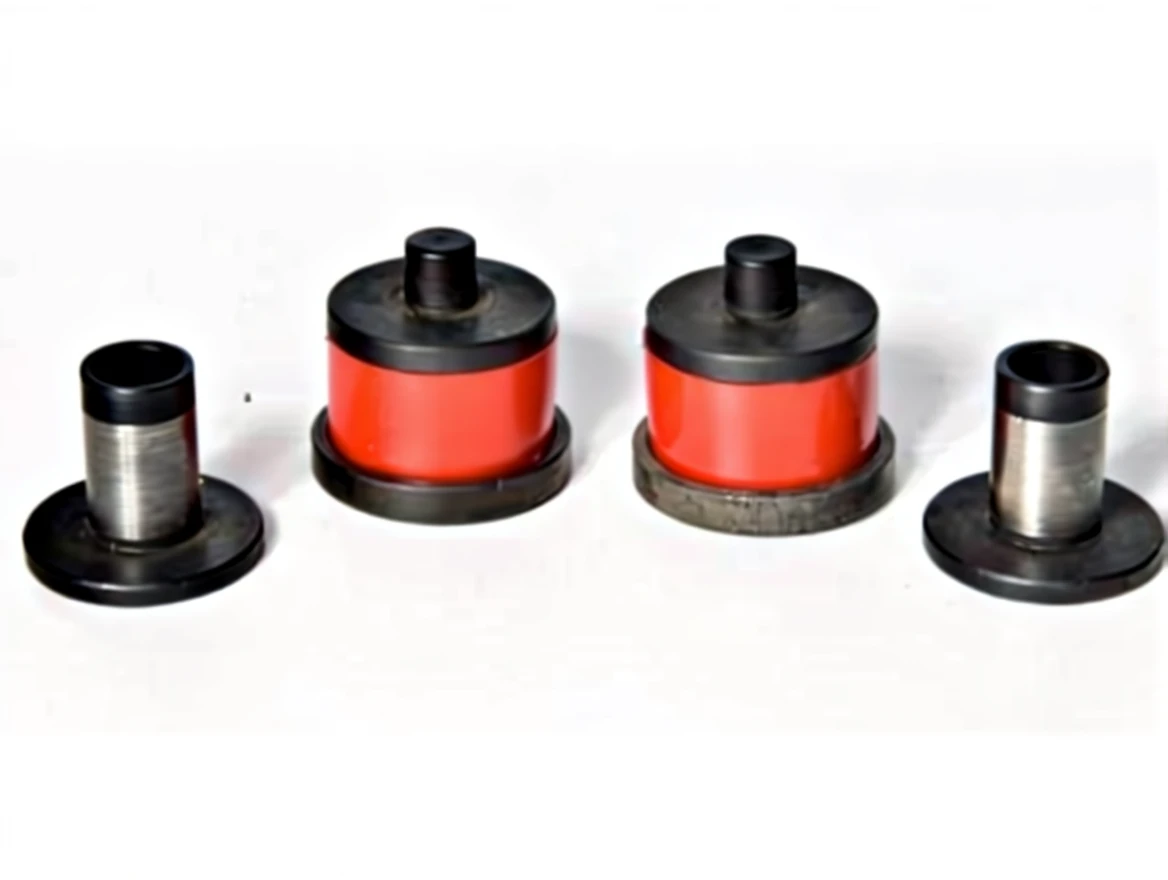

Up to 120/10 mm copper and aluminum can be shaped with the help of the hydraulic unit. Robosim drilling molds; M 6.5 – M 8.5 – M 10.5 – M 12.5

Bending process has adjustable angle, there is a manual clamping system for measurement. The height adjustment in hole drilling process can be easily adjusted hydraulically. Thanks to the fixed wheels on the main body, the machine can be easily moved. The electrical panel is designed for transformer center manufacturing. Operating voltage 220 V, 50 Hz, and 1.5 kW, operating pressure max. 250 bar.

ÖZELLİKLER

*  High data flow between axis motors and CNC control

*  Practical positioning on X and Y axes

*  Ability to process edges, bends, lids, etc. up to 30 mm

*  Touch control panel

*  Ability to create program recipes

*  Special lower and upper mold systems

*  Possibility to work with shape molds

*  Software that provides easy programming and operation

STANDARD EQUIPMENTS

1- Hydraulic drilling machine capable of drilling holes in the center of plates up to 1000 mm

2- It has drilling capacity up to 92×92 mm, Ø92 mm round with 2 mm thickness.

3- 500 mm throat depth

4- Practical movement in X and Y axes
