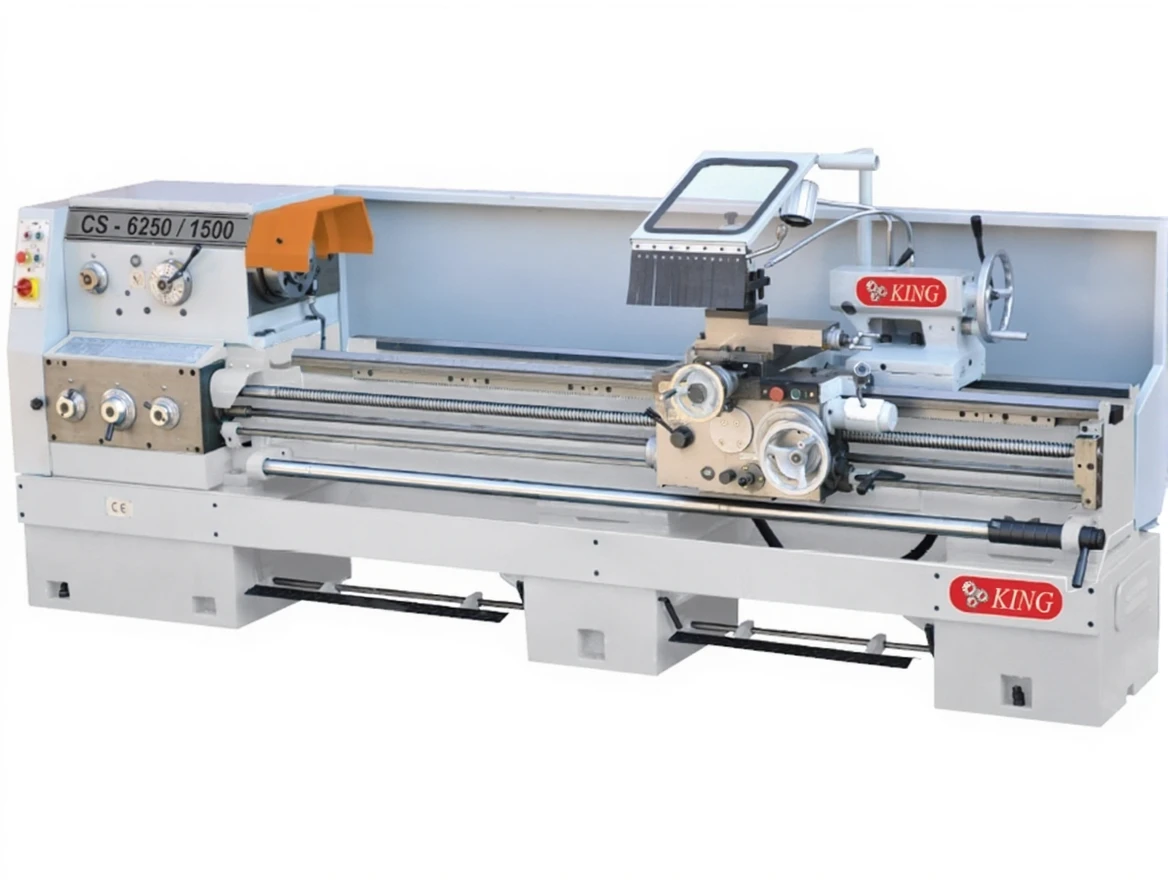

CS-6250 X 2000 Universal Lathe
| Brand | King |
|---|---|
| Model Type |
CS-6250 X 2000 |
Description
King CS-6250 X 2000
2000 mm Universal Lathe
King CS-6250 X 2000 Specifications
|
DIAMETER ON THE BENCH |
500mm |
|
DIAMETER ON THE CAR |
300mm |
|
DIAMETER AT BRIDGE CAVITY |
710mm |
|
COUNTER WIDTH |
405mm |
|
DISTANCE BETWEEN POINTS |
2000mm |
|
BRIDGE CHANNEL LENGTH |
240mm |
|
SHAFT END |
D1-8 |
|
SHAFT HOLE DIAMETER |
80mm |
|
SHAFT TAPER |
MT-7 |
|
SPINDLE SPEED LEVEL |
24 |
|
SPINDLE SPEED RANGE |
9 – 1600rpm |
|
COUNTER TAILSTOCK PINOL MOVEMENT |
150mm |
|
COUNTER TAILSTAST TAPER |
MT-5 |
|
MAIN ENGINE POWER |
7.5kw |
King CS-6250 X 2000 Standard Accessories
- Three-legged mirror 250 mm
-
Shuttered mirror 320 mm
-
Free standing mirror 400 mm
-
Spare mirror flange
-
swivel mirror
-
Fixed and floating intermediate bed
-
lubrication pump
-
chip guard
