CS-6266C X 3000 Universal Lathe
| Brand | King |
|---|---|
| Model Type |
CS-6266C X 3000 |
Description

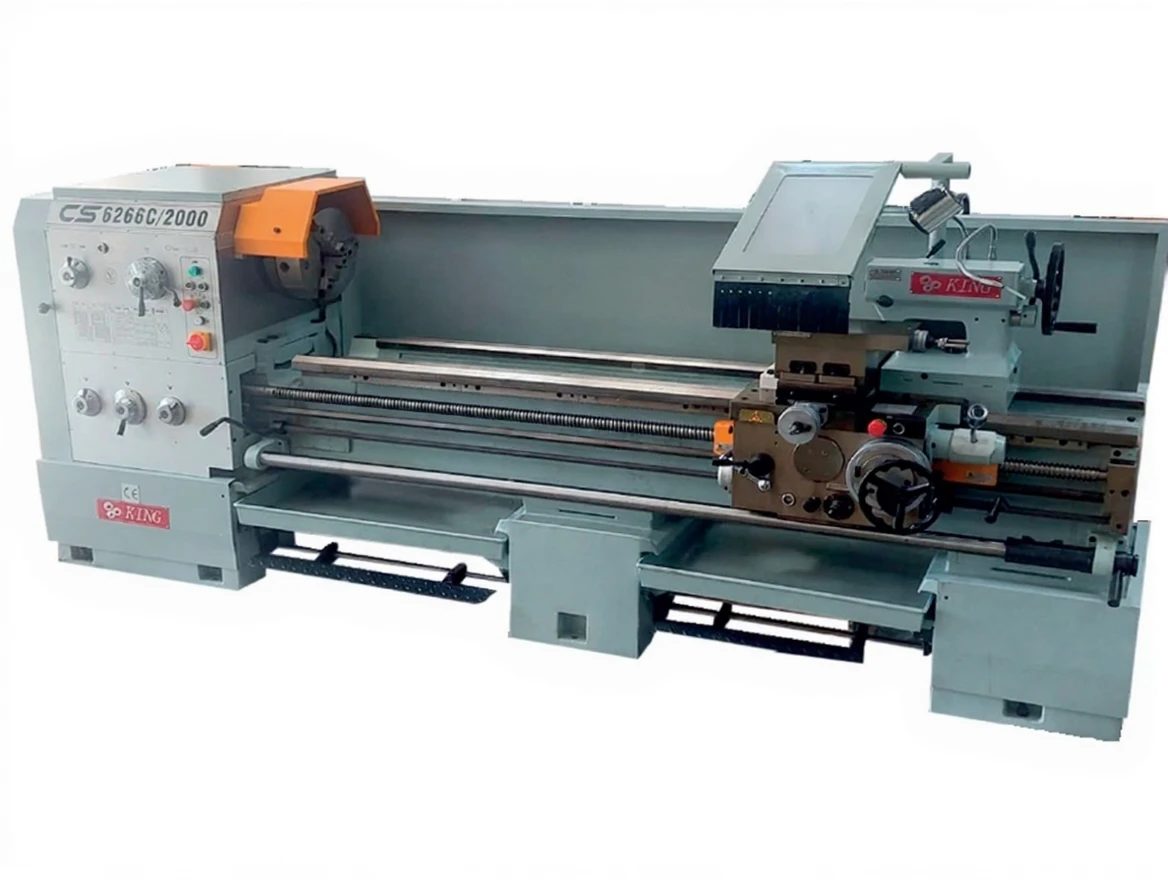

King CS-6266C X 3000
Universal Lathe
King CS-6266C X 3000 Technical Specifications
|
BED TOP DIAMETER |
660 mm |
|
CARRIAGE TOP DIAMETER |
420 mm |
|
SPACE IN THE GAP |
870 mm |
|
BED WIDTH |
405 mm |
|
DISTANCE BETWEEN CENTERS |
3000 mm |
|
BED CHANNEL LENGTH |
240 mm |
|
SPINDLE END |
D1-8 |
|
SPINDLE HOLE DIAMETER |
105 mm |
|
SPINDLE CONE |
MT-7 |
|
SPINDLE SPEED RANGE |
36 – 1600 rpm |
|
TAILSTOCK PINOL MOVEMENT |
150 mm |
|
TAILSTOCK CONE |
MT-5 |
|
MAIN MOTOR POWER |
7.5 kw |
|
COOLANT PUMP POWER |
60 kw |
King CS-6266C X 3000 Standard Accessories
- Three-legged chuck 250 mm
-
Chuck with shutter 400 mm
-
Free-standing chuck 400 mm
-
Spare chuck flanges
-
Rotating chuck
-
Fixed and movable intermediate bearing
-
Lubrication pump
-
Chip guard
-
Protective shield
-
Spindle support apparatus
