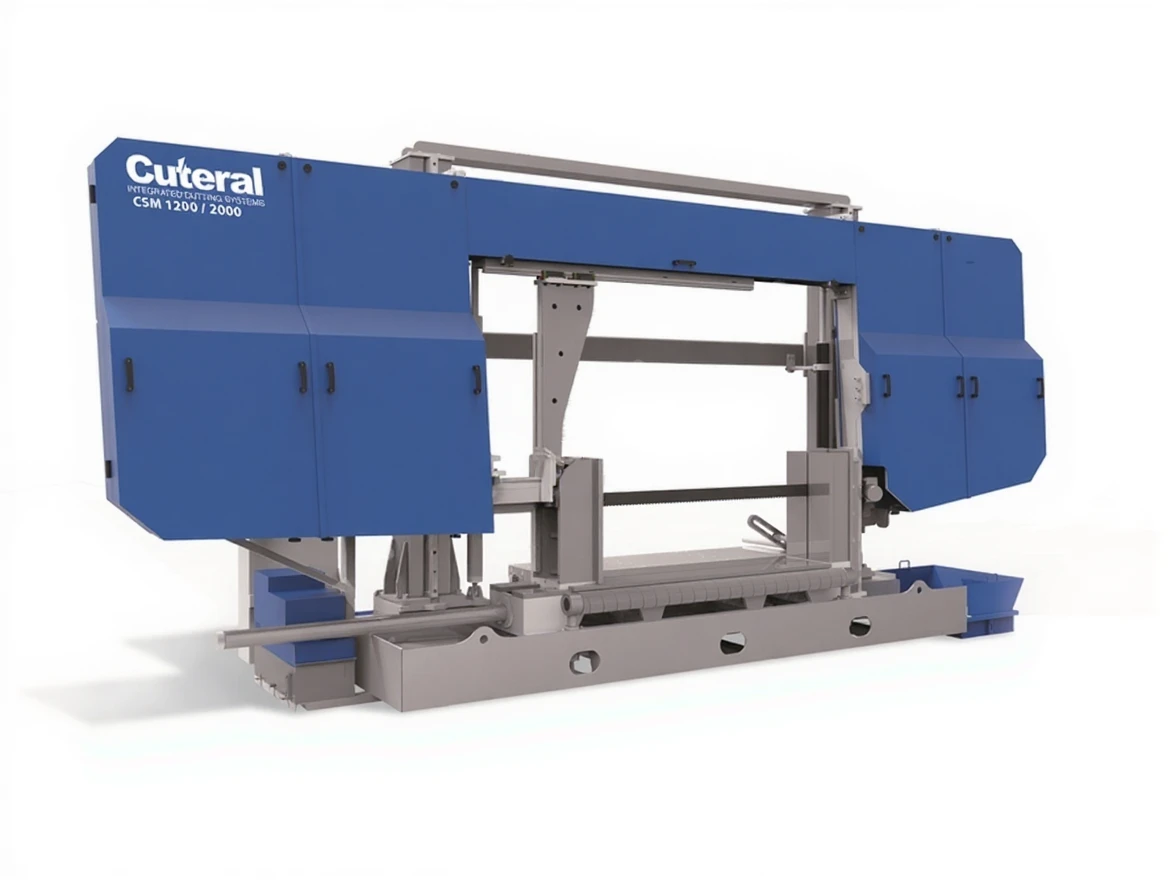

CSM 1200/2000 Semi-Automatic Hydraulic Column Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
CSM 1200/2000 |
Description
Cuteral CSM 1200-2000
1200 mm Semi-Automatic Hydraulic Column Band Saw Machine
Cuteral CSM 1200-2000 Technical Specifications
| A | 3015 mm | |||
| B | 6125 mm | |||
| C | 1690 mm | |||
| D | 591 mm | |||
| E | 3000 mm | |||
| hmax | 3765 mm | |||
| Semi-Automatic | ||||
| Blade Size | 80 x 1.6 x 13460 mm | |||
| Blade Motor | 11 kW – 1500 rpm | |||
| Chip Conveyor Motor | 0.09 kW – 1500 rpm | |||
| Hydraulic Motor | 3 kW – 1500 rpm | |||
| Coolant Motor | 0.37 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 14.46 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 8750 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydraulic | |||
| Cutting Capacity 90° Length | 1200 mm | |||
| Cutting Capacity 90° Width | 2000 mm | |||
| Cut Material Angle | 0° | 1200 mm | 1200 x 1200 mm | 1200 x 2000 mm |
