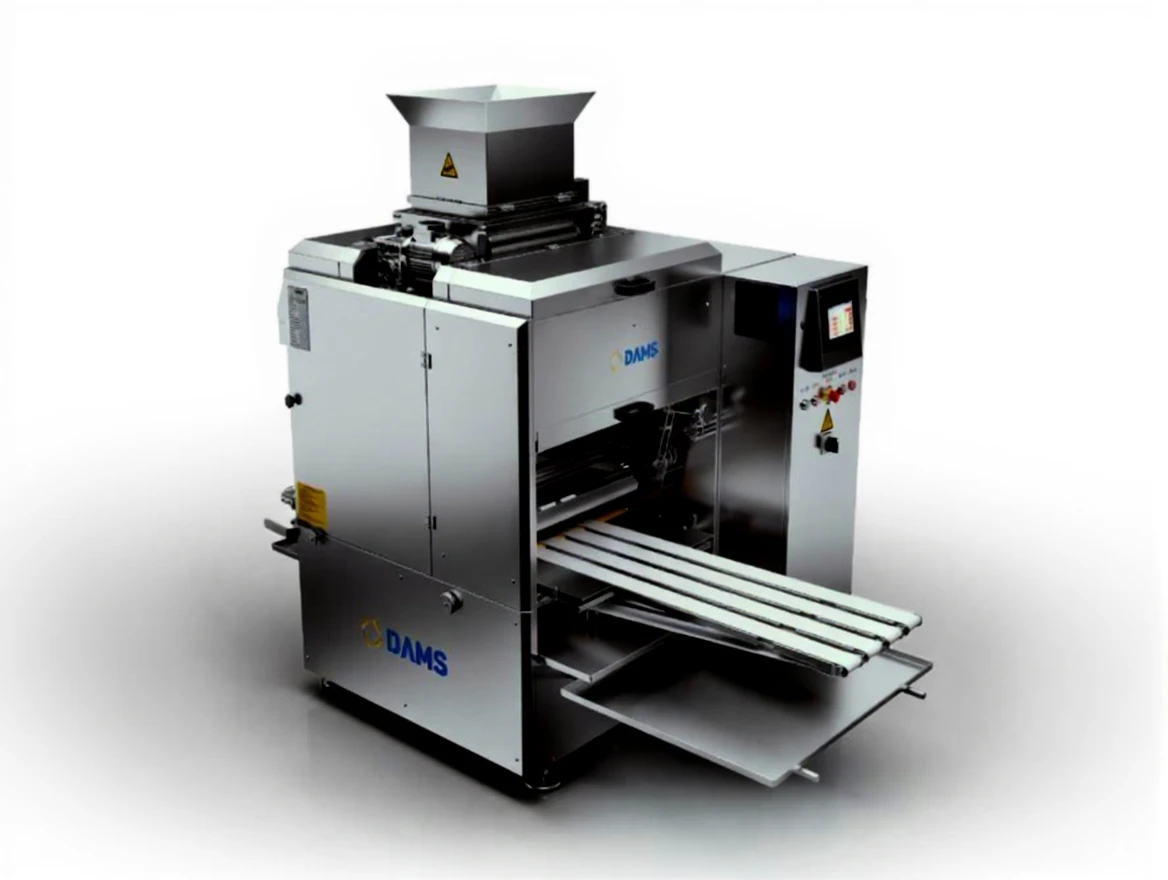

DAMS Four Dough Cutting and Rolling Machine DDKY – 70
| Brand | DAMS |
|---|---|
| Model Type |
DDKY-70 |
TECHNICAL SPECIFICATIONS
|
Machine Width |
1480 Mm |
Voltage |
380 V |
|
Machine Length |
2220 Mm |
Current |
25 Amper |
|
Machine Height |
1840 Mm |
Frequency |
50 Hertz |
|
Machine Weight |
1700kg |
Max.Power |
5 Kw |
|
Capacity (Maximum) |
7,000 Pieces/Hour |
Average Power |
4 Kw |
GENERAL FEATURES
- Settings can be easily made from the PLC controlled touch screen.
- Mechanical adjustments are simple, and it is easy to use and learn.
- Information related to usage can be saved in memory for continuous use.
- Daily cleaning is easy.
- Especially the removal, installation, and placement of belts and working evenings are easy.
- The speeds of all belts can be adjusted to the desired level.
- Electrical and electronic faults that may occur are warned on the PLC screen with images and text.
- In case of a fault, any intervention can be made remotely via the PLC program (Optional)
CUTTING SECTION
- The outer casing is covered with 304 chrome, and the surfaces in contact with the dough are 304 chrome and chrome plated.
- Dough cutting; ranges from 25-90 gr, 30 – 110 gr, 40 – 160 gr, 50 – 180 gr, 70 – 200 gr.
|
Piston Diameter |
Ø45 mm |
Ø48 mm |
Ø 50 mm |
Ø 55 mm |
Ø 60 mm |
Ø 65 mm |
|
Cutting Range |
25-90 gr |
30-115 gr |
40–140gr |
50–160gr |
60–180gr |
70–220gr |
Different outer drums are used for dough cutting in these weight ranges. The machine is manufactured according to the dough cutting weight range. The bread producer should request the machine in the weight range suitable for the bread production.
- Maximum Roll bread dough and rolling capacity is 7,000 pieces per hour.
- Since very little flour is used in dough cutting, the dough surface is flour-free.
- Provides a clean working environment.
- The amount of flour given to the cut dough can be adjusted.
- The lubrication system is automatically adjusted during the dough cutting process.
- Unlike other machines, it does not damage the dough due to pressure-free cutting.
Our company reserves the right to make changes to the technical specifications mentioned above.
Note: Since there are pneumatic pistons on the machine, a minimum of 4 bar pressure air is required for the machine to operate. A 5*2.5 multi-cable should be pulled for electricity. To prevent voltage fluctuations in electricity that may damage the automation products used in the machine, a suitable regulator is recommended.
