Demiryolu Tank Otomatik Boşaltma Ünitesi
| Brand | ErichHahn |
|---|---|
| Model Type |
ARU |

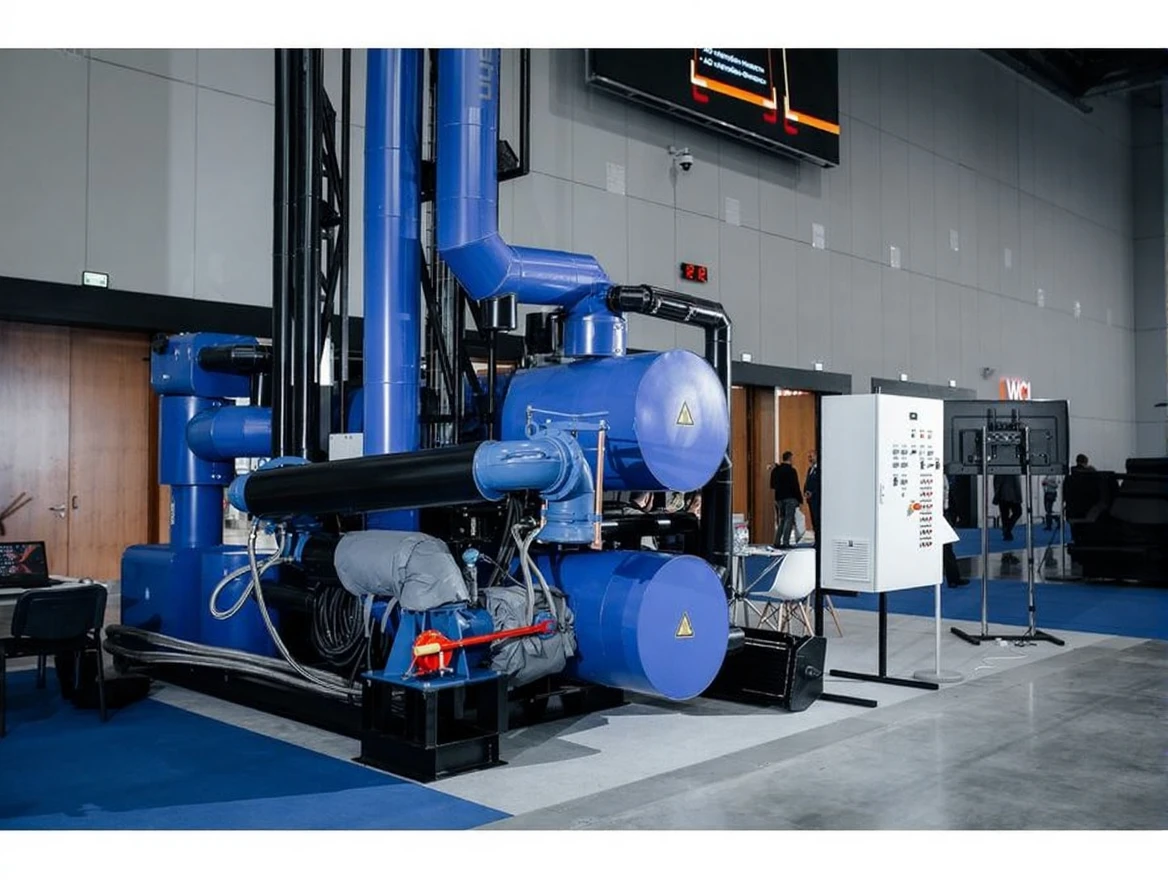

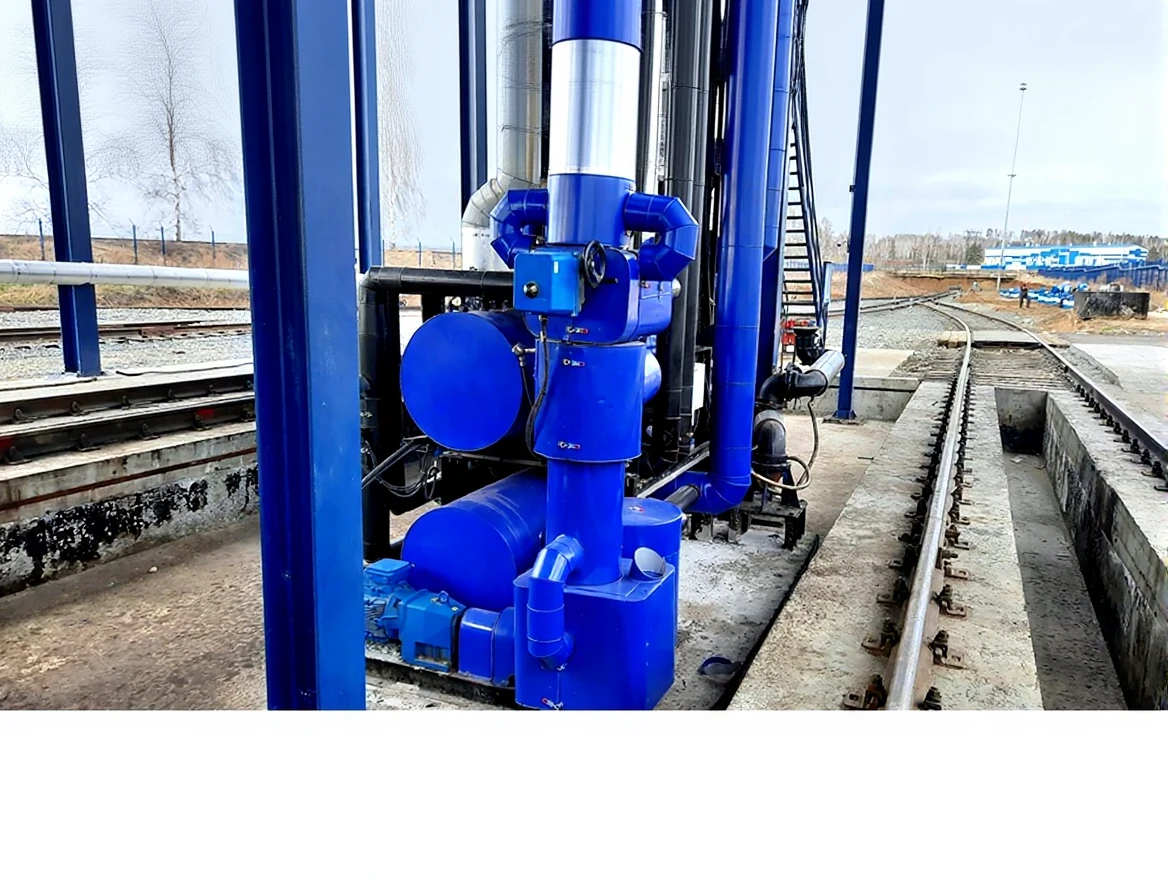

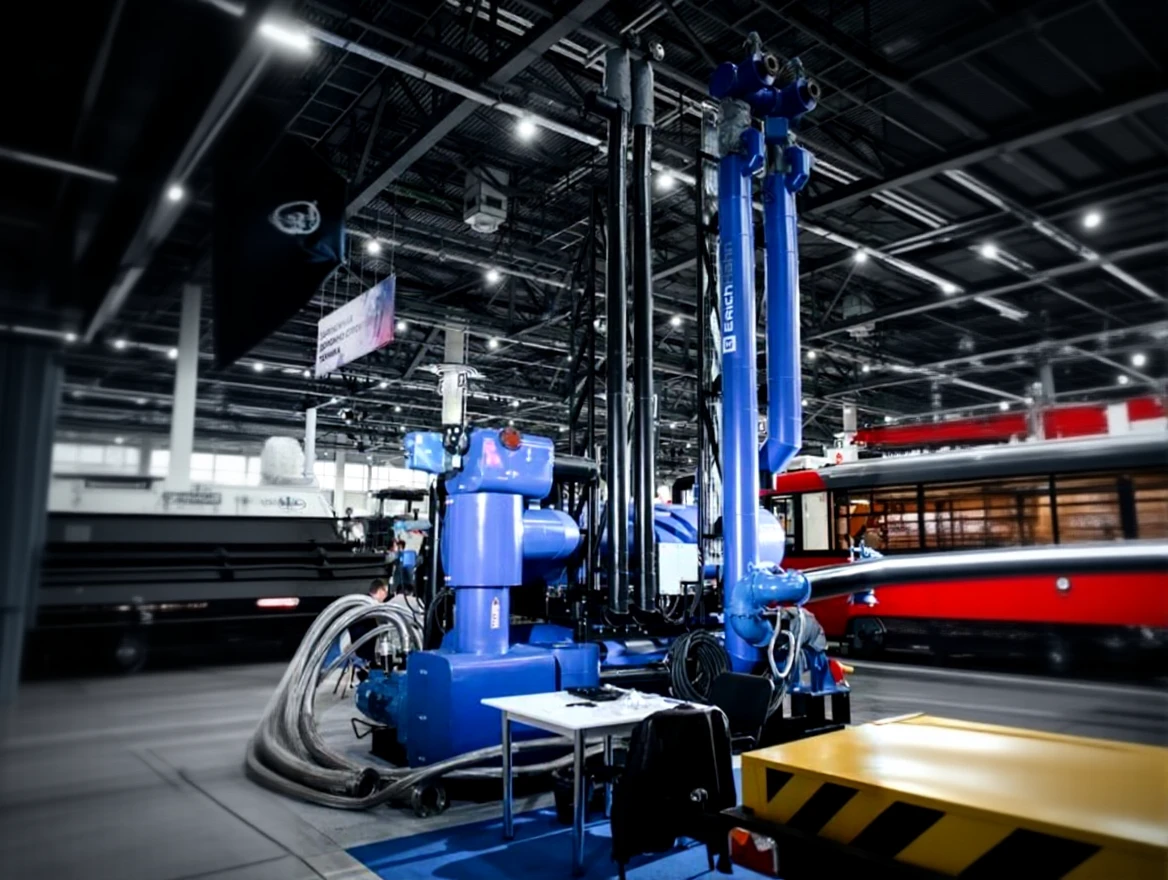

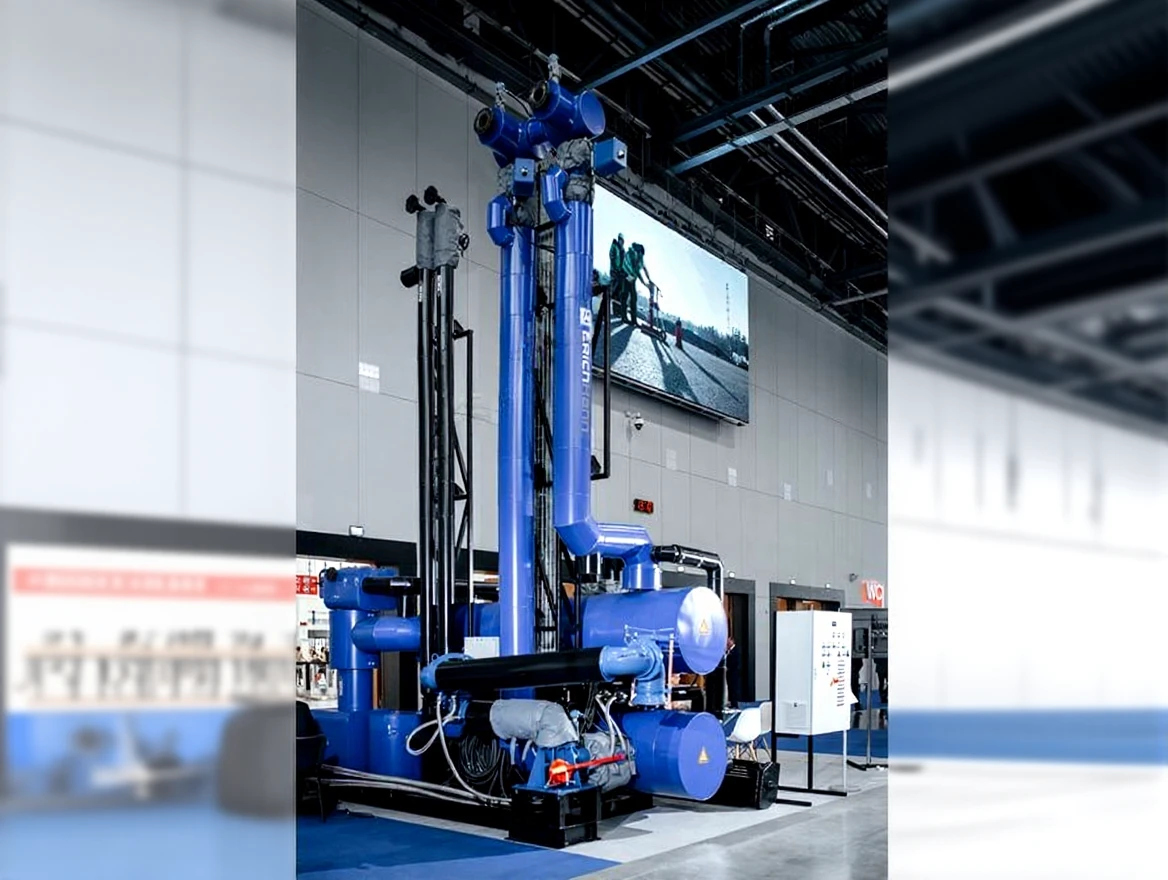

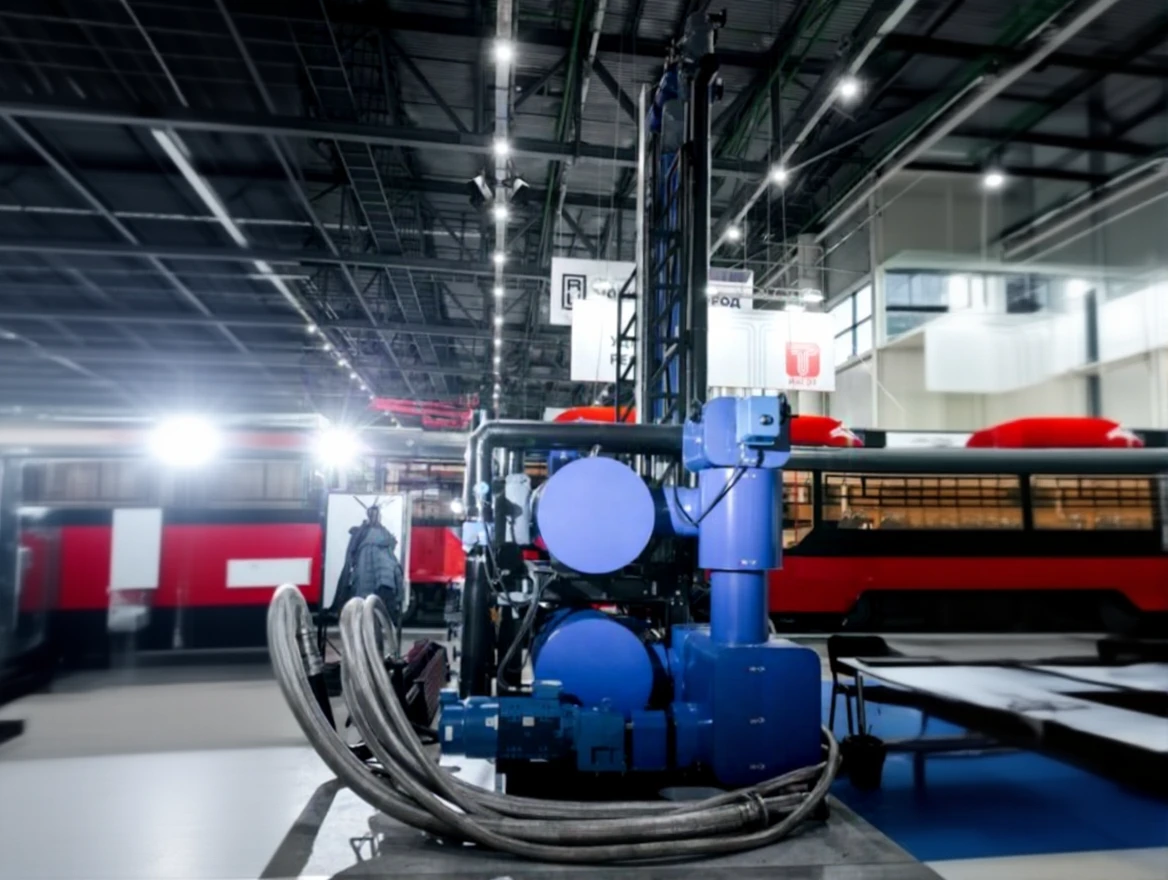

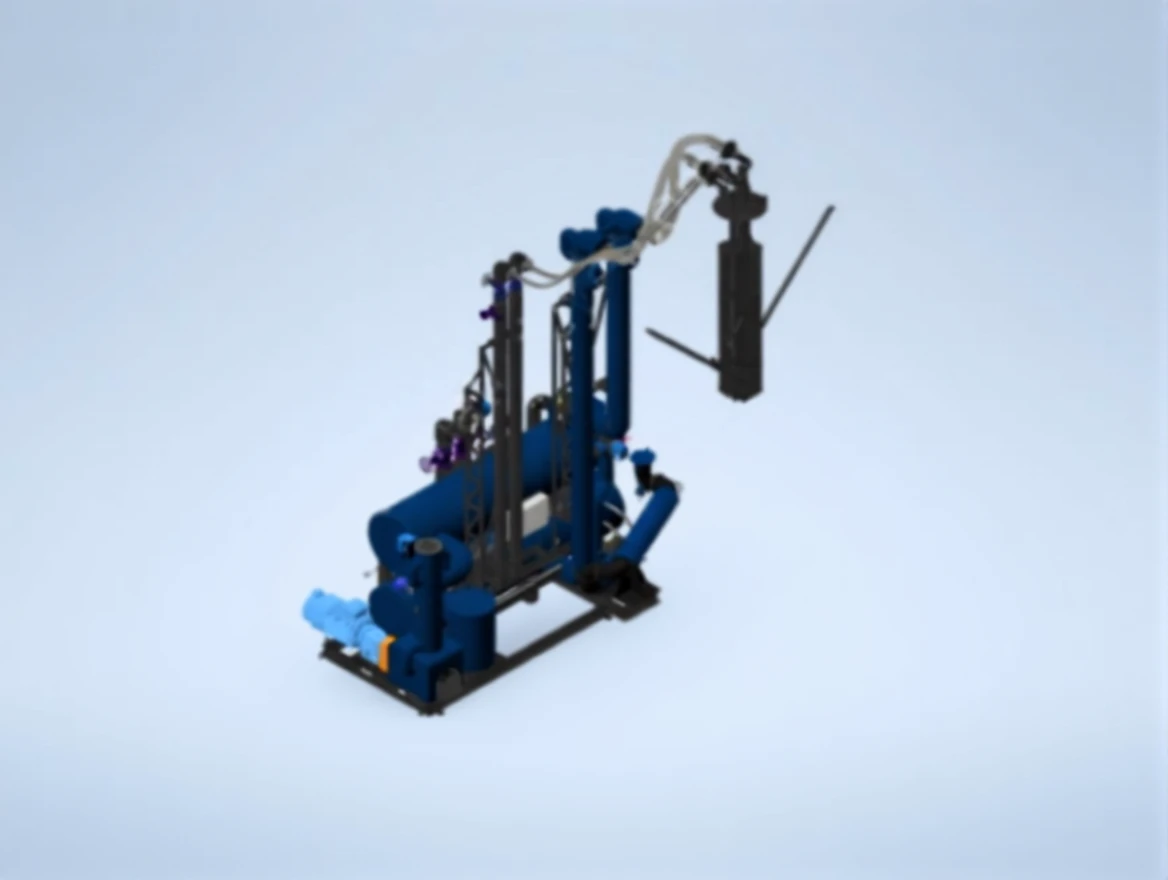

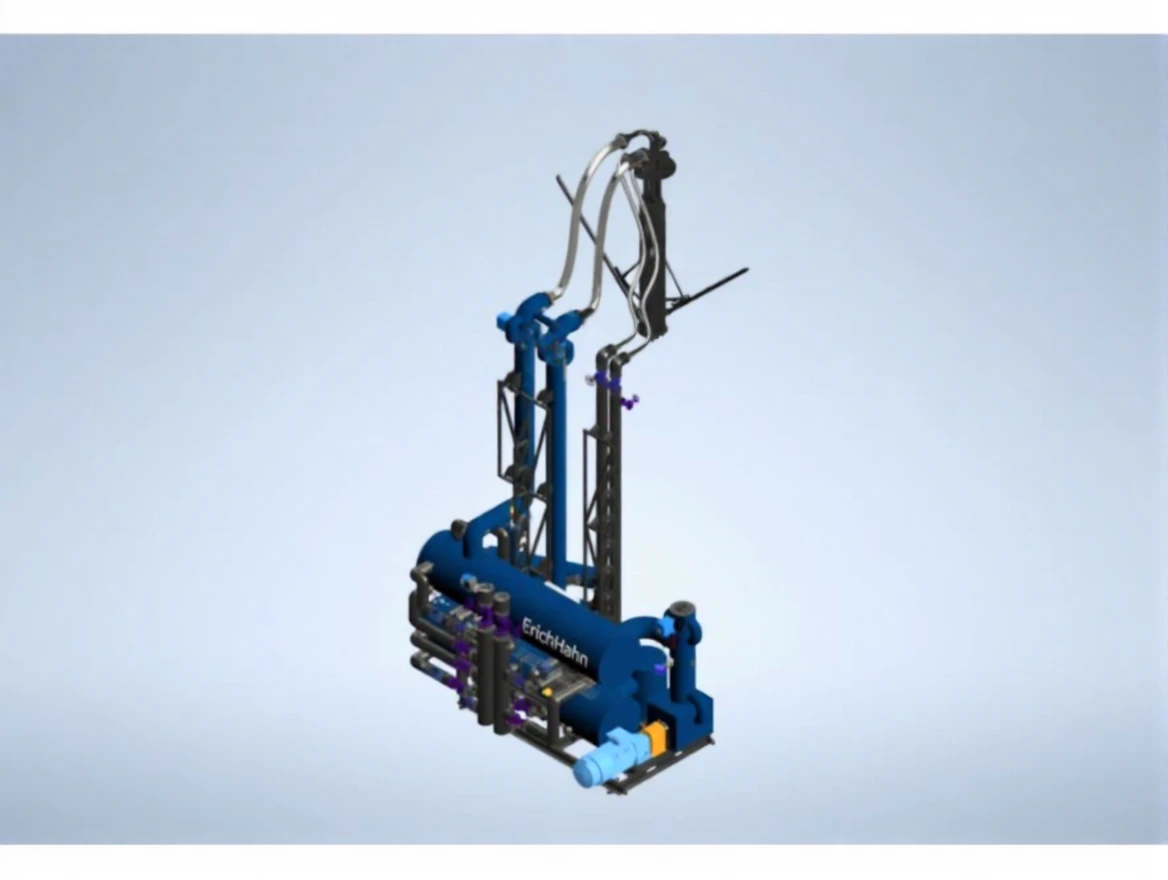

ErichHahn ARU Railway Tank Automatic Unloading Unit

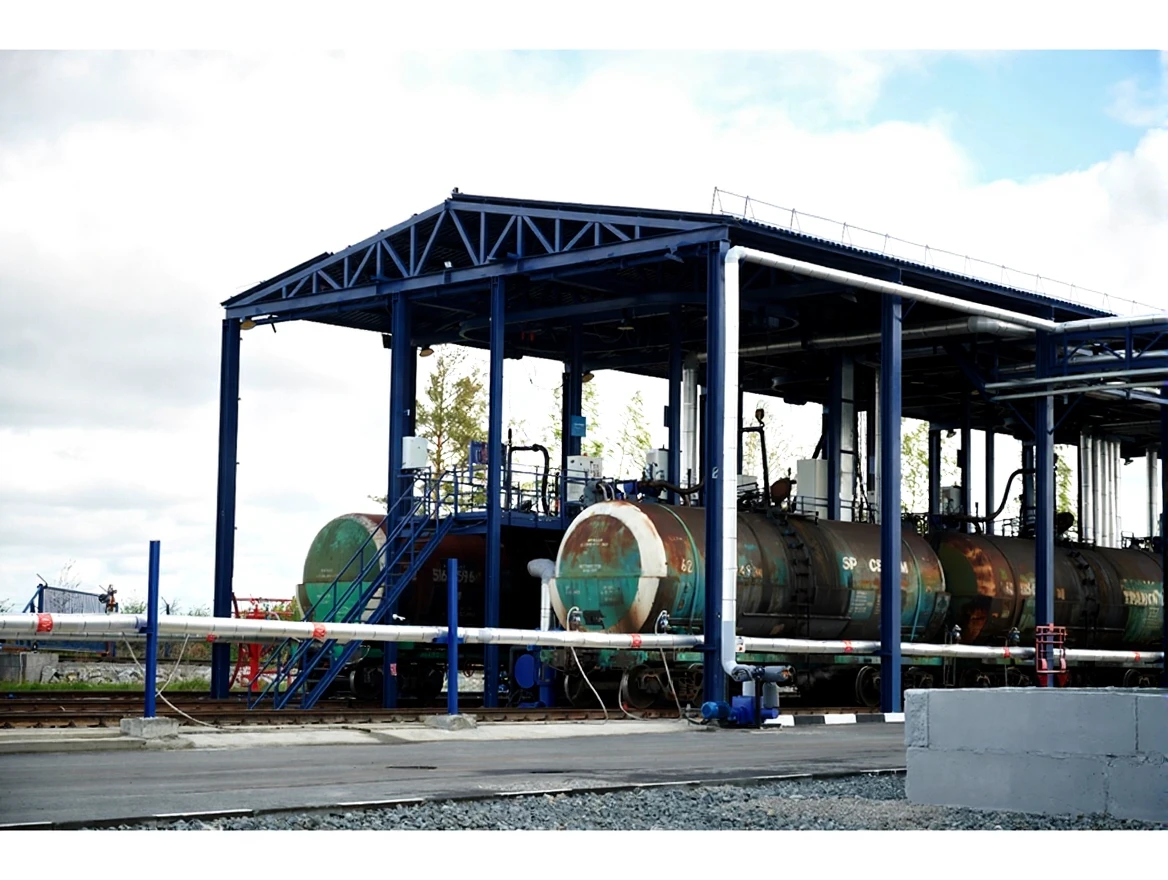

Designed for the rapid heating and unloading of viscous and hardened materials from tank wagons on railway lines. The unloading time depends on the season and region where the operation is carried out. In summer, unloading takes between 7 and 17 hours, while in winter this time varies between 10 and 24 hours.
Advantages of ErichHahn ARU
- Rapid heating of tanks and fast unloading of bituminous materials
- High degree of automation in the process
- High wear resistance in all equipment components
Intended Use
Designed for the rapid heating and unloading of viscous and hardened materials from railway tankers.
Features
- Tanker unloading time 6-24 hours
- Heating system: External heat exchanger unit / immersion type heat exchanger / steam / viscous liquid circulation
- Heat transfer power 350 kW
- Dimensions (W x D x H) 4700 x 2700 x 6150 mm

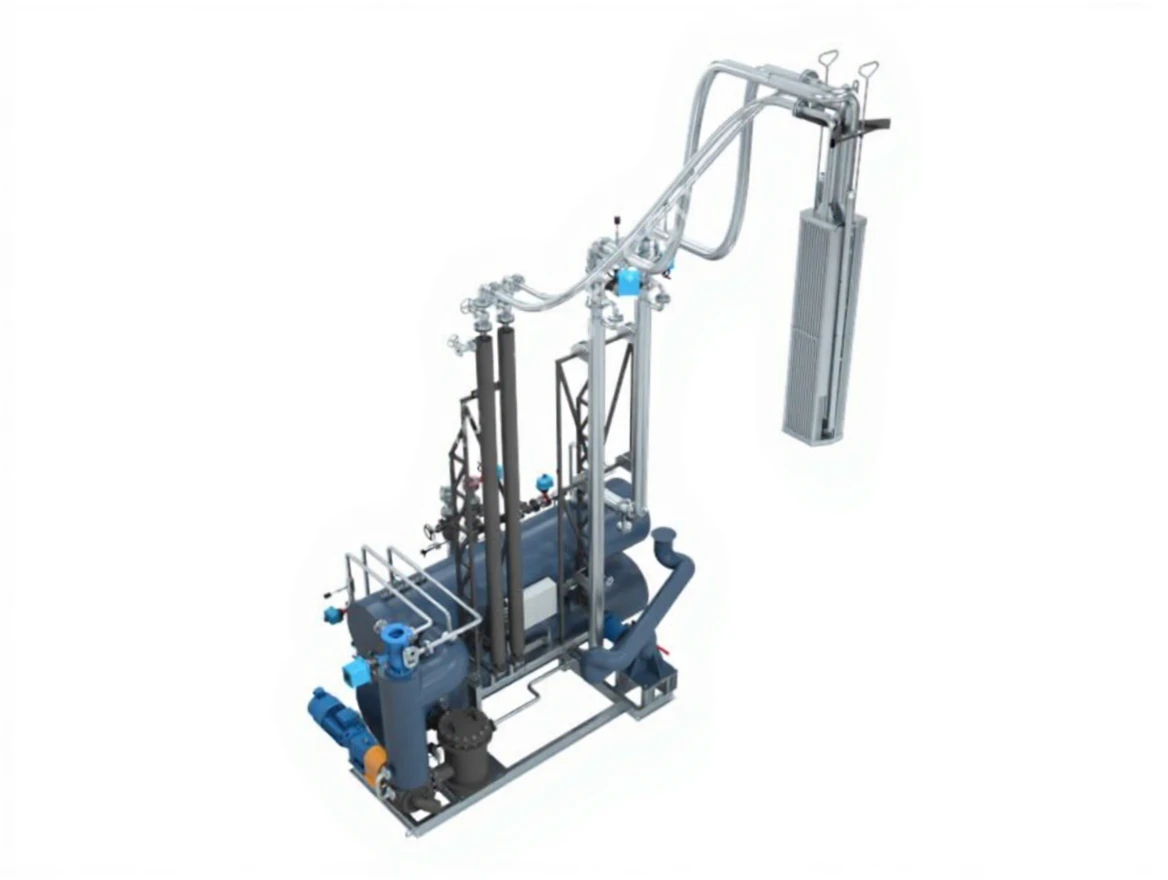

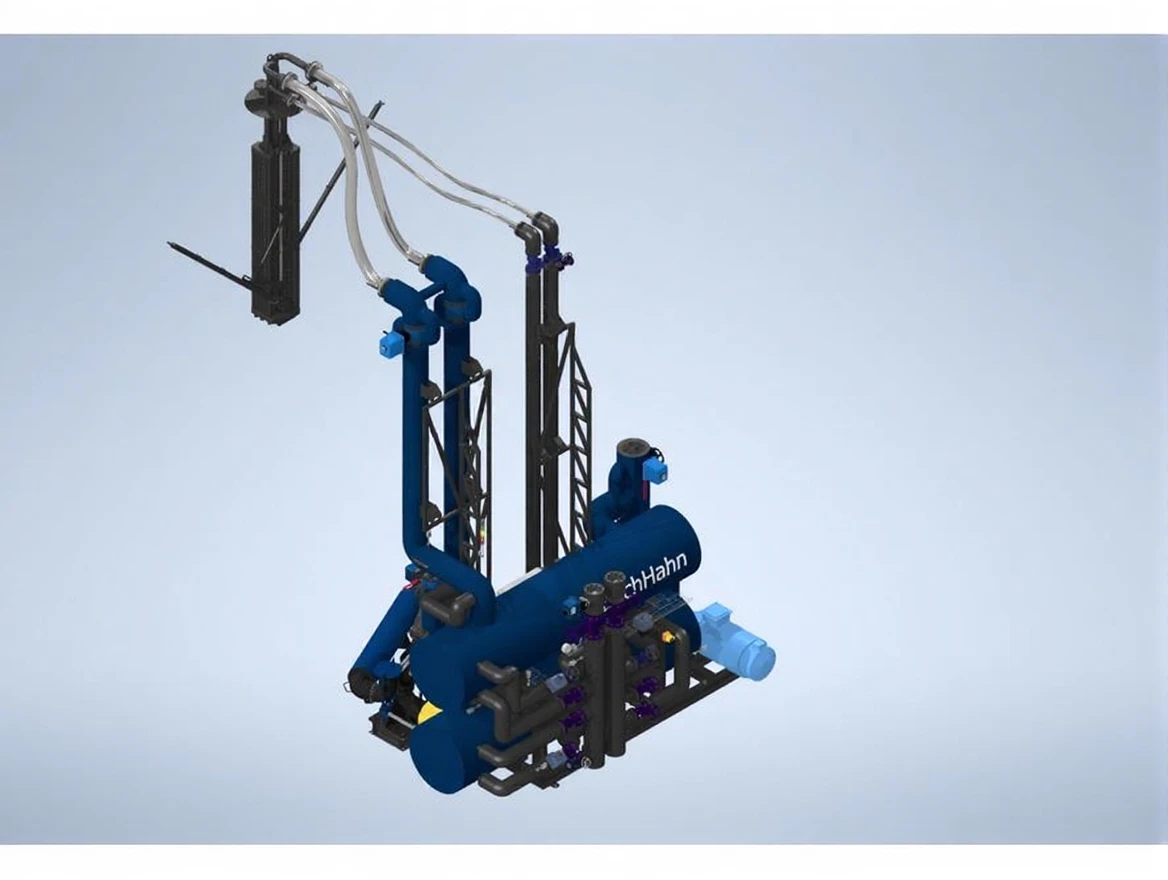

Equipment
- Pump unit
- Viscous liquid filter
- External heat exchanger
- Heat exchanger unit
- Bottom unloading device

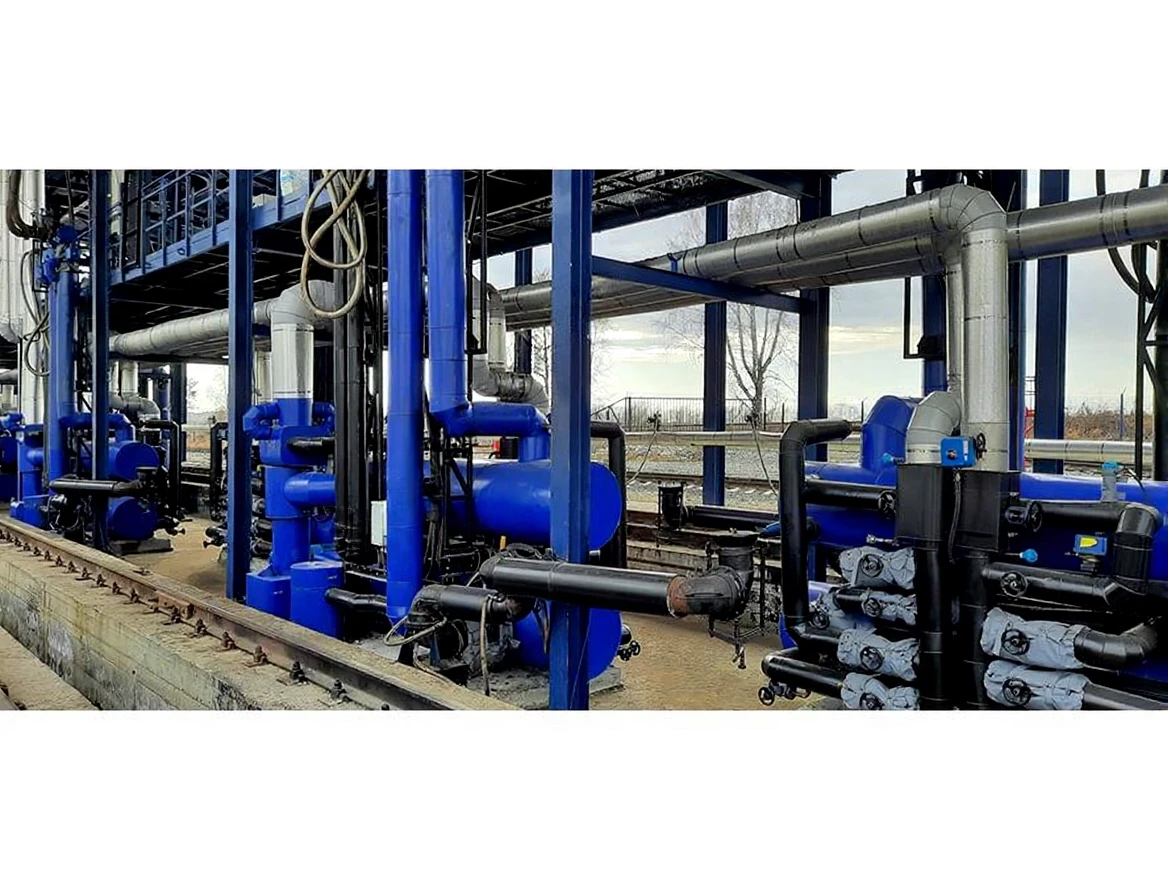

- Pipeline system
- Oil pipeline system for heating
- Automation system
- Heat insulation
Installation
- Tanker unloading time 7-24 hours
- Heating system: External heat exchanger unit / immersion type heat exchanger / steam / viscous liquid circulation
- Heat transfer power 350 kW
- Pump unit
- Viscous liquid filter
- External heat exchanger
- Heat exchanger unit
- Bottom unloading device
- Pipeline system
- Oil pipeline system for heating
- Automation system
- Heat insulation
Erichhahn ARU Technical Specifications
|
Liquid type |
Viscous petroleum product or material with similar physical properties |
|
|
External environmental conditions |
Moderate |
|
|
Ambient temperature, °C |
-40 to +40 |
|
|
Maximum operating temperature, °C |
180 |
|
|
Operating pressure, MPa |
0.6 |
|
|
Heat transfer capacity, kW |
350 |
|
|
Unload and heat time of heavy (dark) oil from 4-axle railway wagons at ambient temperatures: |
|
|
|
+25°C |
7 to 17 hours |
|
|
-40°C |
10 to 24 hours |
|
|
Gear motor |
|
|
|
Motor power, kW |
30 |
|
|
Speed, rpm |
405 |
|
|
Frequency, Hz |
50 |
|
|
Electric voltage, V |
380 |
|
|
Protection class |
IP55 |
|
|
Clutch |
Flexible gear belt clutch |
|
|
Pump |
Gear type |
|
|
Filter connection, DN, mm |
150 |
|
|
Nominal capacity, m³/h |
90 |
|
|
Pressure relief valve |
Provided |
|
|
Filter |
|
|
|
Mesh size, mm |
8 |
|
|
Heating system |
|
|
|
Type of heat |
Hot oil |
|
|
Nominal diameter of connection flanges, DN, mm |
40 |
|
|
Maximum oil temperature at 0.6 MPa, °C |
200 |
|
|
Automation system |
Provided |
|
