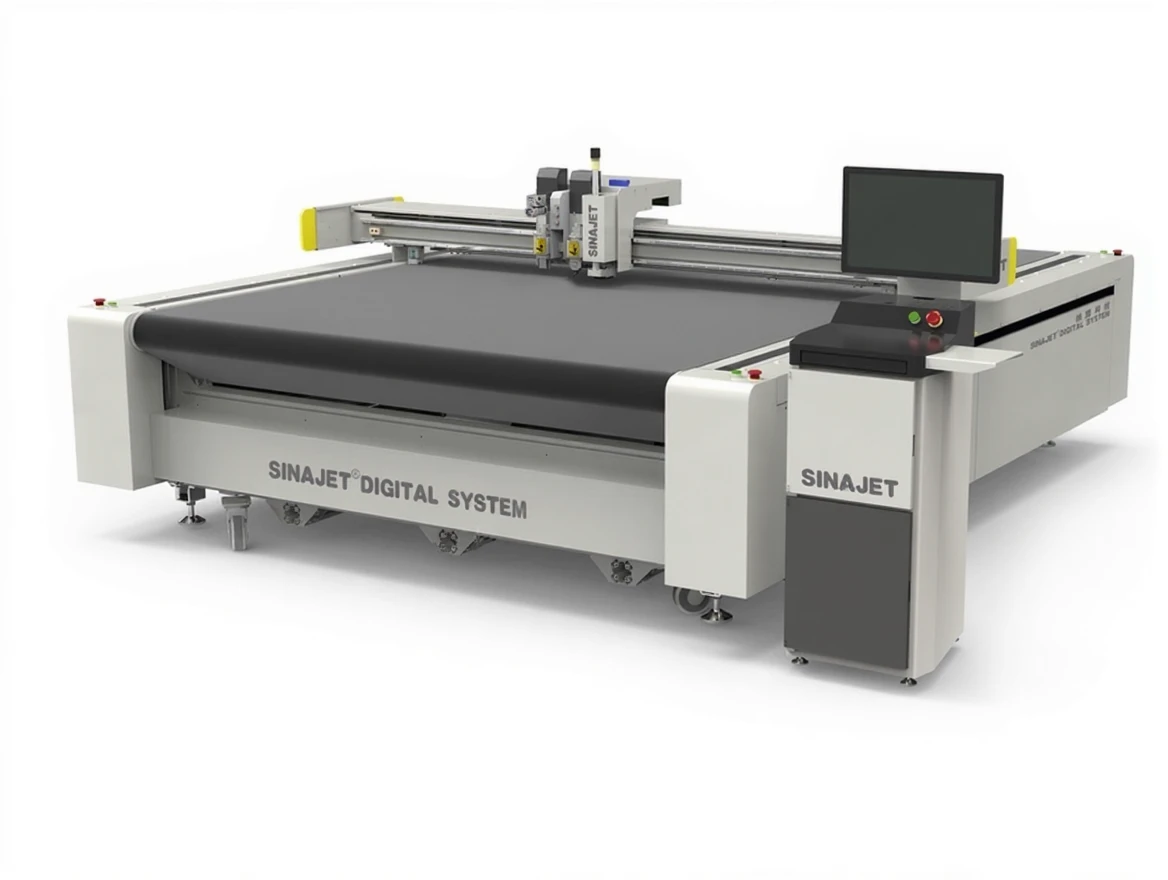

DG Model Sinajet (Plotter) Automatic Feed Cardboard Box Label Cutting Machine

SINAJET DG automatic feed cardboard, box and label cutting machine, fully industrial, capable of cutting materials up to 45 mm deep, can have a router attached if desired, and can also cut hard materials such as wood, glass, acrylic, etc. with the help of a router. There are fixed belt or moving belt models. The DG Model is used in many areas of the graphic and advertising industry.



• Standard models: DK[ PHONE HIDDEN ]x1200mm) / DK[ PHONE HIDDEN ]x1300mm) / DK[ PHONE HIDDEN ]x1600mm)
• Special models: DG[ PHONE HIDDEN ]x1600mm) / DG[ PHONE HIDDEN ]x2000mm)
• Special order: The machine can be made according to the desired special size
• Cutting Table: Fixed or moving belt
• Cutting precision: less than 0.1 mm
• Max cutting thickness: 25 mm (can be 45 mm optionally)
• Max cutting speed: 1,800 mm/sec
• Material fixation to the table: By vacuum
• Cutting Blades: Rotary Blade, Crease Blade, Half Cut Blade, V-Cut Blade, Swing Cutting Blade, CNC Router, Open Cutting Blade
• File format: dxf, hpgl, cut
• Data Transfer: LAN
• Drive system: Smart Digital Servo Control System
• Electrical specifications: 220V / 380V / 50 Hz – 2.2 -9.0 kW
