Diesel Hydraulic Black Plaster Machine

Diesel Hydraulic Black Plaster Machine

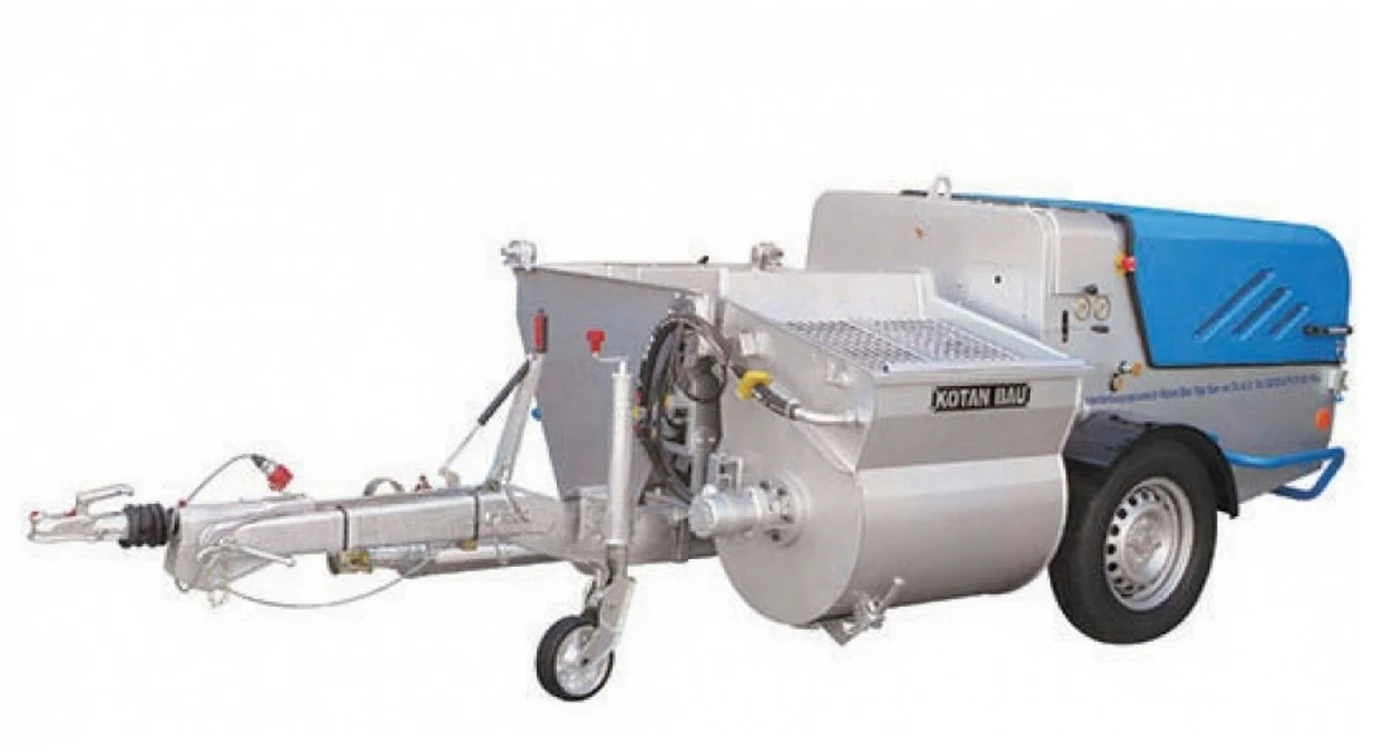

Mörtel Meister DH40 is an ideal Diesel Hydraulic Plastering Machine for professionals looking for high efficiency and durability in the construction industry. Powered by a 26.6 KW diesel Kubota engine and 400 V, 50 Hz electrical support, this machine offers excellent performance even in difficult construction site conditions. Its compressor with a capacity of 387 l/min provides an impressive plaster application with a maximum pressure of 8 Bar.

This model offers up to 40 Bar pumping pressure, easily handling even the densest materials. Suitable for a maximum aggregate size of 8 mm, DH40 attracts attention with its wide range of applications. This machine, which is 3540 mm long, 1490 mm wide and 1220 mm high, is portable with its standard weight of 1070 kg and increases mobility with its tow feature suitable for off-road use.

DH40’s 860 mm filling height reduces workload and provides ease of use. 35-70 L/min pumping capacity is ideal for all kinds of projects. The mixer equipped with 2L6 or 2L6 Plus screw type offers 180 Lt mixing and 230 Lt hopper capacity. This machine sets new standards in black plaster applications with a transfer efficiency of 60 meters vertically and 120 meters horizontally. Offering a reliable, efficient and long-lasting solution for professionals, Mörtel Meister DH40 is an indispensable assistant in the construction industry.

Technical Specifications:

• Engine:400 V. 50 Hz.
• Engine:26.6 KW Diesel Kubota
• Compressor:387 l/min. max. 8 Bars
• Pumping Pressure:Max. 40 Bars.
• Max. Aggregate:Max. 8mm
• Dimensions L/W/H:[ PHONE HIDDEN ] mm
• Standard Weight:1070 kg.
• Transfer Efficiency:Max. 60. mt vertical 120 mt. horizontal (60 mt.)
• Filling Height:860mm
• Pumping Capacity:35-70 L / 1 min.
• Screw Type:2L6 / 2L6 Plus
• Mixer Capacity:180 liters
• Hopper Capacity:230 liters
• Check:Convenient to road exit
