Dıgıfold Pro Xl Morgana Creasing Folding Machine

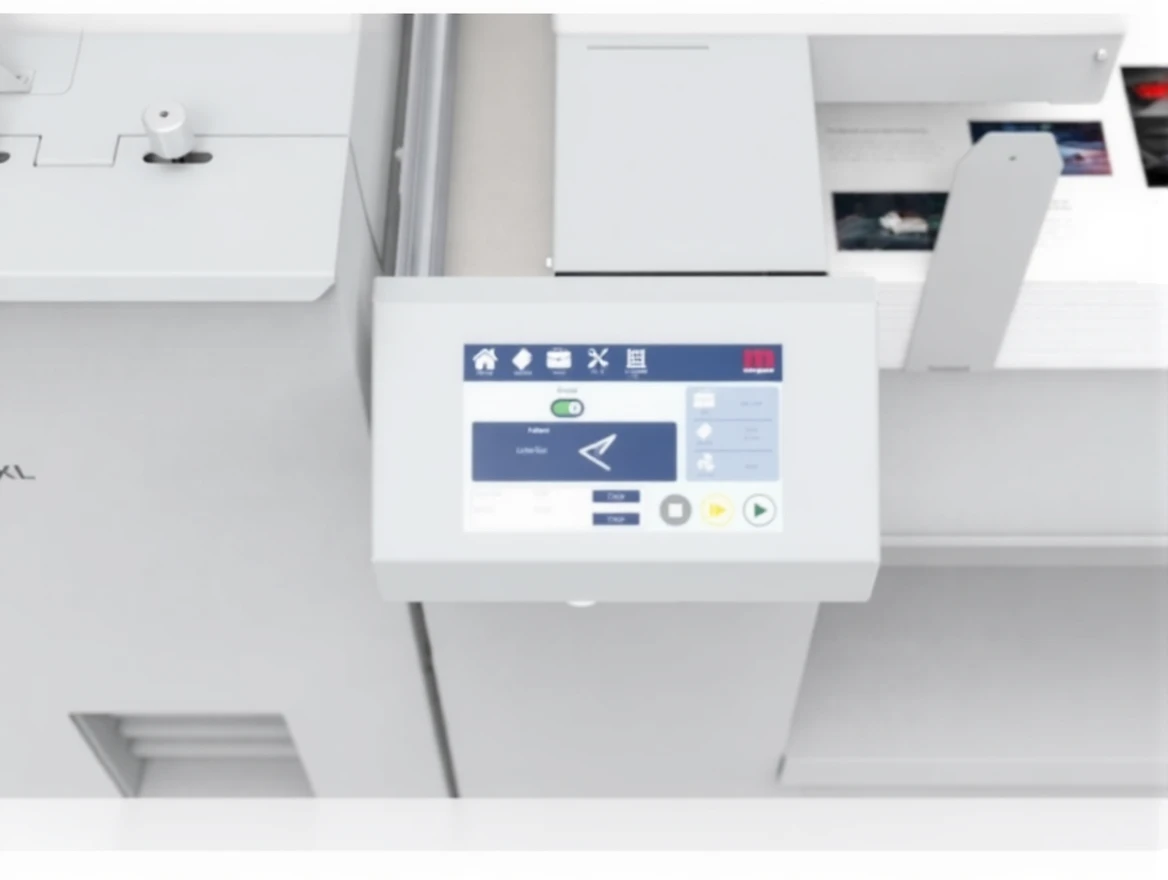

The new control panel of the machine controls all main functions of the computer.

According to the folding style you select from the screen, the machine automatically adjusts all crease positions and the distance between rollers, working speed, and air settings. No user intervention is required.

The Morgana AutoCreaser Pro XL is the most productive and error-free creasing and folding machine ever made to date.





• Max Paper Size 385 mm x 700 mm (with extension table 1,300 mm)
• Min Paper Size 93 mm x 210 mm
• Loading Capacity 200 mm
• Paper Thickness 80 – 400 gr/m2
• Max Speed 6,000 sheets/hour, A4 Half Fold 7,500 sheets/hour, A4 1 crease Dynacrease standard, Static creaser option
• Length between two creases 2.5 mm with Dynacrease, 0.1 mm with Static crease
• Crease direction Dynamic crease from above, Static crease can be selected from below or above. This way, you can create a pile from both the bottom and the top.
• Perforation feature Available. 5 round perforation knives can be attached in the paper feeding direction. 1 perforation knife is provided as standard. Horizontal perforation knife can be optionally installed with the static crease template.
• Folding styles Half, letter, zig-zag, window, double parallel,
• Folding technology There is no bag in the machine. The plate-shaped folding knives bend the paper at the crease points without damaging the toner and push it between the rollers. The paper passing between the rollers is folded and stacked on the collecting conveyor.
• Can folding be done without creasing? Yes, it is possible. There is no need to crease thin papers.
• Can creasing be done without folding? Yes, in this case, the papers are stacked on the tray under the collecting conveyor.
• Can vertical perforation, horizontal perforation, and creasing be done simultaneously? Yes, this is possible.
