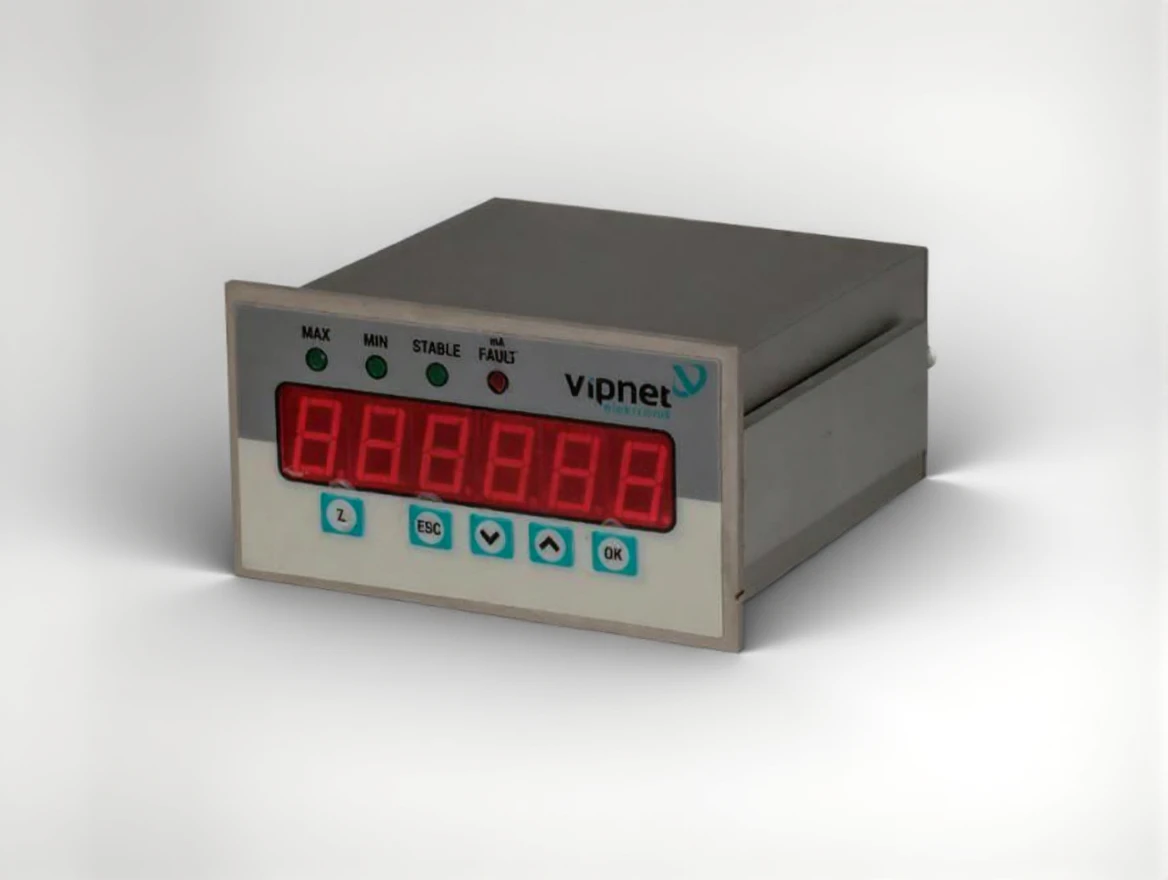

Digital Load Cell Converter
| Brand | Vipnet Elektronik |
|---|---|
| Model Type |
VP-WI-V30 |
Description
• Weighing indicator device; Scales the Loadcell signal according to calibration values.
The device provides this measurement in two ways;
• It is displayed in kilos on the screen and the display sensitivity can be adjusted.
• To be used as a converter in industrial devices, it converts precisely and stably to a 4-20 mA analog signal.
• Some sectors where weighing indicators are used are as follows: Chemical Production Industry, Production and Technological Lines, Process Automation, OEM and System Integrators, Glass and Ceramic Industry, Iron and Steel Production, Construction and Building Materials, Filling Packaging and Packaging Lines.
The device provides this measurement in two ways;
• It is displayed in kilos on the screen and the display sensitivity can be adjusted.
• To be used as a converter in industrial devices, it converts precisely and stably to a 4-20 mA analog signal.
• Some sectors where weighing indicators are used are as follows: Chemical Production Industry, Production and Technological Lines, Process Automation, OEM and System Integrators, Glass and Ceramic Industry, Iron and Steel Production, Construction and Building Materials, Filling Packaging and Packaging Lines.
Technical Specifications
|
Product Code |
VP-WI-V30 |
|
Operating Voltage |
24VDC ± %20 |
|
Operating Temperature |
-10 °C / 40 ˚C , %85 relative humidity |
|
Connection Type |
3.81 mm female terminal |
|
Measurement Resolution |
24 bit |
|
Analog Output Resolution |
16 bit |
|
Analog Load Impedance |
Maximum 500Ω |
|
Loadcell Supply Voltage |
5VDC, maximum 250mA |
|
Loadcell Binding Quantity |
4 units 350Ω |
|
Loadcell Connection Type |
4 or 6 wired |
