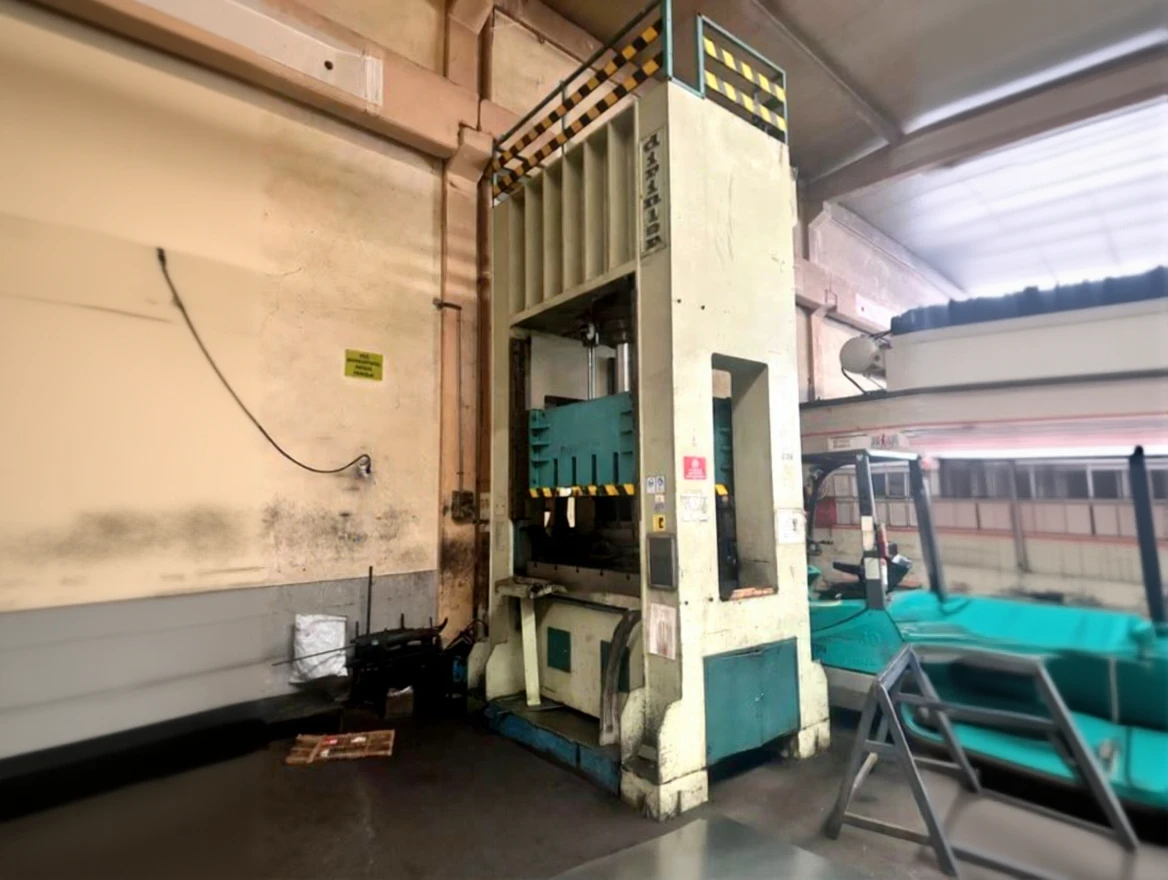

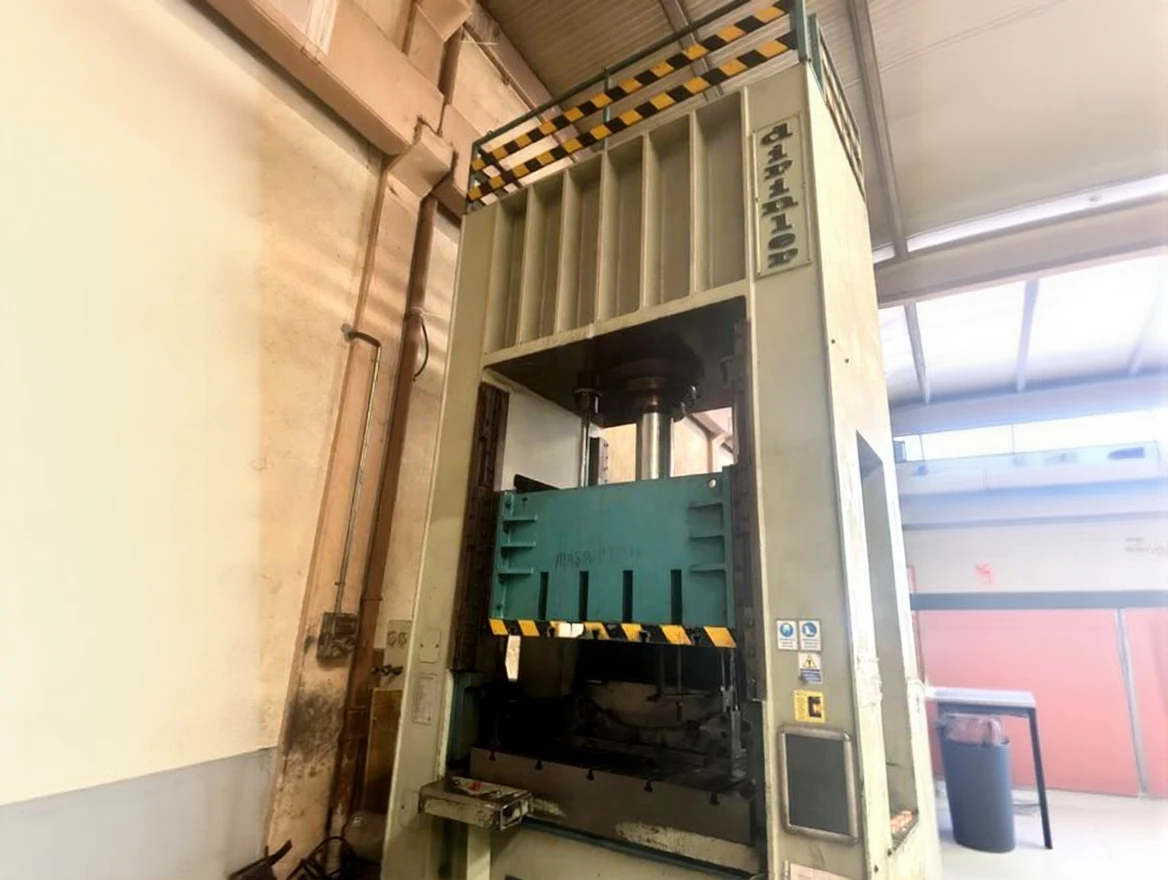

Dirinler Brand 250 Ton Stretching Press

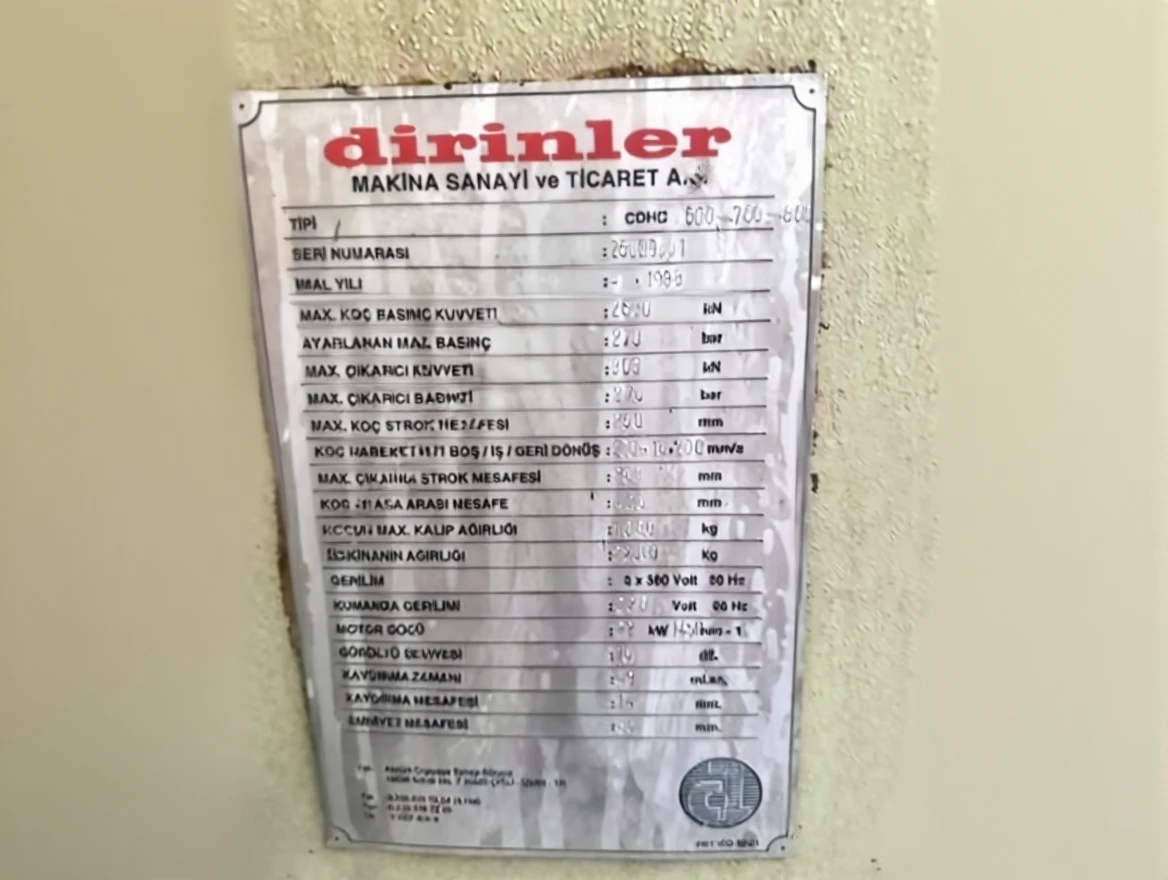

DIRINLER BRAND 250 TON BLANKING PRESS

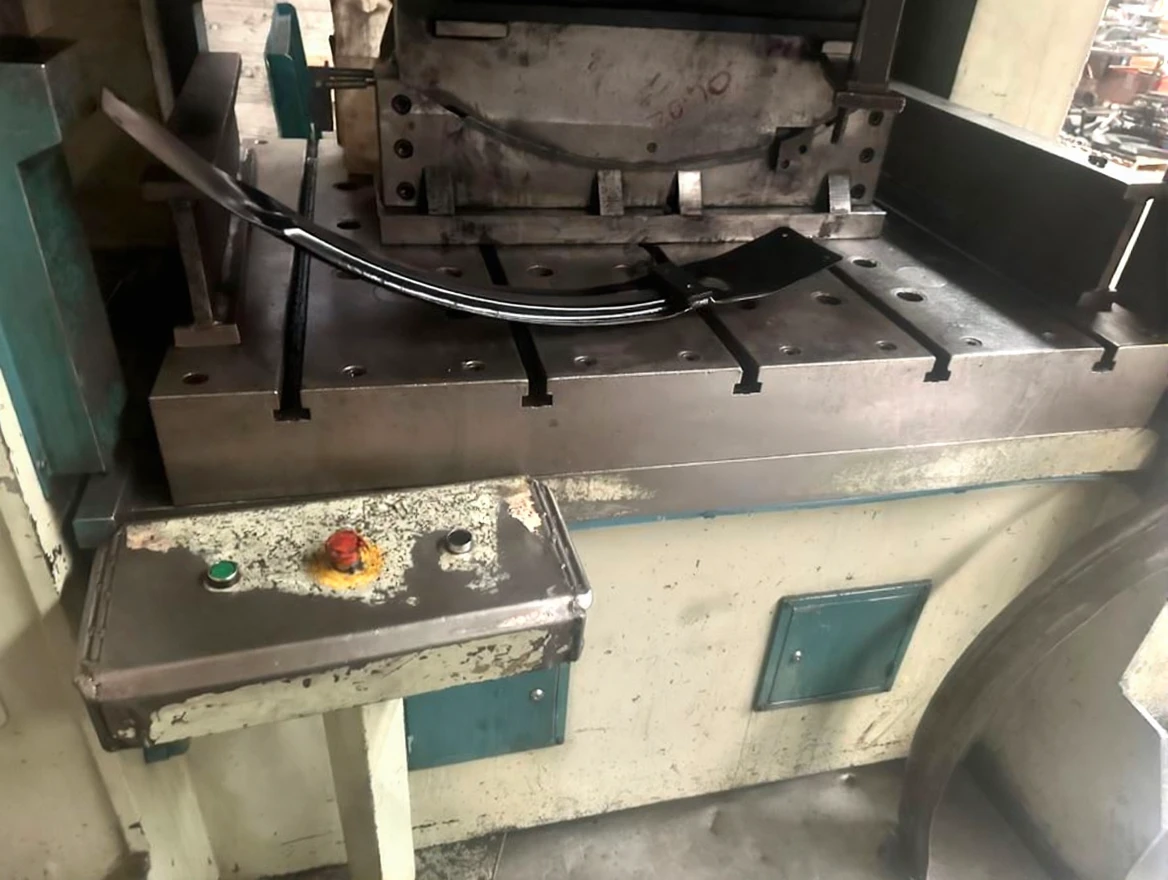

TABLE SIZE 700X800 MM

MAX. RAM PRESSURE FORCE: 2500 kN

ADJUSTED MAX. PRESSURE: 270 bar

MAX. EJECTOR FORCE: 800 kN

MAX. EJECTOR PRESSURE: 270 bar

MAX. RAM STROKE DISTANCE: 250mm

RAM MOVEMENT SPEED EMPTY / IN / RETURN: 200 – 16 • 200 mm/s

MAX. EJECTOR STROKE DISTANCE: 250mm

DISTANCE BETWEEN RAM AND TABLE: 425mm.

MAX. DIE WEIGHT ON RAM: 1080kg

VOLTAGE: 3 x 380 Volt 50 Hz

CONTROL VOLTAGE: 220Volt 50 Hz

MOTOR POWER: 22kW 1450 rpm

NOISE LEVEL: 75dB.

SHIFTING TIME: [ URL HIDDEN ]

SHIFTING DISTANCE: 14mm.

WEIGHT OF THE MACHINE: 22000kg

YEAR OF MANUFACTURE : 4 • 1998
