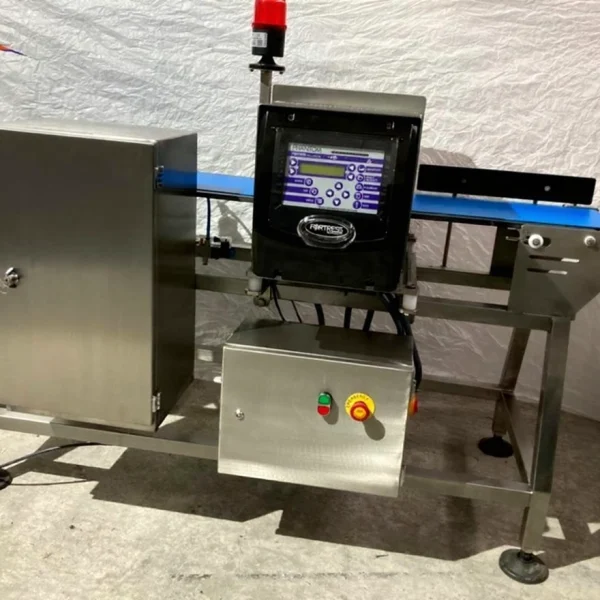

Domestic Production Food Metal Detector

Domestic Production Food Metal Detector

Elevate food safety to the highest level with our certified and high-quality metal detectors that fully comply with BRC and IFS standards. Tunnel dimensions are specially produced according to the customer’s needs. Offered with the assurance of domestic production, cost advantage, and 24/7 technical support. Your reliable solution partner with strong references!

Conveyor-based domestic production.

Manufactured according to the desired size.

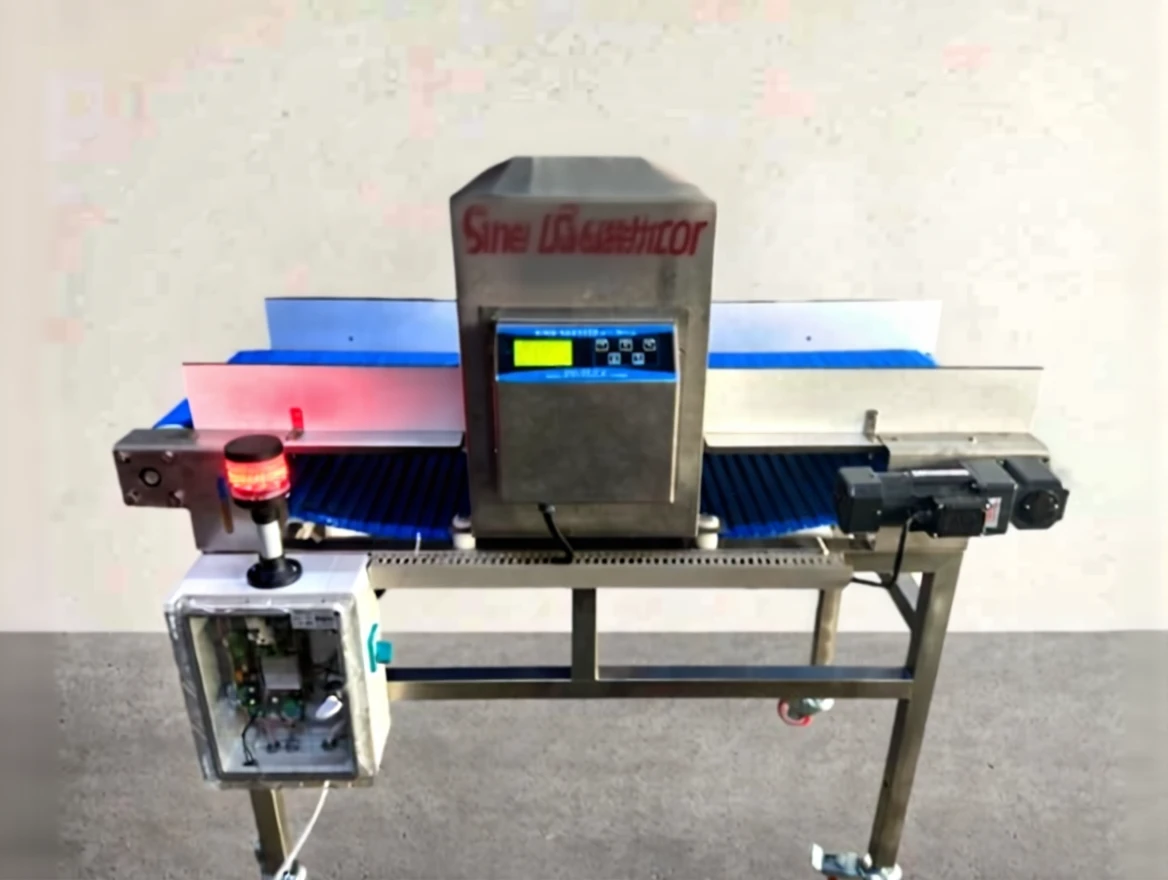

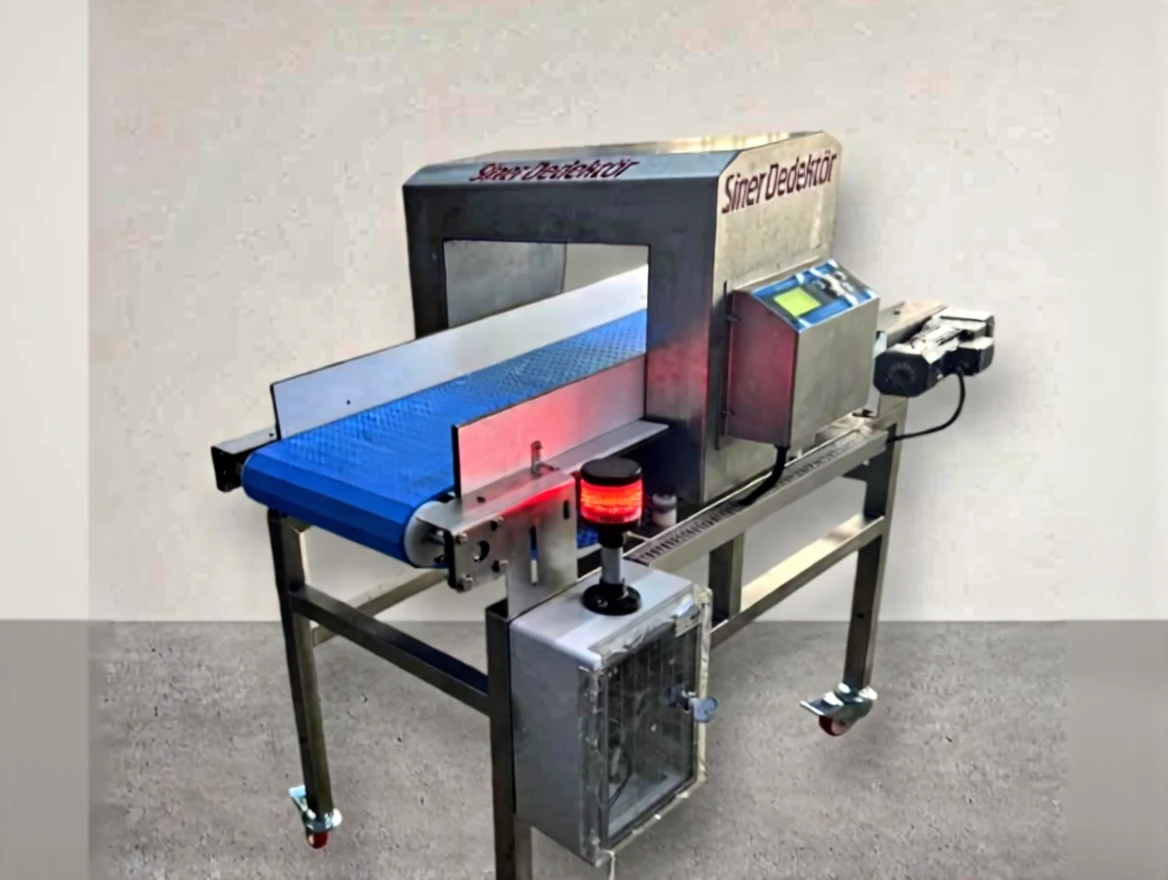

Siner Metal Detector Technical Specifications
Model: SİNER-T-027-246

• Product: Seafood

• Construction: 304 Stainless Steel

• Tunnel Dimensions: W: 400mm – H: 400mm

• Conveyor Dimensions: 1300mm

• Belt Type: Modular belt

• Reject System: Light and sound alarm, stop the belt

• Additional Accessories: Adjustable feet + and – 5 cm

• Detector Control Screen: 128×64 graphic display

• Detector Operating Language: Turkish and English easy menu

• Memory: 9 different product memory

• Detector Power Supply: 220V 50Hz

• Detector Frequency: 110kHz – 220kHz

Detector Sensitivity

• Ferrous Metals: mm

• Non-Ferrous Metals: mm

• Stainless Steel: mm

Detector sensitivity may vary according to the amount of product passing through the detector and the product’s conductivity coefficient.

• Protection: Compliant with IP 65 Standard

• Fully Automatic Balance: Adjusts itself according to its location

• Automatic Calibration: One-touch memory recording, 9 different product memory

Dimensions

• Maximum Product Dimensions: 180 mm (W) x 300 mm (D) x 200 mm (H)

• Machine Product Dimensions: 920 mm (W) x 1300 mm (D) x 1200 mm (H)

• Machine Weight: 210 kg

Power

• Transmission (Worm Gear): Reducer Type and model 0.18 kW – i: 15

• Main Power: 3 Phase 380 V 50 Hz

Other Features

• Auto Test: Automatically tests itself

• Metal Detected Confirmation: Stops the belt with a light and sound warning when a product containing metal is detected

• DSP Technology: Available; Microprocessor controlled signal system

• Password Protection: Available

• Modular Electronics: Easy to maintain and developed
