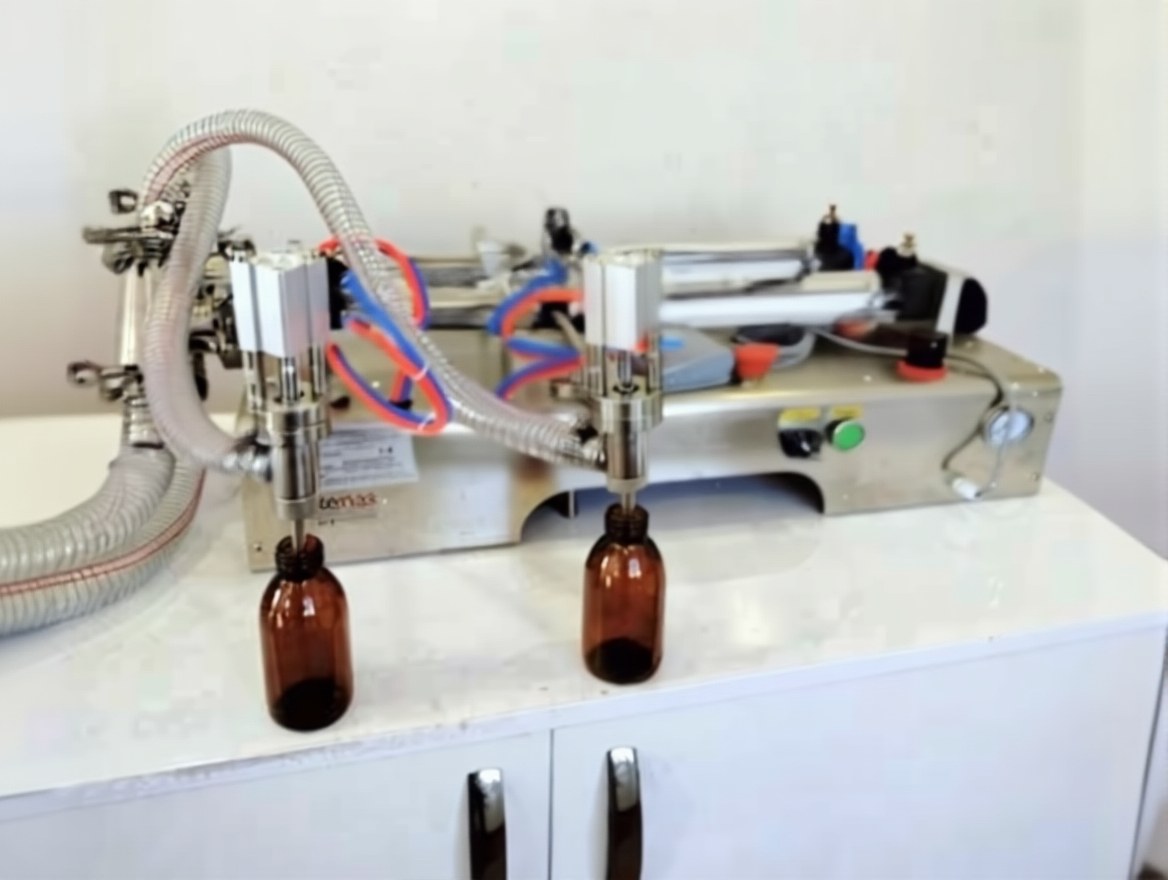

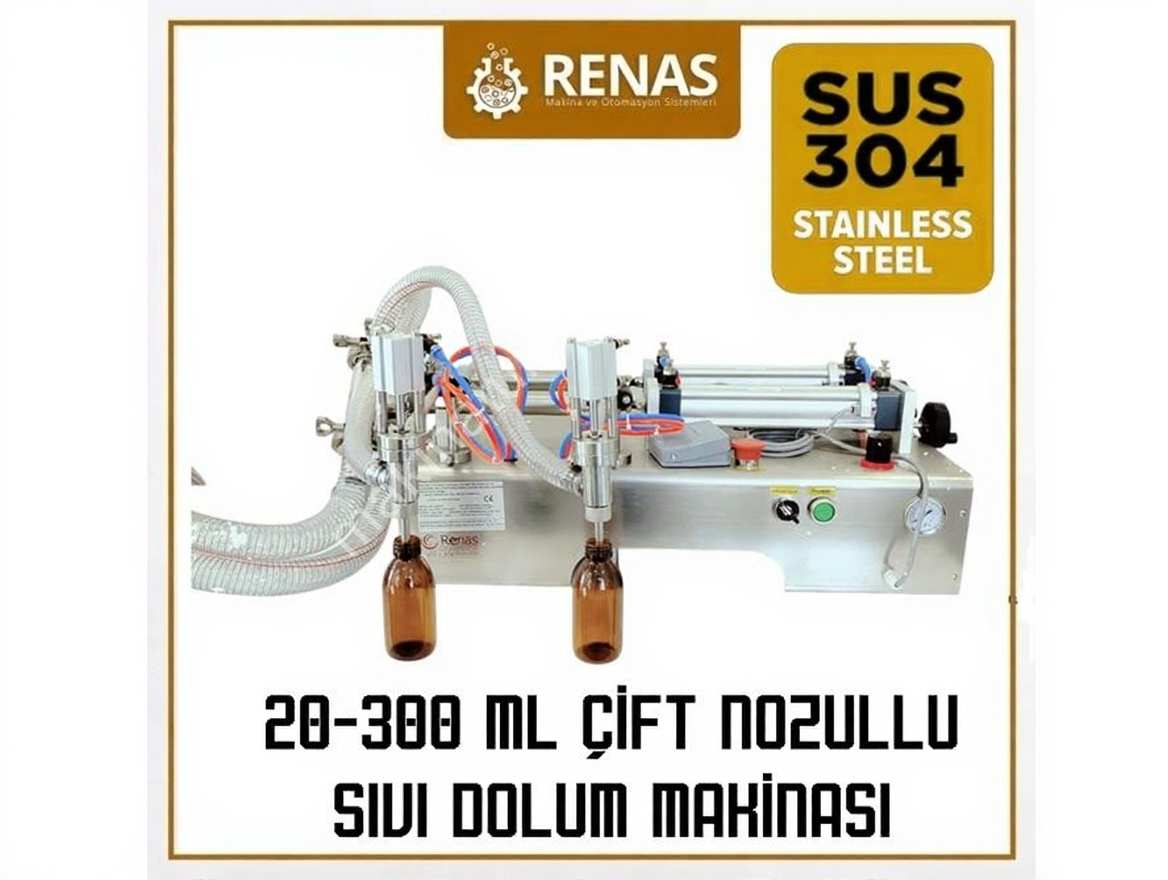

Double Nozzle Buttermilk Filling Machine 300 Ml

Technical Specifications of CYD-S2-3ml Liquid Filling Machine

General Features of CYD-S2-3ml Liquid Filling Machine

1. Can fill all low and medium viscosity products between 20 – 300 ml.
2. More hygienic, faster, more precise machine compared to old methods. Therefore, fillings made with this machine are much more professional and suitable for industrial production.
3. It has all the features of the CYD-S series. In addition, the biggest difference from the CYD-S series is its dual nozzle, which allows you to fill two products at the same time. You can perform the filling process of two different products in different weights at the same time.
4. The flanged ferrule system at the connection points allows the machine to be easily disassembled and quickly cleaned.
5. All sealing materials, such as gaskets, that come into contact with the product during filling are made of anti-bacterial silicone. Thus, you establish a system that meets hygiene conditions (GMP requirements).
6. It has a precise dosing arm. This way, you can perform filling processes with minimum deviation in different filling ranges.
7. It has an emergency stop button. With this button, the machine can be stopped in case of emergency regardless of the machine's position. This way, you comply with the requirements of the Labor Law No. 6331.
8. There are two different operating methods available. One of these operating methods is automatic. You can also use the filling machine in manual mode using the pedal provided free of charge.
9. CYD-S2-300 double-headed liquid filling machine has a non-drip nozzle system. With this system, there is no dripping after the fillings are completed. Thus, you prevent any weight loss that may occur.
10. It has a honed product suction plunger. With the suction plunger, it performs filling even in high-weight products with high precision. Thanks to the slide valve system at the air inlet, the system can be vented without the need for an additional valve when the process is completed.
11. The body of the machine and other metal parts are made of stainless steel.
12. The machine is protected against electrical hazards with the grounding in the machine chassis.
13. Having an electropneumatic system provides an advantage in preventing weight losses by making precise dosing.
14. It can be used in filling operations of many liquid products such as fruit juice, water, turnip juice, low viscosity shampoo, liquid soap, milk, liquid oil, mineral oil, syrup.
