Drum Screen Food Fruit Vegetable Washing Machine

Drum Screen Food Fruit Vegetable Washing Machine

Tidap TE2000 Drum Screen is a highly efficient machine used in many sectors where washing of fruits and vegetables and solid-liquid separation is required, with its rotary screen type fine grids. This equipment performs very fine separation between 250-2000 microns and can be manufactured with internal or external flow. Solid materials are retained on the screen surface and collected and removed by the cleaning system.

Internal Flow System: Water and wastewater coming from the inside ensure that solid materials are retained within the screen. Solid materials are collected by the cleaning system and transferred to the chamber.

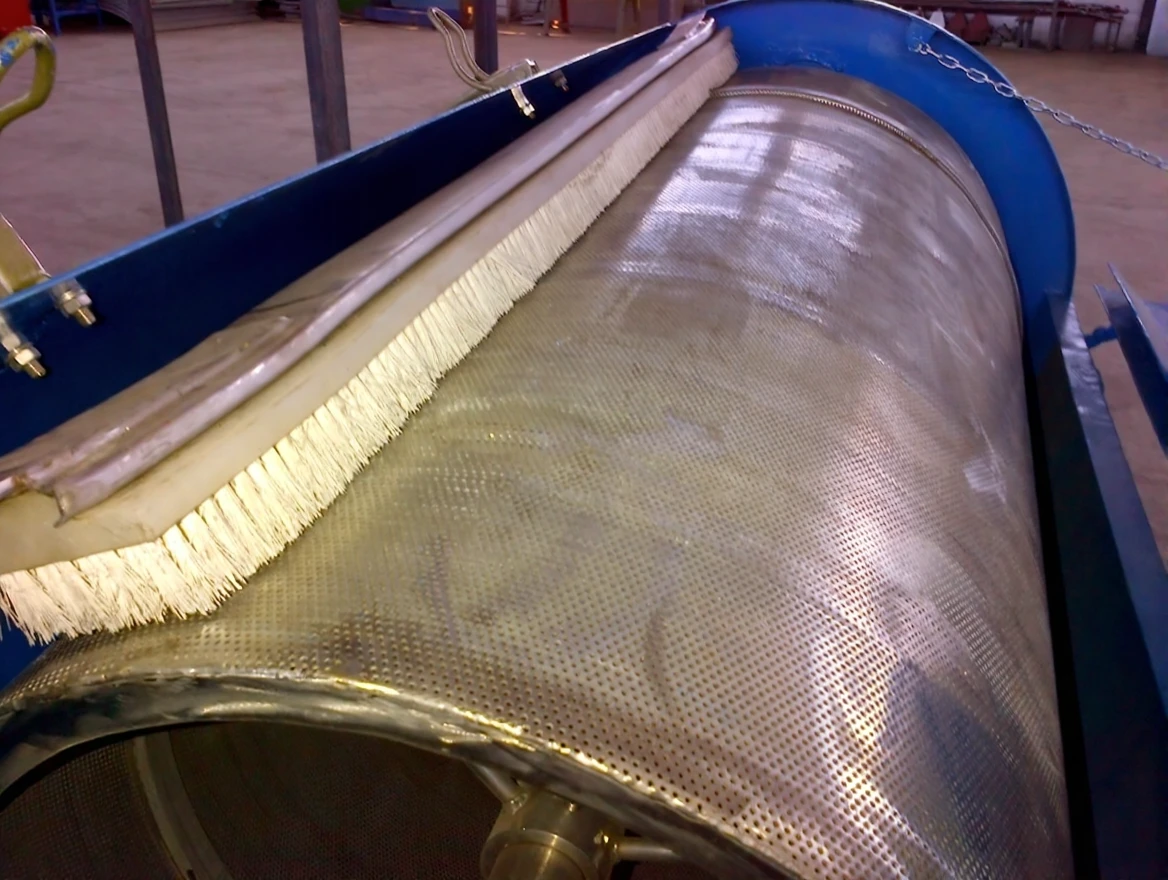

External Flow System: Water and wastewater come from the outside, solid materials are retained on the surface and collected by the cleaning brush.

Drum screens can be produced from stainless steel (AISI304/AISI316), galvanized or epoxy painted carbon steel upon request.

Features:

• Separation Capacity: Drum screen capable of fine separation of 250-2000 microns

• Screen Material: AISI304/AISI316 imported/local options

• Flow Types: Internal or external flow systems

• Construction Material: Stainless steel, galvanized or epoxy painted carbon steel

• Motor-Reducer: Equipped with motor-reducer system

• Automatic Cleaning System: Includes water tank and automatic cleaning system

• Long Lifespan and Maintenance-Free: Provides long-lasting use with durable construction

Areas of Use:

• Wastewater Treatment Plants

• Feedlots and Farms

• Slaughterhouses and Abattoirs

• Dairy and Dairy Products Facilities

• Fruit and Vegetable Washing and Processing

• Recycling and Recovery Sector

• Mining

• Processes Requiring Solid-Liquid Separation
