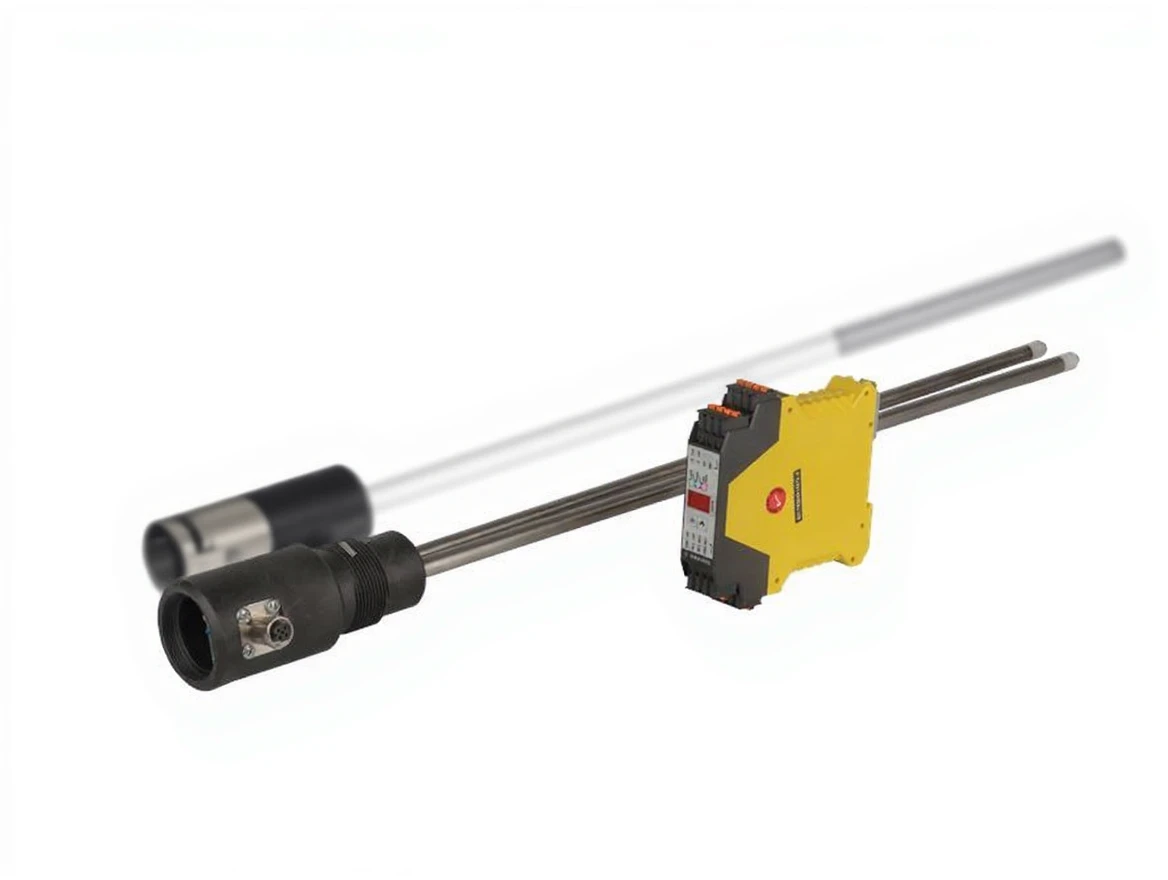

Dual Probe Capacitive Sensor and Analog Converter (1)
| Brand | Endüstriyel |
|---|---|
| Model Type |
EE-CS-HAB-CON-02 |
Description
• Capacitive level sensor with dual probe is used for level control in solid particle and powder materials.
• The product creates a change in capacity when it comes into contact with the sensor, and this change is shown in% with the Analog Converter.
• Designed for difficult process conditions, it is optimized for measuring the level of granular solid materials.
• The sensor is not affected by dust and silo dust.
• The Analog Converter reads the level of the capacitive sensor that communicates and provides display output (0-99), 4-20mA output, and relay output according to the set parameters.
• The product creates a change in capacity when it comes into contact with the sensor, and this change is shown in% with the Analog Converter.
• Designed for difficult process conditions, it is optimized for measuring the level of granular solid materials.
• The sensor is not affected by dust and silo dust.
• The Analog Converter reads the level of the capacitive sensor that communicates and provides display output (0-99), 4-20mA output, and relay output according to the set parameters.
Analog Converter Technical Specifications:
Operating Voltage: 24V DC
Power Consumption: 3.25W
Digital Output: 2 x SPDT Relay
Analog Output: 4-20 mA (max.250 Ω)
Digital Input: 2 x DIN / 24V DC
Dual Probe Capacitive Sensor Technical Specifications:
Operating Voltage: 5V DC
Communication Protocol: RS-485 Modbus
